NGK Spark Plug Reading: A Practical Guide for DIYers
Learn how to read NGK spark plugs to diagnose engine health, spot fouling, misfires, and wear, and guide maintenance with practical, step-by-step guidance.
NGK spark plug reading is the quick, practical way to assess your engine's health by inspecting plug color and deposits after removal. It helps you decide cleaning, gap adjustment, or replacement. This quick check can guide maintenance decisions and support reliable starting and smooth operation.
What NGK spark plug reading reveals about your engine
NGK spark plug reading is a practical diagnostic method that uses visual cues from the plug after removal to infer engine condition. According to MultiPlugging, this approach helps homeowners and DIY enthusiasts gauge whether the engine is running correctly, burning fuel efficiently, and whether deposits indicate heat issues or oil intrusion. By comparing plug appearance to established color and deposit patterns, you can identify misfires, fouling, or incorrect gaps and decide whether cleaning, gap adjustment, or replacement is needed. This method pairs well with a basic maintenance routine and can save diagnostic time during routine servicing. Reading plugs is not a substitute for professional diagnostics, but it provides a reliable first-pass check you can perform with common tools.
Read color and deposits: what to look for
Color and deposit patterns on NGK spark plugs are telling signs. A light tan or gray insulating ceramic and evenly distributed deposits generally indicate good combustion and a healthy engine. Deep brown or black sooty deposits often point to a rich fuel mixture or excessive idling, while dry, white deposits can signal detonation or overheating. Oily or wet deposits suggest oil intrusion into the combustion chamber, which could indicate worn rings, valve guides, or piston seals. Use a clean, dry cloth to wipe the plug tip before noting color, and compare several plugs from the same engine to spot inconsistent readings. Always refer to NGK color guidelines and your engine type for context.
Fouling types and what they mean
Fouling comes in several forms, each with its own diagnostic implication. Carbon fouling appears as black, dry, sooty deposits and usually points to an overly rich fuel mix, bad ignition timing, or weak spark. Oil fouling shows oily, wet residues and can indicate oil leaks or burning oil. Fuel fouling presents as wet, black, oily deposits caused by fuel washing the spark plug. Wet plugs are more common after cold starts or during short trips where the engine doesn’t reach optimal operating temperature. Distinguishing the type of fouling helps you decide whether to adjust the fuel system, address oil leaks, or replace the plug.
Checking gap and condition: tools and method
A proper NGK spark plug reading includes verifying the electrode gap and overall wear. Use a gap gauge or a dedicated NGK gap tool to measure the center electrode gap against the manufacturer’s specification for your vehicle. If the gap is out of spec, adjust carefully or replace the plug. Inspect the electrode for wear: a rounded or eroded center electrode, rounded ground electrode, or cracked porcelain indicates replacement is necessary. Use a torque wrench to reinstall plugs to the correct specification, minimizing the risk of damaging threads or inlet seals. Clean threads with a rag and a small brush if deposits are present, but avoid stripping the threads.
Reading plugs under different operating conditions
Engine state affects plug readings. During cold starts, deposits may be damp and appear different from those formed during hot running. Under high-load conditions, heat range and burn temperature influence color; plugs from a high-performance engine may read differently than those from a daily commuter. Always compare readings from plugs that have operated under similar conditions. Document any notable differences, and consider repeating the check after a few days of normal driving to confirm trends.
Practical maintenance decisions based on readings
Based on what you observe, you can make informed maintenance choices. Consistently clean, properly gapped plugs may extend service life, but worn electrodes or eroded gaps warrant replacement. Oil fouling often signals an engine issue that should be addressed beyond plug replacement, such as valve seals or piston rings. If deposits are heavy and frequent, a plug with a heat range suited to your engine’s operating temperature may improve combustion. Always reinstall plugs with anti-seize compound on the threads (where appropriate) and torque to spec. Document readings to track changes over time and adjust maintenance intervals accordingly.
Common mistakes and how to avoid them
Avoid rushing the inspection, as missing subtle color cues can lead to misinterpretation. Don’t mix up plug positions and wires; label each plug during removal. Never force a plug out of a tight thread or use excessive force to remove a stubborn plug. Clean the plug and threads before reinstallation, and always use a calibrated gap tool to set the correct gap. Finally, don’t rely on a single plug reading to make decisions—compare multiple plugs from the same engine and consider driving conditions and maintenance history.
Tools & Materials
- Spark plug socket with ratchet(3/8-inch drive recommended; use a socket with rubber insert to protect porcelain.)
- Feeler gauge or NGK gap gauge(Essential to measure and set the electrode gap to spec.)
- Torque wrench(Torque plugs to the manufacturer’s specification to prevent thread damage.)
- Rag or lint-free cloth(Wipe plugs clean before inspection and to dry threads.)
- Flashlight or headlamp(Better lighting helps reveal deposits and color accurately.)
- Container or tray(Keep removed plugs in a safe place to avoid loss or mix-up.)
- Anti-seize compound (optional, for aluminum heads)(Apply if the manufacturer recommends; follow torque specs.)
- NGK spark plug reading chart or reference guide(Useful as a quick reference for color and deposit patterns.)
Steps
Estimated time: 40-60 minutes

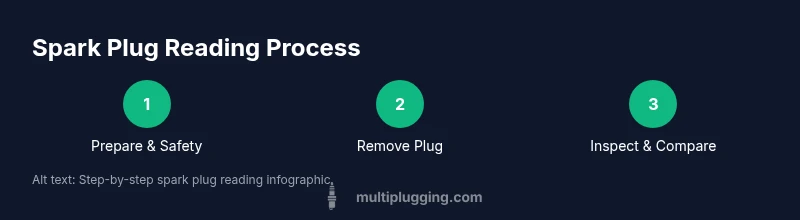

- 1
Prepare and safety
Park the vehicle on a flat surface, engage the parking brake, and disconnect the negative battery cable to prevent any accidental short circuits. Let the engine cool completely to avoid burns from hot components. Gather your tools and lay out a clean workspace.
Tip: Wear gloves and eye protection; cooling plugs can still be hot if the engine was recently run. - 2
Locate plugs and expose wiring
Open the hood and locate the spark plugs. If necessary, remove any engine covers or shielding to access the plugs without forcing wires. Take a photo of the wiring order before disconnecting any boots to ensure proper reassembly.
Tip: Label each spark plug wire or boot to avoid cross-wiring during reinstallation. - 3
Remove a plug
Using the spark plug socket, ratchet, and gentle rotation, loosen and remove the first spark plug. Do this one plug at a time to prevent confusion and to maintain cleanliness in the cylinder head area.
Tip: Use a light twist and pull straight out to avoid damaging the threads. - 4
Inspect plug tip and ceramic color
Wipe the plug tip with a clean rag and observe the color change on the ceramic insulator and the electrode. Note whether the color is light tan, gray, dark, black, or oily. Compare to typical readings for your engine type and driving conditions.
Tip: Keep a quick log of color observations to track trends over time. - 5
Assess deposits and fouling
Identify types of fouling: carbon, oil, or fuel-related. Determine if the deposits are consistent across cylinders or isolated to one plug. This helps pinpoint potential engine issues such as fuel trim problems or oil leaks.
Tip: If deposits look unusual, consult service manuals or a professional for deeper diagnosis. - 6
Check and adjust the gap
Measure the electrode gap with a gauge and compare it to the manufacturer’s specification. If out of spec, adjust using the gauge carefully or replace the plug. Record the gap for future reference.
Tip: Be precise; a small misgap can cause misfires or reduced performance. - 7
Reinstall or replace
If the plug shows wear or abnormal deposits, decide whether to clean and reinstall or replace with a new NGK plug of the correct heat range and impedance. Re-torque to spec during installation.
Tip: When replacing, use new washers if provided and avoid cross-threading. - 8
Document and wrap up
After all plugs are inspected and installed, reconnect the battery and startup the engine to verify a smooth idle. Record your observations and any changes you plan for future maintenance cycles.
Tip: Take a final walk-around to ensure no tools are left in the engine bay.
