How to Spark Plug Reading: A DIY Diagnostic Guide
Learn how to read spark plugs to diagnose engine health. This step-by-step guide covers color, deposits, gap, and replacement decisions for DIY enthusiasts.
According to MultiPlugging, spark plug reading is a practical DIY skill that helps you assess engine health by inspecting electrode wear, deposits, and gap. You’ll remove a plug, inspect the ceramic insulator, measure the gap with a feeler gauge, and compare colors and wear against references to decide if cleaning, gapping, or replacement is needed.
Safety and Preparation
Reading spark plugs starts with good safety and a clean workspace. According to MultiPlugging, you should allow the engine to cool completely before touching any components to avoid burns. Gather your tools, disconnect the negative battery terminal if you’ll be working near the electrical system, and wear eye protection. A tidy work area prevents debris from falling into the intake or cylinder and makes the process smoother. In this section we’ll outline the precautions, the baseline tools, and a quick mental checklist to ensure you’re ready for a safe, effective inspection.
Spark Plug Reading: Purpose and What It Reveals
Spark plug reading isn’t about judging a plug in isolation; it’s a diagnostic technique that helps you infer the health of the ignition system, fuel mixture, and combustion efficiency. The color and condition of the insulator tip, electrode wear, and deposits tell a story about combustion, air-fuel ratio, and maintenance history. The MultiPlugging team emphasizes that consistent readings over time are more valuable than a single snapshot. You’ll learn to interpret common patterns—lean, rich, fouled, or degraded plugs—and use that knowledge to guide cleaning, replacement, or tune-up decisions.
Visual Cues: Color, Deposits, and Wear
Color on the ceramic insulator can indicate heat and combustion quality. A light tan or gray insulator typically signals normal operation, while very dark or oily coatings suggest fuel or oil leakage, or excessive carbon buildup. Deposits vary in meaning: dry, sooty deposits often point to rich fuel mixtures or misfiring, while oily films can indicate oil ingress. The electrode gap should have a precise width; excessive wear shortens the spark duration and lowers efficiency. MultiPlugging notes that color interpretation improves with experience and consistent reference samples.
Interpreting Color and Deposits: A Quick Guide
Interpreting plug color requires correlating visuals with engine conditions. Light gray or tan insulators with minimal carbon are a sign of healthy combustion. Black, dry sooty deposits may indicate a lean burn or weak ignition, while a wet, oily plug points toward oil burning in the cylinder. A white, chalky insulator can signal a pre-ignition issue or overheating. Use these cues alongside your vehicle’s symptoms (misfires, rough idle, or reduced power) to decide whether you should clean the deposits, adjust the air-fuel mixture, or replace the plug. The goal is to establish a baseline for your specific engine and monitor changes over time.
Measuring Gap and Replacing: When and How
A correct gap is essential for reliable ignition. Use a feeler gauge to measure the electrode gap to the OEM specification (often printed in the owner’s manual). If the gap is too wide, you’ll lose spark energy; if too narrow, ignition timing can be off. If deposits or wear are excessive, replace the plug rather than attempt a risky gap adjustment. Always reset the gap after installation according to the manufacturer’s specification and torque the plug to the recommended value to avoid thread damage.
Step-by-Step Reading Procedure (Hands-On)

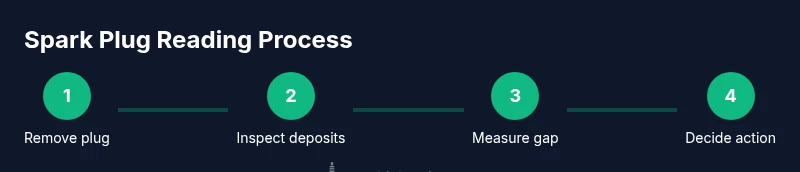

This hands-on approach builds a repeatable routine to assess spark plugs quickly and safely. Start by preparing your workspace, removing the plug with a proper spark plug socket, and inspecting it in a well-lit environment. Compare the color, deposits, and gap to a reference chart, and decide whether cleaning, gap adjustment, or replacement is needed. Reinstall the plug with the correct torque, reconnect the boot, and test the engine to confirm operation. See the accompanying step-by-step guide for precise actions and visual cues.
Cleaning, Reinstallation, and Next Steps
If you decide to reuse a plug, clean it carefully and inspect for any heat damage or cracked ceramic. Apply anti-seize to threads only if the manufacturer recommends it, and torque to spec to avoid overtightening. Reconnect any wires, run the engine, and listen for misfires or roughness. Remember to document readings to track engine health over time. Regular checks help catch issues early and guide maintenance decisions before they become costly repairs.
Tools & Materials
- Spark plug socket with rubber insert(3/8-inch drive preferred; magnetized is a plus)
- Ratchet wrench(Appropriate size for your plug base)
- Feeler gauge or gap tool(For measuring and setting the electrode gap)
- Torque wrench(Torque to OEM specification when reinstalling)
- Feeder rag / shop towels(Keep area clean and dry; wipe deposits gently)
- Non-abrasive cleaner or carb cleaner spray(Optional for removing stubborn deposits)
- Anti-seize compound (optional)(Apply lightly on threads if recommended by OEM)
- Safety gloves(Protect hands from heat and chemical exposure)
- Safety glasses(Eye protection against debris)
Steps
Estimated time: 25-40 minutes
- 1
Prepare and safety check
Ensure the engine is cool and the area is well-lit. Disconnect the battery if you’ll be near circuitry, and lay out your tools. This minimizes the risk of burns and short-circuits and helps you work efficiently.
Tip: Wipe the work area clean before starting to prevent debris from falling into the engine. - 2
Access the spark plugs
Open the hood and remove any components blocking access to the spark plugs. If needed, remove the coil packs or wires carefully to expose the boot. Label wires if you’re dealing with a multi-spark setup to avoid confusion later.
Tip: Use a flashlight to clearly see the boot and boot clip orientation. - 3
Disconnect plug wires and remove plug
Grip the boot, twist gently to break the seal, and pull straight out without yanking. Place the boot aside. Fit the spark plug socket over the plug and loosen counterclockwise with a ratchet until it threads free.
Tip: Don’t wrench the plug; keep the socket square on the plug to avoid damaging threads. - 4
Inspect the plug visually
Hold the plug up to a light source and note the insulator color, electrode wear, and deposits. Compare with a reference chart. If you see obvious damage, replace the plug rather than attempting a risky repair.
Tip: Take a quick photo for your records to track changes over time. - 5
Measure the gap
Use a feeler gauge to measure the electrode gap according to the OEM spec. If the gap is off, adjust only within the manufacturer’s tolerance and never pry the electrodes. Dirty deposits can skew readings, so clean gently if you’re reusing.
Tip: Record the measured gap for future reference. - 6
Decide on cleaning or replacement
If deposits are light and the gap is within spec, you may reuse after cleaning. Significant wear, heavy fouling, or damaged ceramic requires replacement. Always use a new plug when wear is excessive.
Tip: When in doubt, replace the plug to avoid unreliable ignition. - 7
Reinstall the plug with correct torque
Apply anti-seize only if recommended and tighten to the OEM torque specification using a torque wrench. Reconnect the boot securely and avoid forcing the connection.
Tip: Do a final check to ensure the boot is properly seated with no loose connections. - 8
Test and observe engine performance
Start the engine and listen for smooth operation and a steady idle. If misfires or rough running persist, recheck the plug seating, gap, and connector integrity. Document readings for future maintenance.
Tip: If misfires return, check ignition coils, wires, and fuel system as well.
FAQ
What does a healthy spark plug look like?
A healthy plug typically shows a light tan to gray insulator, minimal deposits, and even electrode wear. There should be no oily film and no excessive carbon buildup. Use readings over time to confirm a stable baseline.
Healthy plugs are light gray with little to no buildup and even wear; use repeated checks to confirm your baseline.
What does black deposits indicate on a spark plug?
Black, dry deposits usually indicate a rich fuel mixture or misfiring. If the deposits are wet, oil may be entering the combustion chamber. In either case, address fuel delivery or seal leaks as the root cause.
Black dry deposits suggest a rich mix or misfire; wet deposits point to oil intrusion.
How often should I read spark plugs?
Read plugs during regular maintenance or whenever you notice performance symptoms like rough idle or reduced power. For many engines, a plug inspection every 30,000 miles is common, but always follow the OEM schedule.
Check plugs when you service the car or notice performance issues; follow your vehicle’s maintenance schedule.
Can I read plugs without removing them?
In most cases, a complete reading requires removal to inspect the insulator and electrode, but some quick checks near the boot can give hints. For definitive assessment, remove the plug and measure the gap.
Often you’ll need to remove the plug for an accurate read; quick checks near the boot aren’t enough for a full read.
Which tools help reading spark plugs effectively?
A spark plug socket with a ratchet, feeler gauge, and torque wrench are essential. Optional items include a small cleaning brush and anti-seize. Use proper PPE and a clean workspace to get accurate readings.
Essential tools are a socket, ratchet, gap gauge, and torque wrench; use PPE for safety.
Watch Video
Main Points
- Read plugs to gauge engine health using color and deposits.
- Measure and verify the spark plug gap to OEM specs.
- Decide on cleaning or replacing based on wear and fouling patterns.
- Torque plugs to specification to avoid head damage.
- Document readings for trend tracking with MultiPlugging guidance.
