How to Remove a Broken Spark Plug: A DIY Guide
Learn how to safely remove a broken spark plug with the right tools, steps, and tips to protect threads, install a new plug, and get your engine running smoothly.
According to MultiPlugging, removing a broken spark plug safely starts with the right tools, a clean workspace, and a patient, step-by-step plan. You’ll learn how to assess the break, prepare the area, apply penetrating oil, and extract the stub without twisting threads. This quick answer sets the foundation for a successful repair and a reliable engine restart.
Why removing a broken spark plug matters
A broken spark plug can leave a threaded hole vulnerable to corrosion, misfire, and sudden power loss. If the fragment remains in the bore, it can act as a snag point for the new plug or disrupt compression. The action of removing a broken spark plug is not simply about extracting a piece; it's about preserving cylinder head integrity and ensuring a proper seal when you install a replacement. DIYers who attempt to force the plug can worsen thread damage or drop debris into the combustion chamber. The goal is to remove the fragment with controlled torque, using the right extraction tools, and to inspect the threads afterward. According to MultiPlugging, the best outcomes come from diagnosing the break early, choosing the right tool, and proceeding with patient, methodical steps. When you master the technique, you reduce the chance of call-backs and expensive repairs, and you get your engine back to reliable operation faster.
Safety first: Tools, safety, and workspace
Before you reach for a tool, set up a clean, well-lighted workspace. Disconnect the battery or ignition coil to prevent accidental cranking. Wear safety glasses and gloves; spark plug fragments can be sharp, and debris can fly when metal is stressed. Keep a clean rag, a small magnet, and compressed air handy to control debris. The most essential tools are a proper spark plug removal socket, a ratchet, and penetrating oil; optional but highly recommended are a torque wrench and an anti-seize compound. A stable vehicle stance is critical; use jack stands and wheel chocks as needed. This section ensures you minimize risk to yourself and the engine while you work.
Assessing the break: plug fragment location and thread health
Start by locating where the fragment sits. If the porcelain portion is visible above the seat, extraction may be simpler; if it is embedded deeper, you may need more advanced approaches. Check the surrounding threads with a flashlight; any signs of cross-threading, burrs, or stripped metal mean you must proceed with caution or stop. If the plug remains lodged, avoid prying with metal tools that can gouge the head. Consider the piston position: if the cylinder is at TDC, you have less risk of pushing debris into the chamber. Document any thread damage, as this affects whether you need a repair like helicoil or thread chasing after removal.
Preparation: cleaning around the plug area and planning extraction
Clean the spark plug area to reduce dirt getting into the cylinder. Apply penetrating oil to the threads and let it soak for 5–15 minutes; this helps break corrosion and reduce friction. Blow away loosened debris with compressed air; caution: wear eye protection and keep your face away from the spark plug well. Prepare the extraction kit or tool that matches the plug size (often 5/8 inch or 13/16 inch sockets). If you choose to use anti-seize on the new plug, do not overapply; a light film is enough to prevent stiction during future removal.
Helpful approaches and methods for removal
Two common approaches work for a broken plug: using a left-hand threaded extractor, or using a standard extractor kit with a drill-out technique if the stub has no grip. In most cases, the extraction tool must engage the exposed portion firmly without biting into the surrounding metal. Choose a method that matches your car’s design and your tool set, and never force the stub; apply steady, incremental torque and back off if resistance increases. Keep the area cool and dry to prevent metal fatigue.
Aftercare: inspecting threads and preventing future failures
Once the plug is out, inspect the bore. If threads appear damaged, use a thread chaser or a helicoil repair as needed; this prevents future plug loosening. Clean the threads and apply anti-seize to the new plug before installation (if recommended by the vehicle manufacturer). Torque the new plug to the specified value and check for proper seating. Finally, test the engine to ensure proper compression and that no debris remains.
Tools & Materials
- Spark plug removal socket(Choose the size that matches your plug (commonly 5/8" or 13/16").)
- Ratchet wrench(With a long handle for leverage; extension can help in tight spaces.)
- Torque wrench(Used for final torque on the replacement plug.)
- Penetrating oil(Apply to threads and let dwell 5–15 minutes.)
- Anti-seize compound(Light film on the new plug if recommended by manufacturer.)
- Spark plug thread chaser or thread repair kit(Use if threads show minor damage after removal.)
- Magnet pickup tool(Helpful for retrieving dropped pieces.)
- Shop towels(Keep area clean and dry.)
- Safety glasses(Protect eyes from debris.)
- Gloves(Wear for hand protection.)
- Compressed air can(Clear loose debris safely.)
Steps
Estimated time: 60-120 minutes
- 1
Prepare the workspace
Park on a level surface, engage parking brake, and disconnect the battery if accessible. Clear the area of clutter and have your tools organized so you can reach them without shifting around the engine bay. This minimizes the chance of dropping debris into the cylinder and reduces fatigue during the removal.
Tip: Label tools in order of use to speed up the process. - 2
Disconnect the battery and ignition
Remove the negative battery cable or disable the ignition coil to prevent accidental cranking while you work. This protects you and the engine from unexpected starts that could spin the engine over the broken plug.
Tip: Double-check that the engine is truly off before proceeding. - 3
Apply penetrating oil to threads
Spray the affected area generously with penetrating oil and let it dwell for 5–15 minutes. The goal is to loosen corrosion and reduce resistance when you attempt to extract the stub.
Tip: Reapply if you still feel tightness when turning. - 4
Clean around the plug well
Blow or wipe away dirt and debris from around the plug opening using compressed air or a clean rag. Keeping debris out of the cylinder is critical to prevent scoring the bore during removal.
Tip: Maintain a steady grip and avoid pushing debris inward. - 5
Attach the extraction tool to the exposed plug
Fit the correct size socket onto the broken plug’s exposed portion and secure the tool. Ensure the tool has a firm bite so you can apply controlled torque without slipping.
Tip: Do not let the tool bite into the ceramic insulator. - 6
Gently back the fragment out
Apply slow, even counterclockwise pressure to back the stub out. If it resists, stop and reassess rather than forcing it, which can damage threads.
Tip: If the plug turns but the stub remains, switch techniques. - 7
Switch to an alternative extraction method if needed
If you can’t grip the stub, consider a left-hand-thread extractor or a drill-out approach guided by a repair manual. Follow the kit’s instructions precisely to avoid bone-dry mistakes.
Tip: Avoid drilling deeper than the plug depth to prevent chamber damage. - 8
Inspect threads and prepare for replacement
Once the fragment is out, inspect the bore and threads for damage. Clean any burrs and decide if a thread chaser or helicoil repair is necessary before installing a new plug.
Tip: If threads are damaged, stop and plan a proper repair before proceeding. - 9
Install a new spark plug and test
Apply a light coating of anti-seize if recommended, torque to spec, and reinstall any removed components. Reconnect the battery and test the engine to confirm smooth operation and that there are no leaks.
Tip: Always torque the plug to the manufacturer’s specification.
FAQ
What causes a spark plug to break?
Breakage can occur from overtightening, corrosion, cross-threading, or overheating. A compromised plug is at higher risk of fragmenting during removal or operation.
Breakage usually comes from overtightening, corrosion, or overheating, which weakens the plug before you try to remove it.
Can I drive with a broken spark plug?
No. Driving with a broken spark plug can cause engine misfire, reduced power, and potential internal damage. It’s best to address it before continued use.
Not recommended—misfires can harm the engine and exhaust system.
What tools do I need to remove a broken spark plug?
You’ll need a spark plug removal socket, a ratchet, penetrating oil, and possibly an extraction kit. A torque wrench helps ensure correct installation of the new plug.
The basics are a spark plug socket, ratchet, penetrating oil, and an extraction kit if needed.
What should I do if the plug remains stuck after attempts?
Stop attempting to remove it with force. Reassess tooling and technique, and consider professional help to avoid thread damage or cylinder damage.
If it won’t budge, it’s time to seek professional assistance.
Will replacing the spark plug fix a misfire?
Replacing the plug and ensuring proper gap and torque often resolves misfires related to worn or damaged plugs. If misfire persists, further diagnostics may be needed.
Usually yes, after the new plug is correctly gapped and torqued.
Watch Video

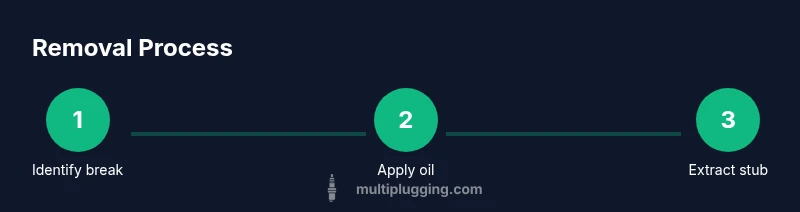

Main Points
- Identify the break location before force.
- Use penetrating oil and dwell time to ease removal.
- Engage the right extraction tool for a secure grip.
- Inspect and repair threads after removal.
- Torque the new plug to spec and test drive.
