How to Use a Broken Spark Plug Removal Tool: Step-by-Step Guide
Learn how to safely remove a broken spark plug with a dedicated removal tool. Tool selection, safety, a detailed step-by-step process, tips, and aftercare to protect engine threads.
Using a broken spark plug removal tool safely and effectively requires selecting the right extractor, stabilizing the plug, and turning counterclockwise with controlled pressure. Start by assessing the break, then choose the tool size to match the plug hex or socket, lubricate the area, and work patiently to avoid further damage. This approach minimizes thread damage and improves success rates.
how to use broken spark plug removal tool: practical guide
Removing a broken spark plug is a delicate operation that demands patience, the right tool, and a clean work area. In this section we’ll explore why a purpose-built removal tool matters, how the correct extractor size affects grip and torque, and how lubricants help the tool bite without snapping the plug further. According to MultiPlugging, choosing the right extractor size and ensuring a solid grip on the broken plug are the single most influential factors in achieving a clean removal. We’ll cover common scenarios (low-visibility, corrosion, partial plug in the bore) and explain how to approach each safely. The goal is to protect the engine head threads while extracting the fragment, so you can install a new plug with confidence and precision.
Types of broken spark plug removal tools
There isn’t a one-size-fits-all tool for every broken-plug situation. The most common tools include dedicated broken-spark-plug extractors that grip the center of the plug and turn out fragments, left-hand-thread extractors that bite when conventional tools fail, and multi-purpose screw extractors that can be adapted for stubborn plugs. When selecting a tool, consider the plug size (typically 5/8" or 13/16" hex), the depth of the bore, and whether the tool can reach into tight spaces without contacting the cylinder wall. A quality set of extractor bits, compatible with your socket wrench or drill, will perform better than improvised makeshift tools. Based on MultiPlugging analysis, tools that securely grip the plug head and offer a straight pull without wobble consistently yield better results than loose-titted or misaligned devices. Always keep a spare extractor bit handy and inspect for burrs before use.
How to choose the right tool for your engine
Choosing the right tool starts with identifying the plug size and the available extraction chamber. Verify the plug head size (common sizes include 5/8" and 13/16") and confirm there’s enough clearance around the bore to accommodate the tool and your hand. If the plug fragment is deeply recessed or the head is sheared, a compatible extractor with a longer reach and a stable handle is essential. Engine type matters: some modern engines have tighter bore clearance and fragile threads that require gentler torque and precise alignment. Always consult your vehicle’s maintenance manual for torque specs on the replacement plug and the recommended anti-seize or thread lubricant. As you select a tool, ensure it has a built-in stop to prevent over-rotation, reducing the risk of thread damage. In line with MultiPlugging guidance, tool compatibility with the plug’s material (copper, steel, or alloy) plus correct grip geometry dramatically improves outcomes.
Preparing the workspace and safety precautions
Before you touch anything: disconnect the battery to prevent any accidental short circuits or arcing. Allow the engine to cool if it’s recently run; hot metal and fast-moving tools increase the risk of burns. Gather all necessary tools and lay out clean rags to catch metal fragments. Work in a well-lit area with a magnetic tray or a magnet on a flexible stick to retrieve dropped pieces. Wear safety glasses and cut-resistant gloves to protect hands from sharp metal and hot surfaces. Keep a small brush handy to clean debris from the plug area, and have penetrating oil within reach to help loosen any corrosion. The aim is to have a controlled environment where you can apply steady pressure without surprises.
Step-by-step approach to using the tool (overview)
This section provides a high-level sequence you’ll follow in detail with the step-by-step block. You’ll identify the break, prepare the surface, apply lubricant, align the tool, and carefully extract the fragment. If you feel excessive resistance or the tool binding, stop and reassess to avoid thread damage. Throughout, protect the intake and prevent oil or solvent from dripping into the combustion chamber. Maintaining cleanliness is crucial to prevent contaminants from entering the cylinder.
Common mistakes and how to avoid them
Rushing the process is the leading cause of damage when removing a broken spark plug. Avoid forcing the extractor or using an oversized tool that can bite into the bore. Do not spray lubricants directly into a live engine or onto hot surfaces; apply them sparingly around the plug base. If the plug head is buried or the fragment is deeply stuck, do not over-torque the tool; instead, switch to a different extractor size or seek professional help. Misalignment is another frequent issue—always ensure the tool’s grip aligns with the plug’s head axis to reduce wobble and uneven force.
Aftercare: cleaning, threads, and reassembly
Once the plug is removed, inspect the threads inside the bore for any signs of damage or copper/metal shavings. Use a soft brush or a nylon pick to remove debris; avoid metallic tools that could gouge the metal. If threads show minor damage, consider a thread chaser or heli-coil repair, especially in high-mileage engines. Apply a light anti-seize compound on the new spark plug before installation to ease future removals, then torque the new plug to the manufacturer’s specification. Finally, clean around the spark plug well, reattach any components you removed, and reconnect the battery. A quick test run after installation confirms proper seating and function.
Troubleshooting and alternatives
If you cannot remove the plug with a standard extractor, you may need to try a different extraction method or revisit the area after letting any penetrating oil work longer. In stubborn cases, it’s wise to consult a professional with access to specialized extraction tools, heat sources for loosening seized plugs, and bore inspection equipment. MultiPlugging notes that when in doubt, prioritizing engine safety and preserving thread integrity should guide your decisions rather than chasing a quick fix.
Tools & Materials
- Broken spark plug removal tool(Must match plug size (5/8" or 13/16") and engine bore depth)
- Penetrating oil(Apply around base of plug; wait several minutes for seepage)
- Safety glasses(Eye protection against splinters and debris)
- Gloves (cut-resistant)(Protect hands from sharp edges and hot surfaces)
- Rags and a brush(Cleaner workspace and debris control)
- Magnet or magnetic pick-up tool(Retrieve dropped fragments easily)
- Torque wrench or properly sized ratchet(Use for new plug installation according to spec)
- Replacement spark plug(New plug with correct heat range and torque spec)

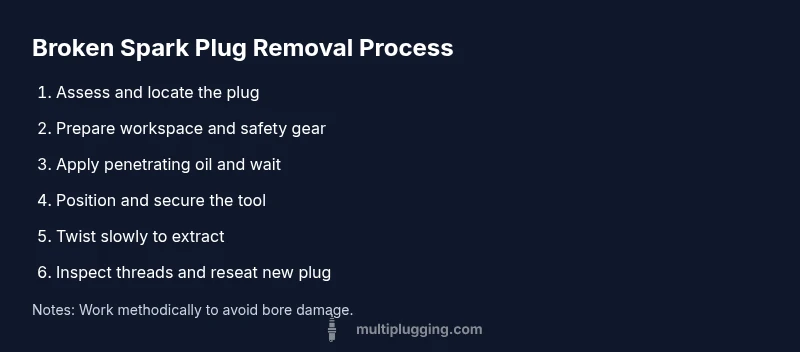

Steps
Estimated time: 30-60 minutes
- 1
Assess the break and locate the plug
Visually inspect the bore to determine how the plug is broken. If a visible fragment is accessible, decide whether the extractor can reach with a straight pull. This initial assessment helps you choose the correct tool and approach.
Tip: Document the visible break with a photo for reference during reassembly. - 2
Prepare workspace and safety gear
Disconnect the battery, ensure engine is cool, and lay out tools in a logical sequence. Put on safety glasses and gloves to protect against metal shards. A clean workspace reduces the chance of dropping fragments into the engine.
Tip: Have a magnet ready to capture any loose pieces. - 3
Apply penetrating oil around the plug
Lubricate the base and sides of the plug with penetrating oil to loosen corrosion. Allow 5–10 minutes for penetration; re-apply if the plug remains stubborn. This step reduces the risk of breaking the extractor while twisting.
Tip: Avoid getting oil into the combustion chamber; keep it on the exterior around the plug. - 4
Position the removal tool correctly
Align the tool with the plug head, ensuring a firm grip without wobble. If your plug is recessed, use a longer extractor or angle-adapter that preserves alignment. A stable initial bite improves pull efficiency.
Tip: Double-check that the tool’s hex or socket matches the plug head exactly. - 5
Engage the tool and twist gradually
Begin turning counterclockwise with steady pressure. Do not force the tool; progress slowly to prevent thread damage. If the tool binds, stop immediately rather than applying brute force.
Tip: If resistance increases, pause to re-apply oil and re-check alignment. - 6
Extract the broken plug fragment
Continue twisting as needed to loosen the fragment and draw it out of the bore. If the fragment remains stuck, consider a secondary extraction method or pause for professional help. Keep the area clean to avoid debris entering the bore.
Tip: Avoid jerky motions that might snap the fragment deeper. - 7
Inspect threads and clean bore
Once the fragment is removed, inspect the bore for damage and clean threads with a soft brush or thread chaser if needed. Remove any burrs or dirt that could affect the new plug seating.
Tip: Use light oil or anti-seize when installing the new plug to ease future removal. - 8
Install new plug and torque to spec
Install a new spark plug with the correct heat range. Thread by hand first to avoid cross-threading, then torque to the manufacturer’s specification with a torque wrench. Refit any components you removed.
Tip: Avoid over-tightening; overtightening can strip threads. - 9
Test run and final checks
Reconnect the battery, start the engine, and listen for misfires. Check for oil or coolant leaks around the plug area. If everything runs smoothly, perform a longer idle test and then a short drive to verify proper operation.
Tip: Keep a close eye on the check engine light after replacement.
FAQ
Can I reuse a spark plug after removing a broken one?
Usually not. Inspect the bore and plug seat for damage and ensure threads are clean. Replace with a new spark plug to avoid misfires and ensure proper combustion.
Usually not. Check the bore and threads, then replace with a new spark plug to avoid engine problems.
What if the plug threads are damaged after removal?
If threads show damage, you may need a thread repair or heli-coil insert. Consider professional service to avoid engine head damage.
If threads are damaged, you might need a repair or professional service to avoid engine damage.
Is penetrating oil safe to use around the engine?
Used sparingly around the plug base, penetrating oil is generally safe when kept away from moving parts and intake paths. Wipe excess away after use.
Penetrating oil is safe if used sparingly and kept away from intake paths.
What tools help prevent plug breakage?
Use a high-quality extractor matched to plug size, maintain clean connections, apply lubrication, and avoid high-torque force on seized plugs.
Use the right extractor, keep connections clean, apply oil, and avoid forcing a seized plug.
When should I call a mechanic for a broken spark plug?
If the plug is deeply recessed, the fragment is stuck, or you see cross-thread damage, seek professional help to prevent engine damage.
If the plug is stuck or threads are damaged, get professional help.
Watch Video
Main Points
- Identify the correct extraction tool before starting
- Apply penetrating oil to ease removal
- Turn slowly and avoid sudden slips
- Inspect threads and clean the bore after removal
- Torque the replacement plug to spec and test run
