How to Test Spark Plug with Multimeter
Learn how to test a spark plug with a multimeter using clear, step-by-step instructions. Identify faulty plugs and decide when replacement is due. Ideal for DIY enthusiasts and car owners.
You will learn to test a spark plug with a multimeter to verify resistance, continuity, and overall health when you perform how to test spark plug with multimeter. This quick guide covers safety, setup, and interpretation so you can diagnose ignition problems without expensive tools. It also explains common false readings and how to handle resistor plugs.
Understanding what a multimeter can tell you about a spark plug
A multimeter can measure resistance between the center electrode and the ground electrode of a spark plug, which helps identify worn electrodes or internal shorting. It cannot assess insulator integrity or fouling visually. For accurate results, you must remove the plug from the engine and isolate it from the ignition coil. According to MultiPlugging, consistent readings across several plugs suggest the ignition system is the issue rather than the plug itself. This is a practical first check when diagnosing misfires or hard starts, and it helps DIYers prioritize ignition components with the most potential impact on performance. The approach here focuses on the electrical health of the plug and its immediate connections rather than on fuel system symptoms.
Safety and preparation before you start
Safety comes first when testing spark plugs with a multimeter. Disconnect the negative battery terminal to prevent accidental short circuits, wear eye protection, and work in a well-ventilated area away from open flames. Ensure the engine is cool before handling plugs to avoid burns. According to MultiPlugging analysis from 2026, most injuries occur from hot components or accidental contact with live circuits. Keep tools clean and dry, and never test if you suspect fuel or oil leaks around the spark plug area. Planning ahead reduces the risk of mishaps and ensures more accurate readings.
How to set up your multimeter for spark plug testing
Begin by selecting the Ohms (Ω) range on your multimeter. If your meter has auto-range, turn it on and use the resistance mode. For a continuity test, use the diode or continuity setting if available. Calibrate the meter on a known-good resistor or use the auto-zero feature if your device supports it. Place the black probe on the plug’s ground strap and the red probe on the center electrode terminal after removing the plug boot. In some cases, a resistor inside the plug will affect the reading, so interpret results in the context of the plug type and OEM specifications. The goal is to obtain a stable reading that can be compared to OEM guidance rather than chasing an absolute numerical target.
Measuring resistance across a removed spark plug
With the plug removed and the boot detached, touch one probe to the center electrode and the other to the threaded metal shell or ground electrode. A healthy plug will show low resistance, while a plug with worn electrodes or internal faults may show high or fluctuating readings. If the plug was used with a built-in resistor, you may observe a small but nonzero resistance; this is expected. Record the reading and compare it to the force-spec provided by the manufacturer. If the resistance is unusually high or the reading drifts, it’s a strong indicator the plug should be replaced. Always wipe away oil or fuel remnants from the plug before testing to avoid misreadings caused by surface contamination.
Checking the ignition circuit: coil, boot, and wires
Testing a plug in isolation is helpful, but you also need to consider the ignition circuit. After removing the plug, reinsert the boot briefly and perform a spark test using a spark tester if available; a visible spark validates the coil and boot are capable of delivering current. If readings from the plug test look fine but your engine still misfires, the problem may lie in the ignition coil, spark plug wires, or coil-on-plug assemblies. Use the multimeter to check continuity along the wiring harness and inspect connectors for corrosion or loose terminals. Remember, resistance through the coil and wiring is part of the circuit, not the plug itself, so separate diagnoses of the plug from the rest of the ignition system is crucial for accurate results.
Interpreting readings: what healthy vs. faulty looks like
A healthy spark plug typically shows a stable, low resistance when tested out of the engine. A reading that is consistently high or shows an open circuit usually indicates a worn electrode, internal damage, or fouling that can't be corrected by cleaning. In cases where the plug uses a resistor, expect a small resistance reading that is still within the expected tolerance range for your vehicle. If the reading deviates significantly from OEM specs, or if the plug has visible fouling, deposits, cracks, or glazing on the insulator, replace it. Always corroborate electrical readings with a visual inspection and engine performance symptoms for the most reliable assessment.
Troubleshooting common scenarios and next steps
If you obtain mixed results across plugs from the same ignition bank, test the entire ignition circuit to identify a specific faulty coil or wiring path. If a plug shows normal resistance but the engine misfires, recheck the gap and seating depth, and consider replacement. In cases of resistance drift across repeated tests, allow components to cool, retest, and consult OEM specifications for your model. If in doubt, replace worn or fouled plugs to restore baseline performance and reduce misfires. The goal is a robust ignition system that delivers a reliable spark at the right time under load.
Maintenance tips to extend plug life
Regular inspection and gentle maintenance can extend spark plug life. Clean the area around the spark plug well to minimize debris, apply a small amount of anti-seize compound only if specified by the manufacturer, and maintain proper engine temperatures through routine servicing. Keep your ignition system in good condition by testing wires and coils periodically and replacing worn connectors promptly. While multimeter testing helps diagnose health, proactive maintenance prevents most problems before they begin.
Tools & Materials
- Digital multimeter(Must have an ohms (Ω) range and, ideally, a continuity test function)
- Spark plug socket wrench(Ranked size to match your plug type (often 5/8" or 13/16"))
- Spark plug boot puller or needle-nose pliers(Useful for safely removing boots without damaging wires)
- Anti-seize compound (optional)(Apply only if recommended by vehicle manufacturer)
- Safety glasses and gloves(Personal protective equipment is essential when working around engines)

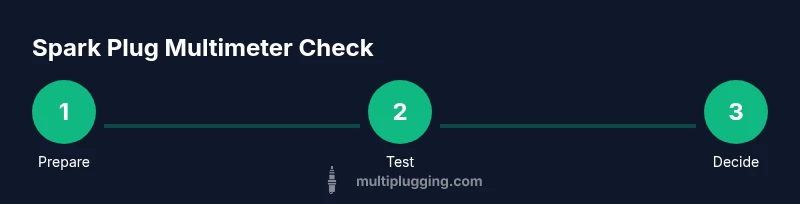

Steps
Estimated time: 40-60 minutes
- 1
Power down and prepare safety
Power off the engine, disconnect the negative battery terminal, and allow the engine to cool. This prevents shocks, burns, and accidental starts during testing. Gather your tools in a clean workspace.
Tip: Double-check that you are not wearing metal jewelry which could cause short circuits. - 2
Locate the target spark plug
Identify the spark plug you will test, using the vehicle’s service manual or a plug reference chart. Keep area around the plug clean to avoid debris entering the cylinder.
Tip: If you’re testing multiple plugs, label the wires so you don’t mix them up during reassembly. - 3
Disconnect the spark plug boot
Carefully pull back the boot without yanking the wire. Detach connectors if present. This isolates the plug from the ignition system for an accurate measurement.
Tip: Use a boot-puller if available to minimize wire damage. - 4
Set up the multimeter
Configure the multimeter to the Ohms (Ω) range or continuity mode. Calibrate if your meter allows auto-zero; ensure both probes are clean before testing.
Tip: Test the meter with a known resistor to verify it reads correctly before testing the plug. - 5
Measure resistance across the plug
Touch the red probe to the center electrode and the black probe to the ground strap. Record the reading and check for stability. If the plug has a built-in resistor, note a small, expected reading.
Tip: Avoid touching the tips with your fingers to prevent skewing measurements. - 6
Interpret results and decide on next steps
Compare readings to OEM specifications for your vehicle. If resistance is high or results are inconsistent, replace the plug or re-check with a new plug to confirm the issue.
Tip: If readings don’t align with spec, verify that the plug is properly gapped and seated during reinstallation.
FAQ
Can I test a spark plug with a multimeter without removing it?
Some quick checks are possible with the boot in place, but removing the plug from the engine gives the most accurate resistance reading and prevents circuit interference.
You can do a quick test with the boot on, but removing the plug gives the most accurate result.
What readings indicate a bad plug?
High resistance or an open circuit typically indicates a faulty plug. Compare the measured value to OEM specifications and consider visual signs like fouling or glazing.
High resistance or an open circuit usually means the plug is bad. Compare to the manufacturer specs and look for visual signs too.
Is a digital multimeter required?
A digital multimeter makes it easier to read small resistances precisely. An analog meter can work but may require more careful interpretation.
A digital meter is preferred for ease of reading, but an analog one can work if you read carefully.
What about testing resistor plugs?
Resistor plugs will show some resistance due to the built-in resistor. Compare readings to the plug’s spec, which accounts for this feature.
Resistor plugs will show some resistance; compare to the plug spec to judge health.
Are there safety concerns I should know?
Yes. Work in a well-ventilated area, keep away from open flames, and disconnect the battery to avoid shocks or sparks.
Yes. Keep safe: vented area, no flames, and disconnect the battery before testing.
What should I do after testing?
If readings are within spec and performance improves, reinstall the plug with proper seating and torque. If not, replace the plug and inspect the related ignition components.
If readings are good, reinstall carefully and test the engine. If not, replace the plug and check ignition parts.
Can testing diagnose other ignition issues?
A single plug test helps diagnose the plug itself, but misfires can originate from coils, wires, or connectors. Use a holistic diagnostics approach.
It helps with the plug, but misfires may come from coils or wires too.
Do I need to re-gap the plug after testing?
If you removed the plug, check and adjust the gap according to the vehicle spec before installation. Improper gap can cause misfires.
Yes, check and set the gap to the manufacturer's spec before reinstalling.
Watch Video
Main Points
- Prepare safely and power down before testing.
- Test unplugged plugs for accurate resistance readings.
- Compare readings to OEM specs and inspect visually.
- Replace worn or fouled plugs to restore performance.
