How to Check Spark Plug Wires with a Multimeter: A DIY Guide

Why check spark plug wires with a multimeter?

If you’re curious about how to diagnose ignition problems, a multimeter is a practical tool for evaluating spark plug wires. According to MultiPlugging, testing the continuity and resistance of ignition wires is a foundational, non-destructive way to spot aging wiring that could cause misfires or weak spark. By systematically checking each wire, you create a baseline that makes future maintenance straightforward and safer for your engine. You’ll learn to recognize when a wire behaves abnormally, which helps you decide whether to replace a single wire or the entire set. This approach is a reliable first step for DIY enthusiasts who want to reduce diagnostic guesswork and keep components in good shape. Throughout the process, you’ll use common-sense safety practices and clear comparison benchmarks to ensure accurate results and protect ignition components.

In practice, the goal isn’t to perform expensive or exotic tests, but to verify that each wire can carry current and contain the spark within its insulation. A healthy wire should show stable continuity with minimal resistance along its length and should not exhibit erratic readings as you manipulate the wire. With experience, you’ll quickly spot marginal wires that drift outside their expected range, indicating aging insulation or internal breaks. This method complements visual inspection and fuel system checks, giving you a fuller picture of ignition health.

Understanding what a multimeter can tell you about spark plug wires

A quality multimeter can reveal several critical properties of spark plug wires. You’ll primarily look at continuity (closed circuit) and resistance (ohms) along a wire’s length. Continuity confirms there are no open circuits, while resistance values help assess insulation condition and conductor integrity. High or rapidly fluctuating resistance points to aging insulation, broken strands, or moisture intrusion. In addition to resistance, you can observe insulation breakdown by detecting unexpected resistance when the wire is moved or manipulated during measurement. Remember that individual wire specs vary by brand and wire type, so use them as your reference baseline rather than a universal standard. A well-documented test routine allows you to compare one wire against another and identify outliers that warrant replacement. This section also covers how to perform end-to-end tests with the coil and spark plug boots isolated for safer measurement.

Beyond numbers, always combine multimeter results with a visual inspection for visible cracks, stiffness, or blistering on boots and insulation. Insulation damage can allow arcing or leakage that a meter might not fully reveal in a quick pass. The combination of data and careful observation gives you a reliable basis for maintenance decisions and helps you keep the ignition system balanced across all cylinders.

Tools and safety prerequisites before testing

Before you grab the multimeter, set up a safe testing environment. Work on a level surface away from fuel leaks or hot components. Disconnect the negative battery terminal to prevent sparks while touching wiring. Wear eye protection and gloves if available, and keep metal jewelry away from ignition circuits. Gather the essential tools first: a digital multimeter, test leads or alligator clips, and a clean workspace with good lighting. If your car’s service manual provides wire resistance specs, have it handy for quick reference. While not strictly required, a labeled storage method for wires can prevent mix-ups when testing multiple wires. By planning ahead, you avoid mistakes that could cause misreads or accidental damage to the spark plug boots or coil connections. This preparation aligns with best practices recommended by the MultiPlugging team for a careful, safe diagnostic procedure.

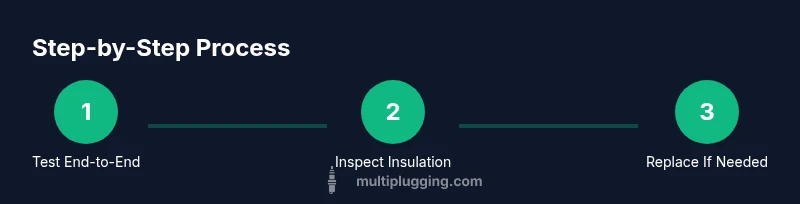

Step-by-step: test wire end-to-end resistance (end-to-end test)

1. Prepare the car and tool setup: ensure the engine is off, the battery is disconnected, and you’re wearing safety gear. Attach the multimeter probes to the two ends of the wire you’re testing, making sure you’re touching only the metal contacts, not the rubber boot. 2) Set the multimeter to the appropriate resistance range (ohms) and note the reading. If your meter is auto-ranging, start with a mid-range setting and adjust as needed. 3) Repeat the measurement a few times, rotating to different wires if you’re testing a set. Record each wire’s reading to identify outliers. Pro tip: avoid touching the probes with your fingers to prevent contact resistance. 4) Compare the values to the wire’s specs or to other wires in the same set, noting any significant deviations that suggest wear or internal damage. 5) When finished, label tested wires for reinsertion and re-check the system when reconnecting to confirm consistent performance.

Step-by-step: checking for intermittent faults with wiggle testing

1. After obtaining steady end-to-end readings, re-check a suspect wire by gently bending and wiggling the wire while watching the multimeter reading. The goal is to reveal intermittent faults that may not show up in a static test. 2) If resistance spiking or sudden jumps appear as you move the wire, the insulation or conductor is likely compromised. 3) Repeat this wiggle test on other wires to identify a pattern across the set. 4) Document any wire that exhibits fluctuations and plan for replacement if repeated tests indicate instability. Pro tip: hold the wire at the boot and the boot end, avoiding tugging near the conductor. 5) When testing is complete, perform a final static measurement on any flagged wires to confirm the fault’s persistence.

Step-by-step: visual inspection and insulation check

1. With the ignition components disconnected, inspect each wire for visible signs of damage, including cracks in the boot, dried or cracked insulation, or melted areas near the conductor. 2) Look for signs of moisture, oil, or corrosion around connectors, which can compromise insulation and conductivity. 3) Check the rubber insulation for stiffness or cracking by bending the wire gently along its length. 4) If you notice any damage, mark the wire for replacement. 5) Reference any observed physical faults against the multimeter readings to build a complete fault picture. Pro tip: a healthy-looking exterior can still hide internal breaks, so pair visual checks with electrical testing for confidence.

Step-by-step: deciding on replacement and reassembly

1. After completing measurements and visual checks, assess whether any wire shows signs of aging, damage, or persistent abnormal readings. 2) If a single wire fails the test or exhibits significant deviations, decide whether to replace just that wire or the entire set for uniform performance. 3) When replacing, choose wires of equal or better specifications to maintain consistent resistance and firing characteristics across cylinders. 4) Reconnect boots carefully, ensuring a snug fit and proper seating on both ends. 5) Recheck system by starting the engine and confirming smooth operation with no misfires. 6) Document the test results and replacement decisions for future maintenance. Pro tip: replacing the full set is often more reliable than chasing isolated faults, particularly in older engines.

Common pitfalls and how to avoid them

• Pitfall: Measuring with the engine running. Avoid it; high voltage can cause shock and damage. Always disconnect the battery and ignition components before testing. - Pitfall: Using a low-quality or inaccurate multimeter. Use a known-good meter with a clean probe and proper range; cheap meters can yield misleading readings. - Pitfall: Not isolating the wire ends. Ensure both ends are detached and the wire is physically separated from other conductors during testing. - Pitfall: Believing a normal reading guarantees reliability. A structurally damaged wire may still pass a static test; combine electrical checks with a visual inspection. Pro tip: label wires and keep track of which ends you tested to avoid confusion during reassembly.

What to do after testing: replacement strategies and maintenance tips

1. If multiple wires show wear or inconsistent readings, consider replacing the entire set for balanced performance. 2) Use wires with a similar or better heat rating and resistance spec to maintain consistent ignition across cylinders. 3) After replacement, re-test the circuit with the engine off and then start the engine to confirm smooth operation and consistent firing. 4) Schedule periodic checks of the ignition system as part of routine maintenance, especially if you drive in harsh or dusty environments. 5) Treat spark plug wires with care during future maintenance to avoid kinking, pinching, or excessive bending, which accelerates aging. Pro tip: pairing tests with a scheduled maintenance plan reduces the likelihood of unexpected misfires and helps protect catalytic systems.
