How to Check Spark Plug Leads: A Practical DIY Guide
Learn how to check spark plug leads safely and effectively. This step-by-step guide covers visual inspection, electrical tests, and maintenance tips to keep your engine firing on all cylinders.
This guide teaches you how to check spark plug leads for wear and faults, using a visual inspection and basic electrical tests. You’ll learn how to safely power down, identify cracked boots, test continuity with a multimeter, and replace damaged leads to prevent misfires. Consistency between cylinders matters, so check each lead in turn, label connections, and reseat boots firmly.
What are spark plug leads and how they work
Spark plug leads, often called ignition wires, are the high-voltage link between your ignition coil and the spark plug. Their job is to deliver a precise, consistent spark at the right moment, so your engine can ignite the air-fuel mixture efficiently. A typical lead has several layers: a central conductor that carries voltage, a dielectric insulation to prevent leakage, an outer shield to reduce EMI, and a flexible rubber boot that seals to the spark plug terminal and the coil boot. When everything is in good condition, the spark energy travels with minimal loss. Over time, heat, oil contamination, and repeated flexing can degrade the insulation or loosen the connections, allowing arcing or weak spark. A damaged lead often manifests as misfires, rough idle, or poor acceleration, and it can also increase fuel consumption and emissions. According to MultiPlugging, regular inspection of spark plug leads is a simple, low-cost way to protect engine performance.
Common signs of worn or damaged leads
Even before you test anything, you can spot many problems with a casual visual check. Cracked, brittle, or hardened rubber boots are obvious. If the insulation around the lead looks swollen, melted, or softened, it's a sign of heat damage. Oil leaks or coolant leaks around the spark plug well can soak the boot and degrade insulation. White salt deposits around the boot tip or arcing marks along the conductor indicate insulation breakdown. A motorist may notice misfires, rough idle, hesitation, or a noticeable drop in fuel economy. In worn sets, one cylinder may run noticeably rougher than others. If you detect any of these signs, plan for a thorough electrical test and, if needed, replacement of the affected lead(s).
Safety first: how to prepare for inspection
Before touching ignition components, make safety your first concern. Park on a flat surface, engine off, and allow the exhaust system to cool. Disconnect the negative terminal of the battery to prevent stray currents or shocks while you work. Wear safety glasses and gloves to protect against sharp edges and hot parts. Clear the work area of fuel vapors and keep a clean rag handy for wiping connectors. If your engine is particularly oily or dirty, wear a shop apron to keep your clothes clean. Finally, have a bright flashlight or headlamp so you can inspect small cracks in the boots and connector surfaces. Taking these precautions reduces the risk of injury and helps you spot issues more clearly during the inspection.
Visual inspection checklist: boots, connectors, insulation
Inspect each spark plug boot for visible cracks, splits, or sticky residue. Check the rubber boot for dryness or stiffening; damaged boots can crack under pressure and allow moisture or oil to reach the conductor. Look for oil, fuel, or coolant staining around the boot—these contaminants can accelerate insulation breakdown. Inspect the insulation along the length of the lead; any abrasion, cuts, or frayed shielding suggests it is near the end of its life. At the connector ends, ensure the metal contacts are clean and firmly seated. A loose connector can create intermittent misfires. If you see deformities, scorching, or corrosion on the metal terminals, replace the affected lead. Take photos of the routing if you are removing multiple leads to ensure you reinstall them in the correct order.
Electrical testing: resistance, continuity, and insulation
With the battery disconnected and the engine cooled, remove the spark plug boot from the spark plug end and ensure the lead is disconnected from the ignition coil as well. Use a digital multimeter set to resistance or continuity mode. Place probes at each end of the lead (one on coil side, one on plug end) and record the reading. If your meter indicates a closed loop (continuity) but the resistance is wildly different from the manufacturer's spec, the lead is faulty. If the meter shows an open circuit, that lead is broken and must be replaced. For insulation testing, you can perform a basic leakage check by applying a small amount of dielectric grease to the boot before reinstalling and observing if there is any arcing or burn marks after starting the engine. Remember: compare to spec, and when in doubt, replace.
Grounding and arc testing: diagnosing insulation faults
If insulation is compromised, you may see arcing to nearby metal or notice a visible glow near the boot during engine test. A high-impedance spark tester can reveal leakage paths that are not obvious with a standard meter. Look for signs of excessive heat, melted insulation, or a boot that feels unusually soft when you press it. If you observe arcing or an inconsistent spark, treat the lead as faulty and replace it. Do not continue using a lead with any sign of insulation failure; continued use can damage the ignition coil or the ECU.
Functional tests you can perform with the engine off and on
Testing with the engine off has limits, but you can re-seat each boot to ensure a solid connection. Reconnect one lead at a time and briefly crank the engine to observe misfires or rough running for the corresponding cylinder. Do not run the engine for long with an untested lead; excessive cranking without fuel may cause flooding. If you have a spark tester, perform a live test by watching the spark quality as you position the tester in line with the plug. If sparks are clean and consistent across all leads, the installation is likely correct. After testing, re-seat all boots, apply a thin layer of dielectric grease to the contact surfaces, and ensure the routing avoids sharp bends that can fatigue the wiring.
Replacing or repairing leads: what you can do yourself
If a lead fails testing or shows visible damage, replacement is generally straightforward. Disconnect the boot from the plug and from the coil, then remove the old lead and route the new one in the same path to avoid kinks. Attach the boot to the spark plug first, then connect to the coil with a firm click. Use dielectric grease on the inside of the boot to improve resistance to moisture and to help sealing. Do not force a boot onto a stubborn terminal; if it won’t snap into place, recheck alignment and seating. When replacing, it’s wise to replace the entire set if aging or if several leads show wear.
Maintenance tips to extend lead life
To maximize spark plug lead life, avoid oil leaks that contaminate boots, keep the engine bay clean, and inspect leads at every tune-up. Use quality replacements from reputable brands and avoid cheap, generic parts that may not meet your engine’s impedance and resistance needs. Periodically apply dielectric grease to boot ends to cushion moisture intrusion and ensure a better seal. Store spare wires in a cool, dry place and avoid bending them at sharp angles to minimize conductor fatigue. Finally, consider upgrading to low-resistance, high-quality wires designed for your engine’s ignition system to improve reliability and performance.
Common mistakes and how to avoid them
Common mistakes include pulling on the wire instead of the boot, failing to disconnect the battery, and not labeling leads during removal. Another mistake is ignoring signs of oil or coolant around the boots, which can speed insulation degradation. Don’t mix old and new leads; different impedance can cause mismatched firing and misfires. Finally, rushing the reassembly or skipping dielectric grease may lead to poor sealing and moisture ingress. By taking your time, labeling connections, and following the manufacturer’s specs, you reduce the risk of damage and misfires.
Tools & Materials
- Safety glasses(Protect eyes from debris and sparks.)
- Mechanic gloves(Nitrile or mechanics gloves for grip and protection.)
- Flashlight or headlamp(Bright light to inspect boots and connectors.)
- Multimeter(Set to resistance/continuity; appropriate range.)
- Spark plug wire tester(Optional for quick, live diagnostics.)
- Dielectric grease(Improves sealing when reinstalling boots.)
- Replacement spark plug leads(Have on hand if you find damaged leads.)
- Clean rag(For cleaning connectors and boots.)

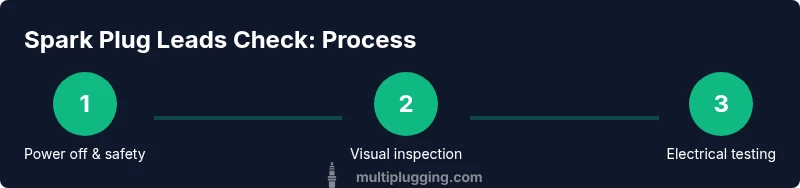

Steps
Estimated time: 30-45 minutes
- 1
Power off and disconnect
Park the vehicle on a flat surface, turn off the engine, and disconnect the negative battery terminal. This eliminates the risk of shock and accidental short circuits while you work.
Tip: Always double-check that the battery is fully disconnected before touching ignition components. - 2
Locate leads and boots
Identify each spark plug lead and its boot. Note the routing so you can reinstall them in the same order and avoid tangling or crossing leads.
Tip: Take a quick photo or label each lead as you remove it to prevent mix-ups. - 3
Inspect boots and insulation
Visually examine boots for cracks, dryness, or oil residues. Check insulation along the length for cuts or wear and verify the metal contacts at each end are clean.
Tip: If you notice any signs of damage, plan to replace that lead promptly. - 4
Test resistance and continuity
Disconnect the lead from both ends and set your multimeter to resistance/continuity. Probe each end of the lead and compare readings to the service manual or a known-good lead.
Tip: Use a known-good lead as a reference for a fair comparison. - 5
Check for insulation leakage
Perform a basic insulation check by applying dielectric grease to the boot ends and watching for arcing during a brief live test with a spark tester if available.
Tip: Never test with the engine running near combustible vapors; ensure ventilation. - 6
Live tests and visual cues
If equipped with a spark tester, perform a live test to observe spark quality. Look for consistent, bright sparks without flicker or interruption across all leads.
Tip: A failing lead often shows erratic or weak spark across a cylinder. - 7
Reinstall or replace leads
If leads pass checks, reseat boots snugly and apply dielectric grease. If damaged, install the replacement leads in the same routing path.
Tip: Do not force a boot onto a stubborn terminal; reseat and try again gently. - 8
Final engine test
Reconnect the battery, start the engine, and listen for smooth idle and consistent acceleration. Check for any rough running or misfires after the test.
Tip: If misfires persist, recheck connections and consider replacing multiple leads rather than just one. - 9
Document and store
Keep notes on which leads were replaced and their routing for future maintenance. Store spare leads in a dry, cool place.
Tip: A simple maintenance log helps prevent oversight during future services.
FAQ
Can bad spark plug leads cause engine misfires?
Yes. Worn or damaged leads can fail to deliver proper voltage, causing misfires, rough idle, and reduced performance. Visual signs and electrical testing support a reliable diagnosis.
Yes, bad spark plug leads can cause misfires and rough idle. Visual signs and electrical testing help confirm the cause.
How often should spark plug leads be replaced?
There is no universal schedule; inspect leads at each tune-up and replace any that show wear, cracks, or contamination. If several leads show wear at once, consider replacing the entire set to maintain consistency.
There’s no fixed interval; inspect at tune-ups and replace worn leads. If several are worn, replace the full set.
Do I need special tools to check the leads?
A basic digital multimeter is sufficient for resistance and continuity tests. A dedicated spark plug wire tester can speed up diagnosis, but it’s not strictly necessary if you have a good multimeter.
A multimeter does the job for testing, and a spark tester helps if you have one.
Can I test leads without removing them?
Visual inspection while the boots are attached is useful, but electrical testing requires removing the boot from both ends to measure resistance accurately. Always disconnect power before testing.
Visual checks can be done with the boots on, but electrical tests need removal and power off.
What safety risks are involved when checking leads?
The main risks are electric shock and burns from hot engine parts. Wear eye protection and gloves, and ensure the battery is disconnected before starting.
Shocks and burns are the main risks; wear protection and disconnect the battery first.
Should I replace all leads if one is damaged?
Replacing the entire set is often wise to ensure uniform performance and prevent hidden wear from affecting ignition timing. If you replace only one, ensure the set compatibility and impedance match.
If one is damaged, replacing the whole set is usually a good idea to keep performance even.
Watch Video
Main Points
- Inspect boots and insulation for cracks or leaks.
- Test resistance and continuity with a multimeter.
- Replace damaged leads to prevent misfires.
- Reinstall with proper dielectric grease and correct routing.
