How to Use Spark Plug Tester: A Complete DIY Guide
Learn how to use spark plug tester to diagnose ignition health, interpret readings, and decide when to clean or replace plugs with a practical, step-by-step approach for DIYers.
This guide explains how to use spark plug tester to diagnose ignition health. It covers setup, selecting the correct mode, and interpreting readings to spot fouling, worn electrodes, or weak sparks. You’ll verify spark quality, response time, and insulation integrity, then decide whether a plug needs cleaning, adjustment, or replacement.
How a Spark Plug Tester Works
A spark plug tester is a diagnostic tool that helps you observe the spark event outside of the engine environment. It creates a controlled, visible spark path and translates high voltage into readable indicators such as spark arc, timing behavior, and resistance. By applying the same electrical principles the ignition system uses, testers reveal whether the plug, wire, or coil is delivering sufficient energy to ignite the air-fuel mixture. According to MultiPlugging, a practical spark plug tester empowers DIYers to triage ignition problems without professional equipment. The tester can be used with gasoline engines of varying compression and with different coil configurations; the key is to understand the range and the expected spark characteristics for your engine. In most modern tools, you’ll see a spark gap that you can adjust and a display that shows voltage, current, and sometimes resistance. Reading these indicators in conjunction with symptoms from the engine allows you to separate plug health from coil or wire faults. This section covers what testers measure, how to interpret the numbers, and how to avoid common misreadings. It also explains why a tester is not a full engine diagnostic by itself, but a fast initial check that informs further troubleshooting.
What you’ll learn in this article
In this article, you’ll discover how testers work, the differences between digital and analog devices, and how to interpret results for a wide range of engines. You’ll also see real-world scenarios where a tester helped a DIYer save time and money, plus safety guidelines to prevent shocks and injuries when working with high-voltage components.
Quick path to getting results
If you want to jump straight to testing, you’ll follow a sequence: check compatibility, gather tools, connect the tester per instructions, run a test, read the output, and decide the next step. Remember, the exact readings depend on your model and engine type, so consult the manual for your specific device and vehicle. This quick path is the backbone of any reliable spark plug testing workflow.
Tools & Materials
- Spark plug tester (digital or analog)(Ensure it supports your ignition system voltage and has clear readings)
- Safety glasses(High-voltage exposure risk; protect your eyes during testing)
- Insulated gloves(Wear when working near exposed high-voltage parts)
- Screwdrivers/pliers(For accessing connectors and mounting adapters)
- Test leads/adapters(Use compatible leads for your tester and engine type)
- Manual or engine service guide(Reference for model-specific procedures and ranges)
- Battery or power supply(Keep tester powered with fresh batteries or a stable power source)
- Notebook or app for results(Record readings, range settings, and plug status)

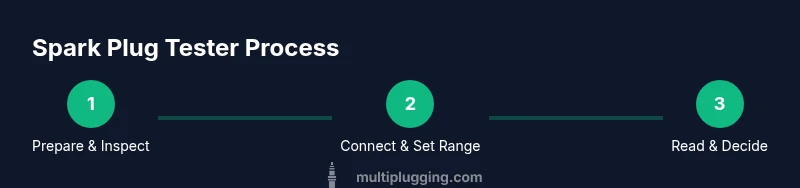

Steps
Estimated time: 30-60 minutes
- 1
Inspect and prepare the tester
Check all cables for wear, ensure the tester has power, and read the user manual. Confirm that the voltage range matches your engine and that the display is legible. A quick visual check prevents misreads later.
Tip: Replace any frayed leads before starting; a minor fault can skew readings. - 2
Safely access the ignition area
Turn off the engine, disconnect the battery ground, and ensure the workspace is dry. If you’re testing in situ, remove the coil pack or spark plug boot only if the tester’s instructions require it.
Tip: Never test while the ignition system is energized; time and care reduce risk. - 3
Connect the tester to the ignition circuit
Attach the tester’s lead to the spark plug boot or coil boot as directed by the model. Verify a solid, secure connection without forcing components.
Tip: Use manufacturer adapters if provided; an improper connection can cause false readings. - 4
Set the correct mode and range
Configure the tester for your engine type and desired test: static spark, running spark, or resistance checks. Select the range that accommodates typical high-voltage outputs.
Tip: When in doubt, start with a broader range and narrow down after a few cycles. - 5
Crank or simulate spark to observe results
Crank the engine or simulate repeated cycles while watching the tester readouts. Note spark duration, arc stability, and voltage at the moment of ignition.
Tip: Allow a brief warm-up so readings reflect normal operating conditions. - 6
Interpret results and decide next steps
Compare readings to the tester’s reference values. If outputs are weak or inconsistent, plan for plug cleaning, wire or coil inspection, or plug replacement as required.
Tip: Document readings to track changes over time and justify replacements.
FAQ
What is a spark plug tester and what does it do?
A spark plug tester is a diagnostic tool that assesses the ignition system by simulating spark conditions and displaying voltage, resistance, and spark quality. It helps you determine whether plugs, wires, or coils are functioning properly.
A spark plug tester checks your ignition spark quality and health by simulating conditions and showing readings you can compare to expected values.
Can I use a spark plug tester on diesel engines?
Spark plug testers are primarily designed for gasoline ignition systems; diesel engines rely on compression ignition and may not be compatible with standard testers.
Most spark plug testers are for gasoline engines, so check your engine type before testing.
What readings indicate a bad spark plug?
Strong, consistent readings indicate good plugs. Erratic voltage, unusually high resistance, or no arc suggests fouling, wear, or internal faults.
Look for weak or erratic spark readings or no spark at all as signs of a bad plug.
Is digital better than analog for testers?
Digital testers often provide clearer, repeatable readings and easier interpretation, but a quality analog tester can still be effective for basic checks.
Digital testers are usually easier to read; analog can work well if you know the scale.
Do I have to remove the spark plug to test it?
Not always; some testers work with the boot connected, but direct plug testing may be needed for a full assessment.
Sometimes you can test with the boot on; other times you may remove the plug for a direct check.
How often should I test spark plugs?
Test as part of routine maintenance or when performance symptoms appear; manufacturers’ guidelines typically specify inspection intervals.
Test during regular maintenance or when you notice rough idling or misfires.
Watch Video
Main Points
- Learn how to connect and configure a spark plug tester safely
- Interpret readings to differentiate plugs, wires, and coils
- Document results to guide cleaning or replacement decisions
- Choose tools and adapters compatible with your engine
- Incorporate tester checks into a regular maintenance routine
