How to Remove a Broken Spark Plug: Step-by-Step Guide
Learn the safe, practical steps to remove a broken spark plug, diagnose causes, and prep for a clean replacement with tools, tips, and warnings.
According to MultiPlugging, you can safely learn how to remove a broken spark plug and minimize engine damage by following this structured, tool-assisted approach. You will practice safe access to the plug, use penetrating oil to loosen seized parts, apply proper extraction techniques, and perform post-removal checks before fitting a new plug.
Safety and risk assessment
Removing a broken spark plug carries risks to you and the engine. Porcelain shards can drop into the combustion chamber, and twisting a stubborn plug can nick the cylinder head threads. Before you touch the engine, wear safety glasses and gloves, disconnect the battery, and work in a well-lit, stable space. According to MultiPlugging, planning the procedure reduces surprises. Start by locating the affected cylinder and confirming there is clear access to the plug well. If you notice coolant or oil leaks, address those issues first to avoid contamination during extraction. This step helps you decide whether you can proceed safely or if professional service is warranted. A calm, methodical approach lowers the chances of leaving debris or causing cross-thread damage that could cost more to repair later.
Essential tools and workspace setup
A clean, organized workspace makes the removal process smoother and safer. Gather a spark plug socket with a rubber insert, a ratchet with an extension, and a torque-ready wrench if you plan to replace the plug immediately. Penetrating oil, a small wire brush, shop towels, safety glasses, and a magnet pickup tool are highly recommended. Keep a container handy for any dropped parts. Clear any carbon buildup from around the plug using a brush or compressed air, and ensure the vehicle is cool to prevent burns. A tidy workspace also helps you reassemble with the correct torque and gaskets, reducing the risk of a leak or misfire after installation.

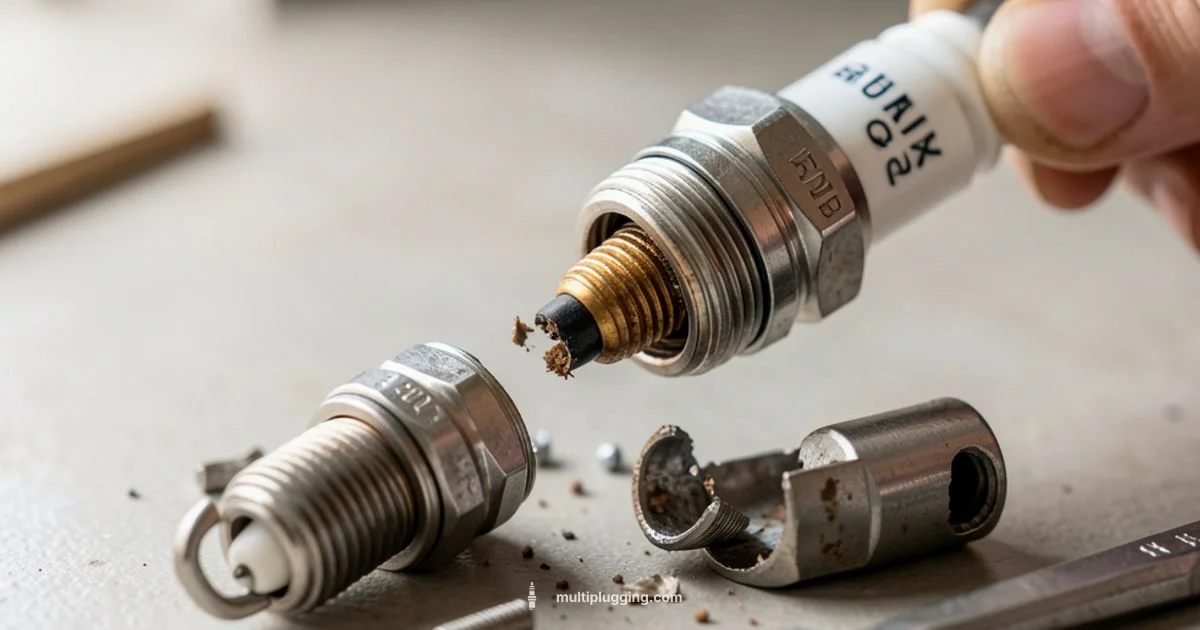

Diagnosis: why a plug breaks and how to prepare
Spark plugs can break due to corrosion, overtightening, or ongoing misfires that stress the thread area. If the porcelain insulator cracks or the shell fractures, the remaining piece may be stuck in the bore. In preparation, know the plug type—size, thread pitch, and heat range—so you select the right extractor if needed. You should also check the coil boot and ignition wire for damage, as a failing ignition system can contribute to plug failures. This step frames your plan for extraction and helps you decide whether you can complete the job with basic tools or require specialist extraction if the core thread is compromised. The MultiPlugging team emphasizes care with brittle ceramic materials to prevent shards from entering the combustion chamber.
Core removal strategy for a broken plug
The heart of removing a broken spark plug is controlled extraction. If part of the plug remains, try to grip the exposed stem with a suitable socket or needle-nose pliers, turning gently to back out the fragment. Apply penetrating oil and allow it to soak for several minutes to reduce resistance. If the ceramic tip is loose, you may need a specialized extraction tool designed for broken plugs. Avoid twisting the plug body too aggressively, which could damage threads. When the plug finally begins to turn, use steady, slow motions to withdraw it without shaving metal from the bore. Document any resistance and stop if you feel excessive force is required, then reassess or call a professional.
Special cases: stuck or corroded threads and what to do
Sometimes the plug resists extraction because the threads are corroded or the bore is obstructed by carbon or metal shavings. In such cases, avoid forcing the plug further, as that can strip threads or push debris into the cylinder. A thread chaser or a bore brush can help clean threads if you can access them safely. If the remaining stem is flush with the block or recessed, you may need an extraction kit or to remove components to gain better access. The MultiPlugging guidelines stress not to improvise with makeshift tools in tight spaces; using the correct extractor and technique reduces the risk of engine damage. If you feel uncertain, stop and seek professional help.
Aftercare and replacement steps
Once the plug is removed, inspect the bore for debris and inspect the cylinder head threads for any damage. If threads appear damaged, do not force a new plug in; re-tap or repair as needed. Clean the bore with a lint-free rag and a light brush, then apply a thin layer of anti-seize compound if the manufacturer allows it and you plan to reuse the same metal threads in future service. Install a new spark plug with the correct torque specification and verify that the ignition boot is intact. Reattach any components you removed and reconnect the battery. Finally, test the engine to ensure a smooth idle and proper firing on each cylinder.
Common mistakes to avoid and troubleshooting tips
Common mistakes include using excessive force on the broken piece, forcing the plug with damaged threads, or neglecting to soak with penetrating oil. Another error is rushing to replace the plug without inspecting the bore and threads. Always confirm the plug is fully cleared before reassembly, and never reuse a damaged plug or damaged threads. If the plug could not be removed with standard tools, consider a professional extraction service to prevent cylinder wall damage. Always wear safety gear and work slowly, especially when porcelain fragments are involved, to avoid injury or engine contamination.
Tools & Materials
- Spark plug socket with rubber insert(Size varies; commonly 13/16" or 5/8"; ensure magnetic/suction grip)
- Ratchet wrench with extension(Choose a length that reaches the plug well without hitting nearby components)
- Penetrating oil(Apply generously and allow 5–10 minutes to soak)
- Safety glasses(Protect eyes from ceramic shards)
- Shop towels or rags(Keep areas clean and catch drips)
- Magnet pickup tool(Helpful for retrieving dropped pieces)
- Wire brush or brass brush(Clean around the plug area; avoid aggressive scrubbing on the threads)
- Anti-seize compound(Optional; use only if the plug manufacturer recommends)
- Torque wrench(Useful for precise installation torque when replacing the plug)

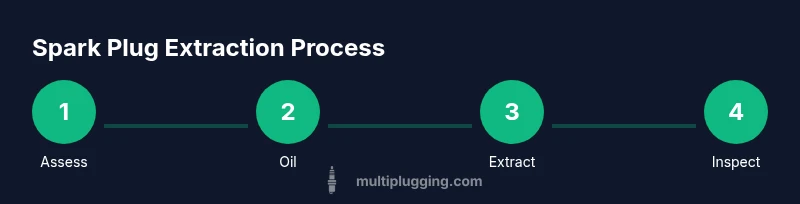

Steps
Estimated time: 60-90 minutes
- 1
Prepare and secure the engine bay
Park the vehicle on a flat surface and disconnect the battery negative to prevent any electric shorts. Remove or reposition intake components or covers that block access to the affected cylinder. Confirm the engine is cool before touching hot components.
Tip: Label or photograph hoses and connectors before removal to ease reassembly. - 2
Inspect the area and apply penetrating oil
Inspect the plug area for obvious damage and apply penetrating oil around the plug base. Give the oil time to soak—usually 5–10 minutes. This reduces friction and helps free a seized plug.
Tip: Do not rush; soaking time improves success rate. - 3
Wait for oil to soak
If you have time, wait another 5–10 minutes after initial application. Re-check the area for excess oil or debris before attempting removal. This pause minimizes the risk of snapping the plug.
Tip: Re-apply oil if you still feel resistance. - 4
Loosen the broken plug with the extractor or grip
Attach the spark plug socket securely and gently attempt to rotate the exposed portion counterclockwise. If the plug is broken flush, avoid forcing; instead, attempt to grip any exposed stem with the socket or pliers. Rotate slowly and steadily to back the piece out.
Tip: Maintain constant, controlled pressure to prevent further breakage. - 5
Retrieve the fragment and assess threads
If a fragment breaks free, use a magnet or tweezers to recover it. Inspect the bore and threads for damage; if threads look damaged, consider a repair step before installing a new plug. Do not leave fragments behind.
Tip: If you can't retrieve the fragment safely, stop and seek professional help. - 6
Clean, inspect, and prepare for replacement
Clean the bore and threads with a brush and rag; ensure no debris remains. If threads are damaged, do not force a new plug. Clean any debris around the plug area and prepare the new plug for installation.
Tip: Take note of torque specs for the replacement plug. - 7
Install the new spark plug and test
Install a new plug to the recommended torque, reconnect wiring, and reassemble any components removed earlier. Reconnect the battery and start the engine to verify smooth operation and absence of misfires.
Tip: If an engine light comes on, recheck torque and connections.
FAQ
Can I remove a broken spark plug without removing the cylinder head?
In many engines you can access and remove a broken plug without pulling the cylinder head, but some designs require head removal. If access is blocked by components or the plug is recessed, professional service may be needed.
In many engines you can access a broken plug without removing the head, but if access is blocked, you may need a pro.
What should I do if the ceramic tip remains in the bore after extraction?
Do not push the tip further into the bore. Use a magnet or a dedicated extraction tool to retrieve any fragments. If fragments remain, stop and assess to prevent engine damage.
If the ceramic tip stays, don’t push it in. Try a magnet or extraction tool, and stop if needed.
How long should I wait after applying penetrating oil?
Most penetrants benefit from a 5–10 minute soak; in stubborn cases, reapply and soak longer. Don’t rush the process, as soaking improves the odds of a clean removal.
Wait 5–10 minutes after applying penetrating oil, and reapply if needed.
Is reusing the same plug thread safe after removal?
If threads show any damage, do not reuse the same area. Damaged threads can cause gas leaks or misfires. Repair or replace the threaded component as needed.
If threads are damaged, don’t reuse them; repair or replace.
When should I call a professional?
If you cannot access the plug safely, if the bore is damaged, or if you cannot retrieve the fragment without risking engine harm, seek professional service.
Call a pro if access is unsafe, threads are damaged, or you can't remove the fragment safely.
Watch Video
Main Points
- Inspect threads and bore before removal
- Apply penetrating oil and soak for best results
- Extract broken pieces carefully to avoid engine contamination
- Replace with a new plug and torque to spec
