How to Keep Spark Plug Wires from Melting: A DIY Guide
Learn practical steps to prevent spark plug wires from melting, including heat shielding, routing, insulation checks, and safe ignition-system practices for cars and small engines.
According to MultiPlugging, you can prevent spark plug wires from melting by managing heat, protecting ignition wiring, and using correct boot ends. This guide walks through practical steps to prevent hotspots, check insulation, and route wires safely. Follow the steps to keep your ignition system reliable and avoid expensive damage.
Why spark plug wires melt in the first place
Melting spark plug wires are usually a symptom of excessive heat and electrical stress in the ignition system. If boots or insulation degrade, or if wires run too close to hot exhaust manifolds, the insulation can soften, crack, or burn. The result can be misfires, reduced fuel efficiency, and in severe cases, engine damage. The MultiPlugging team notes that understanding heat sources, insulation quality, and correct routing is essential when learning how to keep spark plug wires from melting. By identifying hotspots and worn components early, you can prevent failures and extend the life of your ignition wiring.
In a typical engine, ignition wires carry high-voltage pulses from the coil to the spark plugs. When the harness sits near a heat source or is stretched beyond its design length, the insulation can break down. Vibration can also loosen connections, increasing resistance and heat. In hot climates or under heavy load, the problem is more pronounced, especially if aftermarket upgrades or performance tuning increase exhaust heat or ignition demand. Addressing these factors yields fewer misfires and less risk of melted boots.
As you learn how to keep spark plug wires from melting, adopt a methodical inspection routine and document your findings. A small amount of preventive maintenance now can prevent costly repairs later. If you notice cracks, glazing, or soft spots in the insulation, treat them as red flags and replace the affected wires or boots promptly.
Tools & Materials
- Spark plug wire set compatible with your engine(Check length, resistance, and compatible boot ends; avoid wires with visible insulation damage)
- Heat-resistant ignition boots(Cap ends to prevent arcing and protect terminal connections)
- Heat shield or heat tape(Shield sensitive wires near exhaust manifolds or turbo components)
- Wire routing guides (zip ties or clips)(Keep wires away from hot surfaces and moving parts)
- Safety gloves(Protect hands during removal and installation)
- Dielectric grease (optional)(Used at connector interfaces to maintain moisture resistance)

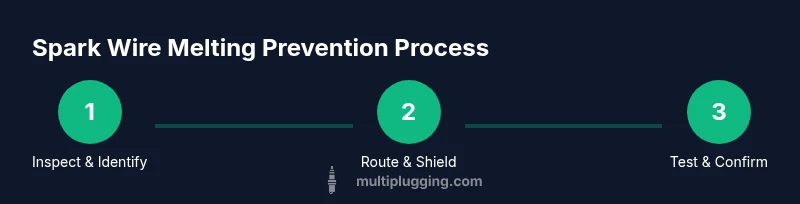

Steps
Estimated time: 60-120 minutes
- 1
Power down and inspect wires
Turn off the engine and disconnect the battery. Visually inspect all spark plug wires for cracks, melted boots, or blistered insulation. Look for signs of arcing, scorch marks, or fraying where wires bend near metal components. This initial check helps you identify which wires need replacement and where heat is concentrating.
Tip: Always disconnect the battery before handling ignition components to avoid shocks or shorts. - 2
Identify heat hotspots and routing issues
Map out hot zones in the engine bay, focusing on exhaust manifolds, turbo housings, and the underside of the hood. Note wires that run too close to heat sources or rub against sharp edges. A simple chalk marker or tape can help you mark routes that should be avoided.
Tip: Move wires at least a few centimeters away from the hottest surfaces. - 3
Plan safe routing with shields
Plan to route wires along cooler paths, using protective boots or sleeves at bends. Install heat shields or reflective tape on the hottest sections of the run. Secure wires with purpose-made guides to prevent movement and chafing.
Tip: Avoid routing wires across sharp edges; use rounded clips where possible. - 4
Replace damaged components
If any boot, boot-to-wire junction, or insulation shows damage, replace the affected section or the entire wire set as needed. Damaged insulation is a primary cause of melting and misfires, so timely replacement is essential.
Tip: Do not reuse damaged connectors or insulation. - 5
Seal and protect connections
Apply dielectric grease at connector interfaces if permitted by design to improve moisture resistance and contact quality. Reconnect all wiring securely, ensuring clamps are snug but not overly tight.
Tip: Check all connections after initial startup to confirm a solid seal. - 6
Test run and monitor heat
Start the engine and monitor under-hood temperatures. If you notice new hotspots, reevaluate routing and shielding. Allow the engine to reach operating temperature and observe for any signs of arcing, misfires, or unusual heat buildup.
Tip: If heat persists in a specific area, consider relocating the wire bundle or upgrading shielding.
FAQ
What causes spark plug wires to melt in a modern engine?
Melting is usually caused by heat exposure from exhaust components, wear in insulation, or misrouting that brings wires into contact with hot surfaces. High voltage and resistance from damaged boots can amplify heat. Regular inspection helps catch issues before melting occurs.
Wires melt mainly due to heat exposure from hot components and worn insulation, so regular checks are important.
Can replacing wires alone stop future melting?
Replacing damaged wires is essential, but you should also address routing, shielding, and heat sources. Upgrading to heat-resistant boots and shields reduces risk of recurrence.
Replacing damaged wires is important, but you should also fix routing and add shields to prevent future melting.
How often should I inspect spark plug wires for heat damage?
Perform a visual inspection at least every 6 months or every 5,000-7,500 miles, whichever comes first, and after any performance upgrade that increases engine load or heat. Look for cracks, glaze, or blistering.
Check the wires every 6 months or so, especially after any power or heat changes.
Are heat shields safe to install on all vehicle types?
Heat shields are generally compatible with most engines, but you should choose shields suited for your exhaust layout and engine bay. If unsure, consult a technician or refer to your vehicle's service manual.
Heat shields usually work well, but pick ones designed for your setup and follow manufacturer instructions.
Is dielectric grease necessary at all connector contacts?
Dielectric grease is optional but helpful at non-conductive interfaces to repel moisture and improve contact. Always follow the vehicle’s manufacturer guidance on its use.
Dielectric grease can help with moisture and contact, but check your manual first.
What should I do if heat damage occurs after a long drive?
If you notice melted boots or melted insulation after a drive, park safely, let the engine cool, re-route away from heat sources, and replace affected wires immediately. Check for collateral damage like melted connections or misfires.
If you see damage after a drive, let the engine cool, fix routing, and replace damaged wires quickly.
Watch Video
Main Points
- Inspect wires for damage and hotspots before each long trip
- Route wires away from exhaust and hot components using shields
- Replace damaged boots and insulation promptly to prevent failures
- Use proper routing guides to prevent wear and arcing
