Spark Plug Wires for Headers: A Practical DIY Guide
Learn how to select, route, and install spark plug wires for headers with confidence. Heat management, wiring order, and practical tips for DIYers to prevent misfires and heat damage.
By the end of this guide, you’ll know how to choose, route, and install spark plug wires for headers with confidence. You'll learn heat-rated boot options, correct routing to avoid heat and interference, how to match wire resistance, and how to verify proper firing order for reliable starts and smooth running.
What are spark plug wires for headers and why they matter
According to MultiPlugging, engines equipped with headers create a standout heat and clearance environment around ignition components. The spark plug wires for headers must resist radiant heat, withstand vibration, and avoid contact with hot exhaust surfaces. Using ordinary wires can lead to misfires, accelerated boot wear, or insulation breakdown when they sit near header tubes. This section explains why header-specific wires are a smarter choice for durability and ignition consistency. You’ll learn the core differences between standard wires and headers-rated cables, and how the right design supports reliable starts, even under hard acceleration or prolonged idling. Expect practical advice you can apply to most small- or big-block setups while keeping your engine bay neat and accessible.
Key differences: plain wires vs wires designed for headers
Not all plug wires are created equal, and header environments demand more from each conductor. Spark plug wires for headers typically feature heat-resistant insulation, robust boots, and improved shielding to prevent cross-talk and EMI. The boots are often angled or dual-boot designs to fit tight clearances near collector flanges. Insulation materials are chosen for high heat, flex, and moisture resistance, reducing arcing risk across a wide temperature range. In contrast, generic wires may soften, crack, or lose conductivity when exposed to intense radiant heat. For DIYers, recognizing these cues helps you select the right product and avoid premature failure.
Choosing the right wires for headers
When shopping for spark plug wires for headers, prioritize heat-rated construction, silicone or fluoropolymer insulation, and boots that seal snugly against the spark plug and the tube flange. Ensure the wires are long enough to route cleanly away from hot surfaces without tension. Check that the conductor material and resistance are appropriate for your ignition system and distributor or coil pack. While performance gains from fancy materials vary, a well-matched, header-ready set reduces the likelihood of misfires and voltage leakage. Always confirm compatibility with your engine’s firing order and cylinder count before purchase.
Heat management: boot design, insulation, heat shields
Heat management is a key reason to choose spark plug wires for headers. Look for boots with heat shields or ceramic reinforcement near the base, and insulation rated for radiant heat near exhaust components. If your setup has tight exhaust clearances, consider boots with elbows or curved ends to avoid contact with hot pipes. Some kits include heat sleeves or shields you can install around the wire paths. Effective heat management translates to longer wire life and steadier ignition performance across a wide RPM range.
Routing and clearance considerations around headers
Routing plays a major role in wire longevity. Plan a path that stays several millimeters away from the header tubes and avoids sharp bends. Use stock or aftermarket loom supports to secure wires away from moving parts and contact points. Maintain uniform spacing between adjacent wires to reduce cross-talk and EMI. In cramped engine bays, you may need to use shorter wires or boot extensions; in any case, verify that the path remains accessible for future maintenance and inspection while still avoiding heat sources.
Performance implications: resistance, misfires, and compatibility with headers
Header-equipped engines can demand different ignition characteristics. Wires with appropriate resistance help damp high-frequency noise and reduce EMI that might affect wheel-speed sensors or ECU signals. Mismatched resistance or incompatible boot geometry can encourage misfires, particularly at high RPMs. Always consult your vehicle’s service manual or a trusted guide to ensure firing order compatibility and the selected spark plug wires for headers won’t introduce ignition timing shifts or voltage leakage under load.
Installation considerations and safety
Before starting, disconnect the battery and ensure the engine is cool to avoid burns. When removing old wires, label each wire and photograph routing to preserve firing order and path. Install new wires by seating boots fully on the spark plugs, then attach the opposite ends to the distributor/coil in the correct order. Avoid forcing wires through tight gaps; use a gentle bend radius to prevent internal conductor damage. Secure wires with clips or loom ties away from hot surfaces and moving parts to prevent chafing.
Maintenance and inspection schedule for wires near headers
Regular checks extend the life of spark plug wires for headers. Inspect boots for cracks or looseness, and look for glazing or insulation wear along the conductor. Check routing for any signs of heat exposure or abrasion near headers, repositioning as needed. Re-torque any clamps if you notice movement and replace wires at the first sign of degradation to maintain ignition reliability.
Troubleshooting common issues with spark plug wires for headers
If you experience misfires, start by inspecting the boots for proper seating and moisture intrusion. A cracked boot or worn insulation near heat zones commonly causes misfires. For rough idle, check that each wire is in its proper cylinder position and that the firing order matches the engine’s configuration. If arcing is suspected, inspect the wire ends and boot contact with the spark plugs and headers; replace worn wires promptly to prevent further damage.
Tools & Materials
- Spark plug wires designed for headers(Heat-rated insulation and header-friendly boots)
- Socket set with spark plug socket(For removing/installing plugs and wires boots)
- Torque wrench(To secure plugs and boot clamps to spec)
- Dielectric grease(For boot-to-connector seals and moisture resistance)
- Heat shield or heat-wrap kit(Optional protection for fragile wiring near headers)
- Gloves and safety glasses(Personal protection during removal and installation)
- Replacement spark plugs (as needed)(Checks the entire ignition path and helps with installation clarity)

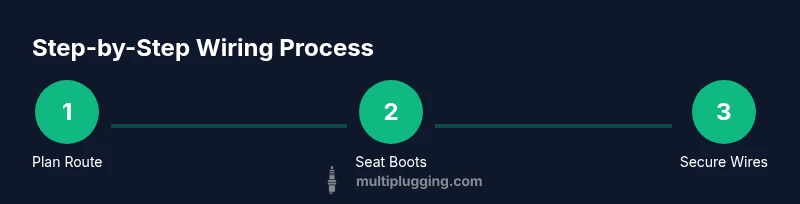

Steps
Estimated time: 60-90 minutes
- 1
Disconnect the battery
Begin by turning off the engine and disconnecting the negative battery terminal. This reduces the risk of electric shock and prevents voltage feedback to the ECU while you work. Allow any residual charge to dissipate for a minute before handling components.
Tip: Use insulated gloves and verify the battery is completely disconnected before touching ignition components. - 2
Label and photograph current wiring
Take clear photos of the current routing and label each wire to preserve firing order and path. Document how each wire exits the distributor or coil pack and where it terminates at the spark plug. This record helps ensure accurate reinstallation with new header-rated wires.
Tip: Label matching cylinder numbers on the plugs and use a color-coded map for quick reference. - 3
Remove old wires
Carefully remove the old spark plug wires, one at a time, to avoid cross-contamination of firing order. Do not yank; twist gently to loosen boots from plugs and coils. Inspect each boot and the plug well for cracks or moisture.
Tip: If a wire is stubborn, use slow, even pressure and rotate slightly to free it without damaging the boot. - 4
Inspect spark plugs and firing order
With the wires removed, inspect plugs for wear and carbon buildup. Check that the engine’s firing order matches the manufacturer’s specification before installing headers-rated wires. Replacing worn plugs at this stage prevents ignition bottlenecks.
Tip: If in doubt, consult your service manual for the correct firing order and gap specs. - 5
Install new wires on the plugs
Attach the boots firmly onto each spark plug until you feel a click. Avoid forcing the boot or bending the inner conductor. Ensure the terminal seats fully and there is no moisture at the boot end.
Tip: Use dielectric grease on the boot terminals to improve seal and reduce moisture intrusion. - 6
Route wires away from heat sources
Plan a clean path that keeps wires clear of hot headers, exhaust manifolds, and moving parts. Use hose clamps or loom to secure wires at intervals, maintaining gentle bends. Do not crowd wires near the collectors where radiant heat could degrade insulation.
Tip: Leave a small clearance from the header surface and avoid contact with sharp edges. - 7
Connect to ignition coil/distributor
Attach the opposite end of each wire to the correct coil/terminal in the proper order. Double-check the connections, then loosen and re-seat if necessary to ensure a solid electrical contact. Confirm that there are no crossed wires.
Tip: Refer back to your labeled map to confirm the correct cylinder-to-coil mapping. - 8
Secure and inspect
Tighten clamps if used and re-check that all boots are seated. Reconnect the battery and inspect for any signs of arcing or frayed insulation. Ensure there is no contact with moving parts or the exhaust system.
Tip: Turn the engine over briefly by hand or with the starter to confirm the engine moves freely without wire interference. - 9
Test run and verify firing order
Start the engine and listen for smooth operation. If you notice misfires, re-check the boot seating and firing order. Take the car for a short test drive to ensure consistent ignition under load and at different RPMs.
Tip: If misfires persist, re-check each wire against its cylinder and consider replacing a suspect wire.
FAQ
Do spark plug wires for headers require special boot material?
Yes. Boots for headers should be heat-resistant and sealed to prevent moisture intrusion, especially near hot exhaust components. This reduces the risk of arcing and misfires.
Yes. You’ll want heat-resistant boots that seal well near the headers to prevent moisture and arcing.
Can I reuse old wires with headers?
Reusing old wires is not recommended when installing headers. Heat exposure and aging can compromise insulation and boot integrity, leading to misfires or arcing.
Reusing old wires is not recommended; header heat can degrade insulation and cause misfires.
How do I know the wires are properly connected?
Ensure each boot is fully seated on its plug and coil terminal with a clear click. Verify the firing order matches the engine’s specification and recheck after a test run.
Make sure each boot clicks on firmly and that the firing order matches your engine’s spec.
What happens if a wire touches the header?
Contact with headers can overheat insulation and cause insulation damage. Re-route the wire so there is consistent clearance and secure it away from hot surfaces.
If a wire touches the header, re-route it to keep a safe clearance and protect the insulation.
Do headers change the required wire length?
Yes. Headers may require slightly different routing lengths to avoid sharp bends and heat exposure. Measure and choose wires that fit the new path without tension.
Headers can affect routing length, so measure and select wires that fit the new path without tension.
Watch Video
Main Points
- Choose header-rated wires with heat resistance.
- Plan routing to avoid heat and interference.
- Verify firing order before final connection.
- Inspect boots and insulation for damage during maintenance.
- Secure wires away from headers and moving parts.
