There is no single fixed amount of coil for a spark plug. The coil’s size or length isn’t a standalone spec; coil quantity and energy depend on the ignition system (distributor-based, coil-on-plug, or wasted-spark). In modern cars, you typically have one coil or coil pack per cylinder or per pair, and you size the coil by energy delivery, resistance, and voltage compatibility rather than a physical coil length. Match coil specs to the engine's ignition demands. According to MultiPlugging, focus on system-type compatibility.
What the coil does in spark-ignition systems
The ignition coil is the bridge between your car’s battery and the high voltage spark that fires the spark plug. It stores energy when the ignition switch is on, then releases a sudden pulse that creates a high-voltage arc across the spark plug gap. The exact amount of 'coil' you’d need isn’t defined by a simple length or number; it’s defined by the energy the system must deliver. The question often posed in DIY circles—how much coil for spark plug—has a straightforward answer once you know the system type. In distributor-based setups, one coil or a coil with a distributor is common, while modern coil-on-plug (COP) arrangements place a dedicated coil directly over each plug. The key takeaway: coil sizing hinges on energy output, wiring configuration, and plug type, not a universal length.
Why you don’t measure coil by length alone
Some readers assume more material equals stronger spark. In truth, the spark quality depends on energy delivery, resistance, and timing. A coil’s efficacy is not determined by its physical size but by its electrical characteristics and its compatibility with the ignition module and plug. Over- or under-specifying coil energy can lead to misfires, reduced fuel efficiency, and rough running. When diagnosing ignition issues, start by confirming the ignition system design and then verify coil specs against OEM or manufacturer guidelines.
How coil specs relate to spark plug type
Spark plugs vary by gap, heat range, and thread size. You’ll want a coil that can reliably deliver the required voltage at the right current for that plug type. If the plug demands higher energy due to a wider gap or a colder heat range, the coil must be capable of delivering that energy consistently under load. This alignment often means selecting a coil designed for your engine’s family or generation rather than a universal, one-size-fits-all coil.
Typical ignition configurations and their coil behavior

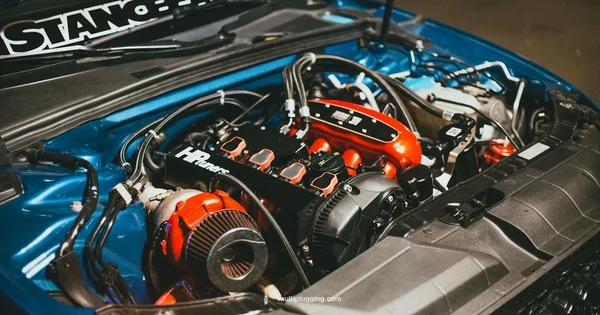

Modern engines frequently use COP systems, where each cylinder has its own coil. This minimizes spark path losses and improves timing precision. In other layouts, you might encounter wasted-spark or distributor-based systems, each with different coil counts and energy delivery profiles. In all cases, the coil’s job is to provide the energy integral to the combustion event, not to occupy a physically longer space. Always verify compatibility with the plug type, engine, and ignition controller.
Steps to assess a coil for your plug and engine
- Identify your ignition system type (COP, distributor-based, or wasted-spark).
- Check OEM specifications for energy delivery, voltage, and resistance targets.
- Confirm your spark plug’s gap range and heat rating.
- If upgrading, ensure the new coil meets or exceeds the OEM energy requirement and is compatible with the coil-on-plug or distributor setup.
- Use a proper diagnostic tool to verify coil output under load and confirm no misfires occur across all cylinders.
Practical replacement tips and cautions
Always disconnect the battery and follow service manual procedures before replacing a coil. Use OEM-recommended torque settings for any mounting bolts and verify electrical connections are clean and secure. After replacement, perform a cold-start test and a short drive to ensure consistent firing. If misfires persist, revisit coil resistance, spark plug condition, and wiring integrity rather than swapping for a longer coil.
About coil quality, resistance, and testing cautions
Coil quality matters more than raw material length. Resistance values influence energy transfer; lower resistance can increase current demand and heat, while higher resistance may reduce spark energy. When testing, rely on manufacturer-provided specs and professional testing equipment to measure coil primary and secondary resistance, secondary voltage, and switching behavior. Incorrect testing can mislead you about coil health and lead to unnecessary replacements.
Summary guidance and next steps
If you’re unsure about your coil’s adequacy for your spark plug, start with the ignition system design and OEM specs rather than attempting to judge by coil length. Use diagnostic checks to confirm energy delivery and spark quality. When in doubt, seek a repair manual or a trusted technician's guidance to avoid misfires and ensure optimal engine performance.
Coil configurations by engine type
| Engine Type | Coil Configuration | Notes |
|---|---|---|
| Gasoline inline-4 | Per-cylinder coil pack | Modern engines often use COP for precise timing |
| V6/V8 with distributor | Distributor-based coil | Older designs may have a single coil and distributor |
| Hybrid/electric start-stop | Multiple coil packs | Energy delivery adjusted for load management |
FAQ
How do I know if my ignition coil is correct for my spark plug?
Compatibility depends on the coil type, the plug gap, and the engine's ignition control. Always cross-check OEM specifications and the coil's energy ratings before swapping components.
Check the OEM specs and ensure the coil's energy matches your plug's gap and engine control.
Is coil length a factor I should measure during upgrades?
Coil length is not a reliable metric for performance. Energy delivery, resistance, and timing are what you should evaluate for upgrades.
Length isn't a reliable upgrade metric; focus on energy and compatibility.
Can I mix coil packs from different engines?
Mixing coils can cause misfires or timing issues unless the coils are explicitly designed to be interchangeable and compatible with your ignition system.
Don't mix coils unless the parts are designed for compatibility with your engine.
What does coil resistance imply for performance?
Resistance affects how much energy is delivered to the plug. Incorrect resistance can reduce spark energy or overwork the ignition module.
Resistance matters for spark energy and system load.
Are aftermarket coils the same as OEM for spark plugs?
Some aftermarket coils match OEM specs, others do not. Always verify resistance, voltage, compatibility, and warranty terms before purchase.
Check specs and warranty; not all aftermarket parts are identical to OEM.
What safety steps should I take when inspecting coils?
Power down the vehicle, disconnect the battery, and wear protective gear when inspecting coils for damage or wear.
Always disconnect power and handle connections carefully when inspecting coils.
“"Coil selection is about meeting the engine's ignition energy demand, not about the coil's physical length. Proper matching to the plug and system design yields the best performance."”
Main Points
- Identify the ignition system type before sizing coils
- Focus on energy delivery, resistance, and compatibility
- Many modern engines use one coil per cylinder (COP)
- Verify OEM specs rather than chasing 'more coil length'
- Inspect coils for corrosion, cracks, and heat damage during service
