How Many Types of Spark Plug: A Practical DIY Guide

What counts as a 'type' of spark plug? Defining the scope

When car owners ask, <strong>how many types of spark plug</strong> exist, the answer depends on how you count. In practice, most people separate plugs by the material the electrode is made from, then layer in design features like electrode geometry and heat range. This means you aren’t choosing from 1 or 2 options, but from a family of related options that can look very different on paper yet perform similarly in a given engine. For DIYers, the most useful split is to start with four core materials and then consider design and heat range variants. This framing helps you compare plugs across brands without getting lost in SKU-level details. Throughout this guide, we’ll tie these categories back to real-world effects on cold-starts, throttle response, and longevity. As always, refer to your vehicle’s manual and use OEM specs as your baseline.

Material families in depth

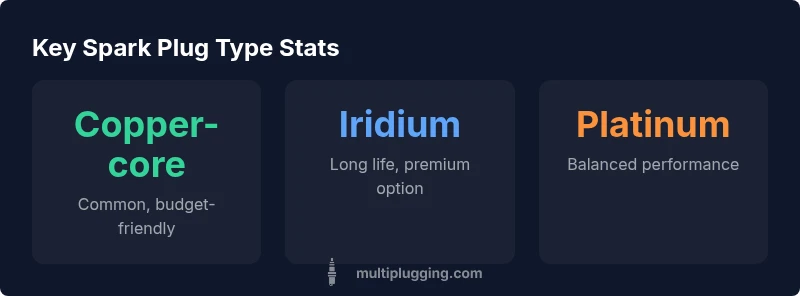

Spark plugs fall into four primary material families that affect longevity, ignition reliability, and cost. <strong>Copper-core</strong> plugs deliver strong conduction at a lower price but wear faster. <strong>Platinum</strong> plugs balance durability and performance with mid-range cost. <strong>Iridium</strong> plugs use a fine-wire tip for long life and precise spark, typically in higher-end or performance applications. <strong>Double platinum</strong> plugs pair two platinum tips for extended life and broader compatibility. Each material family has its own heat behavior and spark characteristics, which means a plug that works well in one engine might be less optimal in another. When choosing, compare not just price but also compatibility with your engine’s ignition timing, fuel mixture, and operating temperature ranges. The MultiPlugging team notes that material choice interacts with heat range to determine overall performance and longevity, especially under frequent short trips or high-load driving.

Electrode designs and configurations

Beyond material, electrode geometry and ground configurations shape how the spark forms. The common categories are <strong>conventional (standard)</strong>, <strong>fine-wire</strong>, and <strong>multi-ground</strong> designs. Fine-wire variants use thinner tungsten or platinum wires for a smaller, hotter spark kernel, enabling smoother ignition at lower voltages but often at a higher price. Multi-ground designs place two or more ground electrodes around the insulator tip, sometimes improving ignitability under certain cam/torque conditions. Additionally, there are <strong>short-reach</strong> vs <strong>long-reach</strong> plugs, which alter the air-fuel mixture dynamics in engines with different combustion chamber geometries. For DIYers, understanding these mechanical differences helps pick a plug that minimizes misfires and ensures reliable starts, especially in engines with high compression or turbocharging.

Heat range and engine operating temperatures

Heat range describes how quickly a plug releases heat from the tip. A plug that runs too cool can foul, while one that runs too hot can cause pre-ignition. Most engines require a specific heat range to match the chamber temperature and driving regime. Cold plugs (cooler) resist fouling in high-idle or cold climates but risk cooling the combustion chamber too much in hot climates. Hot plugs (warmer) promote self-cleaning but can overheat in performance driving. When you replace plugs, align the heat range with typical operating temperatures, fuel quality, and your driving style. If you switch brands, verify the new plug’s heat range is within the OEM range; small deviations can affect throttle response and fuel economy.

Resistor vs non-resistor and EMI considerations

Most modern engines use resistor-type plugs to suppress electrical noise that can interfere with onboard electronics and radio reception. Non-resistor plugs can be found in some older vehicles or specialty builds. The choice matters for ignition coil compatibility and the integrity of sensor readings in engines with precise fuel and timing control. When replacing plugs, ensure your chosen type has the same resistance specification as the original. If in doubt, consult the service manual or a trusted dealer.

How counts vary by counting method and market segment

Count discussions typically converge around a core set of combinations: four material families plus a handful of electrode designs and heat ranges. Depending on whether you count only material types, or material plus design variants, you’ll see a birthday-card-style list of seven to twelve common sub-types. The takeaway for DIYers is that the exact number isn’t as important as matching the right family to your engine’s needs. When cross-referencing with a parts catalog, focus on material compatibility, correct heat range, and the presence of a resistor if required.

Practical selection workflow for DIYers

To pick the right plug, start with the vehicle’s OEM specification and engine type. Then evaluate operating conditions: climate, typical driving style, and fuel quality. Next, compare material families and select a heat range that aligns with the engine’s combustion characteristics. Finally, verify the plug’s reach and torque specification and ensure the chosen design (resistor vs non-resistor, electrode geometry) is compatible with your ignition system. In short, a methodical approach beats guessing, especially when it comes to reliability and efficiency.

Real-world examples across engine types

A daily commuter with a conventional gasoline engine may benefit from a durable platinum plug with a mid-range heat rating, balancing longevity against cost. A performance-oriented turbocharged engine might rely on iridium or double-platinum, fine-wire designs with narrow gaps to optimize ignition at higher boost pressures. An older vehicle with a distributor ignition can tolerate copper-core plugs for low cost, but maintenance should be more frequent due to wear. Each scenario demonstrates how plug type choices translate into daily drivability, cold starts, and long-term maintenance costs.

Quick-start checklist for your next plug change

• Identify your engine model and check the OEM specification.
• Confirm material type and heat range from the service manual.
• Match the resistor configuration to the ignition system.
• Verify the correct reach, thread size, and torque specification.
• Check the gap specification and adjust if needed.
• Inspect the install process for cleanliness and proper seating to avoid misfires.
• Record the replacement details for future maintenance.
