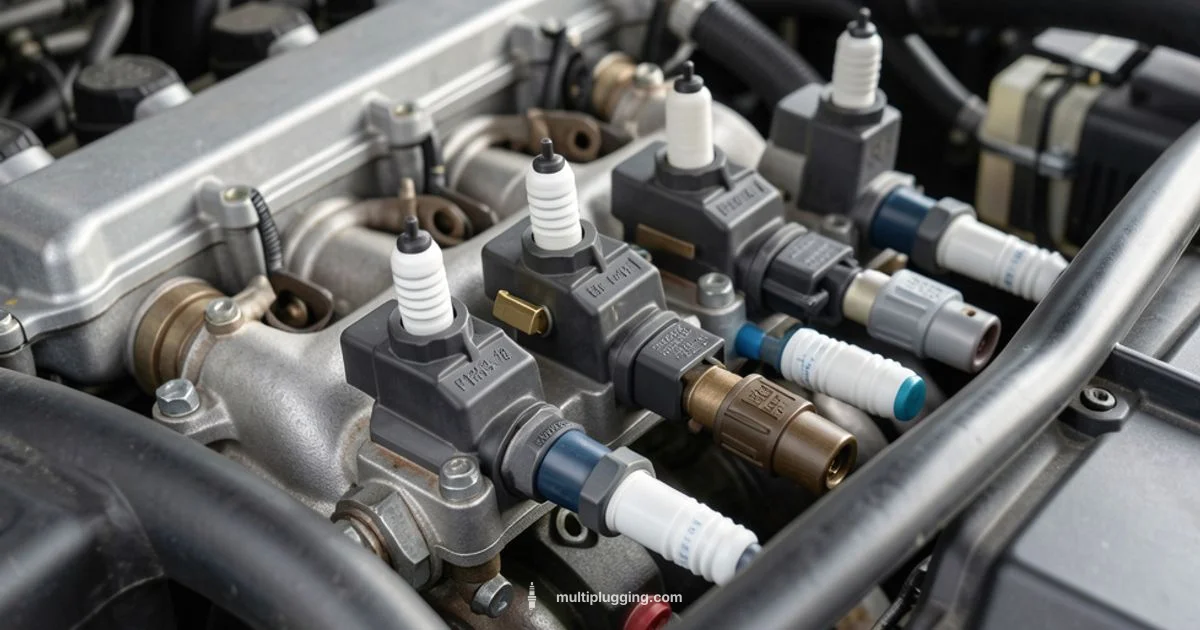

Car spark plug coil is an ignition coil assembly that delivers the high voltage required to spark the plug and ignite the air-fuel mixture in the engine.
What a car spark plug coil does
According to MultiPlugging, the car spark plug coil is a critical component of the ignition system that stores and converts energy from the battery into a high voltage that jump-starts the spark plug. In a typical gasoline engine, the coil charges from the battery and releases a precise pulse of electricity at the exact moment the piston compression reaches the top dead center. This instantaneous surge creates a spark that ignites the air-fuel mixture in the combustion chamber. Understanding this function helps you diagnose problems and plan maintenance with confidence. The coil must work in concert with the spark plug, spark plug wires or direct coil-on-plug hardware, and the electronic control unit to ensure consistent ignition and performance. When any part of this chain falters, performance suffers, fuel economy drops, and emissions can creep higher. A basic grasp of the coil's role makes it easier to spot symptoms early and decide whether a DIY fix or professional service is appropriate.
How ignition coils interact with spark plugs
Ignition coils are the power source for spark plugs. In most modern engines, each cylinder has a coil or a coil pack that converts the car battery voltage into tens of thousands of volts, delivered to the spark plug at the precise moment needed. The spark plug then arcs across its gap, igniting the air-fuel mixture. There are two main layouts: coil-on-plug where a separate coil sits directly on each spark plug, and distributor-based systems that route the high voltage through ignition wires. Coil-on-plug designs reduce energy losses and provide precise timing, while older distributor systems add a failure point in the spark path. The interaction between coil timing, engine control, and the plug gap determines smooth idle and consistent power.
Common coil problems and symptoms
Common coil problems show up as misfires, rough idle, or reduced power. If a cylinder fires inconsistently, you may notice a shaking idle, hesitation during acceleration, or a drop in fuel economy. The check engine light often illuminates with misfire codes or random cylinder misfire codes. Visible signs include cracked coil housings or corrosion at the electrical connector, though many issues are internal and not visible. Replacing a failing coil usually restores smooth operation and efficiency, but root causes such as worn spark plugs or damaged wires should be addressed to prevent recurrence.
Coil types and configurations
Ignition coils come in several configurations. Coil-on-plug units place a dedicated coil atop each spark plug, delivering targeted energy with minimal wiring. Coil packs consolidate multiple coils into a single housing to reduce harness complexity. Wasted-spark systems fire two cylinders at once, sharing a coil pack. Understanding which layout your engine uses helps you select the right replacement and avoid compatibility issues.
Diagnosing coil issues without a professional
Start with the basics: scan for engine trouble codes and note misfire symptoms. A simple spark test can confirm whether a coil is delivering energy to a spark plug by grounding the plug or using a spark tester. Inspect the electrical connectors for corrosion or loose pins and ensure the coil housing is clean and dry. If you have access to a diagnostic tool, you can compare live data such as misfire counts or cylinder-specific data to narrow down the faulty coil.
Replacing a coil: steps and considerations
Before you start, park on a level surface, engage the parking brake, and disconnect the negative battery cable. Locate the faulty coil or coil pack, remove any covers, and disconnect electrical connectors. Remove mounting bolts and carefully lift the coil out. Install the replacement coil, reattach connectors, and torque bolts to the service manual specification. Reconnect the battery and run the engine to verify proper operation. If the coil sits on a plug with a boot, inspect the boot for cracks and replace as needed.
Maintenance tips for coil longevity
To extend coil life, keep spark plugs in good condition, as a worn plug can stress the coil. Use dielectric grease on connector pins to improve moisture resistance and signal integrity. Regularly inspect ignition wires and coil boots for cracks, and replace them if needed. Maintain a healthy engine environment with clean air and proper fuel delivery to reduce coil strain. Some DIYers consider anti-seize on spark plug threads to ease future removal, but check your vehicle's manual and manufacturer guidance.
Safety considerations and best practices
Work in a well ventilated area and wear eye protection and gloves. Disconnect the battery before starting work to prevent electric shock or accidental ignition. If you smell fuel or see smoke, stop and seek professional help. After any ignition work, clear the engine bay of tools and ensure there are no loose parts before starting.
FAQ
What is a car spark plug coil?
A car spark plug coil is an ignition coil that transforms the low battery voltage into a high voltage needed to create a spark at the spark plug, igniting the air-fuel mixture.
A car spark plug coil is the device that boosts battery voltage so the spark plug can ignite the air-fuel mix in your engine.
How does a faulty coil affect engine performance?
A faulty coil can cause misfires, rough idle, hesitation, and reduced power. It may trigger a check engine light and lower fuel efficiency.
If the coil is bad, your engine may run rough or lose power, and the computer may log misfire codes.
How can I test if my coil is bad?
You can diagnose with a spark tester or by conducting a controlled spark test on a spark plug. Look for weak or inconsistent sparks and check electrical connectors for corrosion.
Use a spark tester or a controlled spark test to see if the coil delivers a strong spark.
Can I replace the coil myself?
Yes, with basic mechanical skills and the proper manual guidance. Always disconnect the battery first and follow the service procedure for your exact engine.
If you’re comfortable with basic car work, you can replace the coil yourself using the vehicle manual.
Are ignition coils vehicle specific?
Coils are generally vehicle specific or engine-specific. Some engines use coil on plug designs, while others use coil packs that fit a range of models.
Most coils are designed for particular engines or configurations; check your car’s manual for compatibility.
What maintenance helps coil life?
Keep plugs clean, inspect connectors, and use dielectric grease on pins. Replace worn wires or boots and ensure the engine environment stays clean and dry.
Regular checks of connectors and plugs help extend the coil’s life and keep ignition reliable.
Main Points
- Know the coil’s role and common failure signs.
- Use basic tests to diagnose ignition issues.
- Follow the service manual for safe replacement.
- Regular maintenance extends coil life and performance.
