How to Check Spark Plugs and Coils: A DIY Guide
Practical, step-by-step guidance to check spark plugs and coils. Diagnose misfires, test coil health, and know when to replace parts for smoother engine performance.
By following this guide you’ll learn how to check spark plugs and coils for wear, resistance, and proper operation. You’ll identify when to replace plugs, test ignition coils, and understand common fault signatures like misfires or rough idle. This quick-start overview sets the stage for a safe, hands-on diagnosis.
Why Checking Spark Plugs and Coils Matters
According to MultiPlugging, regular checks of spark plugs and ignition coils help prevent drivability issues, improve fuel efficiency, and protect your engine from misfires. Spark plugs convert the air-fuel mix into a spark that ignites the mixture, while ignition coils generate the high voltage needed for that spark. Over time, wear, deposits, or damaged insulation can reduce spark strength, leading to hesitations, rough idle, or reduced power. A systematic check helps you catch issues early, before they cause downstream damage. This guide emphasizes practical, safe inspection techniques you can perform with common hand tools and a basic multimeter. By learning how to check spark plugs and coils, you’ll reduce guesswork and extend the life of your ignition system.
Safety First: Protect Yourself and Your Work Space
Before you touch anything under the hood, set the parking brake, disconnect the negative battery cable, and ensure the engine is fully cooled. Wear eye protection and nitrile gloves to guard against sharp edges and hot metal. Work in a well-lit area with a tidy workspace to avoid losing small parts. Keeping track of cylinder order and wiring paths is essential to avoid miswiring a replacement or mixing up cylinders during reassembly. A deliberate, clean approach minimizes risk and speeds up the process.
Visual Inspection: Spark Plugs – What to Look For
A close visual inspection of spark plugs reveals a lot about engine health. Look for electrode wear, rounded or eroded center electrodes, heavy carbon fouling, oil fouling, or ceramic cracks. Light tan or grayish deposits can indicate normal combustion, while heavy black sooty deposits point to rich fuel mixtures or oil intrusion. If you see oil on the threads or around the electrode, that may indicate valve guide seal or piston ring issues. Photograph the plug before removal if you’re working on multiple cylinders, so you can compare wear across cylinders and spot outliers fast.
Visual Inspection: Coils and Boots – What to Check
Ignition coils and their boots should look solid with no cracks or brittle rubber. Inspect for oil or moisture infiltration around the coil housing, which can degrade insulation and cause misfires. Pull on each coil boot gently to ensure it’s firmly connected to the plug and the coil pack. If a boot is cracked, swollen, or loose, replace it rather than forcing a wiring connection. Coils that are visibly damaged or show signs of heat distress should be tested more thoroughly or replaced to prevent recurring misfires.
Testing Basics You Can Do With Limited Tools
Some diagnostic checks don’t require specialized equipment. For spark plugs, a simple visual plus a gap check with a feeler gauge can confirm whether a plug is within tolerance. For coils, you can perform a basic resistance check with a digital multimeter (DMM) by referencing your vehicle’s service manual for spec ranges. If resistance readings are out of spec, or if you notice a consistent misfire at a particular cylinder, you may have a faulty coil. Document results and proceed with the recommended course of action.
Advanced Testing: When to Use a Multimeter and How to Interpret Results
A multimeter can provide definitive data about coil primary and secondary resistance. Compare your measurements to the manufacturer’s spec; significant deviation indicates coil failure. If a coil tests marginally out of spec, swapping it with a known-good cylinder can help determine if it’s the root cause. During testing, ensure the engine is off and the key is removed; never probe live circuits. Always follow your vehicle’s service manual for exact specs and procedures. If in doubt, consult a professional.
Interpreting Results and Next Steps
If plugs are worn or damaged, replacement is recommended. If coils test out of spec or show signs of coil boot damage, replacement is usually warranted to prevent future misfires. In many engines, replacing all spark plugs at once is cost-effective and can help avoid inconsistent ignition performance. After replacement, re-gap any plugs to manufacturer specs, apply dielectric grease on boots, reconnect wiring, and perform a careful engine start to verify smooth operation. Regular maintenance helps keep ignition performance reliable and efficient.
Maintenance Tips to Extend Ignition System Life
- Use the correct spark plug type and gap for your engine. Mismatched plugs can cause misfires or poor fuel economy.
- Periodically inspect wires, boots, and coil connectors for wear and heat damage.
- Keep the engine bay clean; oil and dirt buildup can degrade insulation.
- When in doubt, replace worn boots and consider a full coil pack replacement if a single coil fails repeatedly.
Tools & Materials
- Spark plug socket with ratchet(Deep well, 3/8 inch drive preferred)
- Torque wrench(To spec on reinstall)
- Feeler gauge / spark plug gap tool(For precise gap adjustment)
- Digital multimeter (DMM)(Measure coil resistance and spark plug wire continuity)
- Spark plug wires/boots tester or boot puller(Helpful for removal and isolation)
- Replacement spark plugs(Match engine manufacturer specs)
- Dielectric grease(On boots and connectors to prevent moisture ingress)
- Torque-safe anti-seize compound (optional)(Use only if recommended by manufacturer)
- Shop rags and solvent(Clean workspace and tools)
- Owner’s service manual for your vehicle(Refer to exact torque and gap specs)

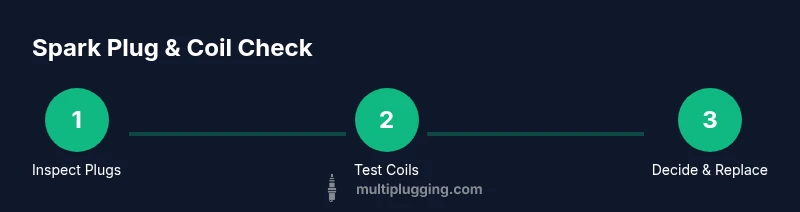

Steps
Estimated time: Estimated total time: 90-120 minutes
- 1
Power down and prep
Park on a level surface, turn off the engine, remove the key, and disconnect the negative battery terminal. Allow the engine to cool completely before touching any ignition components. Clear the area of loose tools and secure long hair or sleeves.
Tip: Wear eye protection and gloves; a cool engine reduces burn risk. - 2
Locate plugs and coils
Open the hood and locate the spark plugs and ignition coil packs for your engine. Refer to your service manual for the cylinder layout and coil locations. Take a quick photo to reference wiring order during reassembly.
Tip: Label or mark each coil/plug wiring to avoid misplacement. - 3
Remove spark plug boot/wire
Gently twist and pull the spark plug boot to disconnect it from the plug. Do not yank; use a boot puller if resistance is high. Keep track of the boot orientation for each cylinder.
Tip: Twisting helps break the seal; a straight pull reduces stray conductor damage. - 4
Remove spark plug
Set a spark plug socket on the ratchet and carefully unthread the plug. Keep the plug upright to avoid contaminating the cylinder with debris. Place removed plugs on a clean, labeled tray.
Tip: Do not drop or scratch the ceramic insulator; damage can ruin a new plug’s seal. - 5
Inspect plug visually
Examine the electrode and insulator for wear, deposits, or oil stains. A worn electrode, heavy fouling, or oil intrusion can indicate engine issues beyond the plug itself. Document any anomalies for later diagnosis.
Tip: Color can tell you a lot about combustion; tan or gray indicates normal operation. - 6
Check plug gap
Measure the gap with a feeler gauge and adjust to the manufacturer’s spec if needed. If the gap is outside tolerance, gently bend the electrode prong or replace the plug with a correctly gapped one.
Tip: Use the correct gap number; improper gap disrupts ignition timing and performance. - 7
Test ignition coil resistance
With the engine off, set the multimeter to the resistance range and probe the primary and secondary windings as per your service manual. Record readings and compare to spec values. A wide variance usually indicates a faulty coil.
Tip: Do not touch live terminals; double-check meter leads before testing. - 8
Inspect coil boot and connectors
Look for cracks, flexible wear, or oil intrusion around the coil boot and connectors. A compromised boot can allow leakage, causing misfires even if the coil itself is fine.
Tip: Replace any cracked boots; this is a common failure point. - 9
Reinstall or replace plug
If the plug is within spec and undamaged, reinstall with a clean gap and new anti-seize if required by manufacturer. If worn or fouled, replace with a new plug matching your engine’s spec.
Tip: Tighten to manufacturer torque to avoid thread damage or loosening. - 10
Reconnect and test
Reconnect boots and battery, start the engine, and listen for smooth operation. Check for misfires using a scan tool or by monitoring engine behavior during idle and light throttle tests.
Tip: If misfires persist, repeat the check with a known-good cylinder to isolate the issue. - 11
Document results
Record which cylinders showed wear or coil issues, and note the replacements performed. This helps future maintenance planning and troubleshooting.
Tip: Create a simple log so you know when to revisit plugs or coils next. - 12
Plan next steps
If multiple components show wear, consider replacing all plugs and the related coils to maintain consistent ignition performance. Schedule a follow-up check after a few thousand miles to confirm continued reliability.
Tip: Consistency matters; one worn part can stress others over time.
FAQ
Do I need to replace coils if spark plugs show wear?
Not always, but worn plugs can mask coil health. If multiple cylinders show wear or misfires persist after plug replacement, test coils and boot integrity. Replacing coils is often recommended if they fail resistance tests.
Worn plugs don’t always mean bad coils, but persistent misfires after plug replacement mean you should test the coils.
Can I check spark plugs while the engine is hot?
No. Allow the engine to cool before removing plugs or manipulating ignition components to avoid burns and warped parts. A cool engine also helps you handle parts more safely.
Never check plugs when the engine is hot; wait for it to cool to avoid burns.
What tools do I need to check spark plugs and coils?
You’ll need a spark plug socket, a ratchet, a torque wrench, a feeler/gap gauge, a digital multimeter, dielectric grease, and replacement plugs. A service manual is also essential for exact specs.
Get a spark plug socket, torque wrench, gap gauge, multimeter, dielectric grease, and replacement plugs.
How often should spark plugs be checked?
Check during routine maintenance or if you notice rough idle, misfires, or reduced fuel economy. Many manufacturers suggest replacement at mileage intervals, but diagnostics can catch sooner if issues arise.
Check during routine maintenance or if you have a misfire; follow your manufacturer’s interval but diagnose if you suspect a problem.
What does a misfire feel like?
A misfire feels like a sudden rapid thump or shake in the engine, occasional hesitation, or a drop in power. You may also see a check engine light with a misfire code.
A misfire feels like a rough, interrupted engine rhythm and can trigger a check engine light.
Is it safe to check coils with a multimeter?
Yes, with the engine off and the battery disconnected. Follow the vehicle’s service manual for the correct testing procedure and resistance ranges to avoid incorrect conclusions.
Yes—just ensure the engine is off and you follow the manual for the correct resistance ranges.
Watch Video
Main Points
- Inspect both plugs and coils for wear and damage
- Use the correct gap and torque specs
- Test with a multimeter for definitive coil health
- Replace worn parts to maintain ignition reliability
