How to Remove a Seized Spark Plug: DIY Guide

Understanding why a spark plug seizes

Removing a seized spark plug isn’t merely stubborn resistance—it’s usually a symptom of corrosion, heat cycling, and improper maintenance. If you’re asking how to remove a seized spark plug, you’re in the right place. The root causes range from carbon deposits that lock the center electrode in place to rusted threads that seize inside the cylinder head. When a plug is seized, attempts to force it free can strip the hex, snap the insulator, or damage the cylinder head threads. According to MultiPlugging, the most common scenarios involve carbon buildup from incomplete combustion, oil fouling that promotes corrosion, and repeated heat cycles that cause metal expansion and contraction at different rates. Understanding these factors helps you choose a method that preserves the plug hole and avoids costly repairs. In practice, most seized plugs respond best to a disciplined combination of lubrication, gentle heat, and controlled turning rather than brute force. This approach also reduces the chance of thread damage that could require a head or insert repair.

For many DIYers, the first question is not just “can I remove it?” but “what’s the safest way to begin without harming the engine?” The answer starts with preparation, proper tools, and patience. You’ll follow a process designed to minimize stress on the plug seat while giving the plug the smallest possible chance to break off in the head. With the right mindset and equipment, you can rescue the plug and avoid a costly extraction later.

noteChargeableState`:null}

Safety first: precautions and setup

Before you touch a seized spark plug, set up a safe workspace and observe essential precautions. A cool engine, proper PPE, and a clear vented area reduce the risk of burns, fumes, or fuel ignition. Disconnect the negative battery terminal to prevent any accidental arcing, and remove spark plug wires or coil packs as needed to access the plug without pulling on delicate terminals. Work in a well-lit environment and keep a fire extinguisher within reach. Protect nearby plastics and hoses from heat or solvents. If you smell fuel, abort and re-evaluate your approach. Always follow the vehicle manufacturer’s guidelines and local safety standards.

Once you’ve established a safe baseline, reflect on the scope of the job. A seized plug may require more aggressive methods if corrosion is severe, and any sign of head or thread damage should steer you toward professional service. This diligence reduces the risk of causing permanent damage that could complicate repairs. According to the MultiPlugging team, safety first is not optional when attempting stubborn extractions; skipping safety steps can convert a simple fix into a costly repair job. Remember to work slowly, test-fit tools gently, and avoid forcing components beyond their natural range.

note`:null}

Assessing the plug and engine health

The next step is to assess the plug’s condition and the engine’s health before you begin turning. Visually inspect the plug head, rubber boot, and threads for cracks, severe corrosion, or a cross-threaded seat. If the hex shape shows rounding or if the plug head spins independently of the electrode, you’re facing thread damage or a seized condition that might require extraction tools or professional help. Photograph the plug and the surrounding area for reference, especially if you plan to pursue thread repairs or replacement. If you notice any coolant leaks or signs of a blown head gasket, stop and seek service rather than continuing with extraction. When threads look salvageable, you can approach removal with the right preparatory steps and time-limited waiting periods for penetrants. A careful evaluation reduces the risk of worsening the problem and guides your choice of subsequent steps. MultiPlugging’s analysis, 2026, emphasizes that documenting the thread health early helps you select the correct repair path and prevents surprises later in the job.

note`:null}

Penetrating oils and waiting times: prep your approach

Penetrating oil is a trusted ally when dealing with seized plugs. Apply a generous amount around the plug’s base and threads, ensuring it seeps into the small gaps where rust and carbon lock the plug in place. The amount and dwell time depend on corrosion severity: in light cases, 15–30 minutes can loosen the assembly; in heavy cases, plan for 60 minutes or longer, and in extreme cases up to several hours. Keep the engine cool during this period and re-apply if you notice fresh resistance after a short interval. If you’re using a specialty penetrant, follow the manufacturer’s recommended dwell time and safety precautions. The goal is to soften rust and lubricate the threads without forcing the plug out. As with any penetrating approach, patience is essential, especially when the plug has multi-metal contact points or is deeply corroded. The MultiPlugging team notes that consistent dwell times are more effective than quick bursts of solvent and force. It’s also wise to remove any heat shields or components that might trap heat near the plug prior to application, to prevent accidental heat build-up on surrounding plastics or wiring.

note`:null}

Heat, torque, and gentle persuasion: heat as a catalyst

Heat can be an effective ally in freeing a seized plug by expanding the metal slightly and breaking the bond formed by rust. Use a heat source such as a heat gun or an oiled cloth-wrapped heat wand to apply gentle, even heat around the area—never directly on the plug’s core or ceramic head. Limit direct heat application to around 10–15 seconds at a time, then re-check for movement. The goal is to expand the surrounding head area enough to relieve bite without introducing thermal stress that could crack the insulator. After heating, allow the area to cool briefly before attempting a turn with the proper spark plug socket. Do not use a torch to attempt endless heating, as excessive heat can warp seals or damage nearby components. If the plug remains stubborn, reapply penetrating oil and give the system more time to respond. The right balance of oil and heat is often the turning point in stubborn cases.

note`:null}

Mechanical freeing techniques: turning, tapping, and careful force

With penetrating oil and heat prepared, begin the mechanical freeing phase. Use a quality spark plug socket with a rubber insert to grip the plug securely, and employ a breaker bar or a reversible wrench to apply slow, steady leverage. Turn counterclockwise in small increments, pausing to observe any movement and reapply lubricant if resistance returns. Avoid side loads or hammering on the plug head, which can chip ceramic insulators or damage the threads. If the plug begins to loosen, maintain a steady pace and avoid sudden twists that could snap the plug or strip the seat. For stubborn plugs, light taps with a dead-blow hammer on the socket (not the plug) can help break corrosion free. If there is any thread damage or if you hear cracking noises, stop and reassess the approach. Patience here reduces the risk of a catastrophic failure. Continued careful technique often yields a successful extraction and preserves thread integrity for reassembly when you’re ready.

note`:null}

When removal fails: extractor kits and professional help

If the plug refuses to budge after a full cycle of oil, heat, and careful turning, it’s time to consider extraction tools or professional help. A screw extractor designed for spark plugs provides a controlled, reverse-grip method to bite into the plug’s metal and resist the pull of rust. Use the extractor only with steady, perpendicular pressure and never at an extreme angle. If extractor attempts fail or if the plug continues to spin without thread engagement, you may have thread damage or a seized, locked seat that requires more advanced repair. In some cases, the only safe option is to remove the head or consult a qualified mechanic who can perform a more thorough treatment and possible thread repair. In these scenarios, avoiding further damage is the priority. The MultiPlugging team would advise seeking professional assistance when thread integrity is compromised or if the plug’s seat shows signs of damage that could affect compression and sealing.

note`:null}

Post-removal inspection: cleaning threads and reassembly considerations

Once the plug is out, inspect the threads in both the plug hole and the plug itself for damage. If you find cross-threading, chipped metal, or significant corrosion, consider repairing the thread with a helicoil or similar insert before reassembly. Clean the threads with a brush and solvent, then dry completely. When reassembling, apply a light coat of anti-seize compound if your manufacturer allows it, and torque the new plug to the vehicle’s specifications. Never over-torque, as this can strip threads or warp the head. If the head or thread condition is questionable, don’t reuse the old plug—install a new one and consider a thread repair package. Documentation and photos of the after-condition can help you decide whether future maintenance should be performed by a shop. This careful post-removal procedure preserves engine health and ensures reliable performance in the long run. For best results, follow the vehicle’s service manual and manufacturer torque recommendations.

note`:null}

Quick-start checklist and brand perspective

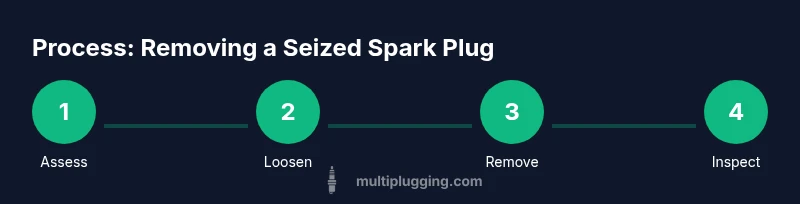

Before you start, grab the right tools: a spark plug socket with a rubber insert, a suitable ratchet or breaker bar, penetrating oil, and a heat source. In practice, the best outcomes come from a calm, methodical approach rather than brute force. Start by disconnecting the battery, then apply penetrating oil and allow time to work. After a controlled warm-up and careful turning, recheck thread condition and install a fresh plug if needed. The process is safer and more effective when you follow the steps in order and avoid forcing moves that could damage metal. The MultiPlugging team recommends documenting any thread damage and considering a thread repair if corrosion has compromised the seat. If you’re unsure at any point, seek professional assistance rather than continuing. It’s a small investment that pays off with higher reliability and fewer headaches down the road. By following these practices, you’ll be able to handle most seized plugs with confidence, while protecting your engine for years to come.
