How to Fix Spark Plug Blow Out: DIY Repair Guide
A practical, step-by-step guide to diagnosing and repairing spark plug blow outs, including thread repair options and safe reinstallation. Learn how to restore sealing and avoid engine damage.
Learn how to fix spark plug blow out by diagnosing damaged threads, choosing a repair method, and safely reinstalling a plug. This quick guide covers inspection, thread repair options (like helicoils or re-tapping), torque specs, and when to seek professional help. Gather a thread repair kit, torque wrench, replacement plug, and basic tools before you start.
Understanding Spark Plug Blowout
A spark plug blowout occurs when the threads or seating in the cylinder head are damaged, allowing the plug to loosen and potentially leak compression. This can lead to misfires, rough running, and poor fuel economy. According to MultiPlugging, ignition problems like a blown-out plug are often linked to prolonged exposure to heat, corrosion, or improper installation torque. Early detection improves repair options and reduces risk of further damage to the aluminum head or gasket. Signs you may have a blowout include a loose plug after removal, difficulty resealing, visible thread damage, and a stubborn plug that won't seat properly. If you notice any of these signs, stop and reassess before continuing with a replacement.
Safety First: Before You Start
Working on spark plugs near live ignition systems demands care. Disconnect the negative battery cable to prevent accidental cranking, let the engine cool, and wear eye protection and gloves. Keep a clean workspace to avoid dirt falling into the cylinder. The MultiPlugging team emphasizes safety as the foundation of any repair; rushing or skipping steps can worsen damage or cause personal injury. Have a fire extinguisher and a rag nearby in case of fuel exposure. Avoid smoking.
Inspect and Assess the Damage
Remove the ignition coil or spark plug wire carefully to expose the plug. Inspect the seat area and threads for cross-threading, crushed inserts, or peeled aluminum. Use a thread gauge or a simple inspection thread to gauge depth and condition. Clean any carbon or oil residue from the threads with a soft brush and solvent approved for automotive use. If you find heavy damage, plan your repair path before disturbing more material; report the damage to a shop if needed. The goal is to determine whether a helicoil, Time-Sert, or full rethreading is feasible within the engine's design.
Repair Options: Thread Repair vs Head Replacement
If the threads are damaged but the head is otherwise sound, thread repair options can restore service. A helicoil or Time-Sert kit provides durable, threaded inserts that restore the original external diameter and seal. Re-tapping the hole cleanly may be required when the existing threads are worn. In some cases, replacing the cylinder head or performing a more extensive engine repair is necessary. For aluminum heads, avoid aggressive drilling or milling that could weaken the chamber wall. Discuss options with your local shop if you lack the proper tooling.
Reassembly and Testing After Repair
Once the thread repair is installed, re-clean the bore and apply a small amount of anti-seize compound to the plug threads before installation. Thread the plug by hand to avoid cross-threading, then snug with a torque wrench to the manufacturer specification. Reattach the ignition coil or spark plug wire, restore power, and start the engine at a low idle to listen for misfires or unusual sounds. If coolant or compression issues appear, stop and recheck the repair. Pressure test the cylinder to ensure the head seal is intact if you have access to the tools.
Maintenance to Prevent Future Blowouts
Use the correct heat range and gapping for your engine and refer to the owner’s manual or MultiPlugging's spark plug guides for torque specs. Apply anti-seize sparingly on new plugs and torque to spec to prevent thread damage next time. Regularly inspect plug wells for oil leaks and corrosion, replace damaged ignition coils promptly, and keep spark plug wires in good condition. A proactive maintenance plan reduces the likelihood of blowouts and extends engine life. Keep record of spark plug changes for future reference.
Common Mistakes to Avoid
- Over-torquing new plugs, which damages threads or seats.
- Forcing a plug into damaged threads instead of repairing them.
- Using improper anti-seize amounts that alter torque readings.
- Skipping a post-repair test or pressure check, risking unseen leaks. The MultiPlugging team notes that rushing repairs and skipping inspection steps causes the most failures; take time to verify thread integrity and sealing before starting the engine.
When to Seek Professional Help
If the threads are severely damaged, if you are uncertain about the repair path, or if the head requires a weld or insert repair beyond a common DIY kit, seek a certified automotive technician. Professional service can ensure that the repair meets head gasket and cylinder integrity standards and may be necessary for warranty reasons. The decision to head to a shop can save money and prevent expensive engine damage down the line.
Tools & Materials
- Thread repair kit (helicoil, Time-Sert, or equivalent)(Choose the kit compatible with your plug size and thread pitch; have the correct insert length.)
- Thread chaser or taps/dies(Used to clean and reestablish threads; ensure you have the right size.)
- Torque wrench(Set to the exact spark plug torque spec.)
- Spark plug socket and ratchet(Match the plug type; inspect for wear.)
- Replacement spark plug (correct heat range and gap)(Pre-gap to the recommended value.)
- Anti-seize compound(Apply sparingly on threads; avoid seating surface.)
- Penetrating oil (optional)(Help loosen a stubborn plug if threads are corroded.)
- Shop rags and solvent(Keep area clean and free of debris.)
- Thread sealant or gasket dressing(Follow manufacturer guidance.)
- Safety glasses and gloves(Personal protective equipment.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare and locate the issue
Begin by disconnecting the battery, ensuring the engine is cool, and locating the affected spark plug. Clear the workspace and gather the repair tools so you can work efficiently without interruptions.
Tip: Verify the exact cylinder and plug size before removal to avoid cross-threading. - 2
Remove the ignition coil and plug
Carefully disconnect the coil/lead and loosen the plug using the correct spark plug socket. Do not twist the plug with excessive force; inspect the seat area for damage.
Tip: Keep track of the removed components to avoid misplacement. - 3
Inspect threads and seating
Examine the bore for visible damage, cross-threading, or stripped threads. Use a thread gauge to assess the condition and determine repair viability.
Tip: Document the damage to guide your repair choice. - 4
Choose repair path
Decide between a thread insert (helicoil/Time-Sert) or rethreading based on damage extent and head integrity. Severe damage may require professional service.
Tip: If in doubt, opt for professional assessment to avoid further harm. - 5
Install thread repair and re-torque
If using an insert, follow kit instructions to install, then clean the bore. Reinstall the plug with anti-seize on threads and finger-tighten before torquing to spec.
Tip: Always start by hand to prevent cross-threading. - 6
Reinstall and test
Reconnect the coil, restore power, and start at a low idle. Listen for misfires and verify oil seals, gasket integrity, and compression after repair.
Tip: If you hear exhaust leaks or misfires, stop and recheck immediately. - 7
Final torque and seal check
Tighten to the manufacturer torque specification and verify there is no leaking around the plug seat. Confirm plug is flush and seating correctly.
Tip: Over-tightening can ruin threads; under-tightening causes leaks. - 8
Document and monitor
Record the repair method and plug replacement details for future maintenance and warn signs of repeating issues to watch for.
Tip: Schedule a follow-up check if you notice any performance changes.
FAQ
What is a spark plug blow out and how does it happen?
A spark plug blow out occurs when the plug’s threads or seating are damaged, causing it to loosen and potentially leak compression. It often results from over-torquing, corrosion, or prior damage. Inspecting the threads early helps determine repair options.
A spark plug blow out is when the plug threads or seating are damaged, usually due to over-torque or corrosion.
Can I fix damaged threads with a standard toolkit?
Partial thread damage can sometimes be repaired with a helicoil or Time-Sert kit, provided the hole diameter and thread pitch match accurately. Severe damage may require rethreading or professional head repair.
Yes, some thread damage can be repaired with a helicoil or similar kit, but severe damage may need a pro.
What are the signs that a repair worked or failed?
Good signs include a firm seating plug after installation, no leaks around the seat, and stable idle. Failure shows as recurrent misfires, loose plugs, or new leaks after a test run.
If the plug seats firmly and the engine idles cleanly, the repair likely worked; any misfires or leaks suggest recheck.
Should I re-gap plugs after a thread repair?
Yes, re-gap plugs to the vehicle's specification after installation and before testing. Gapping ensures proper spark energy and threading safety.
Yes, re-gap the plugs to the manual specs after installation.
Is anti-seize required on all spark plugs?
Anti-seize helps prevent corrosion and makes future removal easier; apply sparingly to the threads, avoiding seating surfaces.
Yes, apply a thin coat on the threads, not on the seating face.
When is professional head repair unavoidable?
If the threads are too damaged for a helicoil or insert, or if the head is warped, professional repair or replacement may be unavoidable to protect engine integrity.
If the threads are too damaged, a pro repair is usually needed.
Watch Video

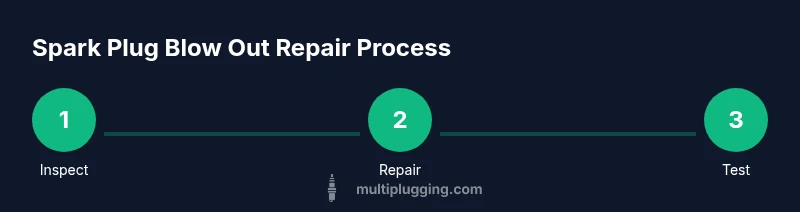

Main Points
- Inspect damage before repair
- Choose repair path based on thread condition
- Torque to spec after installation
- Test engine to confirm seal and operation
- Seek professional help for severe damage
