Spark Plug Thread Insert: A Comprehensive DIY Repair Guide
Learn how to diagnose damaged spark plug threads and repair them with a thread insert. This educational guide covers types, tools, step-by-step instructions, safety tips, and maintenance for durable engine performance.
Repair stripped spark plug threads safely using a thread insert. This guide explains how thread inserts work, when to use them, the necessary tools, and best practices to avoid further damage. You’ll assess damage, select the right insert, prepare the bore, install, and verify torque and sealing.
What is a spark plug thread insert and when do you need one?
A spark plug thread insert is a repair coil or solid threaded insert installed into a damaged engine head bore to restore a durable, true female thread for the spark plug. When the original threads are stripped, cross-threaded, or fatigued, a thread insert can reestablish reliable engagement without replacing the entire cylinder head. The goal is to provide a stable seat for the spark plug that can handle the heat, vibration, and torque load of normal operation. This approach is common in DIY maintenance and professional shops alike because it often saves time and cost compared to a head replacement. The exact insert type and size depend on the engine design and the degree of damage, so careful assessment is essential before proceeding.
Why spark plug thread inserts matter for engine health
Damaged plug threads can lead to poor sealing, misfires, and exhaust leaks. A correctly installed insert distributes torque more evenly and reduces the risk of future damage from over-torquing or heat cycling. In many engines, a sealed, gas-tight environment around the spark plug is critical for consistent ignition and compression. Choosing the right insert means balancing strength, heat resistance, and compatibility with the bore material (aluminum heads vs. cast iron, for example). When done properly, a thread insert can restore long-term reliability and help maintain engine performance.
Safety first: key precautions before you start
Handling the combustion chamber area requires attention to personal protection and a clean workspace. Disconnect the battery, wear eye protection, and use gloves to protect hands from metal shavings. Avoid running the engine while you work on the threads, and ensure the workspace is well-ventilated. Keep solvents away from hot surfaces and handle drilling dust with a clean, magnetized tray to prevent foreign material from entering the engine. If you’re unsure about your head material or thread condition, seek guidance from a professional technician before proceeding.
Types of thread inserts and how to choose one for spark plugs
Thread inserts come in a few conceptual categories, such as coil-style (spring-loaded) inserts and solid threaded inserts. Coil-style inserts tighten into the bore after a simple tapping operation, while solid inserts require precise drilling and tapping to create a new internal thread that the plug can mate with securely. For spark plugs, you typically need a repair that can withstand thermal cycling and vibration. The choice depends on the salvaged thread diameter, the head material, the bore’s depth, and the load the plug will carry. In all cases, the insert should be designed for automotive use and sized to match the original spark plug thread.
Safety and risk considerations before starting
Assess whether the bore is clean, undamaged, and free of cracks that could propagate after repair. Any pre-existing head damage beyond thread stripping may require more extensive repair or head replacement. Incorrect insertion can lead to gas leaks, coolant mixing, or plug loosening. Always verify that the bore walls retain sufficient thickness and that the insert will seat flush with the head surface. If the head is aluminum, special care must be taken to avoid galling and to ensure the insert’s material is compatible with aluminum to prevent galvanic corrosion.
Assessing engine materials and compatibility with inserts
Aluminum heads are common and tend to be the primary concern for thread insert repairs due to softer bore walls. Cast iron heads tolerate inserts differently, and high-temperature alloys require inserts rated for engine heat. Before choosing an insert, determine the material compatibility, bore diameter, and thread pitch. If you’re unsure, consult service manuals or an experienced technician. A correctly matched insert will prevent future stripping and support reliable spark plug seating under heat and vibration. Remember that the insertion process itself creates a new path for heat transfer, so thermal considerations are part of the planning.
Preparing the work area, tools, and workspace cleanliness
A clean, organized workspace reduces the risk of debris entering the combustion chamber. Gather a torque wrench, a thread insert kit, proper drill bits, taps, cleaning brushes, and a magnetized tray for fasteners. Use compressed air to blow out the bore after cleaning, and inspect for any chips or burrs. The bore must be perfectly clean before drilling, tapping, and inserting. Consider laying protective coverings to keep oil and grease off nearby components. A well-prepared workspace contributes to a safer process and a more durable repair.
Measuring, selecting insert size, and verifying engagement
Determining the correct insert size begins with accurate measurement of the damaged thread bore and the plug’s thread size. You’ll need to identify the pitch, diameter, and the depth available for the insert. Ensure the chosen insert will engage the original outer threads sufficiently and seat the plug at the proper depth. If the bore depth is limited, you may need a shallower insert or a shorter plug. Always follow the insert manufacturer’s guidelines for drilling and tapping, and verify that engagement is solid before final assembly. Correct engagement minimizes torque variation and extends service life.
Installing the thread insert: step-by-step planning
Install the insert with the proper tooling, maintaining alignment with the bore axis. Cleanliness, correct torque, and flush seating are critical for long-term durability. After insertion, re-check the spark plug seat height and ensure the plug will thread in smoothly without resistance. Consider performing a leak check around the plug area after installation to confirm a good seal. This stage sets the foundation for engine reliability and safe operation across many miles.
Post-installation checks, maintenance, and long-term care
After installation, reinstall the spark plug and verify torque to the manufacturer’s specification. Perform a compression check if you suspect related head damage. Monitor for signs of leakage or misfiring during initial starts and running periods. Periodic inspections of plugs and heads can catch early signs of stress or wear. If the thread insert shows any signs of loosening or cracking, stop and reassess the repair rather than continuing to run the engine.
Tools & Materials
- Thread insert kit (coil-style or solid insert)(Choose size to match spark plug thread and bore depth)
- Drill bits and pilot bit set(Appropriate diameter for insert pilot hole)
- Thread tapping tool or tap bit(Used to create the correct internal threads for the insert)
- Torque wrench(Set to manufacturer spark plug torque specs for seating verification)
- Thread cleaning brush or scraper(Clean bore and chips before insertion)
- Compressed air or blower(Clear debris after cleaning)
- Safety glasses and gloves(Personal protective equipment)
- Calipers or micrometer(Verify bore diameter and insert fit)
- Anti-seize compound (optional)(Use only if recommended by insert manufacturer)

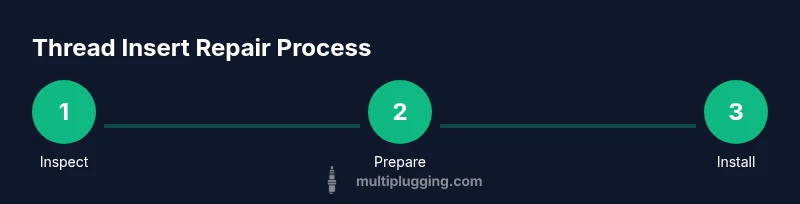

Steps
Estimated time: 60-120 minutes
- 1
Inspect damaged area
Begin with a thorough visual inspection of the spark plug bore and surrounding threads. Look for cracks, excessive wear, or corrosion. Confirm that the damage is repairable with an insert rather than requiring a full head replacement.
Tip: Document the condition with photos and label parts to prevent mixing during reassembly. - 2
Select insert type and size
Choose a coil-style or solid thread insert based on bore depth and thread condition. Verify the insert diameter and pitch match the spark plug and head materials. Ensure the bore length can fully accommodate the insert.
Tip: When in doubt, plan for the deepest insert that still seats flush with the head surface. - 3
Prepare the bore
Clean the bore thoroughly and remove all debris. Debris can cause misalignment or poor seating of the insert. If the original threads are damaged but intact, you may need to ream or hone slightly to ensure true alignment.
Tip: Use a magnifying glass to inspect thread walls for burrs or remaining material. - 4
Drill the pilot hole
Drill the bore to the prescribed pilot hole diameter for the insert type. Maintain a perpendicular stance to the bore to avoid misalignment, which can compromise thread engagement.
Tip: Secure the engine head in a stable vise or mounting fixture to prevent movement. - 5
Tap the new threads
Carefully tap the newly prepared bore to create the correct internal threads for the insert. Use a guiding jig if available to keep taps square and prevent cross-threading.
Tip: Lubricate the tap lightly and avoid forcing it through resistance. - 6
Install the thread insert
Thread the insert into the bore using the installation tool until it sits flush with the head surface. Some inserts require an installation tool or an arbor to secure the coil or plug seat.
Tip: Ensure the insert is fully seated; a protruding insert can damage the spark plug seating area. - 7
Reinsert and torque the spark plug
Install the spark plug and tighten to the manufacturer’s torque spec. Do not exceed the torque, as overtightening can damage the insert or bore walls. Use a torque-angle approach if specified.
Tip: Double-check that the plug seats evenly and that there is no cross-threading. - 8
Verification and test run
Run the engine to verify proper operation. Check for leaks, misfires, or abnormal noises around the plug area. If any issue is detected, re-check insert seating and torque.
Tip: Record the test results and monitor performance over the next few driving cycles.
FAQ
What is a spark plug thread insert and how does it work?
A spark plug thread insert is a repair coil or solid threaded piece installed into a damaged bore to restore a strong, durable thread for the spark plug. It provides a new seating surface that withstands heat and vibration, preserving engine integrity.
A thread insert fixes damaged spark plug threads by creating a new, durable threading surface for proper seating.
When should I use a thread insert versus replacing the head?
Use a thread insert when the bore is repairable, the head is otherwise sound, and the damage is limited to thread stripping or minor cross-threading. If cracks or major bore damage exist, replacement may be necessary.
Use an insert if the head and bore are otherwise sound; if there’s major damage, replacement may be the safer route.
Can I perform this repair at home?
Yes, skilled DIYers with the right tools can perform thread insert repairs at home. It requires careful measurement, alignment, and adherence to torque specs. If you’re unsure, seek guidance from a professional.
Yes, it’s doable for DIYers who have the right tools and follow steps carefully.
What torque specs should I use after installation?
Always follow the spark plug’s specification for seating torque. The insert itself should be compatible with the head and designed for the procedure. Checking torque ensures a proper seal and long-lasting performance.
Follow the manufacturer's torque spec for the plug and ensure the insert is compatible with the head.
How long does a thread insert repair typically last?
Longevity depends on engine operating conditions, maintenance, and installation quality. With proper installation and routine checks, repairs can last for a significant portion of the engine’s life, but periodic inspection is advised.
It varies, but with good installation and care, it can last a long time; regular checks help.
Watch Video
Main Points
- Assess damage thoroughly before choosing an insert.
- Choose the insert type and size based on bore depth and material.
- Keep the bore clean and aligned for a flush seating.
- Torque the spark plug accurately and verify seating after installation.
