Spark Plug Threads Repair: Fix a Spark Plug Without Threads
Urgent troubleshooting guide to diagnose and repair spark plug threads damaged or stripped. Learn safe methods, repair options, and when to replace components to prevent engine damage.
Most likely the cylinder head threads are damaged or stripped, preventing a proper seal for the spark plug. Quick fix: stop driving, remove the plug to inspect, then choose a repair path (thread repair, helicoil insert, or replacing the head). If you cannot rethread safely, seek pro help.
Understanding what spark plug without threads means
When people say a spark plug is "without threads," they’re usually referring to damaged or stripped head threads that accept the plug, not an error in the plug itself. A proper seal between the plug and the cylinder head is essential for combustion pressure and preventing exhaust leaks. If the threads are compromised, the plug can’t seat correctly, causing misfires, compression loss, and oil or coolant intrusion along the thread path. According to MultiPlugging, this problem is common enough to warrant careful diagnosis and a repair plan rather than a quick, reckless retry. This section explains how to recognize the problem, what it costs in real-world terms, and how to pick a repair path that lasts. spark plug without threads is not a rare mystery; it’s a fixable mechanical issue when you follow the right steps.
How threads fail in spark plugs and why it happens
Thread damage can happen from overtightening, cross-threading during installation or removal, corrosion, or repeated plug changes in a restricted space. Aluminum cylinder heads tend to strip more easily than some harder alloys, while cast-iron heads may tolerate more aggressive repairs but bring their own challenges. If you detect metal shavings in the plug bore, an uneven seal around the seat, or a plug that won’t thread in smoothly, the problem is likely thread-related. Understanding the cause helps you choose between a structural repair (like a helicoil or insert) and a full head replacement. The goal is a durable, repeatable seal that supports reliable ignition and compression.
Immediate safety checks and what you can do now
Before you touch anything, ensure the engine is off and cool, disconnect the battery if you’ll be working near electrical components, and prepare a clean, well-lit workspace. Remove the ignition coil boot and spark plug with the correct socket. Inspect the plug threads and the head bore for damage, corrosion, or debris. If you see shiny fragments, misaligned threads, or a plug that binds when turning, stop and reassess. Take photos and measure the hole with a thread gauge if available. According to MultiPlugging, starting with a careful inspection helps you pick a repair path that lasts and reduces the risk of causing further damage.
Repair options: pros, cons, and when to choose them
There are several paths depending on the severity of the damage and the engine design. Thread inserts (helicoils) stabilize the remaining material by providing new threads for the spark plug. Tap-and-repair methods re-cut the hole to a standard size, then re-install the correct plug. In extreme cases, replacing the cylinder head or entire engine may be the safest option. For aluminum heads, inserts often offer the most reliable long-term repair, but accuracy and alignment are crucial. Always consult the vehicle’s service manual and follow the manufacturer’s torque specs to avoid repeating the issue.
Tools, materials, and safety prerequisites
Having the right tools makes the repair feasible and safe. You’ll typically need a thread repair kit (helicoil or solid insert), a drill with a guided jig, the correct taps, a calibrated torque wrench, and a clean workspace. A replacement spark plug of the proper type should be on hand, along with lubricants or anti-seize material as recommended by the manual. Eye protection, gloves, and a magnetic tray to catch metal chips are essential for safety. If you’re unsure about the hole size, measure the thread pitch with a gauge before choosing an insert. Mis-sizing can ruin the head.

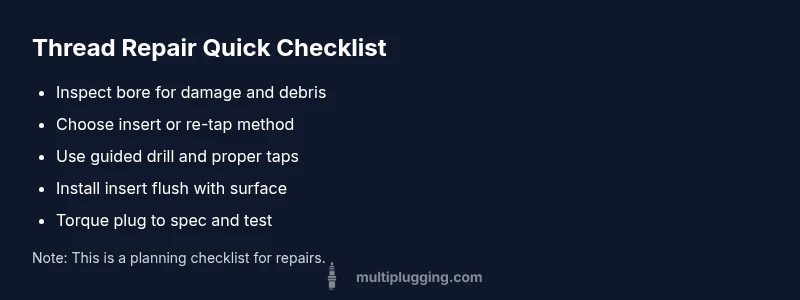

Step-by-step overview of the typical repair path (common case: damaged head threads repaired with a helicoil)
- Prepare the area and disconnect power sources; set up a clean, contained workspace.
- Remove the spark plug and inspect the bore for debris or corrosion; document the condition.
- Drill out damaged threads to the insert’s required size under a guided setup.
- Tap the hole to the insert’s thread size and clean all metal shavings.
- Install the helicoil insert per kit instructions, seating it flush with the head surface.
- Reinstall the spark plug with correct torque; recheck for any signs of leakage after running the engine briefly.
- If the test shows leaks or misfires, reassess; you may need a different repair approach or professional help.
Prevention and long-term care
Preventing thread damage starts with proper torque during installation and removal, using the right plug type for your engine, and avoiding cross-threading by starting by hand and aligning plugs carefully. After any brake, service, or head work, re-check torque values once the engine has cooled and dust off any debris around the plug well. Consider using a thread insert as a preventive measure in engines known for hard-to-reach plugs or frequent plug changes. Keeping a clean plug bore and using a quality gasket sealant where recommended also reduces future risks.
Steps
Estimated time: 2-6 hours
- 1
Prepare workspace and safety measures
Cool engine completely, disconnect battery, and lay out tools on a clean surface. Ensure you have a magnetic tray to catch metal chips and safety glasses. A lot rides on keeping debris out of the combustion chamber.
Tip: Wear eye protection and work in a well-ventilated area to avoid inhaling metal particles. - 2
Remove plug and inspect bore
Carefully remove the spark plug and visually inspect the bore for remaining threads, burrs, or corrosion. If debris is present, gently clean with an solvent and a lint-free cloth. Capture any removed material so you can assess the damage type.
Tip: Take photos of the bore before any repair; this helps verify the extent of damage later. - 3
Choose repair path and prepare hole
If choosing a helicoil/insert, mark the center and mark the drill size as per the kit. Use a drill guide to keep the hole perfectly perpendicular to the surface. Avoid over-drilling and ensure you don’t damage adjacent passages.
Tip: Double-check the insert size against your plug thread size to avoid misfit. - 4
Tap and clean the hole
Use the proper tap to re-create the threads for the insert, following the kit’s instructions. Clean away all metal shavings with a magnet and solvent. A clean hole is critical for thread acceptance.
Tip: Work slowly; overheating can weaken inserts or create new burrs. - 5
Install the helicoil/insert
Thread in the helicoil or insert until flush with the surface. Some kits require additional locking compound or a secondary operation to seat the insert. Inspect that the plug threads now engage smoothly.
Tip: Do not over-tighten the insert—follow the kit’s torque recommendations exactly. - 6
Reassemble and test
Reinstall the spark plug to the correct torque. Reconnect the coil and battery, then start the engine briefly to verify no leaks and proper firing. If misfires or leaks appear, reassess the repair approach or seek professional help.
Tip: If you hear a hissing or feel a leak, stop and re-check seating and gaskets.
Diagnosis: Spark plug threads damaged or missing, causing improper sealing and misfire
Possible Causes
- highThread damage from overtightening
- mediumCross-threading during plug installation/removal
- lowCorrosion or debris in the plug bore
Fixes
- mediumUse a thread repair kit (helicoil/insert) to restore threads and re-torque per spec
- hardRe-tap and rethread the bore and fit a correctly sized plug if material allows
- hardReplace the cylinder head or entire engine for severe thread damage
FAQ
What does it mean when I hear 'spark plug without threads'?
It usually means the head threads are damaged or stripped, not that the plug lacks threads. Without solid threads, the plug can’t seal properly, leading to misfires and compression loss.
It usually means the cylinder head threads are damaged, not that the plug is missing threads. A proper seal is not possible until the threads are repaired.
Can I repair threads without removing the cylinder head?
In some engines, access allows thread inserts or minor re-threading without full head removal. More severe damage often requires removing the head for proper repair and inspection.
In some cases you can repair without removing the head, but severe damage usually needs head removal.
What is a helicoil and when should I use it?
A helicoil is a threaded insert used to restore damaged threads. It’s commonly used on aluminum heads and is a reliable fix when there’s still enough material around the bore.
A helicoil is a small threaded insert used to restore threads, often best for aluminum heads when there’s material left.
Is it safe to drive with damaged spark plug threads?
No. Driving with damaged threads can cause compression leaks, misfires, and potential engine damage. Stop driving and plan a repair path.
No, driving with damaged threads can cause serious engine problems; stop and fix it.
How long does a thread repair typically take?
Repair time varies with the method and access. In many cases, you’ll be looking at several hours, plus curing time if you replace a head or install inserts.
It can take several hours depending on the method and access to the head.
Can I reuse the same spark plug after a repair?
Not recommended. After any thread repair, use a new spark plug to ensure a proper seal and reliable ignition.
It’s best to use a new plug after any thread repair to ensure a proper seal.
Watch Video
Main Points
- Assess thread damage before repair.
- Thread inserts are often best for aluminum heads.
- Follow torque specs; improper torque causes leaks or failure.
- When in doubt, seek professional help to avoid engine damage.
