Spark Plug Wire Connectors: Replacement and Maintenance Guide
Learn how to inspect, choose, and replace spark plug wire connectors with clear steps, safety tips, and practical maintenance guidance from MultiPlugging.

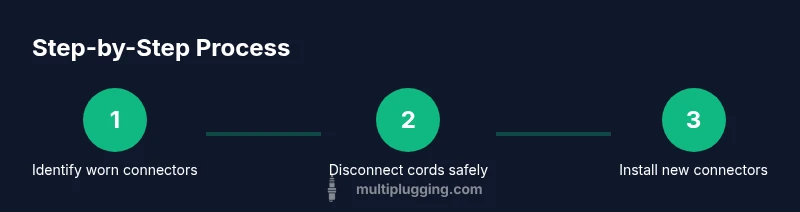

Steps: 1) Identify worn spark plug wire connectors—look for cracks, melted residues, and looseness. 2) Disconnect the battery and remove the ignition coil wire boots carefully. 3) Choose the correct spark plug wire connectors that match your wires and plugs. 4) Install firmly, seating with a click, then apply dielectric grease and reconnect the battery. 5) Test engine performance.

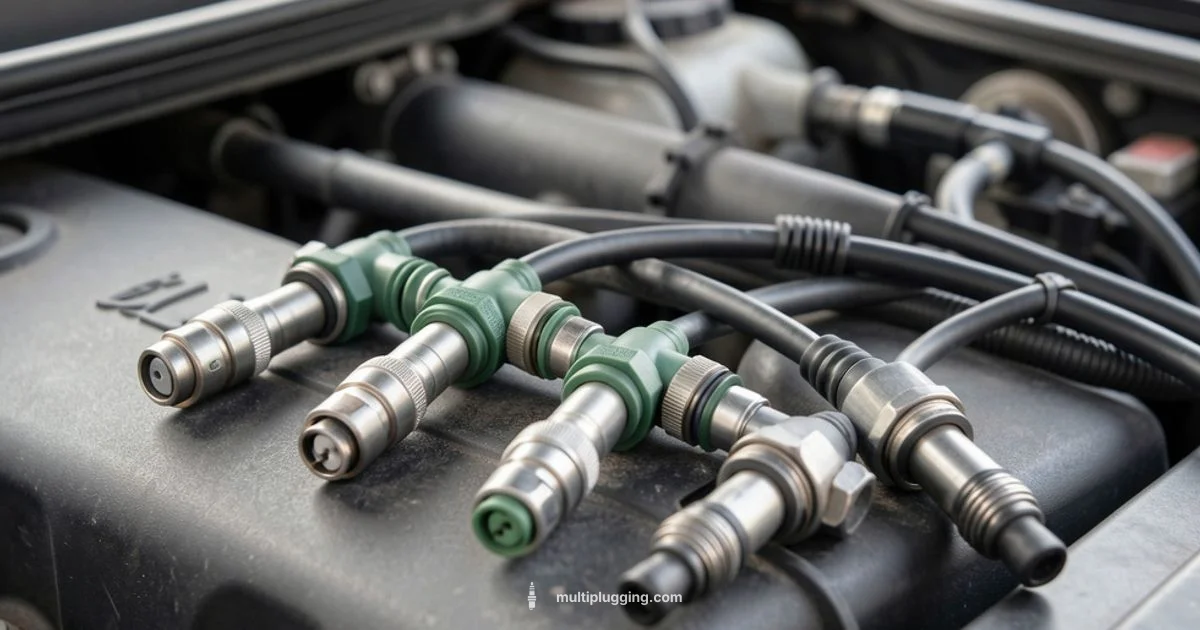

Understanding Spark Plug Wire Connectors
Spark plug wire connectors are the critical link between your ignition system and the spark plugs. They seal, insulate, and conduct the high-voltage pulse to ignite the air-fuel mix. The shape and size vary by vehicle, but all share the same function: keep moisture out, maintain a solid connection, and minimize resistance. According to MultiPlugging, selecting the right connector is essential for reliability and engine longevity. When a connector shows signs of aging, the risk of misfires rises, especially under heavy load or high heat. In modern engines, connector quality directly influences throttle response and fuel economy, so it's worth spending a little time to understand the options.
Signs of Wear and Failure
Worn spark plug wire connectors often give telltale symptoms long before a complete failure. Look for visible cracks in the boots, melted plastic, stiff or brittle rubber, or corrosion at the metal contact. If you feel a looseness when wiggling the boot, or you notice misfires, rough idling, or poor acceleration, the connectors are prime suspects. MultiPlugging's analysis shows that failed connectors are a common cause of misfires in older vehicles, especially in high-mileage engines. Regular inspection during maintenance can catch issues before they strand you on the road.
Matching Connectors to Your Engine
Not all spark plug wire connectors are interchangeable. The critical factors are wire gauge, boot diameter, and the number of pins inside the connector. Start by removing the old connector carefully and checking the end that seats on the spark plug—look for melted or scorched areas. Then verify that the replacement connector matches the wire size and plug type, and that the internal resistance remains within specification for your ignition system. If in doubt, consult your vehicle’s service manual or a trusted source like MultiPlugging for guidance. Using the wrong connector can cause arcing, misfires, and reduced performance.
Installation Essentials and Best Practices
Before you begin, ensure the engine is off and the battery is disconnected. Use dielectric grease on the mating surfaces to improve seal and ease future removal, but avoid excessive amounts that can attract dirt. Seat the new connector firmly until you hear or feel a click, then gently tug to confirm a secure fit. Route wires away from hot exhaust components and sharp edges to prevent future wear. Finally, reattach any covers or boots and start the engine to check for smooth running. The MultiPlugging team recommends taking your time with the seating and testing under light load before full operation.
Maintenance and Longevity Tips
Routine inspection is your best defense against ignition problems stemming from worn wire connectors. Keep the connectors clean, dry, and free of oil or coolant leaks. Periodically apply a light coat of dielectric grease to protect the contact surfaces, and replace worn boots promptly. If your engine has high mileage or harsh operating conditions, plan to replace the entire wire set as a preventive measure rather than chasing intermittent misfires. A little proactive care saves more trouble later.
Tools & Materials
- Socket wrench set (8-19mm)(Assorted sizes for spark plug boots)
- Dielectric grease(Silicone-based; apply a small amount per connector)
- Replacement spark plug wire connectors(Match wire size and plug type to ensure proper fit)
- Electrical contact cleaner(Optional but helpful for boot interiors)
- Torque wrench (optional)(Only if service manual specifies torque for fittings)
- Gloves(Protect hands; avoid contaminating connectors)
Steps
Estimated time: 30-60 minutes
- 1
Prepare workspace and safety
Park on a level surface, engage parking brake, and unplug the battery negative terminal. Clear the area around the engine and remove any covers that obstruct access to the ignition wires. This initial preparation reduces the risk of accidental shorts and makes the replacement smoother.
Tip: Keep a clean, well-lit workspace and have a tray ready for removed parts. - 2
Identify and locate old connectors
Trace each ignition wire to its spark plug boot and carefully inspect the boot and connector housing for cracks or scorch marks. Note how each connector sits on its corresponding plug to ensure correct reinstallation.
Tip: Take a photo with your phone before removing anything to capture orientation. - 3
Disconnect and remove old connectors
Gently twist and pull the old connector from the spark plug boot, avoiding yanking the wire from the insulation. Use a small amount of cleaner if there’s residue, then dry the area before proceeding.
Tip: Avoid pulling on the wire insulation; hold the boot to prevent cable damage. - 4
Prepare and select replacement connectors
Verify the new connector matches the wire gauge and plug type. Inspect the end that seats on the plug for any damage and ensure the inner contact is clean.
Tip: If in doubt, cross-check part numbers with the service manual or retailer. - 5
Install new connectors securely
Push the new connector onto the spark plug until you hear a distinct click. Re-seat the boot and gently tug to confirm a secure fit. Apply a thin layer of dielectric grease on the mating surfaces to improve seal and future removal.
Tip: A proper click indicates a secure connection; avoid forcing if it doesn’t seat. - 6
Test and finalize
Reconnect the battery, start the engine, and listen for smooth idle and stable acceleration. Check for misfires or rough running; if issues persist, recheck seating and inspect nearby wires for damage.
Tip: If misfires occur, re-evaluate connector compatibility and seating.
FAQ
What are spark plug wire connectors?
Wire connectors are the ends that attach ignition wires to spark plugs, providing insulation and electrical contact. Worn connectors can cause misfires and rough idle.
Wire connectors connect the ignition wires to the spark plugs and must seat firmly for reliable ignition.
How can I tell if the connectors need replacement?
Look for cracks, stiffness, corrosion, arcing signs, or melted boot material. If the boot is damaged, replacement is advised; inspect the wire set for wear.
Cracked boots or melted plastic mean replace the connectors.
Can I use generic connectors?
Use OEM or equivalents matched to your wire size and plug type; a poor fit can cause misfires and reduced performance.
The right size and type matter for proper ignition.
Is DIY replacement safe?
Yes, with basic tools and safety steps: disconnect the battery, wear gloves, and follow the vehicle’s service manual. Work calmly to avoid damaging wiring.
You can do it safely if you follow the safety steps and manual.
Do wire connectors affect performance?
Yes. Poor connections lead to misfires, reduced efficiency, and rough running. Replacing worn connectors helps restore performance.
Worn connectors can cause misfires and poor performance.
Watch Video
Main Points
- Inspect connectors for wear and replace early
- Match connector type to wire size and plug type
- Use dielectric grease on mating surfaces
- Test engine after replacement
