Wire Spark Plug: Inspection, Replacement, and Optimization
Learn to inspect, replace, and optimize a wire spark plug for reliable starts and smooth running. This practical guide covers tools, steps, safety, and maintenance to keep your engine performing at its best.
According to MultiPlugging, you’ll learn to safely inspect, test, and replace a wire spark plug to restore performance. This guide covers identifying the correct plug and boot, checking the gap, and ensuring a snug, properly insulated connection. We’ll discuss common mistakes, safety tips, and practical maintenance to keep your engine running smoothly.
What is a wire spark plug and how it differs from traditional plugs
A wire spark plug refers to the traditional spark plug setup where a high-tension ignition wire or boot connects the ignition system to the plug itself. In many modern engines, coil-on-plug or distributorless systems drive the spark via a dedicated conductor. The wire, boot, and connector are critical for delivering a strong, consistent spark across all cylinders. When the wire or boot becomes worn, cracked, or corroded, resistance increases and the spark can weaken or fail to jump the gap. In practical terms, a healthy wire spark plug path means reliable starts, smoother idling, and better fuel efficiency. Regular inspection helps catch issues before they cause misfires or damage downstream.
For DIYers, the goal is to verify the integrity of the boot, the condition of the wire, and the plug’s fit in the bore. Start by visually inspecting for cracks, stiffness, or oil contamination, and test resistance if you have a multimeter. While the plug itself often wears gradually, the wire boot is a common failure point due to heat, oil exposure, and vibration. Keeping the assembly clean and dry reduces misfires and ensures consistent performance across the engine’s RPM range.
How the wire boot and conductor interact with the ignition system
The boot serves as a sealed interface between the coil or distributor and the spark plug. Inside the boot, a conductor carries the high-voltage surge from the ignition coil to the spark plug gap. The barrel of the boot must seal against moisture, oil, and dirt while providing a flexible contact that doesn’t crack under vibration. If the boot becomes cracked or loose, the spark can arc to ground before reaching the plug, reducing efficiency and potentially causing misfires. Good connectors maintain a tight fit and proper resistance to heat, which is essential for stable ignition timing and consistent combustion.
Proper seating of the boot is as important as the plug’s gap. When removing boots, twist gently rather than yanking to preserve the conductor and wiring harness. If you notice stiffness, cracking, or moisture under the boot, replace the boot or the entire wire set to prevent intermittent faults.
A healthy wire spark plug path also depends on correct routing. Avoid sharp bends, rubbing against metal edges, or contact with hot surfaces, which can degrade insulation. Routing should protect the wire against heat sources such as exhaust manifolds and keep it away from moving parts that could rub through the insulation.
Signs your spark plug wire needs attention
Worn spark plug wires and boots often show telltale signs before a failure becomes severe. Look for visible cracks, stiffness, or discoloration in the insulation. A rough idle, engine misfires, or a noticeable drop in fuel efficiency can indicate a compromised path. You may also detect a faint arc trace or burning smell near the engine bay after shutdown. Other indicators include difficulty starting in cold weather, hesitation during acceleration, or a noticeable drop in performance under load.
If you detect any of these symptoms, test both resistance and continuity with a multimeter if you have the tool. Compare readings to the manufacturer’s specification. While a small spark path loss might not cause immediate failure, continued use with degraded boots can lead to arcing, misfires, or complete ignition loss in affected cylinders. Prompt replacement of the affected wire or entire set often resolves the issue.
Selecting the right wire spark plug for your engine
Choosing the correct wire spark plug involves matching the plug type to your engine’s requirements. Start with the manufacturer’s specification for heat range, thread size, reach (the distance the plug sits in the combustion chamber), and electrode design. Iridium, platinum, and copper plugs each have different life expectancies and heat characteristics. For high-mileage engines or performance applications, a plug with a longer life and stable performance at higher temps may be desirable. Ensure the boot is compatible with the ignition coil or distributor layout in your vehicle.
In addition to the plug, verify the wire set’s compatibility. Some engines use a direct-ignition coil that requires specific boot shapes or a unique conductor length. Using a mismatched boot can increase resistance, cause misfires, or worsen timing issues. If you’re unsure, consult your service manual or a trusted electronics/ignition chart to confirm compatibility.
Safety first: preparing to work on your ignition circuit
Working on ignition components can expose you to electrical shock and hot surfaces. Before starting, disconnect the negative battery cable to prevent accidental shorts. Allow the engine to cool if it’s hot, and wear eye protection and gloves. Work in a well-lit, clean area to avoid dropping parts or losing small components. Keep a clean rag handy for wiping oil or dirt from the area around the spark plugs, and have a spark plug socket, torque wrench, and gauge ready.
If you’ve never performed this task on your specific model, review the service manual for torque values and any model-specific cautions. Some modern engines are sensitive to torque and anti-seize additives; check manufacturer recommendations before applying any compounds.
Step-by-step overview (ready for the detailed steps below)

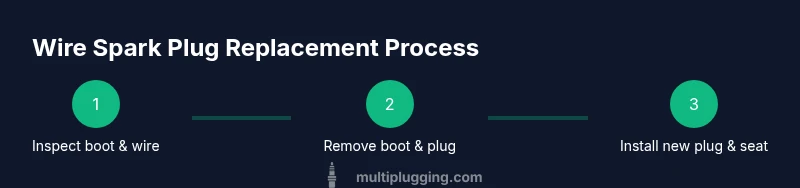

The process for inspecting, replacing, or upgrading a wire spark plug path is systematic: verify the correct plug and boot, safely remove the old boot and plug, inspect the boot and wire for damage, install a correctly gapped plug, apply any recommended anti-seize/grease, torque the plug to spec, reseat the boot securely, and test the engine. The next section provides a detailed, step-by-step workflow with time estimates to complete the job safely and effectively.
Maintenance tips to extend spark plug wire life
Regular inspection of spark plug wires and boots is a key part of preventive maintenance. Check for signs of heat exposure, oil splash, or cracking at least every 6,000–10,000 miles, depending on driving conditions. Keep boots clean and dry to prevent tracking moisture into the connector. Replace worn wires in pairs when possible to avoid mismatched resistance and timing irregularities. Store spare boots and ends in a clean bag to prevent contamination before installation.
Troubleshooting misfires after replacement
If misfires persist after replacing a wire spark plug, recheck the boot seating, wire routing, and ground connections. Verify that the right gap is set for the replacement plug and confirm the torque on the new plug. A misfire could also point to a faulty ignition coil, a clogged fuel injector, or an air leak in the intake system. If available, run a cylinder balance test to identify specific cylinders with poor performance and focus your inspections there.
Environmental considerations and disposal
Used spark plugs and worn wires should be recycled or disposed of according to local regulations. Place used plugs in a non-metal container to avoid injury and store them until you can take them to an approved recycling facility. If you used anti-seize or dielectric grease, wipe away excess material to prevent contamination of the ignition path. Proper disposal keeps your work area safe and reduces environmental impact.
Tools & Materials
- Spark plug socket and ratchet (correct size for your plugs)(Typically 16mm or 5/8 inch; ensure a correct boot-friendly socket with a rubber insert)
- Torque wrench(Used to tighten spark plugs to manufacturer spec)
- Replacement wire set or individual spark plug wires(Ensure compatibility with ignition system and boot shape)
- New spark plugs (correct heat range/size)(Pre-gapped if possible; verify gap spec for your engine)
- Feeler gauge or gauge tool for gap checking(Used only if plugs aren’t pre-gapped)
- Dielectric grease(Apply lightly inside the boot to improve seal and prevent arcing)
- Anti-seize compound(Only if recommended by engine manufacturer; some modern engines don’t require it)
- Dielectric-insulated pliers or needle-nose pliers(Helpful for removing stubborn boots without stressing the wire)
- Safety gear (gloves, eye protection)(Protect yourself from heat and sharp edges)
- Rag and cleaning solvents(Keep the area clean and dry)
Steps
Estimated time: 30-60 minutes
- 1
Disconnect the battery ground
Begin by disconnecting the negative battery terminal to prevent any accidental electrical shock or short during the process. This is a safety-first step that protects you and the ignition system.
Tip: Let the engine compartments photos or label the wire positions before removal to ensure correct reassembly. - 2
Locate the correct plug and boot
Identify the cylinder you’re working on and locate the corresponding spark plug boot. Confirm that the replacement plug matches the engine’s recommended heat range and thread size.
Tip: If in doubt, refer to the vehicle’s manual or a trusted ignition compatibility chart. - 3
Remove the spark plug boot
Gently twist the boot back and forth while pulling it straight off the spark plug. Avoid yanking the wire to prevent damage to internal conductors.
Tip: Use a dielectric grease-free operation here unless required by the boot design. - 4
Inspect the boot and wire
Examine the boot for cracks, stiffening, or oil contamination. Inspect the wire for nicks or exposed copper. Replace the boot or the entire wire set if damage is evident.
Tip: A cracked boot often signals end-of-life; replacements are advised rather than temporary fixes. - 5
Remove the old spark plug
Use the spark plug socket to loosen and remove the old plug. Keep the plug and surrounding area clean as you work.
Tip: If the plug is particularly stuck, apply a small amount of penetrating oil and let it sit briefly before retrying. - 6
Check and adjust the plug gap
Measure the gap on the replacement plug with a gauge. Adjust only if required to the engine’s specified gap. Install pre-gapped plugs when possible.
Tip: Avoid bending the center electrode; a slight adjustment is enough to reach spec. - 7
Apply anti-seize and grease (optional)
If recommended by the manufacturer, apply a light film of anti-seize on the threads and a dab of dielectric grease on the inside of the boot.
Tip: Many modern engines don’t require anti-seize and can be damaged by over-application; follow manual guidance. - 8
Install the new plug and torque to spec
Thread the new plug by hand first to avoid cross-threading, then tighten to the recommended torque using a torque wrench. Over-tightening can damage threads.
Tip: Use a torque spec chart for your engine; typical ranges are around 10-20 Nm but vary by model. - 9
Reconnect the boot and test
Carefully push the boot back onto the new plug, ensuring a firm seating. Reconnect the negative battery terminal and start the engine to verify smooth operation.
Tip: Listen for a smooth ignition and check for any misfires in the first few seconds of running.
FAQ
Do I need to replace the boot if it looks cracked?
Yes. A cracked boot can cause arcing and misfires. Replace the boot or entire wire set to maintain proper ignition performance and prevent future failures.
If you see cracks in the boot, replace it or the entire wire set to avoid ignition problems.
Can I reuse old spark plugs after cleaning?
Reusing old plugs is not typically recommended. They can be marginal in performance and may foul easily. Install new plugs with the correct gap for best results.
It's usually better to install new plugs instead of reusing old ones.
What torque should I use for spark plugs?
Torque should be set to the vehicle’s specified value, typically between 10 and 20 Nm depending on engine design. Check the service manual for exact numbers.
Use the torque value listed in your manual to avoid under- or over-tightening.
Should I use anti-seize on spark plug threads?
Many modern engines do not require anti-seize and can be damaged by its use. Follow the manufacturer’s guidance and use anti-seize only if explicitly recommended.
Follow the manual; anti-seize isn’t always needed and can be harmful in some engines.
How often should I inspect spark plug wires?
Inspect wires during routine maintenance or if you notice misfires, rough idle, or poor starting. More frequent checks are wise in harsh climates or high-mileage engines.
Check wires during maintenance or if you notice engine performance issues.
Watch Video
Main Points
- Identify the correct plug and boot before starting.
- Inspect boots and wires; replace damaged components.
- Gap plugs accurately and torque to spec.
- Re-seat boots firmly and test the engine after installation.
- Follow manufacturer guidance on anti-seize and grease.
