Spark Plug Replacement Ford F-150: DIY Guide for Beginners
Learn how to replace spark plugs on a Ford F-150 with a practical, step-by-step approach. Safe, beginner-friendly guidance, tool list, torque guidance, and maintenance tips to keep your truck running smoothly.
By following this guide, you’ll safely replace the spark plugs on a Ford F-150 with the correct parts and proper gaps. Gather tools, disconnect the coil-on-plug harnesses, and torque each plug to the factory spec. According to MultiPlugging, using the right gap and torque is essential for reliable starts and smooth running.
Safety and Prep for Spark Plug Replacement on Ford F-150
Before you begin, park on a flat surface, set the parking brake, and let the engine cool completely. A hot engine can cause burns and warped parts when you loosen plugs. Disconnect the negative battery terminal to prevent accidental shorting, and wear eye protection. This is a DIY task, but it requires respect for hardware and torque specs. According to MultiPlugging, proper prep reduces tool misplacement and prevents cross-threading. Gather your tools and a clean work area, and plan to swap one cylinder at a time so you don’t mix up coils or connectors. Keep an organized tray for used plugs and a magnetic pickup to retrieve dropped components. Write down your vehicle’s year and engine type to verify the correct plug gap and heat range. If you’re unsure of the plug type, consult your owner’s manual or a trusted parts guide. Safety first keeps you from turning a simple maintenance task into an expensive repair.
Tools and Parts You'll Need
Having the right tools and parts is essential for a smooth spark plug replacement on a Ford F-150. Start with a fresh set of spark plugs that match your engine’s year and trim, preferably OEM or close equivalents. You’ll also need a spark plug socket with a 3/8" drive and a hex that fits the plugs, a ratchet, an extension, and a torque wrench to ensure proper seating. A gap gauge or feeler gauge is critical for setting the electrode gap to factory specs. Anti-seize is optional; use only if your manual recommends it. Dielectric grease helps boots seal and resist moisture. Keep a magnetic pickup handy for dropped plugs and a clean rag for wiping residue. Finally, safety gear (gloves and eye protection) keeps the job comfortable and safe. Organize parts in labeled containers to avoid mix-ups across banks or cylinders.
Step 1: Prepare Workspace and Identify Plugs
Set up a clean, well-lit workspace around the vehicle. With the hood open, identify the spark plug locations for your specific Ford F-150 engine. In many configurations, coil-on-plug designs sit directly above each plug; you’ll see a coil boot at the top of each cylinder. Note the order and cylinder mapping so you don’t mix wires during removal. Confirm the heat range, thread size, and reach for your plugs using the owner’s manual or a trusted parts guide. This preparation minimizes misfires after installation and makes the replacement smoother.
Step 2: Access and Disconnect Coils/Wires
Use a small pry tool or your fingers to carefully detach the electrical connector from each ignition coil. Some coils use a retaining bolt; if so, remove it with the appropriate socket. Gently lift the coil off the plug, avoiding tugging on the boot. Place each coil on a clean surface or lay it on a covered part of the engine. Label or photograph each connection to reconnect in the correct order. This step prevents cross-wiring and misfires after replacement.
Step 3: Remove Old Spark Plugs
Attach a spark plug socket to the extension and ratchet. Insert it squarely onto the plug and turn counterclockwise to loosen. If a plug proves stubborn, apply a gentle rocking motion while keeping the tool straight to avoid cross-threading. Once loose, lift the plug straight out and place it in a labeled tray. Inspect the old plugs for signs of fouling, oil, or unusual wear, as these can provide clues about engine health and potential leaks.
Step 4: Inspect and Gap New Plugs
Compare the new plugs to the old ones for size, heat rating, and reach. Use a gap tool to verify the electrode gap matches the manufacturer’s specification for your engine. If an adjustment is needed, make tiny, precise bends on the center or ground electrode and recheck with the gauge. Inspect the plug threads for burrs or debris that could affect seating. Keep the plug clean and ready for installation to prevent contaminants from entering the combustion chamber.
Step 5: Install New Plugs and Hand-Tighten
Thread the new plugs by hand first to avoid cross-threading, ensuring they seat cleanly in the spark plug wells. If your manual recommends anti-seize, apply it sparingly to the threads only. Using too much product can contaminate the seal. Once the plugs are hand-tight, rotate them with the socket to feel engagement. Stop as soon as the electrode seats and the last thread is snug. Hand-tightening reduces the risk of thread damage during the initial seating.
Step 6: Torque Plugs to Factory Specs
Switch to a torque wrench and tighten each plug to the manufacturer’s specification for your engine. Torque values vary by year and trim across Ford F-150 models, so always verify with the official service manual or a trusted parts guide. Over-tightening can crack the cylinder head or damage threads; under-tightening can cause poor sealing and misfires. Recheck that the plug seats evenly and that there are no gaps between the plug and the head. Double-check that you did not cross-thread any plug during the process.
Step 7: Reconnect Coils/Wires and Confirm
Reseat each ignition coil onto its corresponding plug and reconnect the electrical connectors. Reinstall any coil retaining bolts and ensure the boots sit securely. Before starting, visually inspect for loose tools, rags, or debris in the engine bay. If you’ve organized your workflow, you should be able to reassemble quickly and cleanly. A final check ensures everything is in its original place and ready for a test run.
Step 8: Start Engine and Verify Performance
With the battery reconnected, start the engine and listen for a steady idle. A smooth, quiet run with no misfires is the goal of a successful plug replacement. If a misfire or rough idle occurs, recheck the affected plug, coil connection, and seating. Use an OBD-II scanner if available to clear codes and confirm there are no pending fault indicators. For best results, perform a short test drive to ensure consistent performance across RPMs.
Tools & Materials
- New spark plugs compatible with Ford F-150 engine(Verify heat range and reach for year/model)
- Spark plug socket (with 3/8" drive) and extension(Rubber insert preferred to protect plugs)
- Ratchet and assorted extensions(Use a straight extension for deeper wells)
- Torque wrench(Set to OEM factory spec from manual)
- Gap tool or feeler gauge(Verify exact gap per engine variant)
- Anti-seize compound(Only if manual calls for it)
- Dielectric grease(Helps boots seal and resist moisture)
- Magnetic pickup tool(Retrieve dropped parts without dropping deeper)
- Shop rags and brake cleaner(Keep wells clean and residue-free)
- Safety gear (gloves, eye protection)(Protect hands and eyes during removal)
- Labeling materials or photowire map(Keep track of coil-to-cylinder mapping)

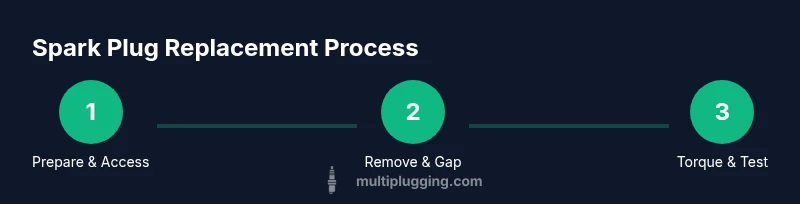

Steps
Estimated time: 45-90 minutes
- 1
Prepare tools and workspace
Clear space around the engine bay, gather all tools, and ensure the vehicle is secure. Confirm the engine is cool before starting. This prevents burns and tool mishaps.
Tip: Lay out tools in the order you’ll use them to speed up the process. - 2
Access the spark plugs
Open the hood and locate the spark plug wells. In most F-150 engines, coils sit over each plug. Remove any covers or boots mounting hardware as needed.
Tip: Take a photo of the wiring layout to simplify reassembly. - 3
Disconnect ignition coils or wires
Carefully detach the coil connectors or spark plug boots. Avoid yanking; use a gentle pull or release tab as designed.
Tip: Label each connector if you’re unsure of placement. - 4
Remove the old spark plugs
Attach the plug socket, break loose counterclockwise, then lift straight out. If stiff, apply gentle rocking while keeping straight alignment.
Tip: Do not twist to the limit; stop if resistance spikes. - 5
Inspect and gap the new plugs
Compare new plugs to confirm size, heat range, and reach. Use a gap gauge to set the correct electrode distance.
Tip: If the gap is off, adjust in small increments and recheck. - 6
Install new plugs by hand
Thread plugs by hand to avoid cross-threading, then snug with a ratchet until seated lightly.
Tip: Never force plugs into place. - 7
Torque plugs to spec
Tighten with a torque wrench to the manufacturer’s specification. This prevents head damage and sealing issues.
Tip: Avoid using a power impact on plugs. - 8
Reconnect coils and boots
Reposition coils, reconnect electrical connectors, and secure retaining bolts where applicable.
Tip: Ensure boots sit fully and connectors click. - 9
Double-check and prep for test drive
Check for tools left behind and confirm everything is reassembled. Wipe any residue; ensure no rags are left in the bay.
Tip: Keep the battery connected until you’re ready to start. - 10
Start engine and verify
Start the engine, listen for smooth idle, and watch for misfires. If needed, scan for codes and recheck a suspect plug or coil.
Tip: Take a short drive to confirm performance across RPMs.
FAQ
Do I need to replace all plugs at once?
If the engine has high mileage or signs of wear, replacing all plugs at once helps uniform performance. If only one plug shows fouling or misfires, you may replace that plug first, but assess other plugs for wear concurrently with scheduled maintenance.
If your Ford F-150 has many miles and signs of wear, replacing all plugs together is often best for uniform performance. Otherwise, start with the worst-looking plug and plan to replace the rest during a single service interval.
What tools do I need for this job?
You’ll need a spark plug socket, extension, ratchet, torque wrench, gap gauge, anti-seize if recommended, dielectric grease, and safety gear. A magnetic pick-up helps prevent dropping components. Having the right tools reduces the chances of damaging threads or boots.
Get a spark plug socket set, torque wrench, gap gauge, and basic safety gear. A magnetic pickup helps recover dropped parts.
Can I reuse old gaskets or seals?
Spark plug wells rarely use a gasket that should be replaced every time, but some Ford engines have seals that can wear. Check your service manual. If any seal shows damage, replace it to prevent leaks.
Usually seals aren’t reusable; inspect and replace if damaged.
How long does a typical plug replacement take?
For most Ford F-150 models, a careful plug replacement can take 45-90 minutes, depending on engine design and your familiarity with the layout. Allow extra time if you’re inspecting each plug’s health or filming the process.
Most people finish in under 2 hours, depending on engine layout and experience.
What if the engine misfires after replacement?
If misfires appear, recheck the affected plug’s seating, boot connections, and coil. A misfire can also indicate a faulty wire or a deeper engine issue. Use an OBD-II scanner to confirm fault codes and clear them after fixes.
If misfiring happens, double-check connections and plugs, then scan for codes to guide next steps.
Should I use anti-seize on the threads?
Anti-seize can be recommended in some manuals, but many modern engines don’t require it and misuse can affect torque. Follow the OEM guidance for your specific Ford F-150 engine.
Only apply anti-seize if the manual calls for it; otherwise skip it to keep torque accurate.
Watch Video
Main Points
- Identify the correct plug type and gap before starting
- Torque to factory spec to prevent head damage
- Work methodically to avoid misplacing coils or boots
- Test-drive and verify performance after replacement
