Replace Spark Plug Wire: A Complete DIY Guide
Learn how to replace spark plug wire safely with a clear, step-by-step approach. Tools, safety tips, and troubleshooting for smooth ignition performance.
By the end of this guide, you’ll be able to replace a spark plug wire safely and confidently. The steps cover selecting the correct wire, disconnecting power, removing the old boot, installing the new wire, reseating the boot, and testing the engine. You’ll need basic hand tools, dielectric grease, and a replacement wire set suitable for your engine.
Why replacing spark plug wire matters
A worn or damaged spark plug wire can quietly sap an engine’s performance, leading to rough idle, reduced power, and higher fuel consumption. According to MultiPlugging, keeping the ignition system in good condition is among the most cost-effective ways to maintain engine reliability. Replacing a degraded wire restores consistent ignition timing and improves combustion efficiency, especially on engines with older ignition coils and individual lead boots. While some issues seem minor, intermittent misfires can escalate under load or in hot weather, stressing fuel delivery and exhaust cleanliness. This section explains why a replacement is a prudent DIY task, not a last-resort repair, and sets the stage for a safe, methodical workflow that minimizes risk and maximizes results.
Over time heat, oil exposure, and vibration degrade wire insulation, boot seals, and conductor integrity. When resistance rises or the boot cracks, spark energy can be dispersed or delayed, causing rough starts or hesitation during acceleration. A fresh wire set reduces voltage loss and improves misfire resistance, leading to crisper throttle response and steadier idle. It’s not just about fixing a problem—it's about preserving overall engine health, reducing stress on ignition coils, and helping your vehicle run cleaner. Regular inspection during routine service can catch worn boots or corroded terminals before they cause a stall or failure.
note1_ensure_markdown_sanity_note_before_use_none_1_false_1_true_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1_false_1
Tools & Materials
- New spark plug wire set(Ensure the set matches your engine (cylinder count, coil layout) and is compatible with your ignition system.)
- Socket wrench or ratchet(Metric sizes vary by vehicle; have a 3/8 in or 1/2 in drive handy.)
- Dielectric grease(Used on the inner boots to ensure a good seal and ease future removal.)
- Wire-cutting/stripping tool(Optional if you need to trim waste lengths or adjust boot fit.)
- Dielectric spraying or cleaning cloth(For boot surfaces and connectors to remove grease and oil buildup.)
- Gloves(Protect hands from sharp edges and hot components.)
- Owner’s service manual(Check vehicle-specific routing and wire lengths.)

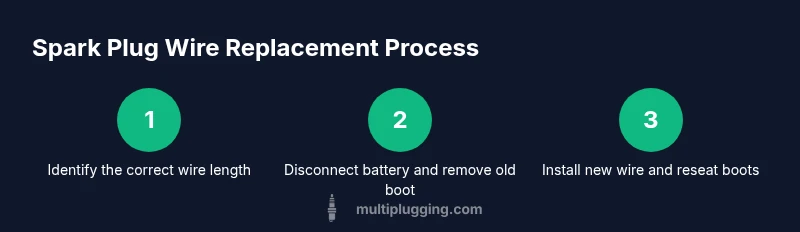

Steps
Estimated time: 45-60 minutes
- 1
Identify the correct wire
Consult your owner’s manual or the replacement wire kit to confirm the correct length and boot style for your engine. Misidentifying length can cause poor fit or misrouting around moving parts. Take a photo of the old wiring layout if needed to ensure proper reattachment.
Tip: Always double-check parts compatibility before touching the engine. - 2
Disconnect power safely
Disconnect the negative battery terminal to prevent accidental shocks or shorts while handling ignition components. Remove jewelry and keep tools insulated from bare metal surfaces. Wait at least 60 seconds after disconnecting to allow stored energy to dissipate.
Tip: If your vehicle has a fuse box near the battery, remove the fuse that powers the ignition system for extra safety. - 3
Remove the old boot and wire
Gently twist and pull the worn boot to detach it from the spark plug and the coil or distributor. Do not force; if it sticks, apply a little dielectric grease to ease removal. Compare the length and boot ends with the replacement to ensure a proper match.
Tip: Label or photograph each connection sequence to prevent misordering. - 4
Install the new wire
Seat the boot firmly onto the spark plug until it click-locks in place. Route the wire along the same path as the old one, avoiding hot exhaust components and sharp edges. Connect the other end to the coil/distributor boot and ensure a snug fit.
Tip: Do not bend the wire too sharply; use gradual curves to minimize internal conductor stress. - 5
Check fit and connections
Gently tug on each boot to confirm a secure seat. Apply a small amount of dielectric grease to the metal contacts if recommended by the kit, then reassemble any covers you removed. Reconnect the battery negative terminal after verifying all connections.
Tip: Verify that adjacent wires aren’t pinched or rubbing on moving parts. - 6
Test the system
Start the engine and observe smooth idling. If feasible, run the engine at different RPMs and drive briefly to confirm there are no misfires and no check-engine warnings. If misfires occur, recheck boot seating and wire routing.
Tip: If issues persist, re-inspect connectors and replace any damaged boots. - 7
Final verification
Turn off the engine and re-check boot seats once more before a final test drive. Document any unusual behavior for future maintenance notes. Keep track of wear patterns for next replacement interval.
Tip: Record the replacement date and mileage for maintenance logs.
FAQ
Do I need to replace all spark plug wires at once?
If one wire shows wear or damage, it’s often best to replace the whole set to ensure uniform performance and avoid chasing intermittent issues.
If one wire is worn, consider replacing the entire set to prevent future misfires.
Can replacing spark plug wires improve fuel economy?
Replacing worn wires can restore efficient ignition and smoother running, which may improve fuel economy if misfires were contributing to inefficiency.
Worn wires can hurt efficiency; replacement may improve mileage if misfires were present.
Should I disconnect the battery before starting?
Yes, always disconnect the negative battery cable before handling ignition components to prevent shocks or shorts.
Yes—disconnect the battery to stay safe while you work on ignition parts.
How long does it take to replace spark plug wires?
Most vehicles take 30–60 minutes, depending on engine layout and how easily you can access the wires.
Usually about half an hour to an hour, depending on access to the wires.
What are signs of failing spark plug wires?
Common signs include rough idle, engine misfires, difficulty starting, and a check engine light.
Watch for rough idle, misfires, hard starts, or a check engine light indicating worn wires.
Watch Video
Main Points
- Inspect wire condition before replacing.
- Choose the correct length and boot style for your engine.
- Follow a clean, labeled removal process to avoid miswiring.
- Test engine performance after replacement for smooth operation.
- Document the replacement for future maintenance planning.
