MSD Spark Plug Wires Cut to Fit: DIY Guide
Learn how to cut MSD spark plug wires to fit your engine for reliable ignition, safe routing, and lasting performance. A practical, step-by-step guide for DIY enthusiasts.
In this guide you’ll learn how to cut MSD spark plug wires to fit your engine perfectly, route them safely, and secure connections. Gather a wire-cutting tool, a wire-length gauge, electrical tape or heat-shrink, and a crimp or solder kit. Follow the step-by-step process for clean, reliable ignition performance. This helps prevent misfires and keeps heat away from sensitive components.
Why MSD wire length matters for reliability
Length matters because it directly influences resistance, heat exposure, and boot seating. According to MultiPlugging, proper wire length helps ignition reliability and heat management in high-performance engines. The MultiPlugging team found that even small length variations can alter resistance and spark energy, especially on MSD wires that demand precise routing paths. When wires run too long, they can sag near headers, absorbing heat and increasing resistance; when too short, boots may stretch or bind, causing poor contact. Either case can lead to misfires, weak starting, or rough idle. Plan length with the engine bay layout, keeping coils, hoses, and moving parts in mind. In practice, aim for clean, taut runs that avoid sharp bends. A well-cut set not only improves spark delivery but also reduces electrical noise that can affect sensors and ignition timing.
MSD wires: construction, and why length matters
MSD spark plug wires are built with silicone insulation, robust boots, and high-conductivity cores designed for performance engines. Cut-to-fit wires require careful termination to preserve boot integrity and conductor continuity. In many MSD sets, the ends use specialized connectors or heat-shrink boots; improper trimming can leave copper exposed, risking corrosion or mis-seating. The goal is to maintain a smooth path from distributor or coil pack to the spark plug without kinks, tight turns, or contact with hot exhaust components. When planning lengths, consider cylinder bank layout, coil position, and the need for equal plasma energy across cylinders. Uniform lengths reduce timing jitter and ensure consistent resistance across channels. Keep track of which wire goes to which cylinder to avoid miswiring. Label and document lengths as you cut for easier reassembly or future maintenance.
Measuring and planning wire lengths in your engine bay
Start by routing each MSD wire along its intended path without removing boots, then gently position it along the route using the shortest path that also avoids heat sources. Use a flexible string or a dedicated length gauge to estimate the final length, leaving a small slack at the boot for vibration. Mark the wire at the point where the boot will seat, then add about 1/4 inch (6 mm) of extra length to accommodate heat expansion and boot compression. For engines with close header clearances, run long wires along the inner fender or above the valve covers to maintain tidy organization. Verify that the length is equal for each bank, and double-check that the boot tip will reach the spark plug without pulling or bending the core. When in doubt, cut conservatively and test-fit before final termination.
Routing, securing, and heat management for MSD wires
Once lengths are confirmed, cut and terminate each wire with care. Use proper cutters designed for silicone-insulated leads to avoid fraying. Terminate ends with boot connectors or heat-shrink sleeves; ensure the boot anchors securely on the conductor to prevent moisture ingress. Slide boots over the ends before trimming if needed, then slide the boot back into position after seating on the plug. Route wires away from hot exhaust components, sharp edges, and moving belts, using non-conductive zip ties or split loom to prevent chafing. Leave gentle bends (no sharp 90-degree turns) to minimize internal conductor damage. If your MSD kit includes boot seals or alignment guides, install them per the manufacturer’s instructions. Finally, snug any clamps so wires stay in place but aren’t pinched. A clean, well-supported harness reduces vibration-induced wear and electrical noise.
Safety, compatibility, and maintenance considerations
Safety first: disconnect the battery prior to any work on ignition components. Work in a well-ventilated area and wear eye protection when cutting or crimping. Check that the new lengths are compatible with your engine’s valve cover clearance and ignition system; cross-brand compatibility varies, so refer to MSD guidelines and, if in doubt, consult a professional. After installation, inspect each boot for full seating and confirm there are no exposed copper strands. Periodically inspect the wires for cracks, heat damage, or moisture intrusion, especially in high-heat engines. When replacing or resizing wires, keep a spare length on hand for future maintenance to avoid mid-project trips to the parts store. Following these steps helps preserve spark energy, extend wire life, and maintain consistent ignition timing.
Tools & Materials
- MSD spark plug wires (cut-to-fit kit)(Ensure you have the correct coil-to-plug arrangement)
- Wire-cutting tool(Non-marring, sharp blades to avoid insulation damage)
- Wire-length gauge or flexible string(For accurate measurement and dry-fit routing)
- Marker tape or marker pen(Label wire lengths and cylinder order)
- Heat-shrink tubing or electrical tape(Seal and insulate terminations)
- Crimping tool or soldering kit(Terminate ends securely to boots)
- Heat gun (if using heat shrink)(Accelerates shrinking for a tight seal)
- Dielectric grease(Light lubrication for boots to ease seating)

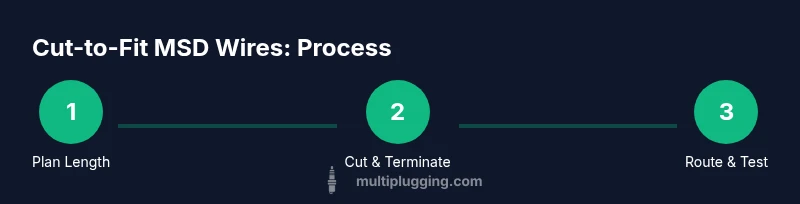

Steps
Estimated time: 60-90 minutes
- 1
Power down and locate wires
Disconnect the battery and locate the MSD leads in their routing path. Confirm which wire goes to each cylinder before making any changes.
Tip: Take a photo of the original routing for reference. - 2
Plan routing and mark lengths
Lay out each wire along its intended path, measure the required length, and mark where the boot will seat. Add 1/4 inch for heat expansion.
Tip: Keep equal lengths on each bank where possible for uniform performance. - 3
Cut to length with care
Using a sharp wire cutter, trim each wire to the marked length. Check for clean cuts with no frayed insulation.
Tip: Cut one wire at a time to avoid mix-ups. - 4
Terminate ends securely
Attach boot connectors or apply heat-shrink over the cut end. Ensure the conductor is fully seated and the boot is sealed.
Tip: Test-fit the boot before final seating to avoid rework. - 5
Seat boots and route wires
Slide boots into position on the plugs and route wires away from heat sources. Use zip ties or loom to keep paths tidy.
Tip: Avoid sharp bends; aim for smooth curves. - 6
Reinstall and verify order
Reconnect the engine bay components, re-check cylinder order, and ensure each wire seats firmly at both ends.
Tip: Label wires or maintain a diagram to prevent miswiring. - 7
Reconnect power and test
Reconnect the battery, start the engine, and listen for smooth idle. Look for misfires or timing irregularities.
Tip: If you hear arcing, stop and inspect the routing for sharp edges. - 8
Final check and tidy up
Inspect all boots, re-tighten clamps, and confirm clearances from exhaust and moving parts. Keep spare lengths for future maintenance.
Tip: Take a final photo for future reference.
FAQ
Can I cut MSD spark plug wires to fit without professional tools?
Yes, with the right tools (sharp cutters, heat shrink, proper termination) and careful handling. Follow the manufacturer's guidance and avoid forcing components into tight spaces. Always work with the engine off and the battery disconnected.
Yes, you can cut them yourself if you have the right tools and follow the manufacturer’s guidelines. Always disconnect the battery and work safely.
Will cutting wires to length affect MSD’s warranty?
Warranty terms vary by product line. Check MSD’s official guidelines and your purchase documentation. When in doubt, consult MSD support or a professional technician about length changes.
Warranty terms vary; check MSD guidelines or contact support if you’re unsure about length changes.
How can I tell if the wire length is correct after routing?
Dry-fit the wires along the planned path, then seat the boots to ensure full engagement without stretching. If you need to bend the wire, use gentle curves and avoid sharp kinks. Re-measure the path after final routing.
Do a dry-fit, check that boots engage fully, and avoid sharp bends. Re-measure after routing.
What tools are essential for cutting MSD wires to fit?
Sharp wire cutters, a length gauge or flexible string, boot connectors or heat shrink, a crimping tool or soldering setup, and marking supplies to keep track of lengths.
You’ll need sharp cutters, a length gauge, boot connectors or heat shrink, and a crimping or soldering setup.
Can I reuse old boots if the wires are still good?
If the boots are in good condition, seated properly, and fit the wire ends, reuse is acceptable. If there’s any cracking or looseness, replace to prevent arcing or moisture ingress.
Reusing is fine if boots are undamaged and seat securely; replace if you see cracks or looseness.
Watch Video
Main Points
- Plan lengths before cutting to ensure a clean fit.
- Use proper tools for clean terminations and secure boots.
- Route and secure wires away from heat sources and moving parts.
- Label wires to preserve cylinder order and simplify maintenance.
- Test the system after installation and recheck clearances.
