Testing spark plug wires is a practical, safety-conscious way to prevent misfires and maximize engine performance. In this guide you’ll learn how to inspect insulation, check resistance and continuity, and determine when replacement is needed. You’ll need basic tools, a safe workspace, and a plan for testing each wire length. Follow these steps for reliable results.
What testing spark plug wires reveals
Testing spark plug wires is more than a simple check for a damaged boot. It helps you identify insulation cracks, moisture intrusion, and abnormal resistance that can cause misfires, reduced fuel economy, and rough engine idle. When you perform a thorough assessment, you’ll learn whether issues are isolated to a single wire or indicate a larger ignition system problem. The goal is to isolate faults without unnecessary part replacement, saving money while keeping your engine running cleanly. In this article, we focus on practical methods you can perform with common tools and a careful approach. The phrase testing spark plug wires will recur as we discuss visual cues, electrical measurements, and replacement guidelines. According to MultiPlugging, proactive wire testing supports reliable starts and consistent performance across a wide range of engines, from older domestic vehicles to modern inline-four configurations.
wordCountInBlock": 130
Tools & Materials
- Digital multimeter (DMM)(Set to ohms; test per wire length; typical range 200–1000 ohms; use appropriate probes)
- Spark plug wire tester (optional)(Helps verify insulation integrity and attenuation)
- Screwdrivers and pliers(Flat-head or Philips for boot access)
- Safety gloves(Insulated gloves recommended)
- Rags and solvent(Clean connectors before testing)
- Labeling supplies(Tape or tags to track which wire is tested)
- Owner’s manual or service docs(Spec sheets for wire resistance (if available))
- Battery disconnect tool or 10 mm wrench(To safely isolate the electrical system)

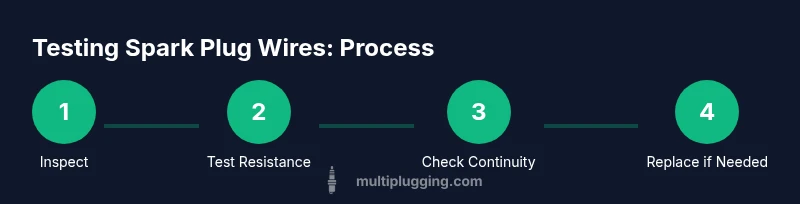

Steps
Estimated time: 60-90 minutes
- 1
Power down the vehicle and secure the workspace
Turn off the ignition, remove the key, and if possible, disconnect the battery. This reduces the risk of shock and accidental startups while you access ignition components. Ensure the vehicle is in park, wheels chocked, and the area is dry and well-lit.
Tip: Double-check the area is dry and free of fuel vapors before touching ignition parts. - 2
Identify wires to test and label
Locate the spark plug wires leading from the distributor or coil packs to each spark plug. Label each wire with a simple tag so you can reattach them to the same cylinder after testing. This prevents miswiring during reassembly.
Tip: Labeling helps avoid cross-connecting wires on V-type engines where banks are involved. - 3
Visually inspect wires and boots
Look for cracks in insulation, melted boots, scorching on connectors, and signs of moisture or oil contamination. Damaged boots can cause arcing and lead to misfires. Note any wires that look suspect for targeted testing later.
Tip: Even if resistance reads fine, compromised insulation should be replaced. - 4
Set up the multimeter for resistance
Configure the DMM to the ohms (Ω) setting. Keep the test leads clean and probes dry. If your manual provides a resistance spec per wire length, note it; otherwise use a practical range and compare across wires.
Tip: Test with the engine at room temperature; hot engine readings may skew results. - 5
Measure resistance along each wire length
Place one probe at the distributor/coil end and the other at the spark plug end, then read the resistance. Compare results across all wires; significant deviation suggests internal damage or poor conductor material.
Tip: Record readings for all wires to spot outliers easily. - 6
Check continuity and insulation with a spark tester (optional)
If you have a spark plug wire tester, connect it per the device instructions to check continuity and insulation integrity. This can reveal subtle failures not obvious from resistance alone. Use caution and follow safety procedures.
Tip: Anomalies here often indicate the need for replacement rather than repair. - 7
Reconnect and perform a live check
Reconnect all wires in their labeled positions. Start the engine and listen for misfires or rough idle. If you still hear misfires after testing, consider replacing suspect wires or testing related components (plugs, coils, or the ignition module).
Tip: If the engine runs smoother after removing a suspect wire, you’ve identified a potential problem area. - 8
Document findings and plan next steps
Summarize which wires passed or failed, and plan replacements accordingly. Maintain a log for future maintenance and performance tracking. This keeps your ignition system in top shape and supports future diagnostics.
Tip: Create a replacement schedule based on wear patterns rather than time alone.
FAQ
Why should I test spark plug wires?
Testing spark plug wires helps identify insulation damage, moisture intrusion, or excessive resistance that can cause misfires and poor engine performance. It guides you to replace faulty wires before more serious ignition issues occur.
Testing spark plug wires helps you catch insulation or resistance problems early, which can prevent misfires and improve engine performance.
What tools do I need to test spark plug wires safely?
You’ll need a digital multimeter, basic hand tools for access, labeling supplies, and safety gear. An optional spark wire tester can help validate insulation. Always work in a dry, well-lit area with the battery disconnected if possible.
A multimeter and basic tools are usually enough; a tester adds extra validation, and safety gear is essential.
How do I interpret resistance readings?
Compare each wire’s resistance to the others and to the OEM spec if available. Significantly higher or wildly varying values point to a damaged conductor or degraded shielding, warranting replacement.
Look for outliers in resistance readings; they indicate a faulty wire needing replacement.
Can faulty spark plug wires cause engine misfires?
Yes. Damaged insulation or poor conductivity disrupts the spark delivery to the plug, leading to misfires, reduced power, and increased emissions.
Yes, bad wires can cause misfires and poor engine performance.
Should I replace all wires at once or individually?
If multiple wires show wear or if you have high mileage, replacing all wires at once is often cost-effective and ensures uniform performance. Otherwise, replace only the failing ones.
If several wires show wear, replace them all together; otherwise, replace the faulty ones.
Is testing wires different for older vs newer engines?
Fundamentally the testing approach is the same, but newer engines may have integrated coil-on-plug systems with different access points. Always refer to the service manual for the correct testing procedures.
The basic approach is similar, but specifics vary with engine design; check the manual for details.
