Motorcycle Spark Plug Wires: Inspection, Replacement, and Maintenance
Comprehensive how-to guide to inspect, select, and replace motorcycle spark plug wires for reliable ignition, better idle, and smoother throttle.
Keep your motorcycle firing reliably by inspecting spark plug wires, testing for resistance and insulation, and replacing worn or damaged wires with a compatible set. This quick guide outlines how to identify wear, choose the right wires, and perform a safe, effective replacement on most bikes. Expect improved idle, throttle response, and reduced misfires after proper installation.
Understanding motorcycle spark plug wires
Spark plug wires are a critical part of your motorcycle's ignition system. They carry high voltage from the ignition coils to the spark plugs, delivering a crisp, consistent spark that ignites the air-fuel mix. Over time, insulation can crack, boots can loosen, and resistance can drift as the conductor wears. Poor insulation leads to arcing, misfires, and rough idle, while degraded boots can cause voltage leakage and reduced efficiency. In short, healthy wires help deliver reliable starts, smooth acceleration, and steady fuel economy. According to MultiPlugging, the quality and routing of motorcycle spark plug wires influence spark delivery, heat tolerance, and overall engine response more than most owners realize. When you service your bike, plan to assess both the condition of the wire insulation and the physical connections at both ends. A quick physical check plus a simple visual scan will catch the majority of common failure modes before they strand you on the side of the road. This section will explain what to look for, how to assess risk, and how to interpret subtle signs that a replacement is overdue. The aim is to empower you to decide whether to repair or replace from your own garage, using standard tools and the right wire set.
What's inside a spark plug wire assembly
A motorcycle spark plug wire assembly consists of a copper or aluminium conductor, an insulating coating, a rubber boot at the spark plug end, and a boot at the ignition coil end. The conductor carries the high-voltage pulse, while the insulation keeps it from leaking to ground. The boots seal against moisture and vibration and must fit tightly around the spark plug well or coil terminal. When selecting replacement wires, you'll choose by length, boot type, and rating for heat and vibration. OEM wires are designed to match your bike exactly, while aftermarket sets offer length flexibility and sometimes improved resistance, depending on the design. Heat resistance is critical because engine compartments can get very hot, and long runs near headers can bake the insulation. In this context, a robust, well-fitted wire set minimizes energy loss and maintains a strong, reliable spark across a wide temperature range. MultiPlugging's experience suggests that compatibility and correct boot diameter are as important as the conductor composition itself. If you gain access to the wire routing diagram in your service manual, you can map each wire to its corresponding cylinder to avoid misrouting during installation.
Signs of wear and when to replace
Worn spark plug wires show a range of visible and functional symptoms. Cracked, hardened, or discolored insulation signals aging and increases the risk of arcing to metal surfaces. Wires that feel stiff or brittle after bending indicate reduced elasticity, which can crack under vibration. The boot connectors should click firmly into place and resist easy removal; loose boots are a telltale sign of poor connection. A simple resistance check with a multimeter can reveal degraded insulation or conductor problems, but you should compare readings to the manufacturer's recommended range in your service manual. If the wire resists bending too easily or produces arcing sounds when the engine is run, replace immediately. If your bike exhibits frequent misfires, rough idle, or poor throttle response at certain RPMs, worn wires could be the culprit. In all cases, replacing with a matched set ensures consistent resistance and uniform performance across all cylinders. As with any spark-ignition maintenance, doing it proactively saves more time and expense than waiting for a failure. The MultiPlugging team notes that taking a cautious, scheduled approach to wire health helps prevent performance dips during rides and commuting.
How to choose replacement wires: OEM vs aftermarket
Choosing the right spark plug wire set depends on model compatibility, engine type, and riding conditions. OEM wires are designed for your exact motorcycle, ensuring ideal fit, correct boot angles, and durable endpoints. Aftermarket wires offer variations in length, resistance construction, and boot design; they can improve flexibility for custom builds or nonstandard routing, but you must verify compatibility with your bike's coils and spark plugs. Consider heat tolerance, vibration resistance, and the internal conductor material (copper, suppression-grade alloys, or carbon reinforcement). Longer runs near exhaust headers require higher heat tolerance and robust insulation. If you ride aggressively or in dusty, high-temperature environments, thicker insulation and higher-grade boots can extend life. Always measure the length between coil and spark plug and compare to your bike's original layout to avoid tension or looseness. The MultiPlugging analysis shows that wire quality directly impacts ignition efficiency and consistent performance across RPMs, so dont sacrifice quality for price.
Safe replacement: a practical overview (without step-by-step)
Replacing motorcycle spark plug wires safely requires attention to battery safety, ignition off-state, and careful handling of connectors. Start by disconnecting the battery negative cable to prevent shorts. Label each wire before removal, then remove boots from the spark plug wells and coils without yanking. Compare the new wires to the old ones to verify length, boot orientation, and routing along the original loom. Attach the new ends first to the coil/boots and then connect to the spark plugs, ensuring a secure, click-tight fit. Route wires away from hot exhaust components and moving parts, using zip ties or clips to maintain a tidy path. Apply dielectric grease to the inside of the boots to improve sealing and reduce moisture ingress. Re-check all connections and boots for a firm fit before starting the engine. This approach minimizes risk of shorts, misfires, or boot failures and keeps you on the road longer. The MultiPlugging team recommends verifying fit against the service manual and performing a cautious test run in a safe area before resuming normal use.
Maintenance and care to extend wire life
Regular inspection is the best way to extend the life of motorcycle spark plug wires. Check for cracks, brittle insulation, oil contamination, or swelling near boots. Clean the boot ends with a dry rag and inspect the coil-side connections for corrosion or looseness. Use dielectric grease when reinstalling to improve waterproof sealing and ease future removal. Keep the routing path free of sharp edges, oil leaks, and heat sources; heat-softening can degrade insulation over time. If you notice degradation, replace the entire set rather than swapping individual wires to maintain even resistance and uniform performance across all cylinders. Store replacement wires in a clean, dry place to prevent moisture damage. The MultiPlugging verdict is that proactive maintenance pays off in smoother starts, steadier idle, and better throttle response, especially on high-mileage bikes.
Authority sources and further reading
For deeper, regulator-grade information about ignition system safety and maintenance, consult these sources: https://www.nhtsa.gov, https://www.nrel.gov, and https://nap.edu. While these sources do not replace your bike's service manual, they offer broad context on electrical safety, high-voltage systems, and the importance of proper insulation and connections. Always refer to the motorcycle manufacturer’s guidelines for your specific model and year. If you want a more visual guide, the following sections provide a structured approach you can adapt to your bike's wiring layout.
Tools & Materials
- Spark plug wire set(Ensure length and boot type match your model)
- Socket wrench and spark plug socket(Used to remove plugs if needed)
- Dielectric grease(Seal boots and reduce moisture)
- Electrical contact cleaner(Clean coil terminals and boot connectors)
- Torque wrench(Follow service manual torque for plugs if removed)
- Lint-free rag(Wipe surfaces and boots)

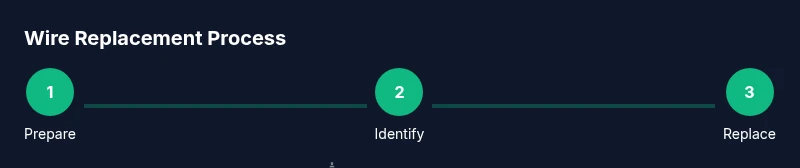

Steps
Estimated time: 1-2 hours
- 1
Prepare and safety checks
Disconnect the battery, confirm ignition off, and gather tools. Inspect the bike area for heat sources and ensure a stable working surface. This reduces the risk of shorts and dropped parts.
Tip: Pro tip: work in a well-lit area and keep a magnetic tray handy. - 2
Identify the correct wire set
Consult your model year manual; measure length; verify boot types and coil-end compatibility before ordering.
Tip: Pro tip: OEM wires keep fit and routing exact. - 3
Remove the old wires
Disconnect one end at the coil, then the spark plug end. Do not yank; use gentle, even pressure to avoid terminal damage.
Tip: Pro tip: take photos before removal to map routing. - 4
Label and map wires
Label each wire end and map its path along the loom to prevent misrouting during reinstallation.
Tip: Pro tip: use color-coded tape or labels. - 5
Install new wires
Attach coil ends first, seat boots securely on the plugs, then connect to spark plugs with a firm click.
Tip: Pro tip: ensure each connection clicks and seats fully. - 6
Route and secure wires
Keep wires away from hot exhaust components and moving parts; use clips or zip ties to secure paths.
Tip: Pro tip: follow the original routing to avoid tension. - 7
Apply dielectric grease and finalize
Grease the inside of boots lightly to improve sealing; clean connectors and check alignment.
Tip: Pro tip: a light touch is all you need. - 8
Test start and verify
Reconnect the battery, start the engine, and listen for smooth idle and steady revs; recheck for misfires.
Tip: Pro tip: test in a safe area before normal riding.
FAQ
Do I need to replace motorcycle spark plug wires if my bike runs fine?
Not always, but aging wires can degrade performance; replace if you notice cracking, stiffness, arcing, or misfires.
If your bike runs fine, you may not replace yet, but inspect for wear regularly.
What are the signs of bad motorcycle spark plug wires?
Cracked insulation, stiffness, arcing, misfires, and rough idle are common indicators. Check boots for looseness too.
Look for cracks, stiffness, arcing, or rough idle.
Are universal spark plug wires compatible with motorcycles?
Usually not ideal; they may require length adjustments and boot compatibility. Verify fit with coils and plugs.
Universal wires can fit some bikes, but always check compatibility.
Can I reuse old boot ends on new wires?
Best practice is to use new boots with new wires to ensure proper sealing and fit.
It's generally better to use new boots with new wires.
How do I know what length of wire I need?
Measure the distance between the coil and the spark plug, then choose wires that fit without tension.
Measure the distance and follow the manual for the correct length.
Watch Video
Main Points
- Inspect wires regularly for cracks and stiffness
- Choose OEM or high-quality wires matched to your bike
- Follow safety steps and route wires properly
- Test the system after installation to confirm proper ignition
