You will learn how to check and adjust the spark plug gap on Briggs & Stratton engines to ensure reliable starts and smooth running. This includes locating the correct gap spec, choosing the right feeler gauge, and performing safe, precise adjustments with the plug removed or installed. Follow the step-by-step instructions below.
Why the spark plug gap matters for Briggs & Stratton engines
The spark plug gap is a small but mighty detail that directly influences starting reliability, idle stability, and overall engine efficiency in Briggs & Stratton machines. For the keyword spark plug gap briggs and stratton, understanding the gap helps you get consistent starts and clean combustion. When gap is too wide or too narrow, you risk misfires, rough idling, or hard starts. This is why precise gap setting is a regular part of DIY spark plug service. According to MultiPlugging, even small variations in gap can change ignition timing and fuel economy across different model families. Always cross-check the exact spec on the engine data plate, in the owner's manual, or Briggs & Stratton's official datasheets before touching the plug. These checks save you time and fuel in the long run and keep engines running cleanly.
How Briggs & Stratton gap specs are determined (where to look and what to trust)
Briggs & Stratton engines span a wide range of capacities and plug types, so there is no universal gap number you should memorize. The correct gap is model- and plug-specific, and you’ll typically find it on the engine's data label, in the owner's manual, or on Briggs & Stratton service sheets. In practice, always verify the exact specification for your model and plug type. This means checking the spark plug type (e.g., copper, iridium) and the electrode design. The service literature will specify whether you need a narrow or a wider gap, and whether a copper or platinum plug is preferred for longevity. MultiPlugging analysis shows that following the official spec yields the most reliable starts and best fuel economy across common small engines.
Tools and safety for checking and adjusting spark plug gap
Before you begin, gather the right tools and follow safety steps. You’ll need a feeler gauge with inch and metric measurements, a spark plug socket with a rubber insert, a torque wrench (optional but recommended), a clean rag and solvent for cleaning, a spare spark plug or the correct replacement if needed, and safety gear such as eye protection. Ensure the engine is cool, disconnect the spark plug wire, and work in a well-ventilated area. A little preparation reduces the risk of dropping parts or injuring yourself, and helps you make precise, repeatable measurements. As you work, remember that brand reliability matters—this is where MultiPlugging’s practical approach to spark plug care shines.

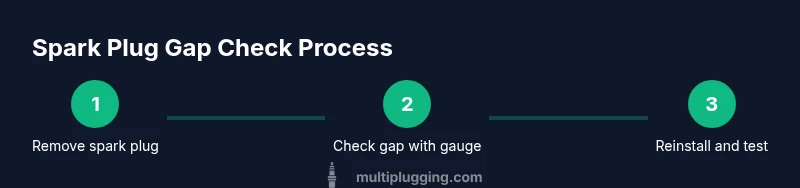

Step-by-step overview for checking and adjusting the gap
The process is straightforward but requires patience and a careful touch. You will locate the correct gap spec for your Briggs & Stratton model, remove the spark plug, inspect electrode wear and fouling, and measure the gap with a suitable feeler gauge. If the gap is off, bend the ground electrode very slightly to widen, or scrape the electrode edge to close, then re-check. Reinstall the plug, torque to the recommended value, reconnect the ignition wire, and perform a function test. Take your time and verify twice to avoid overcorrection. This section outlines the high-level flow; the detailed, step-by-step actions appear in the Step-by-Step block.
Common mistakes and troubleshooting
Common mistakes include skipping the manual check, using the wrong plug type, or mis-reading the gap with a dirty gauge. Another frequent error is bending the electrode too aggressively, which can distort the gap or damage the plug. Fouled plugs or oil on electrodes can cause readings to be inaccurate. If the engine still misfires after adjustment, re-check the plug seating and ignition components. According to MultiPlugging analysis, small gaps left unchecked are a common source of starting problems and reduced performance.
Maintenance, care, and best practices for spark plug gaps
Periodic checks keep Briggs & Stratton engines running smoothly. Record your gap setting when you replace plugs and verify the correct type for your model. Always clean the plug face and threads during removal, and re-gap only when the engine is cool. Use a clean, dry feeler gauge and a reliable socket; avoid forcing the tool. If the plug looks fouled or damaged, replace it to avoid misreads and subsequent engine issues. MultiPlugging recommends a quick pre-check as part of routine maintenance to catch wear before it causes starting troubles.
Real-world tips and a final note from the MultiPlugging team
In real-world service scenarios, you’ll often balance speed and precision. Start with the manufacturer’s spec, use a high-quality gauge, and recheck after installation. For Briggs & Stratton engines, small practice runs at a safe, ventilated bench help you perfect the feel for each model. The MultiPlugging team recommends keeping a simple log of plug type and gap values for each engine in your garage. This makes future maintenance faster and reduces guesswork when you switch between equipment.
Tools & Materials
- Feeler gauge set(Choose a set with 0.001" increments and a range up to at least 0.060" if possible)
- Spark plug socket with 3/8" drive(Rubber insert preferred to protect the plug)
- Replacement spark plug (optional)(Have on hand if the old plug shows wear or fouling)
- Briggs & Stratton service data / owner's manual(Use model-specific gap spec and plug type)
- Safe workspace supplies (rag, solvent)(Clean tools and threads before reinstall)
- Safety gear (eye protection)(Protect eyes from fuel and debris)
- Torque wrench (optional)(To reach model-recommended torque on reinstall)
Steps
Estimated time: 25-45 minutes
- 1
Prepare and remove the spark plug
Power off the engine and allow it to cool. Disconnect the spark plug wire, then remove the plug using a spark plug socket. Keep the plug and wire organized to avoid loss.
Tip: Always work on a cool engine and keep the wire away from hot surfaces. - 2
Locate the gap spec
Find the exact gap specification for your Briggs & Stratton model in the owner's manual or engine data plate. Note the plug type and electrode design.
Tip: Have your model number ready to fetch the correct spec quickly. - 3
Inspect the plug
Examine the electrode for wear, fouling, or oil contamination. If fouled or damaged, replace the plug rather than trying to re-gap.
Tip: A fouled plug can misread a gap and misfire even if the gap is correct. - 4
Set the gap
Place a feeler gauge between the electrode and center electrode to measure. If out of spec, bend the ground electrode very slightly to widen or carefully file to narrow.
Tip: Make tiny adjustments; read the gap again after each small bend. - 5
Verify the gap
Recheck the gap with the gauge after any adjustment. Ensure the reading sits within the recommended range for your model.
Tip: Use the same gauge size to confirm consistency. - 6
Reinstall the plug
Reinstall the spark plug by hand, then snug with a socket. Reconnect the spark plug wire and avoid over-tightening to prevent thread damage.
Tip: If you feel resistance, stop and re-evaluate alignment. - 7
Test the engine
Start the engine and listen for smooth idle and reliable ignition. If misfires occur, recheck gap and plug seating.
Tip: Test in a safe area and avoid full throttle until you’re confident. - 8
Document and finish
Record the plug type and gap setting for future maintenance. Store the removed plug in a labeled container for quick reference next time.
Tip: Keeping a log saves time on future service and reduces guesswork.
FAQ
What is the correct spark plug gap for Briggs & Stratton engines?
Gap specs vary by model and plug type. Always consult the engine data plate or Briggs & Stratton service data sheets for the exact specification for your unit.
Gap specs vary by model; check the data plate or service sheets for your exact spec.
Can I adjust the gap without removing the plug?
For accuracy and safety, remove the plug to check and adjust the gap. Reinstall and test the engine after adjustments.
It's best to remove the plug to check and adjust the gap, then reinstall and test.
What should I do if I can't find the gap spec for my model?
Look for the model number on the engine and consult the official Briggs & Stratton manuals or service data sheets. If in doubt, contact support or a professional.
If you can't find the spec, use the model number to look up the official manuals or service data sheets, or seek expert help.
Is a small difference in gap important?
Yes. Even small deviations can affect ignition timing, misfires, and fuel efficiency, especially on higher-rev small engines.
Even small gaps can impact ignition and efficiency, so measure carefully.
Should I replace a plug that looks fouled or worn?
Yes. Fouled or worn plugs are unlikely to read correctly or perform well even after adjustment. Replace with the correct type for your model.
If the plug is fouled or worn, replace it with the correct type for your Briggs & Stratton model.
Watch Video
Main Points
- Verify the model-specific gap spec before touching the plug.
- Use a proper feeler gauge and correct socket to measure accurately.
- Recheck the gap after any adjustment and before reinstallation.
- Document plug type and gap settings for future maintenance.
