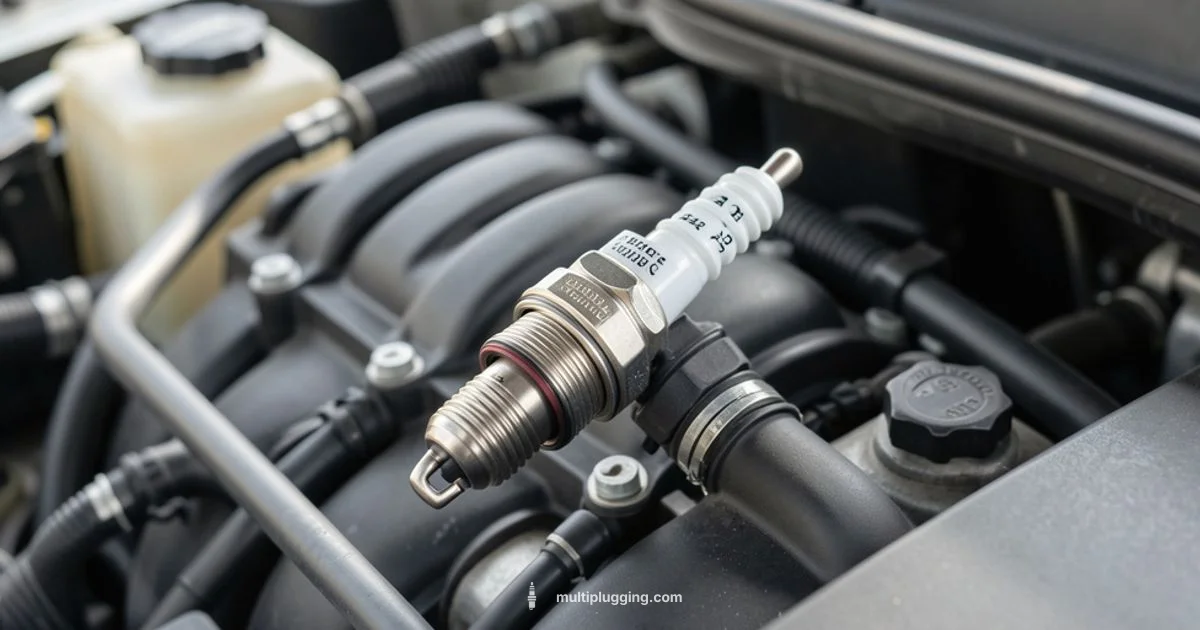

Gapping Iridium Spark Plugs: A Complete DIY Guide
Master gapping iridium spark plugs with a practical step-by-step guide. Learn why precise gaps matter, how to measure safely, and when to replace instead of regapping.
Within this guide, you’ll learn how to correctly gap iridium spark plugs, verify the gap with an appropriate gap tool, and decide when to adjust or replace. You’ll confirm the manufacturer gap specification, handle plugs safely to protect the fine iridium center electrode, and recheck gap after seating to ensure reliable starts and optimal performance.
What gapping iridium spark plugs means
In automotive terms, 'gapping' refers to setting the distance between the center electrode of a spark plug and its ground electrode. Iridium plugs use a very fine center electrode and a durable ground electrode, which makes initial gaps and re-gap procedures more delicate. The correct gap ensures a reliable spark, efficient fuel burn, and smooth engine startup. For most drivers, the goal is to have a gap that matches the vehicle manufacturer's specification, not a generic number you might see on misc retailers. Always verify the exact spec before adjusting any plug, especially iridium types that are designed for longevity but can be damaged by rough handling or over-bending. In this guide, we’ll cover how to measure and set the gap safely using the proper tools and safe handling practices.
Why iridium plugs are different from copper plugs
Iridium plugs use a much finer center electrode and a different alloy than traditional copper plugs. This design provides longer life, higher ignition efficiency, and better resistance to wear. Because of the slim center electrode, the recommended gap is often different from copper plugs, and many iridium designs are not forgiving of careless re-gapping. Proper gap helps minimize misfires, reduces ignition coil strain, and preserves fuel economy. The takeaway: don’t assume a copper plug gap applies to iridium plugs; always check the OEM spec and use a gap tool to set the exact distance.
Why correct gap matters for performance
The gap distance directly influences the energy required to create a spark. If the gap is too wide, the ignition coil may struggle to jump the gap, leading to weak ignition, sluggish starts, and potential misfires at high load. If the gap is too narrow, the spark may occur too easily, reducing combustion efficiency and potentially increasing spark duration, which can affect fuel economy. For many modern engines using iridium plugs, a precise gap supports optimal spark timing, cleaner combustion, and smoother idling. Always aim for the manufacturer’s gap spec to maximize performance and minimize wear on ignition components.
Understanding manufacturer gap specs and why they vary
Gap specifications come from the engine and plug design, not a one-size-fits-all number. Factors like heat range, electrode geometry, and ignition system type influence the required gap. You’ll typically find gaps listed in the vehicle owner’s manual, OEM service data, or on the spark plug packaging. Some high-performance or fuel-efficient applications use narrower gaps to promote quicker ignition, while cold-weather designs may demand slight adjustments. Always reference the exact spec for your engine and plug model, and be aware that iridium plugs from different manufacturers may have different base gap recommendations.
When to gap vs replace iridium plugs
Gapping is appropriate when a plug is within service life, undamaged, and the gap is out of spec but the electrode tips remain intact. If you observe excessive wear, heat cracks, oily deposits, or physical damage to the ceramic insulator or electrode, replacement is the safer option. Iridium plugs are designed for longevity, but damaged or heavily fouled plugs lose the benefits of their rare-earth center electrode. If you’re unsure whether a plug needs regapping or replacement, err on the side of replacement to protect your engine and maintain optimal performance.
Tools and safety considerations for iridium plugs
Working with spark plugs requires careful handling. Essential tools include a gap tool or feeler gauge, a proper spark plug socket, a torque wrench, and a clean rag for wiping residue. Wear gloves and safety glasses to protect your hands and eyes from sharp edges or hot components. Always work on a cooled engine and disconnect the battery if you’ll be removing multiple plugs to prevent accidental short circuits. Keep track of plug orientation and wear; iridium plugs have fine tips that can break if hammered or pried with excessive force.
How to measure gap on iridium plugs
Begin by removing a plug and inspecting the electrode area for signs of wear or damage. Use a gap gauge to measure the current distance between the center electrode and ground electrode. Compare the reading to the manufacturer’s spec. If the gap is off, use the proper gap tool to gently adjust. When expanding the gap, apply even pressure to the ground electrode and avoid bending the center electrode. If narrowing, carefully open the gap with gradual pressure until the target distance is reached. Re-measure to confirm accuracy before reinstalling.
Adjusting the gap safely on iridium plugs
Adjustments should be done with care because the iridium center electrode is delicate. Use a gap tool sized to the spec range and apply light, controlled pressure to move the ground electrode only. Do not attempt to bend or scrape the iridium tip. After adjusting, re-check the gap with the gauge, and visually inspect for any misalignment or coating damage. For many plugs, manufacturers authorize small adjustments within a narrow tolerance; exceeding that tolerance can impair performance or cause misfires.
Reinstalling and torquing iridium plugs
Reinstall the plug by threading it in by hand to avoid cross-threading. Once finger-tight, use a torque wrench to reach the manufacturer’s recommended torque. Over-tightening can crack the ceramic insulator or damage the seat, while under-tightening can allow leakage and misfires. After seating, reconnect any boots or wires and verify the plug is seated flush with the cylinder head. Finally, reattach the battery if you had disconnected it.
Common mistakes and how to avoid them
Common errors include forcing the gap tool, over-tightening, or ignoring the manufacturer gap specification. Misaligning the ground electrode or touching the iridium tip with metal objects can cause micro-damages that degrade performance. Always work on a clean, dry surface and store plugs in a protective tray to avoid nicking the delicate surfaces. Double-check the gap after any transport or handling that might cause micro-movements.
Rechecking after installation and tests
After installation, perform a leak-free run and listen for smooth operation. Start the engine and listen for misfires or rough idle. If you experience rough running or a check engine light, re-check the gap and verify you followed the torque spec. If symptoms persist, consider inspecting ignition coils, wires, and fuel delivery as part of a broader diagnostics check.
Troubleshooting misfires related to gap
Misfires can arise from a gap that is too wide or too narrow, but they can also be caused by worn ignition components, fuel issues, or faulty sensors. If misfires occur after gapping, re-check the gap with a precision gauge, confirm the plug’s removal orientation, and ensure proper boot seating. In many cases, returning to the OEM gap spec resolves misfire symptoms and restores smooth acceleration.
Tools & Materials
- Spark plug gap tool (feeler gauge set)(Includes 0.028-0.060 inch range; choose range per spec)
- Spark plug socket with 3/8 inch drive(Rubber insert preferred to protect the plug)
- Torque wrench(Set to vehicle manufacturer torque specification)
- Anti-seize compound (optional)(Only if the manufacturer recommends; apply a light coat)
- Gloves and safety glasses(Protect hands and eyes from sharp edges and hot parts)
- Clean lint-free rag(For wiping residue and cleaning plug seats)
- Owner's manual or OEM gap spec sheet(Reference exact gap spec for your engine and plug type)

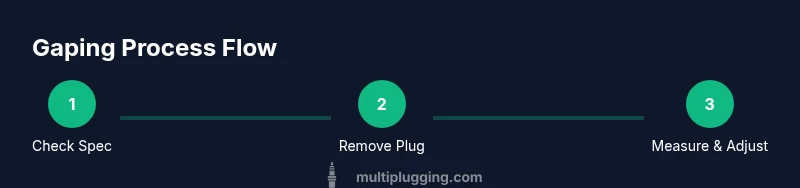

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and tools
Park the vehicle on a level surface and ensure the engine is cool. Gather all tools and reference the OEM gap spec. This readiness reduces delays and prevents missteps.
Tip: Lay out tools in order of use to streamline the process. - 2
Disconnect battery and access plugs
Disconnect the negative battery cable to prevent accidental electrical shorts. Remove the engine cover or coil-on-plug boot as required to access the spark plugs without forcing components.
Tip: Label wires or boots to ensure correct reinstallation. - 3
Remove spark plug and inspect
Carefully thread the spark plug socket onto the plug and remove it. Inspect the ceramic insulator for cracks and the electrode for wear or fouling before deciding to re-gap or replace.
Tip: Place removed plugs in order to match cylinder position. - 4
Measure gap with gauge
Use the gap gauge to measure the current distance between center and ground electrodes. Compare with the manufacturer spec to determine if adjusting is necessary.
Tip: If the plug is sticky in the seat, do not force the gauge; recheck alignment first. - 5
Adjust gap to spec
If adjustment is allowed, carefully bend the ground electrode toward or away from the center electrode to reach the target gap. Re-measure to confirm accuracy before installation.
Tip: Apply only gentle pressure to avoid damaging the fine iridium tip. - 6
Reinstall and torque
Thread the plug by hand to avoid cross-threading, then torque to the manufacturer specification. Reconnect boots and wiring, ensure a proper seal with the head.
Tip: Use a torque wrench; never rely on feel alone.
FAQ
What is the typical gap for iridium spark plugs?
Gap should match the vehicle’s specified gap. Iridium plugs often require a precise, sometimes narrower gap than copper plugs, so always reference the OEM specification.
Check your vehicle’s manual for the exact gap. Iridium plugs usually follow a specific spec distinct from copper plugs.
Can I gap iridium plugs myself?
Yes, with the right tools and care. Use a proper gap gauge and follow the manufacturer’s spec. If the plug shows damage, replace it rather than re-gap.
Yes, you can gap iridium plugs yourself if you have the right tools and follow the vehicle spec.
Should iridium plugs be gapped cold or warm?
Gapping is done when the plug is clean and free of residue, typically at room temperature. Never gap a hot plug. If you’ve just removed a plug, let it cool before handling.
Always gap iridium plugs when cool, never when hot.
What if the gap is off after installation?
Double-check the gap with a precision gauge, re-seat the plug, and verify torque. If the gap can’t be corrected within tolerance, replace the plug.
If the gap isn’t right after install, re-check and re-seat the plug or replace if needed.
Do I need anti-seize on iridium plugs?
Many modern iridium plugs do not require anti-seize. Follow the manufacturer’s installation guidelines; if anti-seize is recommended, apply a light coat only on the threads.
Check the manual—often anti-seize isn’t necessary for iridium plugs.
Watch Video
Main Points
- Verify the exact gap spec before adjusting.
- Use the correct gap tool and gentle pressure.
- Torque plugs to spec and recheck after installation.
- Watch for signs of wear or damage before deciding to replace.
