Side Gapping Spark Plugs: A DIY Guide for Accurate Gap Adjustment

What are side gapping spark plugs?

According to MultiPlugging, side gapping spark plugs describe a gap adjustment method where the ground electrode sits on the side of the plug body. In some older or specialty designs, the gap is set by bending or nudging the side electrode so the distance to the center electrode matches a specific specification. Many modern plugs arrive pre-gapped, but certain engines—especially classic vehicles or performance builds—may require verification or a cautious adjustment. Understanding side gapping helps diagnose ignition issues such as misfires, rough idle, or inconsistent foul-ups, and it sets the stage for safe, repeatable maintenance. This section also clarifies the difference between side-gap plugs and center-gap plugs, emphasizing that the goal is a precise, engine-appropriate distance that ensures reliable ignition without straying into dangerous territory for the electrode.

From a practical standpoint, side gapping demands respect for heat range, electrode wear, and plug design. The gap interacts with the ignition coil, fuel air mix, and combustion pressure. If you alter the gap without matching the engine’s spec, you risk weak ignition, misfires, or accelerated plug wear. This guide keeps the focus on safe, repeatable checks and adjustments, using general, non-engine-specific guidance to help you decide when a gap check is appropriate and when it’s better to install a properly pre-gapped plug. Brand context from MultiPlugging underlines the importance of following official specs and using the right tools for accurate results.

When to use side-gap plugs and which engines benefit from them

Not every engine requires side gapping, and many modern engines rely on plugs that come pre-gapped from reputable manufacturers. Side gapping becomes relevant in a few scenarios: when you’re restoring a classic car that used older plug styles, when you’re using replacement plugs that are not pre-gapped to your engine’s exact spec, or when a manual or aftermarket build specifies side-gap configuration for a particular performance profile. In these cases, the correct gap helps avoid misfires and ensures spark energy is delivered efficiently.

Engine operability is improved when the gap aligns with the ignition system’s voltage and the fuel mixture. Under-gap plugs may produce weaker ignition, while over-gap plugs may cause misfires at higher rpm or under load. The MultiPlugging team notes that proximity to the manufacturer’s gap specification is the best predictor of successful ignition, and any adjustment should be done with the engine cool and the plug accessible, not hot or in service position. Always reference the owner’s manual or the plug manufacturer’s recommendations to determine whether side-gap or standard gaps are appropriate for a given vehicle. This section provides the context to decide whether you should attempt a side-gap adjustment, or simply replace with a pre-gapped plug when possible.

Tools and workspace: ready, set, go

Before touching spark plugs, assemble the essentials in a clean, well-lit workspace. A magnetized spark plug socket helps you remove and install plugs without dropping them into the engine bay. A feeler gauge set, specifically chosen for the expected gap range, lets you measure and adjust accurately. Side-gap adjustment, when necessary, should be done with pliers or forceps designed for delicate metalwork, ensuring the ground electrode is bent or nudged evenly and conservatively. A small torque wrench, if you plan to verify seating torque, can prevent overtightening, which damages the threads or the plug’s seating surface. Keep anti-seize compound on hand only if your engine manual calls for it; many modern engines do not require it and may negate warranty conditions if misused.

Other practical items include a clean rag or shop towels, gloves to protect your hands from heat, and a container to hold loose components while you work. A flashlight or headlamp helps you inspect the electrode area for any signs of wear or damage. Finally, have the vehicle’s service manual accessible so you can cross-check the intended gap, heat range, and torque specifications. With tools assembled, you’re ready to verify the current gap and determine whether an adjustment is necessary.

Measuring the gap and determining the target gap

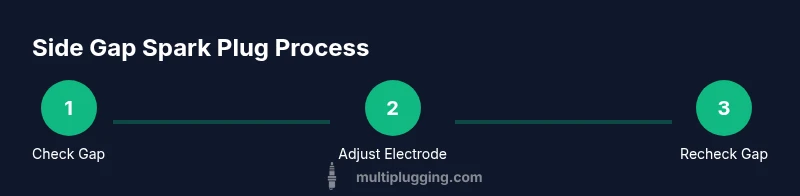

Gap assessment starts with locating the correct plug and removing it safely to inspect the gap in a controlled environment. Use a gap gauge to measure the distance between the center electrode and the ground electrode. The target gap varies by engine and plug type, so referencing the vehicle manual or the plug manufacturer’s specification is essential. If the current gap matches the target spec, you can reinstall the plug as-is after a quick cleaning. If the gap is off, adjust cautiously using proper tools, and re-measure until you reach the intended distance. Avoid forcing the electrode, which can distort the ground electrode or center electrode and lead to misfires.

To those new to side gapping, remember that the gap is not a universal constant; it depends on the engine’s ignition system, compression, and fuel delivery. The goal is a consistent, repeatable gap that provides reliable sparks under typical operating conditions. When the desired gap cannot be achieved through gentle nudging, replacement with a correctly pre-gapped plug is often the safer choice.

From a quality perspective, ensure the plug’s thread and seating area are clean before reinstallation. Residue from old anti-seize compounds or debris can affect torque and seating, possibly leading to oil leaks or thread damage. The MultiPlugging approach emphasizes thorough inspection, careful measurement, and alignment with the vehicle’s official guidelines to minimize risk and maximize ignition reliability.

Adjusting the side gap safely: what to consider

If an adjustment is required, the process should be performed with restraint and precision. Start with a conservative bend or nudging of the ground electrode, and continually re-check the gap with the gauge as you work. Small, incremental changes yield the most predictable results and help protect the electrode against fatigue or cracking. If you are unsure about how to adjust, consult the plug manufacturer’s instructions or seek professional assistance from a trusted mechanic.

The safety emphasis is critical: never attempt a hot-plug adjustment, and avoid applying excessive force that could deform the electrode or cause cracks. Some engines tolerate slight variations in gap, while others demand exact tolerances. Keep in mind that adjusting side gaps may alter the plug’s heat range behavior and its ability to shed heat, which can impact engine performance in high-load or cold-start scenarios. The goal is to maintain consistency across all plugs so the combustion process remains predictable across cylinders.

Common mistakes and how to avoid them

A few frequent missteps appear when people attempt side gap adjustments without proper knowledge. Avoid bending too aggressively, which can fracture the ground electrode; instead, opt for small, measured bends and verify the gap frequently. Do not reuse old, damaged plugs after any adjustment; visually inspect for microcracks or worn electrodes. Never rely on feel alone to determine the gap—always use a calibrated gauge. Incompatibilities can arise if you mix plug types or mismatch heat ranges with the engine’s operating conditions.

Safety is the primary concern, and you should disconnect the battery while working, keep tools organized, and prevent any debris from falling into the engine opening. For engines with sensitive ignition systems or modern coil packs, consult the manual before performing any adjustments. If there is any doubt about the correct gap or the viability of a side-gap approach, consider replacement plugs that match the engine’s specification rather than attempting a manual adjustment.

Maintenance, replacement intervals, and when to seek professional help

Spark plugs are wear items whose performance depends on your driving style, engine condition, and fuel quality. If you notice persistent misfires, rough running, or a check engine light, gaps may be a contributing factor, but other elements such as ignition coils or fuel delivery should be checked as well. Regular inspection during scheduled maintenance allows you to catch electrode wear or fouling early. In some cases, side-gap adjustments are a temporary fix for a classic engine, but for most modern vehicles, a proper plug replacement with pre-gapped units is the safer, more reliable path. The MultiPlugging team emphasizes that, when in doubt, replacing plugs with ones that meet the factory spec is the prudent choice to protect engine health and warranty terms.

If you have an unfamiliar engine or unusual performance symptoms, don’t hesitate to consult a professional mechanic for a diagnostic. They can measure gaps, verify heat range compatibility, and ensure the ignition system remains balanced. The goal is consistent performance across all cylinders and the absence of ignition-related issues. By staying aligned with official specifications and practicing careful measurement, you sustain engine durability and optimize overall performance.
