What to Do After Spark Plug Change: A Complete DIY Guide
Learn essential post-change steps to verify engine health after replacing spark plugs. This guide covers checks, test drives, wiring, torque, and maintenance tips for DIY enthusiasts and car owners.
After spark plug changes, complete a post-change checklist to verify seating and wiring, clear codes if needed, and perform a short test drive to confirm smooth idle and acceleration. Inspect ignition components for wear and address any odd noises. This prevents misfires and preserves reliability.

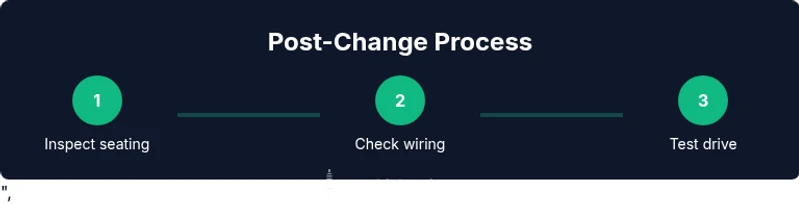

Post-change mindset: what to verify after spark plug change
Replacing spark plugs is only half the job. After the install, you should verify engine health to ensure long-term reliability. According to MultiPlugging, a deliberate post-change routine helps you catch installation issues early and prevent misfires. In many engines, a misfire or rough idle is a sign that a plug isn’t seated, the coil pack isn’t connected, or the gap is off. Begin with a visual inspection: ensure coils and boots are seated, wires are attached, and the old gasket is replaced if applicable. Take a moment to scan for oil leaks around the threads and confirm there’s no coolant intrusion. This initial check minimizes the risk of hidden issues after you close up the engine bay.
Torque and seating: confirming the plugs are properly installed
Always torque plugs to the vehicle manufacturer’s specification using a proper torque wrench. If you don’t have the exact spec handy, refer to the service manual for your engine. Proper seating ensures a gas-tight seal and reduces the chance of cross-threading. After the initial torque, recheck the plugs after a brief cooldown or a short drive to confirm they haven’t loosened due to thermal cycling. If you’re unsure about the value, consult a trusted manual or dealer reference. This step is crucial for reliability and helps prevent long-term damage.
Wiring, coils, and boot inspection
Inspect all ignition wires and coil boots for signs of wear, cracks, or oil contamination. Ensure each boot makes a clean, snug connection to its corresponding plug and that no wires are kinked or routed over hot surfaces. A damaged boot or loose connection can produce intermittent misfires that mimic a faulty plug. If you find damaged boots or corroded terminals, replace them as needed. Pro tip: apply a small smear of dielectric grease to the inside of boot contacts to improve conductivity and seal against moisture.
Post-change diagnostics you can perform without tools
You don’t need a scan tool to catch obvious issues. Start the engine and listen for rough idle, ticking sounds, or misfires. If the engine runs unevenly or stalls, recheck plug seating and ignition wiring. Check for obvious vacuum leaks around the intake manifold that can cause idle irregularities. If you do have access to an OBD-II scanner, you can clear any stored codes after you’ve completed the checks, but only if you’re confident the issue is resolved. This approach helps you isolate post-change problems quickly and cheaply.
Driving tests and performance checks
A controlled test drive is essential after a spark plug change. Start with a cold engine, then drive through a light acceleration and a steady cruise to observe throttle response. Pay attention to hesitation, stumble, or surging that could indicate improper plug gap, fuel delivery problems, or ignition issues. If a MIL (check engine) light reappears, note the code, recheck plugs and wiring, and consider clearing the code if you’ve corrected the fault. This phase confirms real-world performance and helps validate the installation.
Maintenance habits to extend spark plug life
Regular maintenance supports longer plug life and steadier performance. Replace worn ignition wires or boots when signs of aging appear, and keep the ignition system clean from oil leaks or coolant intrusion. Use a dielectric grease on boots and inspect coil packs for wear during routine service. Keep air and fuel filters clean to reduce spark plug fouling and ensure optimal combustion. MultiPlugging emphasizes a proactive approach: treating the post-change period as a normal part of maintenance, not a one-off task.
Authority sources and best-practice references
Rely on reputable guidance from engineering and automotive authorities to stay aligned with best practices. {SAE International} and federal safety resources provide general guidelines on spark plug maintenance and ignition systems. We encourage drivers to consult the vehicle’s service manual for model-specific requirements and recall information.
Tools & Materials
- Spark plug socket with ratchet(Typically 5/8" or 13/16"; check plug size for your engine.)
- Torque wrench(To verify plugs are tightened per manufacturer specs.)
- Dielectric grease(Used on boot terminals to improve conductivity and seal.)
- Rags or shop towels(For cleaning and seating area around the plug wells.)
- Anti-seize compound(Follow manual guidance; some engines don’t require it with modern coatings.)
- Gap gauge or feeler gauge(Only if plugs aren’t pre-gapped from the factory.)
- Safe disposal container(For old plugs and any removed components.)
- Safety gloves(Protect hands during removal and installation.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the workspace and safety checks
Park the vehicle on a level surface, engage the parking brake, and let the engine cool. Disconnect the negative battery to avoid accidental shorts while working around ignition components. Gather tools and ensure good lighting before you start.
Tip: Use a flashlight to inspect plug wells before removing anything. - 2
Identify plug positions and remove coils/wires
Locate the spark plugs by following the ignition coil boot to each plug. Carefully detach each boot from the plug, pulling straight out to avoid damaging the connector. If your engine uses a coil-on-plug design, remove the coil pack first and set it aside.
Tip: Label or photograph each coil position if you’re unsure of placement. - 3
Remove old plugs
Using the spark plug socket, turn counterclockwise to loosen and remove each plug. Keep track of which plug came from which cylinder to avoid misplacement. Do not force a plug that resists; retrace your steps and double-check the path.
Tip: Avoid dropping debris into the cylinder head—work slowly and clean as you go. - 4
Check and gap new plugs
If your plugs aren’t pre-gapped for your engine, measure the gap with a gauge and adjust carefully. Install new plugs with the correct gap; never reuse old plugs unless you’re certain they’re in good condition. Keep threads clean before seating.
Tip: Apply a light coat of anti-seize only if recommended by your manual and never over-torque the plug. - 5
Install new plugs to spec torque
Thread plugs by hand to avoid cross-threading, then tighten with a torque wrench to the manufacturer’s specification. Re-torque after the engine reaches operating temperature or as the manual suggests. This ensures proper sealing and longevity.
Tip: Avoid over-tightening; overtightening can strip threads and damage the cylinder head. - 6
Reconnect coils and wires securely
Reattach each ignition boot or coil pack firmly, ensuring a snug, click-like feel. Double-check all connections for signs of damage or moisture. Gently route wires away from hot surfaces to prevent insulation deterioration.
Tip: Use dielectric grease on the boot terminals for better contact and moisture resistance. - 7
Reset or check engine codes
If the check engine light was on, consider clearing codes after verifying the fault is corrected. If it reappears, re-scan to identify new or persistent issues and inspect plugs and wiring again.
Tip: Only clear codes when you’re confident the issue is resolved. - 8
Test drive and final inspection
Start the engine, let it reach operating temperature, and take a cautious test drive. Listen for misfires, rough idle, or hesitation. After the drive, re-check for any leaks or loose connectors and confirm no warning lights remain.
Tip: If any issue persists, re-inspect the gaps, wiring, and coil connections.
FAQ
Do I need to reset the ECU after spark plug change?
Often not required unless the engine threw codes. If you cleared codes, monitor for recurring warnings and re-scan if needed. Some modern vehicles relearn idle and fuel trims over a short drive.
You don’t usually need to reset the ECU after changing spark plugs, but it’s a good idea to re-scan if codes appeared and watch for abnormal idle or misfires.
How long should I let the engine cool before starting after replacement?
Let the engine cool to a comfortable temperature before beginning work. If you must start after work, do so gradually and listen for unusual noises. Cooling reduces burn risk and helps prevent warped components.
Give the engine time to cool, then start slowly and listen for anything unusual.
Can I reuse old spark plugs after inspection?
Reusing plugs is generally not recommended. Old plugs may have degraded gaps or erosion that reduces performance. Use new plugs matched to your engine’s specs.
Usually best to replace old plugs with new ones to ensure reliability.
Should I gap the plugs after purchase?
Many plugs come pre-gapped; if yours aren’t, use a proper gap tool and adjust according to your engine’s specification. Incorrect gaps can cause misfires or reduced performance.
If not pre-gapped, use the right tool to carefully set the gap as per the manual.
What if the engine misfires after change?
Recheck each plug seating and the coil/wire connections. A misfire may point to a single faulty plug or wiring issue. If the problem persists, re-scan and verify all components.
If misfires occur, check the plug seating and surrounding wiring, then re-scan if needed.
Do I need to replace spark plug wires at the same time?
Wiring may be replaced if worn, cracked, or oil-soaked. If you notice aged boots or damaged insulation, replacing them now can prevent future issues.
Wires should be replaced if they’re worn or damaged to avoid future problems.
Watch Video
Main Points
- Verify ignition wiring and plug seating after replacement
- Torque plugs to the manufacturer spec using a torque wrench
- Inspect boots, coils, and wiring for wear or damage
- Perform a controlled test drive to confirm engine health
