Spark Plug Replacement DIY: A Complete Step-by-Step Guide
Learn how to perform spark plug replacement diy safely with a practical, step-by-step approach. This guide covers tools, torque, gap, and maintenance to keep your engine running smoothly and efficiently.
You can replace spark plugs yourself using basic tools and a torque wrench, saving time and money. This guide walks you through required tools, step-by-step actions, safe handling, and gap adjustments. According to MultiPlugging, following proper torque, anti-seize where appropriate, and correct plug type reduces misfires and engine wear.
What spark plug replacement diy means and why it matters
Spark plug replacement diy is the practical act of removing worn electrodes from your engine and installing new ones that match your vehicle’s specification. When done correctly, it improves cold starts, throttle response, and fuel efficiency while reducing emissions. The MultiPlugging team notes that consistent plug maintenance can prevent misfires and abnormal fuel mixture that stress the catalytic converter. This section explores how plug health reflects engine health and how DIY alignment with manufacturer specs yields the best overall results. You’ll learn to identify symptoms of worn plugs, understand the difference between iridium, platinum, and copper plugs, and recognize when a professional service is warranted. If you’re new to this task, plan your session for a clean, well-lit workspace and spare time to double-check each connection. Keep in mind that every engine family has unique requirements, so reference your owner’s manual for exact torque and gap specifications.
Tools, workspace, and safety basics
Before you begin, place your vehicle on a level surface and disconnect the negative battery terminal to prevent accidental shocks. Wear eye protection and gloves to shield your hands from hot components and sharp edges. A well-lit, ventilated area makes it easier to see plug wells and wires. Organize your tools on a clean tray to avoid dropping parts into the engine bay. Work slowly, labeling ignition coil leads if your engine uses an individual coil per cylinder. In addition to basic tools, have a metal brush, compressed air (or a shop vac), and a spark plug gap gauge on hand to inspect threads and ensure proper electrode gap. When you’re finished, recheck all connections and secure any loose hoses to prevent rubbing against moving parts.
Choosing plugs, gap, and prep for your engine
Start by confirming the correct plug type, heat range, and gap specification from the owner’s manual or manufacturer data sheet. Engines tolerate a specific heat range and electrode design; using the wrong plug can cause fouling or pre-ignition. If you don’t know the correct gap, use a feeler gauge and set it according to the manual—some plugs are shipped pre-gapped but deserve a quick double-check. Clean any debris around the spark plug wells before pulling the old plugs to minimize the chance of debris entering the combustion chamber. If you’re using anti-seize lubricant on the threads, apply a light coat only where recommended, as too much can affect torque. Finally, inspect the new plugs for damage and ensure the seating surface contacts the cylinder head properly.

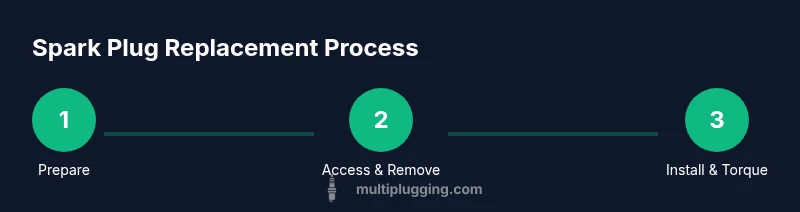

Step-by-step overview: preparing, removing, replacing, and testing
Although the full step-by-step is provided below, here’s a high-level overview to set expectations. Begin by removing the ignition coil or spark plug wire boot, then carefully loosen and extract the old plug with a spark plug socket. Clean the well and threads, install the new plug by hand to avoid cross-threading, and torque it to specification. Reconnect the coil or boot, and repeat for all cylinders. After installation, start the engine and listen for smooth idle and steady exhaust tones. If you notice rough running or misfires, recheck the gap and torque. This section emphasizes planning, cleanliness, and patient, methodical work to avoid common mistakes.
Safety, torque, and common mistakes to avoid
Safety is non-negotiable when working around a running engine. Never work without gloves or eye protection, and never force a plug into a threaded hole. Cross-threading is a frequent pitfall that can permanently damage the cylinder head. Use a torque wrench to apply the manufacturer’s specified torque; too little causes poor sealing, while too much can strip the threads. Debris in the plug wells can fall into the chamber, so clean thoroughly with compressed air before and after removal. Don’t reuse old gaskets or apply excessive antiseize, as these can create incorrect torque readings. Keeping a clean workspace and following the manual minimizes risk and ensures a reliable replacement.
Aftercare: testing, startup, and maintenance tips
With all plugs installed, reconnect any wires and ensure hoses are properly seated. Reconnect the battery and start the engine. A normal startup will show an even idle and no unusual noises or exhaust odor. If the engine runs rough, recheck the plug torque, gap, and seating, and inspect the wire connections for damage. For best results, run a short drive to confirm there’s no misfire under load. Periodic visual checks of plug wires and coil packs can prevent future issues. Record the service date and the recommended replacement interval in your maintenance log to stay proactive about engine care.
Authority sources and further reading
For authoritative guidance, consider the following resources:
- U.S. Department of Energy: Fuel efficiency and engine maintenance tips (energy.gov)
- University automotive departments: Engine diagnostics and spark plug basics (edu domains)
- SAE International technical papers on ignition systems (sae.org)
These sources provide foundational knowledge on spark plug function, materials, and best practices for diagnostics and maintenance.
Quick-start checklist for your DIY spark plug replacement diy
- Verify the correct plug type and gap from the manual
- Gather tools: spark plug socket, torque wrench, gap gauge, air/brush
- Label wires/coils and disconnect safely
- Remove old plugs carefully, clean wells, inspect threads
- Install new plugs by hand, then torque to spec
- Reconnect wiring, check for secure connections, run engine
Tools & Materials
- Spark plug socket with rubber insert(Adapter or universal socket compatible with your plug type (e.g., 5/8" or 13/16").)
- Torque wrench(Capable of applying the manufacturer's torque range; avoid over-tightening.)
- Feeler gauge / spark plug gap tool(To verify and set the correct electrode gap on the new plugs.)
- Spark plugs of correct type(New plugs should match vehicle spec (heat range, gap, and thread size).)
- Anti-seize compound (optional if recommended by manufacturer)(Use sparingly and only if the manufacturer advises it; some modern plugs do not require it.)
- Dielectric grease (optional)(Helps prevent corrosion on plug boots; apply lightly to the inside of boots if desired.)
- Gloves and safety glasses(Protect hands and eyes from hot components and debris.)
- Compressed air or shop vac(Blow out debris from wells before removing plugs.)
- Rags, tray, and labeling materials(Keep components organized and prevent mix-ups between cylinders.)
Steps
Estimated time: 45-75 minutes
- 1
Prepare workspace and safety gear
Park the vehicle on a level surface, engage the parking brake, and disconnect the negative battery terminal. Wear safety glasses and gloves. Clear space around the engine bay and gather all tools.
Tip: Take a quick photo of the ignition coil layout before disconnecting anything for easier reassembly. - 2
Locate and access spark plugs
Identify the spark plug wells for your engine. If needed, remove any engine covers or intake components to access the plugs safely. Keep track of each cylinder’s position to avoid mix-ups.
Tip: Label each coil/boot with a piece of tape to remember which wire goes where. - 3
Remove old plugs
Using the spark plug socket, unthread the old plug by turning counterclockwise. Gently lift it out when it’s free, avoiding any sudden tugs on the wires.
Tip: If a plug seems stuck, pause and apply a small amount of penetrating oil and wait a few minutes before reattempting. - 4
Inspect wells and threads
Check the plug well for debris and clean with compressed air. Inspect the threads in the cylinder head for damage or corrosion. If threads look damaged, stop and consult a professional.
Tip: A clean well prevents cross-threading and ensures a proper seal. - 5
Gap and prepare the new plugs
Check the gap on the new plugs with a gauge and set to the manufacturer’s specification. If central electrodes look damaged, rotate or replace the plug. Apply a light coat of anti-seize if recommended, then thread the plug in by hand.
Tip: Hand-threading prevents cross-threading and helps seat the plug correctly. - 6
Torque to spec and reseat boots
With the plug partially in, use the torque wrench to reach the specified torque. Reconnect the ignition boots or wires and ensure they’re firmly seated.
Tip: Never exceed the specified torque; overtightening can strip threads. - 7
Repeat and verify
Repeat steps 3–6 for all cylinders. After installation, visually inspect all connections. Reconnect the battery and start the engine to verify smooth operation.
Tip: Listen for a clean idle and watch for any misfires during initial startup. - 8
Test drive and maintenance notes
Take a short test drive to ensure there’s no hesitation or stumbling under load. Note the service interval recommended by the manufacturer for future replacements and maintain a log.
Tip: Record the date and plug type in your maintenance journal to simplify future replacements.
FAQ
Do I need to replace all spark plugs at the same time?
If several plugs are near the end of their life or show signs of wear, replacing them together is often more efficient and ensures uniform performance. If only one plug shows obvious wear, you may replace just that cylinder, but plan for a full set at the next interval.
If several plugs are worn, replace them together for uniform performance; otherwise, replace just the worn one, but plan for a full set next time.
Can I reuse old plugs after cleaning?
Reusing plugs is not generally recommended if they’re worn or fouled. Cleaning may not restore performance, and damaged threads or electrode wear can trigger misfires. Always install new plugs that meet your engine’s specifications.
Reusing old plugs is not recommended if they’re worn or fouled; install new plugs that meet specs.
How often should spark plugs be replaced?
Replacement intervals vary by engine and plug type. Check your owner’s manual for the manufacturer’s recommended interval and inspect plugs during routine service. Visual wear or deposits indicate it’s time for replacement.
Follow the manufacturer’s interval and inspect plugs during service to know when to replace.
Is anti-seize necessary when installing plugs?
Many modern engines no longer require anti-seize on plug threads. If the manual calls for it, apply a very light coat and use the correct torque. Over-application can alter torque readings.
Only use anti-seize if the manual specifies it, and apply lightly to avoid torque issues.
What if the engine misfires after replacement?
If a misfire occurs, recheck the gap and torque, ensure the correct plug type, and verify the boots/wires are seated properly. A diagnostic scan may be needed if the issue persists.
Recheck gap, torque, and wiring; diagnose further if misfires continue.
Should I disconnect the battery during replacement?
Disconnecting the battery is a common safety precaution to prevent shorts while working around electrical components. Reconnect after completing all connections and securing components.
Yes—disconnect the battery to prevent shorts, then reconnect after finishing.
Watch Video
Main Points
- Know your plug type and gap before starting
- Torque to spec to seal properly and avoid damage
- Keep the workspace clean to prevent debris in the engine
- Label wires to prevent misconnection during reassembly
- Test drive to confirm engine performance after replacement
