Spark Plugs and Coils: Diagnostics, Replacement & Care
Learn how to diagnose, replace, and maintain spark plugs and coils with practical, step-by-step guidance for DIYers. Get tools, safety tips, and maintenance routines to keep your engine firing on all cylinders.
Learn how to diagnose and service spark plugs and ignition coils, including when to replace each component and how to perform a safe, at-home tune-up. This guide covers common symptoms, essential tools, and step-by-step procedures suitable for confident DIYers.

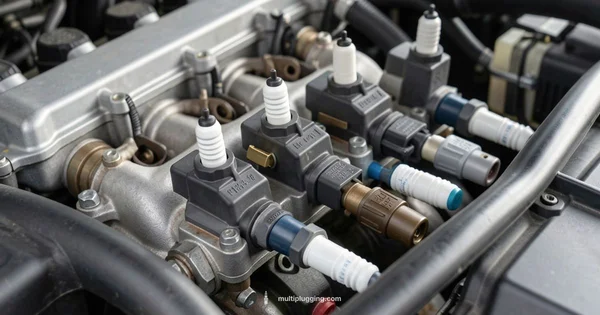

What are spark plugs and coils?
According to MultiPlugging, spark plugs and ignition coils are the heart of your engine's ignition system. Spark plugs convert electrical energy from the ignition coil into a spark that ignites the air–fuel mix inside the cylinder. Coils—specifically ignition coils—generate the high voltage required to produce that spark. In modern engines, coil-on-plug or coil-per-cylinder configurations place each coil close to its plug, improving efficiency and response. Understanding how these parts interact is essential for diagnosing misfires, improving fuel economy, and ensuring reliable starts. This guide from MultiPlugging provides practical steps for DIYers to inspect, test, replace, and maintain spark plugs and coils.
How spark plugs and ignition coils work together
An ignition system begins with the battery supplying power to the ignition switch, which routes current to the primary winding of the ignition coil. When the system triggers, the magnetic field collapses, inducing a high voltage in the secondary winding. This voltage travels to the spark plug, creating a spark in the combustion chamber. In coil-on-plug setups, each cylinder has its own coil near the plug for faster response and stronger, more consistent sparks. A strong, consistent spark ensures complete combustion, better fuel economy, and smoother idling. Misfires, rough starts, or reduced power often trace back to worn plugs or weak coils.
Signs of wear or failure you should know
Worn spark plugs or failing coils often reveal themselves through symptoms you can’t ignore. Look for persistent rough idle, misfires under load, hesitation during acceleration, decreased fuel economy, or unusual engine noises. Visual checks are also telling: oil or carbon deposits on the plug tip, a cracked ceramic insulator, or melted boots can indicate problems. Diagnostic codes like P0300 (random/multiple misfires) or P030X (individual cylinder misfires) point toward a faulty plug, coil, or wiring. If you notice any of these signs, it’s prudent to test both fuels and ignition components rather than jumping straight to replacement.
Diagnosing spark plugs vs coils: tests you can do at home
Start with a visual inspection of plugs and boots for deposits, wear, or damaged insulators. Use a spark plug tester to verify light, consistent spark from each plug. For coils, perform a resistance check with a multimeter on the primary and secondary windings, comparing readings to your vehicle’s service manual. A misfire on a specific cylinder that persists after replacing the plug likely points to the coil or its wiring. If you don’t have diagnostic gear, swapping suspected parts between cylinders can help isolate the culprit, but do so with caution and note all steps for reassembly.
Replacement considerations: when to replace each component
Spark plugs generally wear due to electrode erosion and deposits and should be replaced at the interval recommended by the manufacturer, adjusted for driving conditions. Coils tend to fail less predictably, but symptoms like consistent misfires or extended cranking can indicate coil degradation. If plugs show heavy deposits, wear, or improper gap, replace them. If a cylinder misfire persists after plug replacement, diagnosing and potentially replacing the coil pack or individual coils becomes necessary. Remember, replacing both parts during a single service interval can prevent future misfires and improve reliability.

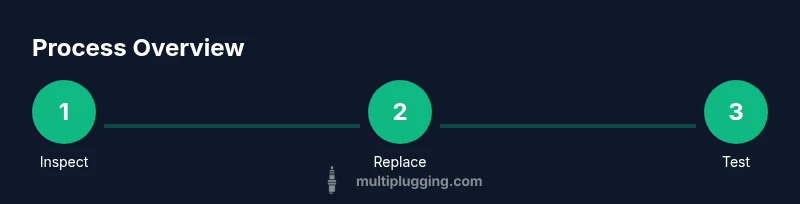

Step-by-step overview for a safe, effective replacement (high level)
A thorough replacement follows a clean, organized process: prep the workspace, disconnect power, remove old components, install new ones with correct torque, and verify operation. This section provides the high-level flow; the detailed, step-by-step instructions are in the dedicated STEP-BY-STEP block for precision and safety. Always refer to your vehicle’s service manual for torque specs and gaps. A careful approach minimizes cross-threading and avoids drop-in debris, ensuring a lasting seal and optimal spark.
Safety and handling guidelines you must follow
Ignition components are powered and hot after engine operation, so safety comes first. Always disconnect the negative battery terminal before any work, wear eye protection and gloves, and work on a cool engine to avoid burns. Work in a well-ventilated area, keep a magnetic tray to collect fasteners, and dispose of used plugs properly. If you’re unsure about torque specs or heat ranges, consult the owner’s manual or a professional.
Choosing the right spark plugs and coils for your engine
Not all plugs and coils are created equal. Select spark plugs with the correct heat range, thread size, and reach for your engine, and pair them with compatible ignition coils or coil packs. If you drive in extreme conditions—short trips, heavy towing, or high mileage—consider longer-life metals like iridium or platinum plugs as recommended by your manufacturer. Always verify compatibility with your specific engine model and VIN. MultiPlugging’s guidance emphasizes using parts from reputable sources with the correct specifications to maximize performance and reliability.
Common mistakes and how to avoid them
Rushing the replacement can lead to stripped threads, misaligned gaps, or cross-threaded plugs. Avoid using old boots if they show cracking; never force a plug into a misaligned hole. Don’t ignore the torque spec—under- or over-tightening is a common cause of leaks and thread damage. Keep plug wells clean and dry to prevent deposition and corrosion. Finally, never reuse old anti-seize when your vehicle manufacturer warns against it; incorrect lubrication can cause over-torque and fouling.
Maintenance schedule and long-term care for spark plugs and coils
Create a simple maintenance rhythm that aligns with your vehicle’s service schedule. Check plugs and coils during periodic service, inspect boot integrity, and look for signs of wear or oil/fuel fouling between services. Keep a log of replacement parts, torque specs, and the time since last service. Regular inspection helps catch issues early, reducing the risk of unexpected breakdowns and preserving performance.
Troubleshooting advanced scenarios: misfires, no-start, or rough idle
Persistent misfires or no-start conditions warrant systematic checks. Start by scanning for diagnostic codes, then test individual plugs and coils as described. If the crankization improves after a specific plug or coil replacement but returns later, recheck wiring and connectors for corrosion or looseness. In complex cases, a professional diagnostic ranging from fuel delivery to ignition timing may be required to identify root causes beyond plug and coil wear.
Tools & Materials
- Socket wrench set with spark plug socket (typically 5/8 in or 16 mm)(Ensure the socket has a rubber insert to protect the plug ceramic.)
- Torque wrench(Use manufacturer torque specs to avoid thread damage.)
- Spark plug gap tool(Check and adjust gap on certain plug types before installation.)
- New spark plugs (correct heat range and type)(Check vehicle manual for exact part numbers.)
- Anti-seize compound(Only use if recommended by manufacturer; many modern plugs don’t require it.)
- Dielectric grease(Helps seal boots and improve contact resistance.)
- Inspection mirror and flashlight(Useful for hard-to-see plug wells.)
- Magnetic tray(Keeps fasteners and small parts organized.)
- Gloves and eye protection(Safety first when dealing with hot engine parts.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the workspace
Park on a flat surface, engage the parking brake, and ensure the engine is cool. Disconnect the negative battery terminal to reduce the risk of shocks or shorts. Gather all tools and parts before you start to avoid mid-task interruptions.
Tip: Having a clean, organized workspace reduces the chance of dropping fasteners into the engine bay. - 2
Locate the correct plugs and coils
Identify which cylinders use coil-on-plug or a distributor system and confirm the correct plug type for your engine. Take a quick photo or note the order to help during reassembly.
Tip: If unsure, consult the service manual or a trusted guide for your exact make and model. - 3
Remove coil connectors or ignition wires
For coil-on-plug engines, unlock and unplug each coil connector. For traditional setups, detach spark plug wires starting from the farthest cylinder.
Tip: Label connectors if you’re removing multiple parts to avoid mix-ups. - 4
Remove the old spark plugs
Carefully loosen with a spark plug socket and extension, then lift the plug out by hand once the threads are free. Avoid yanking, which can damage threads.
Tip: If the plug is stubborn, use a little penetrating oil and wait a few minutes. - 5
Inspect and gap (if required)
Examine the used plugs for wear, deposits, or oil leaks. If using resistive plugs with a gap, verify the gap on new plugs with a gap tool to match manufacturer specs.
Tip: Never force a plug into a worn seat; if resistance is high, stop and evaluate threading. - 6
Install new spark plugs
Thread plugs in by hand to avoid cross-threading, then tighten to the specified torque with a torque wrench.
Tip: Use a small amount of dielectric grease on the boot interior to improve seal and prevent moisture ingress. - 7
Reconnect coils/wires
Reconnect the coil packs or spark plug wires in the correct order. Ensure all electrical connections are secure before proceeding.
Tip: Make sure no tools or debris fall into the plug wells during reassembly. - 8
Torquing and final check
Torque to the manufacturer specification and perform a quick visual check of all boots and connectors.
Tip: Double-check that the threads look clean and the boots seat fully on the plug. - 9
Test run and inspection
Reconnect the battery, start the engine, and listen for a smooth idle. If you notice misfires, recheck connections and gaps.
Tip: A short test drive helps confirm performance before putting the vehicle back on the road.
FAQ
Can I replace spark plugs without replacing coils?
Yes, you can replace plugs without replacing coils if the coils test within spec and there are no signs of coil failure. If misfires persist after plug replacement, the coil or wiring may be at fault and should be tested.
Yes, plugs can be replaced on their own if coils test okay. If misfires persist after replacement, test the coil first.
What is the difference between coil-on-plug and traditional coil systems?
Coil-on-plug systems place the coil directly over each plug, delivering a strong, immediate spark with fewer components. Traditional systems use a distributor and spark plug wires, which can introduce more resistance and wear over time.
Coil-on-plug outfits place a coil with each plug; traditional systems use a distributor and wires.
How often should spark plugs and coils be replaced?
Replacement intervals depend on the vehicle and plug type. Common guidance ranges are every 30,000 to 100,000 miles for plugs, with coils often lasting longer but inspected during tune-ups.
Check your manual for exact intervals; plugs wear faster than coils in many engines.
What tools help test coil function at home?
A digital multimeter can measure coil resistance, and a spark tester helps verify spark delivery. For precise diagnosis, refer to the service manual and follow safety precautions.
Use a multimeter for resistance checks and a spark tester for spark quality at home.
Are copper, platinum, or iridium plugs better for coil life?
Iridium and platinum plugs typically offer longer life and consistent performance over copper, especially in modern engines. Coils are independent components and their performance depends on design compatibility.
Iridium and platinum plugs last longer than copper and are common in modern engines.
What are clear signs of coil failure besides misfires?
In addition to misfires, you may notice hard starts, extended cranking, or a sudden loss of power. A failed coil can trigger diagnostic trouble codes related to misfires.
Hard starts and sudden power loss can indicate coil problems, alongside misfires.
Watch Video
Main Points
- Inspect both plugs and coils for wear or deposits
- Use the correct tools and torque specs
- Diagnose systematically to avoid unnecessary replacements
- Keep notes of parts, steps, and torque settings
- Regular maintenance saves fuel and reduces breakdown risk
