Glow Plug Test with Multimeter: A DIY Diagnostic Guide

Understanding why a glow plug test matters

A diesel engine relies on glow plugs to raise the cylinder temperature for reliable starting in cold weather. Testing glow plugs with a multimeter is a practical, low-risk way to identify plugs that heat poorly or fail to complete the circuit. According to MultiPlugging, a systematic test can save time and prevent misdiagnosis by distinguishing heating issues from fuel, air, or ignition faults. The glow plug test with multimeter technique gives you objective readings (continuity and resistance) that reflect the condition of each plug and its wiring, helping you decide whether to replace one or several units. This method is compatible with most diesel engines and is a staple in any DIY diagnostic routine.

importanceAnnotationPathways":"glow plugs are a critical starting aid in cold conditions; a faulty plug can cause hard starts, rough idle, and excess fuel use. A clear, repeatable test helps you verify plug health before buying replacements or chasing other ignition problems. "],

bodyBlocks:[]

Safety first: preparation and precautions

Safety is non-negotiable when you perform any glow plug test. Begin with the engine off, key removed, and the battery disconnected to prevent accidental short circuits. Work in a well-ventilated area and allow the engine to cool before touching high-temperature components. Use insulated tools and wear safety glasses to protect against unexpected sparks. A cautious approach reduces the risk of electric shock, burns, or damage to the vehicle’s wiring harness. This guide emphasizes following standard automotive electrical safety practices, which are consistent with general repair guidance from the MultiPlugging team. Always consult your vehicle’s service manual for model-specific cautions and torque specs.

Tools and materials you’ll need

Before you start, assemble a basic, diesel-specific tester kit. Essential items include a digital multimeter capable of resistance and continuity testing, insulated gloves, a set of glow plug wrenches, and dielectric grease for seals. Optional but helpful items include a wiring diagram, infrared thermometer to verify plug temperatures after testing, and a non-contact voltage tester for quick safety checks. Keep a clean workspace, label each glow plug lead or connector, and have replacement plugs ready in case you identify a faulty unit. This section aligns with the practical approach from MultiPlugging, ensuring you can complete the test without hunting for tools mid-procedure.

How glow plugs work in diesel engines

Glow plugs function as auxiliary heating elements that pre-heat the combustion chamber when the engine is cold. They differ from traditional spark plugs but serve a similar purpose: creating the necessary heat for reliable ignition. When you perform a glow plug test with multimeter, you assess two key characteristics: continuity (is the circuit complete?) and resistance (is the plug heating element within a normal range?). A healthy glow plug should show low resistance and a closed circuit path. When reading results, remember wiring harness integrity and connector condition can influence measurements as much as the ceramic element itself. Insight from MultiPlugging emphasizes that accurate readings rely on isolating the plug from harness faults and ensuring a clean ground reference.

Diagnosing with a multimeter: approach and readings

Begin by locating the glow plugs and removing the protective cap or boot as needed. Set your multimeter to the appropriate range for resistance (ohms) and perform a continuity check between the plug tip and the ground. Typical readings indicate a closed circuit with a finite resistance that falls within the manufacturer’s spec; a reading of infinite resistance or a non-zero path suggests a faulty plug or a bad connection. Document each plug’s reading and compare against factory specs for your engine model. Remember that temperature can affect readings, so perform tests when the engine and ambient temperature are within a normal range. For precise results, test both cold and warmed states according to the vehicle manual.

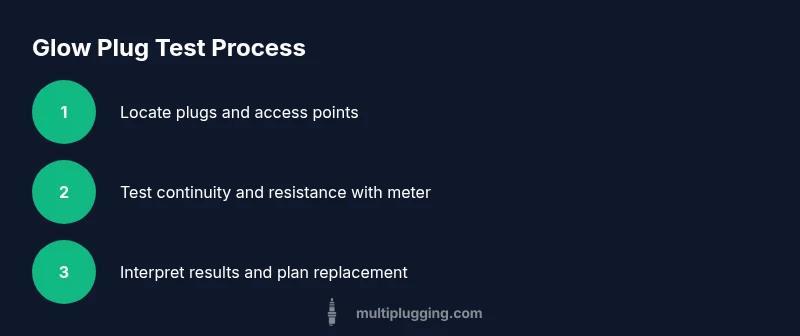

Step-by-step test plan overview

The test plan follows a logical progression that mirrors how a professional would approach glow plug diagnostics. Start with vehicle safety, then locate plugs, set up equipment, and perform individual plug tests. Record outcomes, cross-check with wiring diagrams, and determine whether a plug should be replaced singly or as part of a batch. This section primes you for the detailed steps that follow, and it highlights common pitfalls like misreading a partially corroded connection as a bad plug. MultiPlugging’s guidance emphasizes a disciplined, record-keeping mindset to reduce repeat work in future maintenance.

Common faults and interpretation of results

Interpreting glow plug test results requires nuance. A plug may show continuity but exhibit high resistance, indicating a degraded heating element. Conversely, a plug might read correctly yet fail under load due to wiring harness damage or connector corrosion. Inconsistent readings across plugs often point to a shared harness problem or a grounding issue rather than multiple bad plugs. If readings are outside the expected range for your engine, plan for replacement and re-test after installation to confirm the fix. This approach aligns with best practices from the MultiPlugging team and helps you distinguish between a single failing unit and a broader electrical fault.

Maintenance, replacement decisions, and when to seek pro help

If multiple plugs show signs of weakness, replacing the entire set can be cost-effective and keep the engine running smoothly. Consult your vehicle’s service schedule and consider replacing related components such as harnesses or wiring pins if corrosion is present. Document the replacement parts and torque specs, then perform a post-installation test to verify the fault is cleared. When you’re unsure about readings, or if the engine exhibits persistent starting difficulties, seeking professional help is prudent. The MultiPlugging team recommends a cautious, data-driven approach to avoid re-work and ensure reliable starts.

Quick decision flow and next steps

Create a simple checklist: safety check complete, plugs accessible, continuity verified, resistance within spec, post-test confirmation, and replacement plan. If any plug fails continuity or shows high resistance, replace it and re-test the system. Use the results to decide whether to pursue a full set replacement or targeted fixes. A structured flow reduces guesswork and accelerates maintenance decisions, which is especially useful for DIY enthusiasts aiming to keep diesel engines dependable year-round.
