BMW Spark Plug Coil: Diagnosis, Replacement, and Maintenance
Learn to diagnose, replace, and maintain the BMW spark plug coil system with practical, step-by-step guidance for DIYers. Troubleshoot symptoms, choose the right coil, and perform safe installation.
You will diagnose and replace a BMW spark plug coil to restore ignition performance and maintain engine reliability. You’ll need basic hand tools, a torque wrench, OEM or high-quality replacement coils, a dielectric grease, and a safe workspace. This guide covers safety, troubleshooting, and a model-specific replacement approach for BMWs.
What is a BMW spark plug coil and why it matters
The term "bmw spark plug coil" refers to the ignition coil that delivers the high voltage required to create a spark at the spark plug. In modern BMW engines, coils are often coil-on-plug units, where each cylinder has its own coil perched directly above the spark plug. According to MultiPlugging, ignition coils designed for BMWs are engineered to provide consistent spark energy across a broad operating range, which helps with smooth idle, responsive acceleration, and better fuel efficiency. A failing coil reduces spark quality, can cause misfires, and may stress the catalytic converter over time. Understanding how the coil interacts with the spark plug helps DIYers diagnose issues more accurately and choose the right replacement. This knowledge is especially valuable for engines like the N52, N54, B58, and other modern BMW configurations where coil health directly impacts performance. By recognizing symptoms early and following proper replacement steps, you can avoid costly dealer visits and keep your motor running reliably.
How the ignition coil interacts with the spark plug in BMWs
BMW ignition systems vary by model year and layout, but many modern BMWs use a coil-on-plug design. In COP setups, each spark plug has its own coil that receives a command from the engine control module (ECM) and stores energy briefly before delivering a sharp, high-voltage spark to ignite the air-fuel mix. The phrase "bmw spark plug coil" often points to these individual coils or small coil packs. Because each coil operates independently, a bad coil usually causes a localized misfire in one cylinder, which can still allow the engine to run but with roughness or reduced power. The reliability of coil performance depends on clean electrical connections, a solid ground, and protection from moisture and heat. In severe heat, aging, or oil leaks, coil performance can degrade quickly, so diagnostic checks should include both the coil and its wiring harness.
Symptoms of a failing coil in modern BMW engines
Watch for signs such as a rough idle, hesitation during acceleration, or a stumble when the engine is under load. A failing coil can trigger misfires in one or more cylinders, leading to a Check Engine Light with misfire codes (e.g., P030x family). You may notice reduced fuel economy, rough cold starts, or uneven power delivery. In some cases, you’ll feel a subtle knock or vibration at idle. Because BMWs often run on sophisticated ignition maps, coils that fail intermittently can create irregular engine behavior that’s hard to pin down without proper testing. Always verify whether the issue is coil-related or caused by the associated spark plug, wiring, or a related sensor.
Diagnosing coil problems: safe checks and tests
Begin with a visual inspection of the coil, connectors, and wiring harness for signs of damage or oil leaks. Use an OBD-II scanner to check for misfire codes and note which cylinder is affected. A common diagnostic method is to swap the suspected coil with a known-good coil from another cylinder and drive the car to see if the misfire follows the coil. You can also measure primary and secondary resistance with a multimeter, but remember that specifications vary by BMW model and coil type. If you confirm a bad coil, replace it with an OEM or high-quality aftermarket coil designed for your engine family. Always disconnect the battery before working on ignition components and handle connectors gently to avoid damaging pins.
Replacement considerations by BMW model and coil type
BMW models across generations use different coil configurations, from compact COP units to modular coil packs. When replacing a coil, ensure you source the exact coil type for your model (or a documented compatible equivalent). Replacing only the faulty coil can save time, but many technicians recommend inspecting adjacent coils for wear to prevent future misfires. Avoid cheap, non-OEM alternatives unless you’re confident in their warranty and heat tolerance. Lastly, re-seat all connectors firmly and apply dielectric grease to prevent future corrosion. Post-install, perform a test drive and re-scan for codes to confirm the fix.
Maintenance and best practices to extend coil life
Keep the engine bay clean and monitor for oil leaks or coolant intrusion that can degrade coil performance. Regularly check wiring harnesses for wear and ensure vacuum lines and intake components are intact, as changes in intake pressure can influence ignition timing and coil demand. If you see frequent misfires in hot weather or after engine shutdown, consider a thorough inspection of the coil wells and the protective boot seals. Using a high-quality replacement coil that matches your BMW’s specification is essential for longevity, as is avoiding aggressive engine tunes that increase coil stress.
Common mistakes and troubleshooting quick wins
Avoid assuming one coil is always the culprit—cylinder-to-cylinder misfires can originate from a faulty spark plug, bad wiring, or even a fuel delivery issue. Always verify the coil is the source before replacement by performing a controlled swap test and inspecting the harness. Ensure you’re working with a clean, dry environment and stored fasteners are tracked to their original positions. Use OEM-grade dielectric grease on connectors, and never force a connector that doesn’t seat properly. After replacement, clear codes and perform a careful test drive to verify the repair.
Tools & Materials
- Torque wrench(Use manufacturer specs or torque-to-yield values per model guidance)
- Socket set (metric)(Sizes depending on coil mounting bolts (often 8mm-12mm))
- Replacement coil packs (BMW-specific)(OEM or high-quality aftermarket, model-matched)
- Dielectric grease(For electrical connections to deter corrosion)
- Screwdrivers (flat and Phillips)(For removing covers and snug fasteners)
- Gloves and safety glasses(Personal protection when working in the engine bay)
- Multimeter(Optional for resistance tests; model-dependent)
- OBD-II scanner(Read misfire codes and confirm repair success)
- Shop rag(Clean surfaces and wipe spills)
- Service manual or OEM guide(Consult model-specific torque, wiring, and layout)

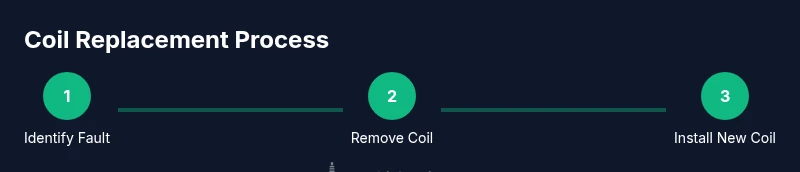

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and safety checks
Park on a flat surface, engage the parking brake, and disconnect the negative battery cable to prevent any accidental electrical shorts. Don eye protection and ensure you have a clear path to all coil packs. If your engine is hot, allow it to cool before touching components.
Tip: Label tools and coils so you can return each coil to its original position. - 2
Access the ignition area
Remove any engine covers or intake components that obstruct access to the coil packs. In many BMWs, this means gently prying off plastic covers with appropriate fasteners kept in a labeled container. Be mindful of clips that may break if forced.
Tip: Keep covers organized and note any gasket seals that may be reused. - 3
Disconnect the coil wiring
Locate the electrical connector on the coil and press the release tab while pulling straight outward. Avoid wiggling the connector side-to-side, which can bend pins. If the connector is stiff, apply a small amount of dielectric grease after cleaning the contacts.
Tip: Take a photo of the wiring orientation before disconnecting. - 4
Remove the coil mounting bolts
Use the correct socket to loosen and remove the mounting bolts. Keep bolts in a magnetized tray to prevent loss. Gently lift the coil away from the spark plug without applying side pressure.
Tip: Do not force the coil upward; if it sticks, check for hidden wiring or mounting brackets. - 5
Install the replacement coil
Position the new coil over the spark plug and reinsert bolts by hand first to avoid cross-threading. Tighten to the specified torque by the OEM guide. Attach the electrical connector firmly and verify a click when seated.
Tip: Apply a small amount of dielectric grease to the connector to improve future disconnections. - 6
Reassemble and test
Reinstall any engine covers. Reconnect the battery cable and clear existing fault codes with an OBD-II scanner if needed. Start the engine and listen for smooth running; observe for any hesitation or misfires.
Tip: Take a short test drive to confirm the repair under load conditions. - 7
Verify and document
Re-scan for codes after test drive. If misfires persist, recheck coil seating, wiring, and spark plugs. Document the part numbers and torque values used for future maintenance.
Tip: Keep a simple maintenance log for coil changes and related diagnostics.
FAQ
What are the common signs of a bad BMW spark plug coil?
Common signs include rough idle, engine misfires on one or more cylinders, reduced fuel efficiency, hard starting, and a Check Engine Light with misfire codes. If symptoms are localized to a single cylinder, the coil for that cylinder is a strong suspect. Always confirm with diagnostics before replacing parts.
Common signs are rough idle, misfires on one cylinder, and reduced fuel economy. If the issue seems localized, check the corresponding coil with diagnostics.
Should I replace all coils at once or just the faulty one?
If multiple coils show wear or if your BMW has high mileage, replacing all coils can prevent future misfires and provide uniform performance. In many cases, replacing only the failing coil is acceptable, but assess the age and condition of surrounding coils.
If multiple coils are aged or the car has high mileage, replacing all can prevent future misfires. Otherwise, replace only the faulty coil as diagnosed.
Can aftermarket coils be used on BMWs?
High-quality aftermarket coils can be suitable when they meet the OEM specifications for your model. Be cautious with very cheap options and verify warranty coverage and heat tolerance.OEM coils generally guarantee compatibility and reliability for BMWs.
Quality aftermarket coils can work if they match BMW specs; avoid very cheap options and check warranty.
What’s the best way to reset codes after coil replacement?
Use an OBD-II scanner to clear codes after the replacement and perform a road test. If codes return, recheck the coil installation, connectors, and spark plugs. Some codes may require drive cycles to reset fully.
Clear codes with an OBD-II scanner and test drive. If codes come back, recheck wiring and installation.
Is it safe to drive a BMW with a suspected bad coil?
Continuing to drive with a known bad coil can damage the catalytic converter and worsen engine performance. It’s best to limit driving and repair promptly to avoid future costs.
It's not safe to drive long with a known bad coil. Repair soon to avoid bigger problems.
How do I prevent coil failure in the future?
Maintain clean intake and engine bay conditions, fix oil leaks promptly, and use high-quality coils matched to your model. Regular inspections during service intervals help catch wear before it becomes a problem.
Keep the engine clean, fix leaks fast, and use quality coils to extend life.
Watch Video
Main Points
- Identify the faulty coil using codes and swap tests.
- Use the exact coil type matched to your BMW model.
- Follow OEM torque specs and safe disassembly practices.
- Test drive and re-scan to confirm a clean bill of health.
