Where Is the Spark Plug on Toro Lawn Mower? Locate and Access Guide

Where to Start: Understanding the Spark Plug on Toro Lawn Mowers

If you’re asking, and the exact query is: where is spark plug on toro lawn mower, you’re about to gain a practical, hands-on understanding of basic spark plug access. On many Toro models, the spark plug is tucked under the air-filter housing or beneath a small engine cover. The plug itself is mounted into the cylinder head, and the thick spark plug wire runs from the coil to the plug cap. Knowing this orientation helps you plan a clean, safe approach that minimizes debris entering the engine while you work. This knowledge is essential for routine maintenance, diagnosing misfires, or performing a simple plug swap when performance declines.

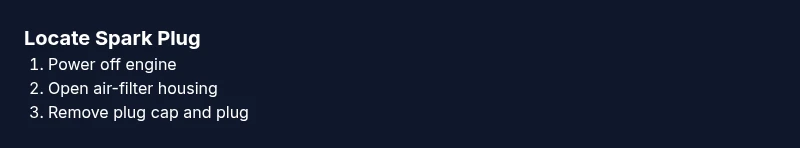

In practice, you’ll often start by removing the air-filter housing to gain a clear view of the plug. The goal is to access the terminal end of the plug cap with minimal disturbance to surrounding components. By understanding the typical layout and the wiring path, you reduce the risk of wire damage and misorientation during reassembly. This section sets the stage for a safe, effective inspection that protects your engine and keeps your Toro mower running smoothly.

Toro Engine Layouts: Finding Access Points

Toro lawn mowers use a variety of small-engine hardware configurations, with Briggs & Stratton and other manufacturers commonly powering many units. While the exact plug position can vary by model, a recurring theme is that the spark plug sits on the side or top portion of the engine, just under the air-filter assembly. The wire harness usually travels toward the spark plug boot from the ignition coil, making the plug comparatively easy to spot after you remove the protective cover. Recognizing these common access points helps you navigate model-to-model differences with confidence and reduces trial-and-error fiddling.

Safety First: Precautions Before You Reach In

Before touching any engine components, ensure the mower is off, the blade is stationary, and the engine has cooled. Disconnect the spark plug cap from the plug before any handling to prevent accidental ignition. Wear gloves to avoid cuts from sharp edges, and work in a well-lit area. Keep a clean workspace so you don’t misplace small screws or the plug itself. If you’re working near fuel, have a fire-safe environment and wipe up any spills promptly. Safety setup is not optional—it’s the foundation of a successful, damage-free maintenance task.

Visual Cues: Locating the Plug by Model Commonalities

Look for the air-filter housing, typically a plastic cover or shell on the side of the engine. The spark plug sits at the cylinder head beneath this cover. You’ll often see a small boot where the spark plug wire terminates. If you can identify a metal cylinder head with an accessible port behind the air filter, you’ve likely found the plug location. On many Toro engines, the plug is oriented nearly vertical or slightly angled, making it possible to access with a spark plug socket without removing the entire shroud. If in doubt, consult your model’s manual or the Toro service page for diagram references.

When Access Is Tricky: What to Do If You Can’t See It

If the plug isn’t immediately visible, start by loosening the securing screws of the air-filter housing and gently lifting the cover just enough to clear obstructions. Do not pry aggressively; create a small gap to inspect behind the cover. In some cases, you may need to remove the entire air-intake assembly or a side panel to reveal the plug. If you still can’t locate it, check the service manual for your exact Toro model or contact Toro support for model-specific diagrams. Patience and a clean workspace will help you avoid damaging seals or wires.

Maintenance After Access: Cleaning, Gap Checks, and Replacement

Once you access the plug area, you’ll inspect the plug for fouling, wear, or oil deposits. A clean, dry plug is essential for reliable starting. If the electrode tip looks dark or sooty, or if you notice oil on the threads, replacement is a good idea. Check the gap if you have a feeler gauge; however, many small-engine plugs come pre-gapped from the factory, so only adjust if you have a precise requirement from the engine’s manual. When replacing, thread the new plug by hand to avoid cross-threading, then snug with a socket. Reinstall the ignition wire boot and reassemble the air-filter housing carefully.

Quick Checks After Reassembly

With the plug replaced or re-tightened, reconnect the spark plug cap fully and ensure the wire is seated. Reinstall any covers or housings you removed, making sure nothing is loose or rubbing. Start the mower in a safe, open area and listen for a steady idle with no misfires. If the engine runs rough, re-check the plug installation and gap in case of a misfit or loose connection. Regular inspection of the spark plug can prevent hard starts and improve overall performance.
