where is the spark plug on craftsman lawn mower
Discover exactly where to find the spark plug on Craftsman lawn mowers, how to access it safely, inspect for wear, and replace with proper gap and torque for reliable starts.
The spark plug on most Craftsman lawn mowers sits on the engine cylinder head, usually under the air filter housing. Access typically requires removing the engine cover or air-filter cover to expose the plug. Use a spark plug socket to remove, inspect, and replace as needed. Have a gap gauge and a torque wrench ready before reinstallation.
where is spark plug on craftsman lawn mower
If you're asking where is spark plug on craftsman lawn mower, you're in the right place. Craftsman models use a variety of small engines, but the plug generally sits on or near the top of the engine head. On many Briggs & Stratton-based units, the plug is tucked under the air-filter housing and behind the carburetor. The exact location can shift with model year and engine family, so when in doubt, consult the service manual for your exact model number. This section helps you recognize the plug's appearance and confirms you’re looking in the right place before you begin access.
safety and prerequisites
Safety first: work only with a cool engine on a flat surface. Disconnect the ignition wire by removing the spark plug boot to prevent accidental arcing. Wear eye protection and gloves, and keep solvents and fuel away from open flames. Have the right tools ready: a spark plug socket, a ratchet, and a gap gauge. Clearing the work area reduces the risk of dropping fasteners into the engine.
accessing the plug behind the air-filter housing
To access the spark plug, you typically need to remove the air-filter housing or a small engine cover. Loosen screws or clips, lift the housing away, and carefully set it aside. You should now see the spark plug boot connected to a metal terminal on the plug. If the plug is difficult to reach, slightly tilt the housing or reposition the mower for better clearance. Take care not to bend hoses or push debris into the carburetor opening.
inspecting the plug condition and gap
A healthy spark plug shows a clean ceramic insulator and a small amount of wear on the electrode. Fouling, heavy carbon buildup, oil deposits, or a cracked porcelain indicate the plug needs replacement. Use a gauge to check the electrode gap according to your model’s specification; if in doubt, use a standard, conservative gap and adjust only if the manual specifies otherwise. Do not twist or pry the electrodes; handle with care.
replacing the plug and basic torque guidance
If replacement is needed, install the new plug by hand to avoid cross-threading. Once seated, tighten slightly with a spark plug socket. Avoid over-tightening; most Craftsman models require only a quarter-turn after snug, but always verify with the engine manual for your exact torque guidance. After installation, recheck the boot connection to ensure a solid electrical contact.
reassembly and test start
Reattach the air-filter housing and any covers you removed. Reconnect the spark plug wire boot, then start the engine in a safe area away from bystanders. A smooth idle without misfires indicates correct installation. If you hear sputtering or misfiring, double-check the gap, the boot seating, and that the air filter is clean and properly installed.
common mistakes and quick troubleshooting tips
Avoid forcing the plug into a misaligned hole or using a plug with the wrong heat range. Never reuse a fouled plug without cleaning and confirming proper gap. If the mower won’t start, re-check fuel supply, air intake, and ignition wiring in addition to the spark plug. Keep replacement plugs of the correct type on hand to prevent delays.
maintenance mindset and best practices
Make spark plug inspection part of your routine lawn-care maintenance. Replace at intervals recommended by your Craftsman manual, especially after storage or long use, and always use a plug that matches your engine’s heat range and thread size. Store plugs clean and dry, and label any parts removed during servicing for easier reassembly.
Tools & Materials
- Spark plug socket (usually 5/8 inch or 13/16 inch, model dependent)(Use a deep-well socket for easier access)
- Spark plug boot puller (optional)(Helps avoid damaging the boot)
- Gap tool or feeler gauge(Use the correct gap for your engine model)
- Torque wrench (optional but recommended)(Helps avoid over-tightening; if unavailable, snug by hand then give a quarter-turn)
- Cleaning brush or compressed air(Use cautiously to avoid pushing debris into the carburetor)

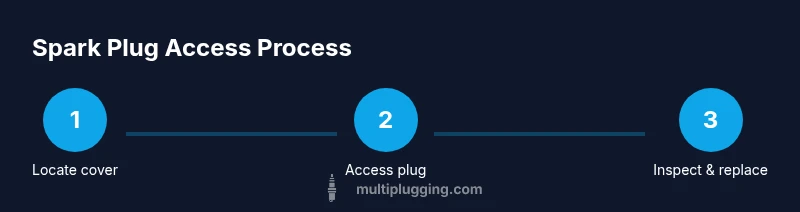

Steps
Estimated time: 15-25 minutes
- 1
Disconnect spark plug wire
Ensure the mower is cool and squarely on a stable surface. Gently twist and pull the boot away from the plug to disconnect the ignition wire. Confirm the wire cannot contact the plug during work.
Tip: Label or photograph the wire layout before removal to simplify reattachment - 2
Remove air-filter housing
Loosen screws or clips and lift off the housing to expose the plug area. If the housing resists, do not force it—check for hidden fasteners or a latch. Set the housing aside on a clean surface.
Tip: Document the housing orientation for exact reassembly - 3
Loosen and remove the plug
Fit the spark plug socket onto the plug and turn counterclockwise to loosen. Lift straight out to prevent thread damage. Inspect the threads for damage before reuse.
Tip: Keep the plug steady while turning to avoid twisting the plug wire connector - 4
Inspect or replace the plug
Check for fouling, oil, or heavy wear. If replacing, choose the correct heat range and thread size for your engine. If reusing, verify the gap with a gauge and set to spec.
Tip: If you reuse, ensure the gasket seat is intact to prevent leaks - 5
Install new or cleaned plug
Hand-thread the plug into the engine to avoid cross-threading. Snug with a socket, then apply a light extra turn. Do not over-tighten; threads are delicate on small engines.
Tip: Turn slowly and stop immediately if you feel resistance indicating a cross-thread - 6
Reconnect the wire and reassemble
Reconnect the spark plug boot firmly. Reattach the air-filter housing and any covers. Ensure all fasteners are snug but not overtightened.
Tip: Double-check the boot orientation to ensure a secure electrical connection - 7
Test run
Start the mower in a clear area and listen for a steady idle. If the engine misfires, recheck the plug gap and wiring, and verify the air filter is clean.
Tip: If the mower won’t start after replacement, re-check fuel, air, and ignition in that order
FAQ
Where is the spark plug located on most Craftsman lawn mowers?
Most Craftsman mowers place the spark plug on the engine head, often under the air-filter housing. Location can vary by model, so consult your manual if needed.
The spark plug is usually on the engine head under the air-filter housing, but it varies by model.
What tools do I need to replace the spark plug?
A spark plug socket, ratchet, and gap tool are typically sufficient. Wear gloves and eye protection, and use a torque guideline to avoid over-tightening.
You’ll need a spark plug socket, a ratchet, and a gap tool.
How often should I replace the spark plug?
Follow the manual's guidance for replacement intervals, which depend on usage and storage. Seasonal changes or heavy use may require more frequent checks.
Check the manual for replacement intervals; more use means more checks.
Can I reuse a fouled spark plug?
A visibly fouled plug should be replaced rather than cleaned and reused. If cleaning is attempted, ensure proper gap and inspect for cracks.
If the plug is fouled, replace it instead of reusing.
Do I need a torque wrench?
A torque wrench helps prevent over-tightening. If unavailable, snug the plug by hand and finish with a quarter-turn.
A torque wrench is ideal, but you can snug it and give a quarter-turn.
What if the engine still won’t start after replacement?
If it won’t start, check fuel, air filter, ignition wiring, and the gap again. Spark plug issues are common, but other systems can cause no-start symptoms.
If it still won’t start, check fuel, air, and spark plus the gap.
Watch Video
Main Points
- Identify the plug location under the air-filter housing.
- Use the right socket, avoid over-tightening, and maintain proper gap.
- Reassemble carefully and test the mower for a clean start.
