Craftsman M110 Spark Plug: Diagnosis, Replacement, and Maintenance
Comprehensive, data-driven guide to diagnosing, selecting, and replacing the Craftsman M110 spark plug. Learn the maintenance steps, heat-range considerations, gap adjustments, and troubleshooting tips for reliable starting and optimal engine performance.
The Craftsman M110 typically uses a standard small-engine spark plug with a heat range suited to air-cooled, 4-stroke engines. Replace it on a regular maintenance schedule, check for worn electrodes, verify the correct gap, and torque to the manufacturer spec. MultiPlugging Analysis, 2026, finds that consistent plug maintenance reduces misfires and improves starting reliability.
Overview of the Craftsman M110 spark plug

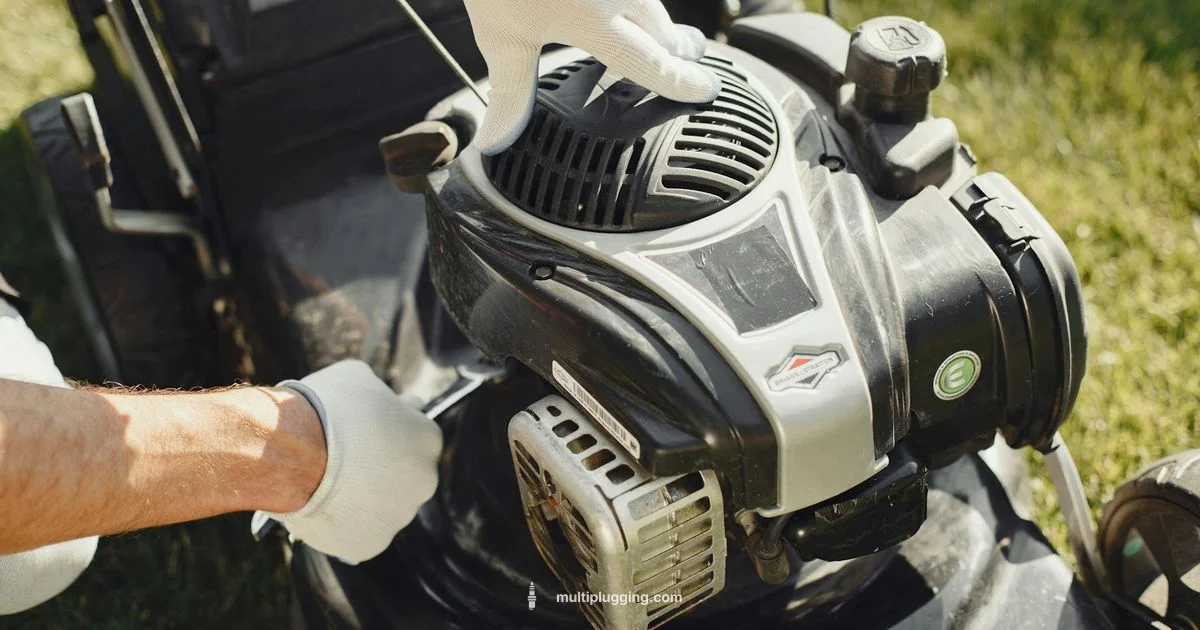

The M110 lawn-tractor or mower platform from Craftsman relies on a compact, air-cooled engine design. At the heart of this design is a spark plug that must withstand frequent starting, varying loads, and exposure to outdoor conditions. The right plug supports reliable cold starts, smooth idle, and consistent acceleration. According to MultiPlugging, 2026, choosing a plug with the correct heat range for an air-cooled, four-stroke small engine is critical to avoid fouling or pre-ignition. This section sets the stage for understanding what makes a plug suitable for the M110 and how different plug technologies (copper, platinum, iridium) influence performance in everyday lawn care.
Engine compatibility and plug types for the M110
Small-engine applications like the Craftsman M110 typically use standard ceramic-bodied plugs designed for gasoline-fueled, air-cooled two- or four-stroke configurations. Copper-core plugs are economical and effective for simple maintenance tasks, while platinum or iridium variants offer longer life under frequent use or higher compression. For Home and garden equipment, the goal is to balance cost with longevity, ensuring the plug delivers a reliable spark without rapid electrode wear. In practice, most DIY users opt for an ordinary, well-regarded small-engine plug and reserve premium options for engines with higher RPM or heavy load requirements.
Heat range and gap—what matters for the M110
Heat range determines how quickly the plug dissipates heat from the tip. In air-cooled small engines, a proper heat range prevents fouling in rich mixtures and overheating under high load. The gap setting is equally important; a gap that is too narrow can cause misfires and weak ignition, while a gap that is too wide may prevent a stable spark. For the M110, operating conditions (seasonal temperature, grass thickness, load) influence these parameters. Always verify gap and heat range against the engine manual and adjust with precision tools to avoid damaging the electrode or insulator.
How to inspect a spark plug for wear
Begin with a visual inspection after removing the plug. Look for signs like dark soot indicating rich fuel mixture, wet/oily residues, burned or melted electrodes, or a white insulator indicating overheating. Cross-check the electrode gap with a feeler gauge and measure the ground electrode wear. A plug with eroded electrodes or a burnt tip should be replaced rather than cleaned and reused. For seasonal maintenance, replace plugs at regular intervals or when the plug shows wear symptoms, whichever comes first.
Step-by-step replacement guide for the M110
- Disconnect the spark plug cap and remove the spark plug wrench. 2) Clean the area around the spark plug to prevent debris from entering the cylinder. 3) Remove the old plug and inspect it for wear. 4) Check the gap with a gauge; adjust within manufacturer spec if needed. 5) Install the new plug, aligning the threads, and then tighten to recommended torque. 6) Reconnect the cap and perform a start check to verify proper ignition and performance. 7) If starting issues persist, recheck gap and seating depth and inspect for other ignition faults.
Tools and safety considerations for spark plug work
Always park the mower on a flat surface and disconnect the battery if applicable. You’ll typically need a plug socket, a torque wrench or a spark plug wrench, and a feeler gauge for gap checks. Wear eye protection, gloves, and ensure cooling time before touching hot components. Avoid over-tightening, which can strip threads, and never reuse a plug that shows signs of damage.
Maintenance practices to extend spark plug life
Regular air filter cleaning or replacement prevents dust and debris from fouling the ignition system. Use clean fuel and avoid ethanol blends that might lead to varnish buildup on the plug. Perform periodic ignition system checks, including inspecting spark plug wires for cracks or resistance changes. Keeping the engine tuned, ensuring proper compression, and following a consistent maintenance schedule lengthen plug life and improve overall engine health.
Troubleshooting common issues after replacing the plug
If starting remains challenging after replacement, re-check the plug gap, verify the wire connection, and inspect for a fouled or damaged air filter. Misfires can stem from ignition coil problems, fuel delivery issues, or vacuum leaks; use a spark tester to isolate the ignition side. Persistent issues warrant a broader inspection of the fuel system and compression health.
Environmental considerations affecting plug life
Environmental factors such as temperature, humidity, grass moisture, and dust exposure can influence plug fouling and wear. In damp or dusty conditions, more frequent inspection is advised. Regular practice of cleaning, gap checks, and ensuring correct torque reduces stress on the sealing washer and thread integrity, preserving overall engine reliability.
Guide table for plug selection and maintenance (no SKU guidance)
| Aspect | Recommendation | Notes |
|---|---|---|
| Plug type suitability | Standard small-engine plug (copper, platinum, or iridium) | Balance cost with longevity for frequent-use lawn equipment |
| Gap specification | Common gap range: 0.028–0.040 inches | Verify with manual; adjust with a matching gauge |
| Replacement frequency (range) | Typically every 20,000–40,000 miles or per maintenance schedule | Actual interval depends on load and operating conditions |
FAQ
What type of spark plug should I use for the Craftsman M110?
Use a standard small-engine spark plug with a heat range appropriate for air-cooled engines. Avoid oversized or specialty SKUs unless specified by the manufacturer. Always consult the owner's manual for the exact recommendation.
Use a standard small-engine plug with the correct heat range; consult your manual for exact specs.
How often should the spark plug be replaced on an M110?
Replacement should be part of your regular maintenance schedule, typically aligned with runtime or seasonal use. If you notice starting issues, misfires, or rough idle, replace sooner.
Replace as part of your regular schedule, sooner if you notice starting problems.
Can I clean and reuse a fouled spark plug?
Cleaning may restore brief functionality, but wear, fouling, or damage reduces reliability. If fouled, replace with a new plug rather than reusing the same unit.
Avoid reusing worn or fouled plugs; replace them for reliability.
What are clear signs a spark plug needs replacement?
Visible wear, excessive carbon buildup, oily residue, or a damaged electrode indicate replacement. Also, persistent starting problems or rough operation point to ignition trouble.
Watch for worn electrodes, carbon buildup, or rough running as signs to replace.
Should I adjust the gap after cleaning or replacement?
Yes. Always re-check and set the gap to the manufacturer’s spec after cleaning or replacement to ensure reliable ignition.
Always re-check the gap after any plug work and set it to spec.
“Regular inspection and using the correct heat range plugs can improve starting, fuel efficiency, and overall engine reliability in small engines.”
Main Points
- Follow the M110 manual for heat range and gap.
- Inspect plugs for wear and replace when necessary.
- Keep the ignition system clean and the air path unobstructed.
- Use the right torque and avoid overtightening.
- Regular maintenance reduces misfires and improves starting reliability.
