Spark Plug on Mower: Complete Replacement Guide for DIYers

Spark plug basics for lawn mower engines

Spark plugs are small but essential components in lawn mower engines. They provide the spark that ignites the air‑fuel mixture, enabling combustion, starting, and smooth operation. In most four‑stroke mowers, the plug sits in the cylinder head and is designed to fire at a precise moment in the compression stroke. A healthy plug delivers a bright blue/white spark under compression and shows clean insulation around the electrode. When the plug wears or fouls, starting can become sluggish, idle can wobble, and power drops noticeably. Beyond starting, a worn plug can affect fuel economy and exhaust emissions. The plug also serves as a quick health check: a cracked ceramic or melted electrode is a clear sign replacement is needed. Regular inspection helps you catch issues before they leave you stranded in the yard.

Key indicators to watch for include deposits on the electrode, oily residue, unusual color on the ceramic, or a plug that is difficult to remove after a run. If you spot any of these, plan for replacement rather than trying to clean and reuse. Seasonal changes and frequent hard work can accelerate wear, so factor in your climate and mowing habits when planning service.

How spark plugs influence starting, running, and emissions

A mower that relies on a consistent spark will start quickly, idle steadily, and produce clean combustion. A strong spark ensures efficient ignition of the air‑fuel mixture, which translates into easier starts and better throttle response under load. Conversely, a weak or inconsistent spark can cause misfires, rough running, and reduced power, especially when the engine is hot or under heavy load. Fuel economy also tends to suffer as the engine struggles to burn fuel effectively. In terms of emissions, a fouled or worn plug can lead to incomplete combustion, which may produce higher hydrocarbon emissions and a smoky exhaust.

Maintenance basics matter: even if your mower runs, a marginal plug can degrade performance over a mowing session. Regularly inspecting the plug for deposits, cracking, or abnormal wear helps you decide whether to clean or replace. Keep in mind that other ignition components—wires, coils, and the ignition module—play a role too. If you replace the plug and still experience issues, broaden your check to these areas for a complete health assessment of the ignition system.

Compare plug types: copper, platinum, iridium

When selecting a spark plug for a mower, the electrode material matters for durability and heat tolerance. Copper plugs are affordable and provide good conductivity, but their electrodes wear faster, which can shorten service intervals in demanding use. Platinum plugs last longer and resist fouling better at moderate temperatures, making them a solid middle-ground choice for many home lawn systems. Iridium plugs offer the longest life and the best resistance to wear and temperature extremes, but at a higher upfront cost. For most residential mowers, upgrading to a platinum plug often yields a balanced blend of durability and value. If your mower is operated in extreme heat or requires frequent starts after long storage, an iridium option may be worthwhile.

Regardless of material, ensure the plug matches your mower’s thread size and heat range as specified in the user manual. Using an incorrect heat range can cause preignition or fouling, so verify compatibility before purchasing. As with all maintenance decisions, weigh cost against expected service life and your mowing frequency.

Choosing the right gap and plug for your mower

Gap setting is critical for reliable ignition. The ideal gap depends on the engine design and compression level. For most small lawn mowers, a typical starting point is in the range of 0.030 to 0.040 inches, but you should consult your mower’s manual or the plug manufacturer’s specification for the exact value. If you replace with a professional grade plug, you’ll often be asked to verify the gap before installation. Use a gap tool to measure and adjust carefully—tiny changes can have a big impact on starting and idle behavior. After adjustment, wipe the plug to remove protective oils and ensure clean seating surfaces.

When in doubt, opt for the smallest gap recommended by the manufacturer if you often operate in cooler temperatures or with ethanol‑blended fuels. Warmer climate or high engine loads may benefit from a slightly wider gap, but always recheck the spec after any adjustment. Remember that incorrect gap can cause misfires or hard starts even with a new plug.

Inspection and diagnosis: fouling, wear, and electrical issues

A visual inspection can tell you a lot about plug health. Carbon fouling (dark, sooty deposits) often signals rich fuel mixture, worn spark electrodes, or erratic ignition timing. Light tan or gray deposits can indicate normal wear, but heavy scaling or glazed electrodes point to replacement. Oily deposits hint at engine oil intrusion, which should be addressed separately as it usually signals worn rings or valve guides. A cracked ceramic or a damaged gasket seal not only impairs ignition but can allow compression leak, which reduces starting performance. Also inspect the boot and ignition wire for cracks or corrosion because even a clean plug can fail to fire if the connection is poor.

If you test the spark and see a bright, steady blue spark in a dark environment, that’s a good sign. A dim or sporadic spark indicates ignition system trouble beyond the plug itself and warrants further diagnostic steps. In some engines, a failing coil or worn wire can mimic plug failure, so consider testing or swapping components to isolate the issue.

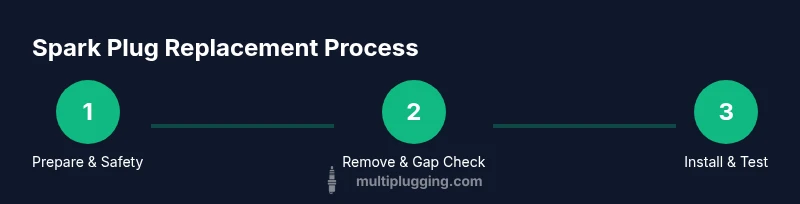

Removal safety and preparation

Safety first: always ensure the engine is off and completely cool before touching a spark plug. Disconnect the spark plug boot to prevent accidental cranking, and if your mower uses a battery, remove the key or disconnect the ground cable to avoid electrical shorts. Clean the area around the plug to keep dirt from entering the cylinder as you remove the plug. Use the proper spark plug wrench to loosen the base, turning counterclockwise. If the plug is stubborn, apply a small amount of penetrating oil to the threads and wait a few minutes before attempting removal again. Keep track of the washer or gasket—don’t lose it, as it provides a proper seal when you reinstall. Finally, inspect the plug and boot connection for any damage before proceeding with replacement.

Cleaning vs replacement: when to reuse a plug

If the plug shows light fouling without damage to the electrode, you may consider cleaning it for a quick test. Cleaning involves using a non-residue solvent and carefully removing carbon buildup, followed by drying and inspecting the gap. However, any sign of heavy fouling, electrode wear, cracks, or oil intrusion means replacement is the safer option. Reuse of a damaged plug can lead to persistent misfires and unpredictable starts. Remember that cleaning is a temporary measure and does not restore worn electrodes. When in doubt, replacing with a new plug is usually the best long‑term option for reliable starting and smooth operation.

Installation steps overview: torque and seating

Install the replacement plug with a clean, dry thread and snug by hand to prevent cross‑threading. Once seated, tighten with a wrench only until the gasket makes contact, then give it an additional 1/4 to 1/2 turn. Avoid over‑tightening, which can strip threads or crack the head. If your mower manual specifies a torque value, use a torque wrench to reach that specification precisely. Before reconnecting the spark plug wire, ensure the boot is intact and free of cracks. Finally, recheck all connections, and before starting the engine, wipe away any debris from around the plug area to prevent engine contamination.

Post-replacement checks: test run and spark color

With the new plug in place, start the mower and listen for a smooth, steady idle. If the engine runs unevenly or stalls, recheck the plug seating and gap, and inspect the boot connection for a solid fit. Observe the spark color during a brief test by briefly cranking in a dark area; a healthy spark should be bright and blue. If you notice white or orange sparks, or if the engine still misfires, re-evaluate the ignition system as a whole and consider testing the coil, wires, and spark plug boot for insulation integrity. Routine post‑replacement checks help confirm the job was done correctly and reduce the chance of a return visit to the shed for the same issue.

Maintenance rhythm: routine checks and seasonal timing

To keep your mower reliable, incorporate spark plug checks into your regular maintenance schedule. At a minimum, inspect the plug at the start of mowing season and replace as needed based on wear and performance. If you store the mower for the winter, pull and inspect the plug before the first start‑up in spring. Periodic cleaning of the plug’s tip and boot can extend life, but avoid excessive cleaning that can wear the electrode. Keep spare plugs on hand in the correct heat range and thread size for your model. A small investment in routine maintenance saves time and avoids frustrating starts on busy weekends.

Troubleshooting common symptoms

If your mower struggles to start, check the spark plug first as a simple, quick test. A fouled or worn plug is a common culprit, but ignition wires, coil, and fuel supply can all create similar symptoms. When the engine starts but stalls quickly, inspect the air filter and carburetor settings, as a lean or restricted intake can mimic spark problems. For persistent misfires under load, verify the spark plug gap, reinstall with a clean seating surface, and consider replacing with a new plug if other components check out. By approaching symptoms methodically, you can identify whether the issue lies with the plug, the ignition system, or the fuel system.
