Spark Plug Helicoil Repair Guide
Learn how to fix damaged spark plug threads with a helicoil insert. This practical, safe guide from MultiPlugging covers when to use it, choosing the right kit, and a step-by-step process for durable, engine-safe results.
This guide shows you how to repair damaged spark plug threads using a helicoil insert. You’ll assess the bore, choose the right helicoil, and re-tap the hole, then install the insert and reseal the plug. The process is practical for DIYers with basic hand tools and careful safety practices.
What is a spark plug helicoil and why it matters
According to MultiPlugging, a spark plug helicoil is a threaded insert designed to repair damaged threads in the spark plug bore of a cylinder head. In practice, it provides a fresh, strong internal thread that can withstand the heat, vibrations, and torque of a spark plug. This approach is especially useful when the original threads are stripped or corroded and conventional rethreading would remove too much material. For DIYers, understanding how the helicoil works helps you decide whether this repair is appropriate and how to execute it safely. The keyword here is 'spark plug helicoil' — a repair method that restores reliability without replacing the entire cylinder head. With proper sizing and installation, the helicoil can deliver durable performance across many engine cycles, and it is widely used in automotive and small-engine repairs. However, it is not a universal cure; severe hole damage or misalignment may require a different fix. In those cases, consult a professional.
Common thread damage scenarios and when helicoils are appropriate
Thread damage in the spark plug hole occurs most often from over-torquing during plug installation, cross-threading during removal, or long-term exposure to heat and coolant leaks. When threads are chipped or stripped beyond simple cleaning, a helicoil insert can reestablish the proper thread profile and restore sealing capability. Helicoils are most effective when there is a solid base of metal behind the hole and the bore diameter remains intact. If the bore is cracked or the chamber wall is warped, helicoils may not fix the issue and the cylinder head repair may be needed. Also, consider engine type and service manual guidance; some engines rely on specific torque and sealing requirements that influence whether helicoils will meet OEM standards. In DIY practice, helicoils offer a practical, cost-conscious option to extend the life of the hole, provided you follow correct drilling and tapping procedures and use the right insert size. If you’re unsure, step back and seek guidance from a trusted manual or professional.
Types of helicoil inserts and compatible spark plugs
Helicoil inserts come in variations designed to fit different thread forms and hole depths. The most common inserts are stainless-steel or carbon-steel coils with a helical outer thread that locks into the tapped hole and provides a thread for the spark plug. The inner threads match the spark plug’s male thread, delivering a secure seat. When choosing inserts, match the outer thread size to your cylinder head’s repair tap size and ensure the insert length provides sufficient engagement without protruding into the combustion chamber. Some engines use metric threads (M8, M10, M12) while others use SAE, so always verify the thread form before purchasing a kit. Additionally, consider the sealing method; some designs require a gasket or sealant to maintain compression, while others rely on the fit of the insert itself. For best results, use a reputable helicoil kit and follow its included guide. The goal is a robust, vibration-resistant repair that lasts for many miles.
Preparing the work area and safety considerations
Set up a clean, well-lit workspace with a magnetic tray for parts and a way to control metal shavings. Disconnect the battery to avoid accidental sparks, and wear safety glasses and gloves. Remove the spark plug from the engine and inspect the bore for damage beyond thread stripping. Clean the surrounding area to minimize debris that could enter the combustion chamber. Verify you have the correct helicoil kit size for the threaded hole, and gather all tools before starting. Taking these preparatory steps reduces the risk of contamination and mistakes that could compromise the repair.
How helicoils restore thread strength: physics and limitations
An helicoil insert creates a new, durable thread by providing a hardened helical coil that is pressed into a tapped hole. The insert distributes load across the metal below, reducing the risk of further thread stripping and creating a more resilient seat for the spark plug. The inner threads are formed to the spark plug size, which ensures proper engagement and torque transfer. However, helicoils have limits. If the hole has softened metal, is oval rather than round, or the bore is elongated, the insert may not seat correctly or seal tightly. In addition, a damaged bore may allow combustion gases to bypass the seal, leading to leaks. In such cases, you may need to rework the hole or replace the head. Understanding these constraints helps you decide if helicoil repair is appropriate and helps you communicate with a shop if needed.
Design considerations: torque, heat, and sealing for spark plugs
Engine torque specs, heat cycles, and sealing surfaces all affect helicoil life. When reinstalling the spark plug, ensure the torque matches manufacturer guidance to avoid overtightening that can strip the insert or crush the gasket. The insert must sit flush with the cylinder head surface to maintain compression and prevent leaks. For engines using anti-seize compounds, apply a light coat to the spark plug threads as recommended by the vehicle manual, but avoid over-lubrication that can cause over-torque. If the head features a magnesium or aluminum alloy, handle the area with care to prevent galling. Finally, verify the seal with a compression test or leak-down test after reassembly to confirm the repair is holding up under pressure.
Common mistakes and how to avoid them
Rushing the drilling or tapping process can create oversized holes or misaligned threads. Always deburr the hole after drilling and check the thread fit with a gauge. Using the wrong insert length can leave the plug seated too tall or too shallow, which compromises sealing. Skipping cleaning steps or failing to remove metal shavings can cause engine damage. Finally, neglecting to re-check torque after installation may mask a future leak. Following the insert kit instructions and double-checking measurements mitigates these risks.
How to verify repair success and what comes next
After installation, reinstall the spark plug, torque to spec, reconnect the battery, and start the engine to observe for any misfires or mis-seating. Inspect for exhaust leaks around the plug area and use a spark check to confirm proper ignition. A brief leak-down test or compression test can verify the integrity of the repair. If any signs of leakage or misfire occur, re-check the insert seating and thread engagement. When the engine runs smoothly, perform a final check for oil or coolant leaks around the plug well, clean up the area, and reinstall any removed components. With proper verification, your engine should run reliably again until the next spark plug service window.
Tools & Materials
- Spark plug helicoil repair kit(Match hole size and insert length to engine threads.)
- Tap wrench or tap handle(Helicoil taps align with the kit instructions.)
- Drill with appropriate bit(Low speed; use bit specified by the kit.)
- Drill bits sized for helicoil kit(Use the sizes recommended by the kit.)
- Helicoil inserts(Select outer thread size to match head and insert length for engagement.)
- Insertion tool(To seat insert flush with head surface.)
- Torque wrench(Accurate installation torque for the spark plug.)
- Safety glasses(Protect eyes from metal shavings.)
- Gloves (nitrile or latex)(Keep hands clean and protected during drilling and tapping.)
- Rags and solvent(Clean debris and oil from the bore and plug threads.)
- New spark plug(Replace with same type and heat range as original.)
- Sealant or gasket material (optional)(Follow manufacturer guidance for sealing needs.)
- Thread gauge or go/no-go gauge (optional)(Verify thread size before purchasing inserts.)

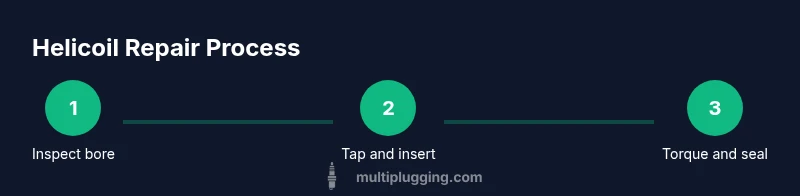

Steps
Estimated time: 90-150 minutes
- 1
Remove the spark plug and inspect the bore
Carefully unplug and remove the spark plug. Clean the area around the hole and inspect for visible thread damage, corrosion, or cracks. If debris is present, wipe it away and assess whether the metal around the hole remains solid.
Tip: Take a close look for any cracks or oval deformation; if present, helicoil may not fix the hole. - 2
Choose helicoil size and kit
Verify the thread form (metric vs SAE) and select the helicoil kit that matches the existing hole. Check the insert length to ensure enough engagement without protruding into the combustion chamber.
Tip: Always follow the kit’s size chart to avoid misfit. - 3
Drill out damaged threads
Using the kit’s guidance, drill out the damaged region to create a clean pilot hole for tapping. Deburr the edge to prevent binding during tapping.
Tip: Keep the drill perpendicular to the bore to avoid skewed threads. - 4
Tap new threads for the helicoil
Engage the tapped hole with the helicoil tap as directed by the kit. Create clean, precise threads that will accept the insert.
Tip: Lubricate the tap lightly and rotate evenly to avoid chatter. - 5
Install the helicoil insert
Use the insertion tool to drive the insert into the tapped hole until it sits flush with the head surface. Ensure the insert is level and fully seated.
Tip: Do not force the insert; if it binds, stop and recheck alignment. - 6
Reinstall spark plug and seal
Thread the spark plug back in by hand, then tighten to the manufacturer’s torque spec with a torque wrench. If required, apply a light anti-seize coat as recommended.
Tip: Use a magnetic pick-up tool to avoid dropping debris into the bore. - 7
Verify repair and reassemble
Reconnect the battery, start the engine, and listen for misfires. Perform a quick compression or leak-down test to ensure the repair holds under pressure.
Tip: If you notice leaks or misfires, recheck insert seating and thread engagement.
FAQ
Can I use a helicoil repair for all spark plug holes?
A helicoil repair works well for many damaged holes, but not all. If the bore is cracked, distorted, or the metal behind the threads is too thin, a helicoil may not restore a reliable seal. Always assess the hole and consult the service manual before proceeding.
A helicoil can fix many damaged spark plug holes, but not all. If the bore is cracked or the metal is too thin, it may not be reliable.
Is a helicoil repair permanent?
When properly installed, a helicoil repair can last many engine cycles. The longevity depends on correct sizing, clean drilling, and accurate torque. If the hole sustains new damage, replacement of the head may eventually be necessary.
If done correctly, a helicoil repair can last for many miles, but it depends on proper sizing and installation.
What if the hole is too damaged for helicoils?
If the hole cannot support a secure insert—due to excessive material loss, cracks, or misalignment—the thread repair should be abandoned in favor of a more extensive fix, such as re-threading the bore or replacing the head.
If the hole is too damaged, helicoils won’t help and you may need a different repair or a head replacement.
Can I reuse the old spark plug after helicoil repair?
Yes, if the plug and threads are clean and the installation torque is correct. Avoid overtightening and inspect the plug seat for any sealing surface damage after installation.
You can reuse the old spark plug if everything is clean and torqued properly.
Do helicoils tolerate engine heat and vibration?
Helicoil inserts are designed to withstand typical engine heat and vibration when properly installed and sized. Persistent overheat or aggressive vibrations may still cause issues, so monitor engine performance after repair.
A well-installed helicoil resists heat and vibration, but monitor engine performance after repair.
Should I use anti-seize on spark plug threads with helicoils?
Many manuals recommend a light anti-seize or lubricant on the spark plug threads, but use only a thin coat as excessive lubrication can lead to over-torque. Always follow the vehicle’s service instructions.
Use a light coating if suggested by the manual, but don’t overdo it.
Watch Video
Main Points
- Assess bore damage before repair.
- Match helicoil size to the hole and plug thread.
- Follow drilling and tapping steps carefully.
- Verify sealing and torque after reassembly.
