Spark Plug Carbon Tracking: Diagnose, Clean, and Prevent Fouling

What is spark plug carbon tracking?

Spark plug carbon tracking describes the visible and measurable carbon buildup on the firing end of a spark plug. This buildup affects heat transfer, electrode gap, and ignition stability, often leading to misfires, rough idling, and reduced fuel efficiency. Carbon tracking is particularly common in engines subject to short trips, rich fuel mixtures, or oil intrusion into the combustion chamber. According to MultiPlugging, documenting carbon tracking patterns across your plugs helps diagnose root causes and prevent recurring fouling. In practice you’ll see dark, sooty deposits around the electrode and insulator, sometimes forming a ring or crust that changes current paths during spark. The texture may range from powdery to glassy, and color can hint at fuel (black char) versus oil (brownish, greasy). Recognizing these cues early lets you act before substantial performance loss or catalytic converter damage occurs. Carbon tracking should be treated as a maintenance signal rather than a sudden failure, and addressed both on the plug and the underlying engine conditions to restore reliable ignition.

Common causes of spark plug carbon tracking

There are several drivers of carbon buildup on plugs. A consistently rich air-fuel mixture—caused by faulty injectors, a mass airflow sensor running rich, or a lazy oxygen sensor—deposits carbon quickly. Oil intrusion from worn valve guides, piston rings, or a leaky PCV system can smear deposits and foul plugs more aggressively on startup. Short trips and frequent cold starts prevent complete combustion, leaving fuel residues that carbonize as the engine cools. Poor ignition timing, weak ignition coils, or degraded spark plug heat range can also contribute to misfires and uneven burning that promote carbon formation. Finally, dirty intake or clogged EGR passages can alter the combustion mixture and increase carbon buildup. Understanding which cause is most likely in your engine helps tailor the fix and prevent recurrence.

Symptoms and quick checks

Common symptoms of spark plug carbon tracking include rough idle, intermittent misfires, reduced acceleration, and poor fuel economy. A cylindrical plug with dark deposits or sooty coating is a clear early sign. To diagnose quickly, pull the suspect plug (when engine is off and cool), inspect the electrode tip color and the insulator for oil traces, and compare with a reference plug. If you notice oil on the plug, oil control issues or PCV leaks are likely culprits. If the plug looks dry and sooty, fuel-related causes are more probable. Use a spark plug gap gauge to confirm the gap matches the manufacturer’s spec. Scanning for engine codes (P0300-P0304 family) helps pinpoint cylinder-specific misfires. These checks, combined with a brief test drive, will guide you toward the right remedy and help you decide whether cleaning, replacement, or a broader engine service is required.

Diagnostic flow for spark plug carbon tracking

Follow this flow to move from symptom to solution:

• Start with simple checks: inspect the plug visually and test for oil leaks in the valve cover and PCV system.
• If the plug shows oil or heavy fouling, address oil intrusion first (PCV valve, seals).
• If the plug is dry but carbon rich, focus on fuel delivery and combustion (injectors, MAF sensor, oxygen sensor, ignition timing).
• After fixes, recheck the plug, then perform a short test drive to confirm symptoms are resolved.

This flow keeps you from chasing complex issues before ruling out the basics and uses progressive testing to isolate the root cause.

Step-by-step: Fix for the most common cause (carbon from fuel-rich mix)

Step 1 — Safety and prep

Put on eye protection, gloves, and ensure the engine is cool. Gather a spark plug socket, ratchet, gap gauge, and a torque wrench. A clean workspace makes it easier to track small parts and avoid cross-contamination.

• Tip: Re-check your vehicle’s service manual for the exact torque spec before reinstallation.

Step 2 — Remove ignition coil/wire

Carefully disconnect the ignition coil or coil-on-plug connector. Avoid pulling on the wire itself to prevent damage. Label each coil and cylinder if you’re working on multiple plugs.

• Tip: Use a magnetic pickup tool to keep fasteners organized.

Step 3 — Remove the spark plug

Use a spark plug socket to loosen and extract the plug. Don’t force a stubborn plug; if it resists, pause and verify the thread condition to prevent stripping.

• Tip: Check the thread condition and the gasket seat as you remove it.

Step 4 — Visual inspection

Assess electrode wear, deposits, and insulator color. Carbon tracking usually presents as dry, sooty deposits around the electrode; oil fouling looks greasy. Compare with a known-good plug if possible.

• Tip: Take a photo for future reference and trend analysis.

Step 5 — Decide cleaning or replacement

Light carbon buildup on a worn but otherwise healthy plug may be cleaned, but most fouled plugs should be replaced. Do not attempt to “scrape” carbon in a way that could bend the electrode.

• Tip: If you’re unsure, replace the plug rather than risking misfire after reinstall.

Step 6 — Clean or replace

If cleaning, use approved solvent and a soft-bristle brush; never touch the electrode with metal tools. For replacement, install a new plug with the correct heat range and torque.

• Tip: Apply small amount of anti-seize sparingly if recommended by your vehicle’s manual (or skip if not advised).

Step 7 — Gap verification and reinstall

Set the correct gap with a feeler gauge, then reinstall the plug carefully. Reconnect the coil, ensuring a snug electrical connection.

• Tip: Re-torque to manufacturer spec and avoid over-tightening.

Step 8 — Test drive

Start the engine and take a cautious test drive to verify smooth idle and proper acceleration. Monitor for any misfire codes and re-check scan data after a short drive.

• Tip: If misfires persist, the root cause may be fuel or ignition system faults beyond the plug.

Step 8 — Monitor and log

After the test drive, log fuel economy and observe performance over the next few days to detect any resurfacing of carbon buildup.

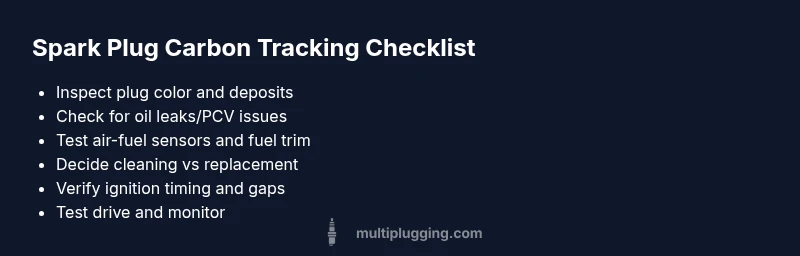

Prevention: Keep carbon tracking under control

Preventing carbon tracking is easier than cleaning it repeatedly. Use a proper heat-range plug, maintain a clean air intake and fuel system, and address oil leaks and PCV issues promptly. Regularly inspect plugs during routine maintenance, especially on vehicles with turbochargers or direct injection. Warming cycles and shorter trips can promote carbon growth if the engine never reaches optimal operating temperature. By keeping fuel trims balanced, using quality fuels, and performing periodic compression and leak tests, you minimize carbon buildup and extend plug life. Documenting carbon tracking patterns helps catch recurring issues early and reduces the risk of expensive repairs down the line.

When to seek professional help

If you’re seeing repeated carbon tracking across multiple cylinders, or you notice persistent misfires after a replacement, it’s smart to involve a professional. A trained technician can perform a deeper assessment: perform a precise compression test, verify injector spray patterns, re-check ignition timing, and diagnose potential internal engine wear that DIY steps can’t safely evaluate. Early professional input saves time and protects your engine from longer-term damage.
