Oil on Spark Plug Troubleshooting: Quick Fixes & Prevention
Diagnose and fix oil on spark plugs with practical steps, common causes, at-home tests, and prevention tips to keep your engine running clean, reliable.
Oil on a spark plug is usually caused by oil intrusion from worn piston rings, valve guides/seals, or an overfull crankcase. The quick fix is to replace the fouled plug and address the root cause: fix the oil leakage (rings, seals, PCV), correct oil level, and ensure the right oil grade is used. If the problem persists, professional diagnosis is advised.
Recognizing oil on spark plug: symptoms and quick checks
Oil on a spark plug is a telltale sign that oil is entering a cylinder and contaminating the combustion process. The most obvious cue for DIYers is a fouled plug with a glazed, oily coating on the insulator and electrode. You may also notice a strong burnt-oil smell when you remove the plug boot after a failed start or rough idle. In many engines, oil can pool in the spark plug well or surround the threads, leading to misfires or intermittent power loss. If you pull the coil boots and inspect the plug, you’ll often see a wet, dark film on the electrode and base, sometimes accompanied by light blue or gray smoke during startup. According to MultiPlugging, oil on spark plugs is a common maintenance concern that signals more than just a single faulty plug; it points to oil intrusion sources that deserve attention to protect both performance and emissions. Start by confirming external oil leaks aren’t the culprit, and then proceed to internal engine checks as needed.
Primary causes you should inspect
Oil on spark plug almost always means oil is sneaking into the combustion chamber. A worn piston ring or cylinder wall can allow oil to seep past into the chamber, especially in engines with high mileage or severe driving conditions. Valve guides or valve seals can degrade with heat and age, letting oil migrate down the valve stem and onto the plug. A malfunctioning PCV (positive crankcase ventilation) system is another frequent culprit: cracked hoses, a sticky valve, or a clogged PCV valve can create suction that pulls oil into the intake stream. Overfilling the crankcase or using an oil with too high a viscosity for your engine can also cause oil to push past seals and into the plug area. Finally, a deteriorating head gasket or failed oil passages in the cylinder head can cause oil leaks that contaminate plugs. Recognize that multiple issues may coexist, especially in older vehicles; methodical diagnosis is essential.
Diagnostic steps you can perform at home
Begin with the simplest checks. Verify oil level and condition; if overfull or very old, schedule an oil change and correct the level. Remove the affected spark plug and inspect for oil residue, a glossy film, or heavy soot; note whether the oil covers the insulator or only the terminal area. Look for oil on the exterior around the valve cover gasket and in the spark plug well. Next, test the PCV system: remove the PCV valve and check for smooth movement or replace it if it’s stuck or clogged. A compression test and/or leak-down test can quantify cylinder health and help distinguish rings/seals from valve issues. If you detect oil in the combustion chamber, plan for more extensive repairs beyond plug replacement. Always confirm there are no external leaks—oil dripping on the plug can mimic internal fouling.
Prevention and maintenance to stop future oil fouling
Preventing oil on spark plug issues means addressing the root causes and keeping the engine in balance. Use the manufacturer-recommended oil grade and staying within the correct viscosity range reduces stress on seals and rings. Maintain proper oil level; overfilling is a common, easily avoidable mistake. Regularly inspect the PCV system and replace a faulty valve or cracked hoses before they become a bigger problem. If you suspect worn rings or valve seals due for replacement, plan for a professional repair rather than a quick plug swap; otherwise the problem will likely recur. When performing maintenance, replace all spark plugs in the same bank if the engine uses multiple cylinders and one is fouled, to maintain consistent ignition and compression. Finally, monitor for symptoms like persistent misfires, blue smoke, or oil consumption, and address them early to protect catalytic converter efficiency.
Quick safety and common mistakes
Safety first: always disconnect the battery and wear eye protection when working near the engine. Oil is slippery; clean spills promptly. Avoid leaning over hot exhaust components, and never force a stubborn spark plug; use correct torque with a spark plug socket to prevent thread damage. If after your at-home checks the issue persists, stop driving the vehicle and arrange a professional inspection. Oil on spark plug can indicate significant engine wear that, if ignored, leads to increased emissions, reduced fuel economy, and costly repairs.
Steps
Estimated time: 1-2 hours
- 1
Prepare safely and disconnect power
Ensure the engine is cool, disconnect the negative battery cable, and gather required tools including a spark plug socket, torque wrench, and oil catch pan. Safety first prevents injuries and spills.
Tip: Label each plug wire to avoid misfiring on reassembly. - 2
Remove and inspect the fouled plug
Carefully remove the affected spark plug and inspect the electrode and insulator. Note oil staining, carbon tracking, or heavy fouling. If oil is present, do not reuse the plug without cleaning and confirming root causes.
Tip: Keep track of plug type and gap for replacement. - 3
Check oil level and PCV system
Check the dipstick for level and oil condition. Inspect the PCV valve and hoses for cracks or clogs. A sticking PCV valve can push oil into the intake; replacing it is often a quick fix.
Tip: Replace PCV valve with OEM spec if available. - 4
Perform a compression test
With the plug removed, perform a compression test on the affected cylinder to determine ring and piston health. A low reading indicates wear that allows oil intrusion.
Tip: Compare against other cylinders for relative wear. - 5
Decide on plugs and repairs
If oil is present due to root causes like rings or seals, plan for more extensive repairs beyond plug replacement. Replace all fouled plugs to restore consistent ignition and prevent new misfires.
Tip: Avoid mixing new and old plugs on multi-cylinder banks. - 6
Test run and monitor
Reinstall components and start the engine. Monitor for misfires, oil leaks, or unusual smells. If symptoms persist, consult a professional for further diagnosis.
Tip: Take a short test drive and listen for improvement or continued rough running.
Diagnosis: Oil on spark plug
Possible Causes
- highWorn piston rings allowing oil into combustion chamber
- mediumWorn valve seals or guides
- mediumPCV system malfunction (clogged valve, cracked hoses)
- mediumOverfilled crankcase or incorrect oil viscosity
- lowHead gasket or oil passages leak
Fixes
- easyReplace fouled spark plugs and clean wells
- hardRepair oil intrusion sources (rings, seals)
- easyRepair or replace PCV valve and hoses
- easyCorrect oil level/viscosity and perform oil change
- mediumPerform compression / leak-down tests for assessment
- mediumCheck external leaks and gasket work if needed
FAQ
What causes oil on a spark plug?
Oil on a spark plug can be caused by worn piston rings, degraded valve seals, PCV system faults, overfilling the oil, or head-gasket leaks. A proper diagnosis distinguishes internal engine wear from external leaks.
Oil on a spark plug can be caused by worn rings, bad seals, PCV faults, or overfilling. A proper diagnosis distinguishes internal wear from external leaks.
Can I drive with an oil-soaked spark plug?
Driving with an oil-soaked plug is not advised. It can cause misfires, poor fuel economy, and damage to the catalytic converter. Inspect and replace the plug and address the oil source promptly.
No, driving with an oil-soaked plug can cause misfires and damage; replace the plug and fix the oil source.
How do I fix oil on spark plugs at home?
Start by replacing the fouled plugs, check the oil level and PCV system, and perform a compression test to assess engine wear. If oil intrusion persists, seek professional service for ring or gasket repairs.
Replace fouled plugs, check PCV and oil level, then test compression; if oil intrusion continues, get professional help.
Should all spark plugs be replaced if one is fouled?
Yes, if one plug shows oil fouling, it’s wise to inspect and likely replace all plugs in that bank to balance ignition and avoid recurring misfires.
If one plug is fouled, replace the others in the same bank to maintain balance and prevent future misfires.
Is a blown head gasket always the cause of oil on a plug?
A blown head gasket is a possible cause but not the most common. Look for coolant loss, white exhaust, or milky oil as a sign and confirm with professional testing.
Head gasket failure is possible but not the most common cause; check for coolant loss and milky oil to verify.
How often should I check PCV valve?
Check the PCV valve during regular maintenance or if you notice symptoms like oil intrusion, rough idle, or increased oil consumption. Replace if stuck or gummed up.
Check or replace the PCV valve if you see symptoms like oil intrusion or rough idle.
Watch Video

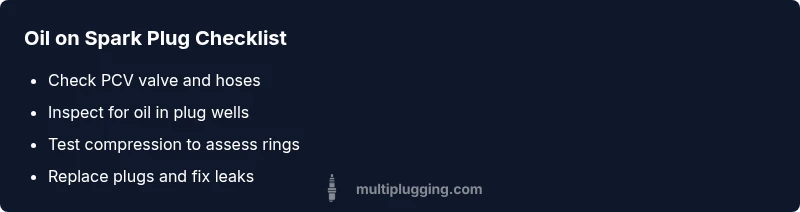

Main Points
- Oil on spark plug signals oil intrusion and warrants action
- Check rings, seals, and PCV for root causes
- Replace fouled plugs and address leakage sources
- Run a compression test to assess engine health
- Prevent recurrence with regular maintenance
