How Does a Bad Spark Plug Look Like? Visual Guide and Troubleshooting
Learn to identify visual signs of a bad spark plug, diagnose common fouling patterns, and follow a practical, safety-first checklist to replace worn plugs and prevent misfires.

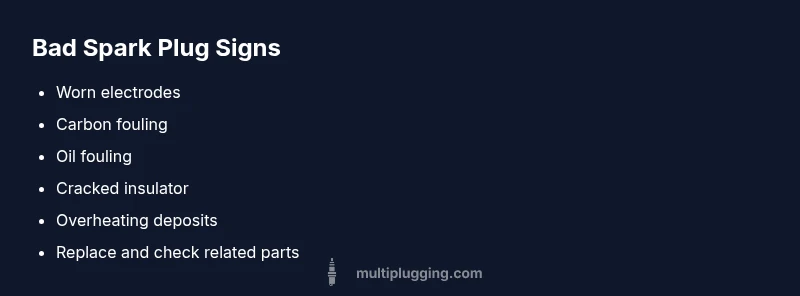

Common visual signs of a bad spark plug are a worn or eroded center or ground electrode, heavy carbon buildup on the electrode, oil fouling on the plug, and a cracked, melted ceramic insulator. You may also see white or chalky deposits indicating overheating. If you spot these, replace the plug promptly and inspect ignition wires and the fuel system for related faults.
Visual signs of a failing spark plug
In practice, many DIYers ask how does a bad spark plug look like? The visual cues are the quickest way to gauge plug health during routine maintenance. A worn center or ground electrode appears thin, rounded, or visibly eroded. Carbon buildup forms a black, sooty layer around the electrode and insulator base. Oil fouling shows as an oily film and sometimes droplets at the base. A cracked, chipped, or melted ceramic insulator indicates overheating or pre-ignition. White or chalky deposits around the electrode can also signal overheating. If you notice any of these signs, tag the plug for replacement and inspect nearby ignition wires, coils, and related components for faults. Different engines may display slight variations, but the core visual cues are consistent across most gasoline engines. The key is to act quickly to prevent misfires and more serious damage, which MultiPlugging emphasizes for responsible DIYers.
How to inspect a spark plug safely
Before you touch anything, ensure the vehicle is off, the engine is cool, and the battery is disconnected to prevent accidental shocks. Remove the ignition wire boot with a gentle twist and a steady pull. Use a proper spark plug socket with a rubber insert to avoid damaging the porcelain insulator. Visually inspect the porcelain, metal shell, and electrode gap. If you see fouling or wear, measure the gap against the manufacturer’s specification and compare with a new plug. If the plug is fouled, decide whether cleaning is appropriate (light fouling) or replacement is necessary (heavy fouling or oil contamination). After replacement, reattach the boot, torque to spec, and test for smooth running. Always reseal and recheck the ignition system for performance changes. This process is fundamental to diagnosing “how does a bad spark plug look like?” in a hands-on, repeatable way.
What different fouling patterns indicate
Carbon fouling typically points to a rich fuel mixture or improper combustion, appearing as a dry, black, sooty coating. Oil fouling indicates oil entering the combustion chamber—often from worn rings, valve guides, or crankcase issues—leading to a glossy, oily film on the plug. Fuel fouling presents as wet, black, or brown deposits that resemble fuel-soaked residue. Lead fouling, more common in older engines, shows as a dull, chalky pattern near the insulator. By recognizing these patterns, you can separate root causes like fuel delivery problems, faulty seals, or mechanical wear. Always consider the overall engine condition and historical maintenance when interpreting these signs. As MultiPlugging notes, correlating fouling type with symptoms accelerates reliable diagnosis.
Consequences of running with a bad plug
Running on a bad spark plug can trigger misfires, rough idle, and hesitation on acceleration, which in turn reduces fuel economy and performance. Prolonged misfires can overwhelm the catalytic converter and increase emissions, potentially causing permanent damage. A failing plug can also cause irregular spark timing, leading to engine knock or overheating. If you notice a persistent lugging sensation or a spurt of backfire, treat it as a warning sign and inspect the plug health as part of a broader ignition and fuel system check. Regular visual checks help catch issues early, saving you time and money in the long run.
Quick comparisons: new vs used spark plugs
New plugs typically have a clean, light-colored porcelain and a sharp edge on the electrodes with uniform gaps. Used plugs often show the telltale signs described above: carbon, oil, or fuel fouling; eroded electrodes; or a cracked insulator. The color of the insulator and the presence of deposits can guide you toward the likely cause. If you’re replacing one plug due to wear or fouling, it’s prudent to inspect others with the same mileage, since most engines run best when all plugs are in similar condition. This reduces the chance of residual issues causing imbalances.
How to decide replacement vs cleaning
If a plug is lightly fouled or the deposits are mineral or carbon with intact electrode and insulator, cleaning may be an option on some engines. In most modern engines, however, replacing worn plugs is recommended for reliability. Oil contamination almost always requires replacement, as cleaning oil-coated plugs is ineffective and can reintroduce problems. Always verify the gap after cleaning or replacement and ensure the plug matches the engine’s heat range. When in doubt, replacing all plugs at once ensures consistent performance and easier maintenance.
Safety and best practices when handling spark plugs
Always work in a well-ventilated area and wear eye protection and gloves to guard against hot surfaces and sharp metal edges. Disconnect the battery to prevent sparks, and use the correct spark plug socket with a magnetic pickup or rubber insert to avoid dropping the plug. Never force a plug or cross-thread it; if you feel resistance, stop and reassess. After installation, torque to the manufacturer’s specification and reattach ignition components carefully. If you smell fuel or hear cracking noises while removing components, stop and inspect for fuel leaks or electrical faults.
When to seek professional help
If misfires persist after plug replacement or you suspect ignition coil, high-tailure wires, or EFI issues, consult a professional technician. Diagnostic tools like a compression test or a scan for misfire codes can reveal deeper problems beyond what you can visually assess. A trained tech can also verify engine timing, fuel injection performance, and venting systems, ensuring you don’t overlook a related fault that could compromise safety and reliability.
Maintenance to prevent future fouling
Create a simple preventive routine: inspect plugs during every major service, keep air and fuel filters clean, and use the correct fuel grade and oil type for your engine. Regularly check for oil leaks and ensure valve seals are intact to prevent oil fouling on plugs. Maintain proper spark plug gaps and torque during installation to avoid heat-related damage. Adopting these habits reduces the likelihood of plug fouling and helps your engine run more efficiently over time.
Steps
Estimated time: 60-90 minutes
- 1
Prepare and safety
Park on a flat surface, set the parking brake, and disconnect the battery negative terminal to prevent sparks. Gather the right tools: spark plug socket with rubber insert, torque wrench, and a gap gauge.
Tip: Double-check the engine is cool before touching spark plugs. - 2
Locate and remove
Locate the spark plug wire or coil pack, twist gently, and pull straight off. Remove just one component at a time to avoid cross-contamination and maintain correct wiring order.
Tip: Label each wire or take a photo to remember the order. - 3
Inspect the plug
Carefully thread the plug counterclockwise and remove it. Inspect the electrode, insulator, and shell for signs discussed earlier. Measure the gap using a gauge and compare with the recommended spec.
Tip: If you see heavy fouling or a melted insulator, replace the plug rather than attempting a repair. - 4
Decide on replacement
If fouling or wear is evident, replace with a new plug of the correct type. For light deposits, cleaning is an option in some cases, but replacement is often more reliable.
Tip: Always use one brand/new plugs of the same heat range and thread size across all plugs in a bank. - 5
Install new plug
Thread the new plug by hand to avoid cross-threading, then tighten to the manufacturer’s torque spec. Reattach ignition wire firmly.
Tip: Lubricate threads lightly if recommended by the manufacturer to prevent seizing. - 6
Check other plugs
If one plug shows wear or fouling, inspect remaining plugs in the set for uniformity. Uneven wear can indicate ignition or fuel-system issues.
Tip: Replacing all plugs at once ensures consistent performance. - 7
Test run
Reconnect the battery, start the engine, and listen for smooth operation. A proper spark should feel like seamless acceleration with no misfires.
Tip: If the check-engine light stays on, run a diagnostic scan for misfire codes. - 8
Document and monitor
Record the replacement date and the part numbers. Monitor engine performance over the next few drives to confirm improvement.
Tip: Note any recurring patterns that may indicate deeper issues.
Diagnosis: Engine shows misfires, rough idle, reduced power, or poor fuel economy
Possible Causes
- highWorn or eroded electrodes causing weak spark
- mediumCarbon or oil fouling on the plug
- lowOil ingress into combustion chamber from seals or rings
Fixes
- easyInspect plug gap and replace with the correct heat range; torque to spec
- mediumAddress fuel mixture issues and fix oil leaks to prevent fouling
- easyIf fouling is light, attempt careful cleaning; if heavy or oil-contaminated, replace plug
- mediumIf misfire persists after replacement, diagnose ignition coil, wires, and EFI system
FAQ
Can a car run with a bad spark plug?
A car can run with a bad plug, but performance, fuel economy, and emissions suffer. Prolonged operation risks further engine damage.
Yes, you can run, but you will sacrifice performance and may cause further damage over time.
How can I test a spark plug without removing it?
Without removing, testing is limited. A visual check and scanning for misfire codes helps, but a physical inspection is required for a definitive answer.
There isn’t a reliable way to test a plug without taking it out; visual and diagnostic checks help guide replacement.
What color indicates a healthy spark plug?
Healthy plugs typically show a light tan to gray color on the insulator with minimal deposits. Significant discoloration can indicate problems.
Healthy plugs have light tan to gray coloring with minimal deposits.
Do fouled plugs damage the catalytic converter?
Severe misfires from fouled plugs can lead to unburned fuel reaching the exhaust and harming the catalytic converter over time.
Yes, persistent misfires can harm the catalytic converter.
Should I replace all spark plugs at once?
If one plug is faulty, it’s often wise to inspect the rest and replace multiple or all if wear is similar, to ensure even performance.
It’s usually best to replace several or all plugs if wear is similar in the set.
How often should I replace spark plugs?
Follow the vehicle manufacturer’s suggested interval and use quality plugs to maintain reliability and performance.
Check your manual for the recommended interval, and use the right type of plug.
Watch Video
Main Points
- Inspect plugs regularly for signs of fouling.
- Replace worn or fouled plugs promptly.
- Match heat range and torque to spec.
- Check ignition components if symptoms persist.
- Follow manufacturer intervals and maintain preventive care.
