How to Tell If Spark Plugs Are Bad Visually
Learn how to tell if spark plugs are bad visually with clear signs like fouling, oil, worn electrodes, or cracked insulators. A practical, step-by-step guide for DIYers to assess plugs safely and decide whether to clean, replace, or test further.
This guide helps you determine visually whether spark plugs are bad by inspecting wear, fouling, oil, and physical damage. You'll learn what to look for, how to safely access plugs, and how to interpret results without specialized tools. Start by locating the plugs, then inspect insulation, electrodes, and the gasket area.
Why Visual Inspection Matters for Spark Plugs
If you own a car, you may wonder how to tell if spark plugs are bad visually. This method isn't a substitute for compression tests or a professional diagnosis, but it can save time and money by catching obvious problems early. According to MultiPlugging, a visual check is often the first step in a practical spark plug maintenance routine. By learning to read the cues on the plug and the surrounding ignition well, you can decide whether to clean, replace, or test further. In many engines, a bad plug shows up in the form of fouling, oil intrusion, or electrode wear that worsens fuel economy and misfires. The key is to recognize patterns across multiple plugs rather than focusing on one sign in isolation. How to tell if spark plugs are bad visually is often the result of a systematic, repeatable inspection rather than a one-off glance.
In practice, a visual check serves as a quick triage tool that guides your next steps. If the plug looks heavily fouled or damaged, you’ll likely want to test ignition timing, compression, and fuel system health as part of a broader diagnostic effort. For DIY enthusiasts, building a routine around seeing multiple plugs at similar wear levels helps you separate random anomalies from genuine engine issues. Remember, the goal is to catch issues early before misfires become costly repairs.
Tools & Materials
- Spark plug socket set(Include a universal 3/8" drive and appropriate spark plug socket size for your engine (commonly 5/8" or 13/16").)
- Ratchet wrench and extension(Optional: flex extension can aid access in tight engine bays.)
- Terminals/coil pack disconnect tool(Useful if you have coil-on-plug ignition. If not, you’ll remove coil packs per manufacturer.)
- Spark plug gap gauge(Check gap after removal if your engine allows re-gap inspection—do not re-gap unless you know the spec.)
- Screwdriver set and pliers(For prying loose shields or wires when needed.)
- Safety glasses and gloves(Eye protection and gloves protect against debris and fuel exposure.)
- Flashlight or headlamp(Bright light helps spot deposits, cracks, and insulators clearly.)
- Microfiber cloth(Wipe plug surfaces and clean debris from the plug well.)

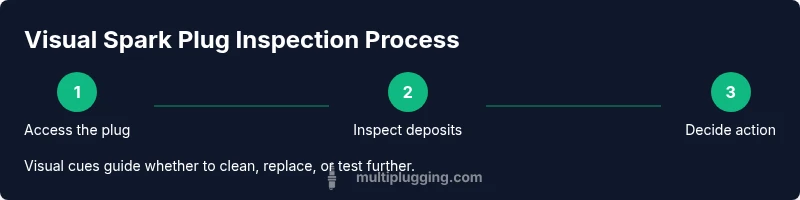

Steps
Estimated time: 60-90 minutes
- 1
Prepare and safety
Park the vehicle on a flat surface, engage parking brake, and disconnect the negative battery lead to prevent accidental contact while handling spark plugs. Wear safety glasses and gloves, and work in a well-lit area. This reduces the risk of slipping or dropping components into the engine bay.
Tip: Double-check that the engine is cool before touching anything to avoid burns. - 2
Locate and access the plugs
Open the hood and locate the spark plug tubes or coils. For engines with coil-on-plug systems, you may need to remove the ignition coil to access the plug. Take care not to damage nearby wires or connectors while lifting covers.
Tip: Label wires or take a photo to recall placement if you’re removing multiple parts. - 3
Remove the spark plug
Use the spark plug socket and ratchet to carefully loosen and remove the plug from the cylinder head. Turn counterclockwise until it spins freely, then lift straight out to avoid twisting the threads. Inspect the removed plug visually as soon as it’s free.
Tip: Avoid using excessive force; if the plug is stuck, stop and consider lubrication or professional help. - 4
Initial visual assessment
Place the plug on a clean cloth and examine insulation, electrode tips, and the ceramic insulator for signs of wear, fouling, or cracks. Note the overall color of deposits and whether oil coating is present. Compare with the other plugs from the same engine.
Tip: Use a bright light and a magnifying glass if needed to see fine cracks or micro-deposits. - 5
Measure gap and deposits
If you have a gap gauge and it’s appropriate for your engine, measure the electrode gap. A visibly widened gap or rounded edges indicate wear and potential misfire risk. Document any oil, fuel, or ash contamination patterns.
Tip: Only gap when you know the spec; otherwise misgapping can worsen performance. - 6
Decide on next steps
Based on the visual findings, decide whether to clean (when deposits are light), replace, or test further with a plug tester or compression check. Reinstall and torque to manufacturer specs if you replace.
Tip: Do not reuse a visibly cracked or heavily fouled plug.
FAQ
What signs indicate a bad spark plug by sight?
Common visual signs include heavy oil fouling, black sooty deposits, white crust, eroded or rounded electrodes, cracked ceramic insulators, and a melted or glazed electrode tip. These cues suggest performance issues.
Look for oil or heavy soot, worn electrodes, or cracks in the ceramic to spot bad plugs. If you see these, you should replace or test further.
Can a spark plug look fine but be faulty?
Yes. A plug can look acceptable yet have an internal fault like a marginal gap, weak ignition or internal electrode damage. Visual checks should be paired with functional tests if misfires occur.
A plug can seem clean but still be faulty; rely on diagnostic tests if performance problems exist.
Do I always need to remove the plug to inspect it visually?
Not always. Some issues can be spotted through the spark plug well cover, electrode ends, and the visible portion of the plug. However, a full visual inspection usually requires removing the plug for a thorough look.
Often you’ll need to remove the plug for a complete visual check.
What should I do if I see oil on the plug?
Oil on the plug usually signals an engine seal or piston ring issue. Cleaning won’t fix it; plan a gasket or ring inspection and address oil intake routes.
Oil on a plug usually means there’s an engine issue that needs attention beyond the plug itself.
Is there a quick checklist for visual inspection?
Yes. Use a simple checklist: inspect insulation, electrode, and tip; check deposits type and distribution; test electrode gap if possible; compare multiple plugs; decide on cleaning, replacement, or further testing.
Use a quick checklist to ensure you don’t miss key signs during a visual check.
How often should I inspect spark plugs visually?
During regular maintenance intervals or when you notice symptoms like rough idling, misfires, or reduced fuel economy, perform a visual inspection of plugs.
If you notice performance issues, inspect plugs as part of your maintenance routine.
Watch Video
Main Points
- Inspect plugs visually to flag obvious faults
- Document deposits, oil, and wear across all plugs
- Do not reuse damaged or cracked plugs
- Follow safety steps and manufacturer torque specs
- Use visual findings to decide cleaning, replacement, or further testing
