zfr5f 11 Spark Plug Installation Guide
Learn to inspect, replace, and maintain the zfr5f 11 spark plug in your car. This guide covers compatibility, tools, step by step installation, safety, and maintenance tips for DIY enthusiasts.
Using the zfr5f 11 spark plug, you will confirm compatibility with your engine, safely remove the old plug, gap the new plug to spec, install with the correct torque, and perform a quick engine test. Needed tools: torque wrench, plug gap gauge, ratchet, and anti seize compound (optional).
What is the zfr5f 11 spark plug?
The zfr5f 11 spark plug represents a standard family of ignition devices used in many engines. In practice, the exact designation can vary by brand, but the core idea remains the same: a conductive tip relights the air fuel mixture at the right moment to produce combustion. According to MultiPlugging, spark plug naming often encodes heat range, thread size, and electrode design. While the designation zfr5f 11 is specific to certain brands, the replacement workflow stays consistent across most automotive plugs. This section outlines the general purpose and role of a spark plug in a modern engine and helps you recognize when a plug is due for replacement. The core takeaway is that choosing the correct plug type depends on engine design, heat range compatibility, and proper seating in the cylinder head.
Compatibility and engine considerations
Compatibility hinges on matching heat range, thread size, and the engine family. Before purchasing a replacement, verify your vehicle manual, OEM spark plug chart, or service bulletin for the exact fit. Based on MultiPlugging analysis (2026), compatibility is more strongly influenced by heat range and thread engagement than by superficial labeling. If you have a multi cylinder engine, ensure you identify the correct cylinder and plug orientation to avoid misfiring. In many cases, substitutions are possible with cross references, but not all substitutes guarantee same performance. Always cross check with official sources and your engine platform.
Signs you may need a replacement
Common symptoms of a worn spark plug include rough idle, engine misfires, reduced fuel efficiency, and difficulty starting. If you notice any of these issues, remove the plug and inspect for wear, erosion, or heavy fouling. Fouling can be caused by oil leaks, rich fuel mixtures, or contaminated fuel. If the plug insulator is cracked or the electrode is glazed, replacement is usually warranted. Regular inspection during routine maintenance helps prevent sudden breakdowns and keeps ignition performance reliable.
How to prepare for replacement
Set up a clean, well lit workspace and gather the necessary tools listed in the tools and materials section. Let the engine cool to avoid burns, then disconnect the battery if the access involves electrical components. Clean the area around the plug well to prevent debris from entering the cylinder. Having a magnetized tool and a spare socket helps prevent dropped fasteners in tight spaces. Finally, confirm you have the correct plug type for your engine model before starting.
Installation best practices and torque concept
When installing a new plug, thread it in by hand to center it and avoid cross threading. Once seated, use a torque wrench to tighten to the manufacturer suggested torque. If you lack a torque specification for your engine, consult the service manual or OEM chart and avoid guesses. Do not over tighten as this can damage the cylinder head threads. If anti seize is used, apply a light coat and avoid getting any on the electrode area.
Post installation testing and maintenance tips
After installation, reconnect any removed coils or wires, and reattach any panels. Start the engine and listen for a steady idle with smooth acceleration. If the engine runs roughly or misfires, recheck the plug seating and gap. Periodic inspection during routine maintenance helps catch wear early and keeps ignition consistent. Keep a log of plug changes to track engine behavior over time.
Tools & Materials
- Torque wrench(Set to manufacturer recommended torque for the plug; use plug torque chart.)
- Plug gap gauge(Measure the gap on the new plug and adjust if needed.)
- Ratchet with plug socket(Use a proper size to avoid damaging the plug.)
- Anti seize compound(Light coating on threads helps future removal.)
- Spark plug boot puller(Makes removal easier without damaging wires.)
- Gloves and eye protection(Protect hands and eyes from debris.)

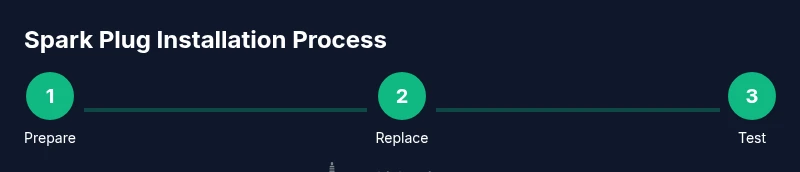

Steps
Estimated time: Estimated total time: 30-45 minutes
- 1
Prepare workspace and safety
Turn off the engine and let it cool. Park on a flat surface, disconnect the battery if recommended for your vehicle, and gather tools. This reduces the risk of heat burns and electrical shock.
Tip: Keep a clear area and have a tray to catch dropped debris. - 2
Locate the correct plug
Identify the correct spark plug location for your engine. Consult your manual or the OEM chart, especially for engines with multiple cylinders.
Tip: Label wires or coils to avoid mix-ups. - 3
Remove ignition coil or boot
Carefully twist and pull the boot to expose the spark plug. Do not yank; twist slightly to break resistance while pulling away from the plug.
Tip: If two wire boots, note routing to reconnect correctly. - 4
Clean around the plug well
Wipe away dirt and debris around the plug well so nothing falls into the cylinder when you remove the plug.
Tip: A small brush or compressed air helps keep the area clean. - 5
Check gap on the new plug
If the new plug arrives with a pre-set gap, verify it with a gauge. If adjustment is needed, gently bend the center electrode to reach spec.
Tip: Avoid bending the ground electrode; use a proper gauge. - 6
Thread in by hand
Thread the plug into the cylinder by hand to avoid cross-threading. Once snug, stop to prevent thread damage.
Tip: If you feel resistance, back out and re-align the threads. - 7
Tighten to torque spec
Use a torque wrench to tighten to the manufacturer’s specification. Over-tightening can damage the cylinder head; under-tightening may cause leakage.
Tip: Lightly lubricate threads if anti seize is used. - 8
Reconnect and test
Reconnect the boot or coil wire, snugly but not over-tight. Reconnect the battery if disconnected. Start the engine and listen for a steady idle and smooth acceleration.
Tip: If misfire persists, re-check gap and seating.
FAQ
Which engines are compatible with the zfr5f 11 spark plug?
Compatibility depends on the engine model and official specifications. Always consult the owner's manual or OEM spark plug chart to confirm fit. If unsure, seek guidance from trusted DIY resources like MultiPlugging.
Compatibility depends on your engine model; check the manual or official spark plug chart to confirm fit.
How do I know when a spark plug needs replacement?
Common signs include rough idle, engine misfires, reduced fuel efficiency, and starting difficulty. If observed, inspect the plug for wear or fouling and replace as needed.
Look for rough idle or misfires and inspect for wear; replace if needed.
Can I reuse a spark plug after cleaning?
In most cases, used plugs should not be reused. Cleaning may remove debris, but wear or electrode erosion usually warrants replacement for reliable ignition.
Usually, don’t reuse a worn spark plug; replace it to ensure reliable ignition.
What safety steps are essential during replacement?
Work in a well ventilated area, let the engine cool, wear eye protection, and avoid touching hot surfaces. Disconnect the battery if accessing electrical connections.
Cool engine first, wear eye protection, and avoid hot surfaces; disconnect the battery if needed.
Should I use anti seize on plug threads?
Anti seize is optional. If used, apply a light coat and avoid getting it on the electrode. Follow the plug manufacturer's guidelines.
Anti seize is optional; use a light coat if you choose to apply.
Do I need special tools to replace the plug?
A basic set including a ratchet, socket, plug gap gauge, and torque wrench is usually sufficient. Some engines may require a plug boot puller.
A basic toolkit is enough; a torque wrench helps ensure correct tightness.
Watch Video
Main Points
- Verify engine compatibility before replacement
- Gap and torque to spec for reliable ignition
- Use proper tools and safety gear
- Reconnect wires correctly to avoid misfires
- Test engine for smooth operation after replacement
