Spark Plug Inspection: A DIY Guide for Car Owners
Learn how to inspect spark plugs for wear, fouling, and gaps. This step-by-step guide covers tools, safety, inspection, cleaning, and replacement decisions to keep your engine running smoothly.
By the end of this guide, you’ll perform a spark plug inspection to assess wear, carbon buildup, and fuel fouling. Gather a spark plug socket, ratchet, extension, feeler gauge, torque wrench, flashlight, and a clean rag. REMOVE the plug, inspect electrode and insulator, check the gap, clean or replace as needed, and reset torque to spec.
What is spark plug inspection and why it matters
Spark plug inspection is a practical diagnostic that helps you catch wear, fouling, and misalignment before they cause engine symptoms like rough idle, misfires, or reduced fuel economy. The core idea is simple: examine the plug’s electrode, insulator, and thread area for signs of wear, fouling, or damage, then verify the gap against the manufacturer's specification. According to MultiPlugging, performing a regular spark plug inspection can reveal creeping issues long before a failure leaves you stranded. You’ll gain insight into combustion quality and heat management, which translates into smoother starts and better efficiency. When you spot wear patterns—rounded electrodes, eroded tips, or brownish insulators—you’ll know it’s time to take action. The process also provides a baseline so you can track wear across seasons and miles, aiding longer-term maintenance planning.
This inspection is especially valuable for engines that misfire under load, run rich or lean, or show rough acceleration. Even if your vehicle runs well, periodic inspection helps you optimize maintenance intervals and can save money by preventing unnecessary plug replacements. The spark plug inspection is therefore not just a task, but a diagnostic habit that keeps you in touch with your engine’s health. For DIY enthusiasts, this is a practical skill that pays dividends in reliability and performance over time.
Safety first: prep and risk awareness
Before you start, safety and prep are non-negotiable. Work on a cold engine to avoid burns, and disconnect the negative terminal of the battery if you’ll be handling wiring or coil packs. Wear gloves to protect your hands from sharp edges and hot metal, and use eye protection in case of spring-loaded components. Clear the work area of clutter, and ensure you have good lighting to spot subtle signs like micro-cracks on the ceramic insulator. Finally, have a fire extinguisher within reach as a general safety precaution when working around the engine bay. The goal is to create a controlled, well-lit workspace where you can inspect each plug without rushing.
This section lays the groundwork for a precise inspection. If you’re uncertain about battery work or coil removal, consult your vehicle’s service manual or seek guidance from an experienced DIY mechanic. The key safety principle is to never force components or work with live electrical circuits. Always prioritize your safety and take time to plan each step. MultiPlugging emphasizes that careful prep reduces the risk of damage and ensures accurate results.
Understanding plug conditions: wear, fouling, and heat range
A visual inspection must differentiate between normal wear, carbon fouling, oil fouling, and damage from incorrect heat range. Normal wear shows a slightly rounded electrode and a lightly soiled tip, which is typical for many miles driven. Carbon fouling appears as a dry, black coating around the electrode and may indicate a rich fuel mix or short trips that don’t heat the plug enough. Oil fouling, often shiny or greasy, signals oil intrusion into the combustion chamber. Sooty, wet, or oily deposits can point to valve guide seals or piston ring issues. If the ceramic insulator is cracked or the electrode is eroded, replace the plug. Finally, verify the heat range is appropriate for the engine; using a plug with the wrong heat range can cause fouling or pre-ignition. This section arms you with a clear understanding of what you’re looking for during the inspection.
Identifying the exact issue guides your next steps, whether cleaning, re-gapting, or replacing the plug. It also helps you explain findings to a shop if you later seek professional help. The inspection isn’t just about looking; it’s about interpreting what the signs mean for combustion efficiency and engine longevity.
Tools and workspace setup
Having the right tools and a clean workspace makes spark plug inspection efficient and accurate. You’ll need a properly sized spark plug socket with a rubber insert, a ratchet, an extension bar, a feeler gauge, a torque wrench, a bright flashlight, and clean rags. Optional items include compressed air for debris removal and anti-seize compound for older engines that require it. Ensure the engine is cool and the area around the spark plugs is free of loose debris to prevent contamination of the plug gap.
With the tools arranged, label each cylinder position so you can track wear per cylinder. A magnetic tray or labeled bag for used plugs helps you keep things organized. If you’re working on a V-engine, take care not to mix up coil packs or wires when removing them. The setup phase is the foundation that ensures a clean, methodical inspection and reliable results.

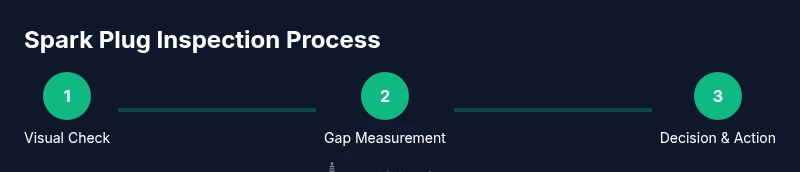

Step-by-step overview before you begin
Before touching any plug, plan the sequence you’ll follow for each cylinder: verify access, remove, inspect, gap, clean or replace, reinstall, torque, and test. This upfront plan helps you stay organized, especially on engines with tight access. By following a standardized approach, you minimize the risk of cross-threading and misplacing components. Prepare a checklist for each plug so you can compare observations and track decisions across all cylinders.
This pre-step is about process discipline. It reduces guesswork and makes it easier to interpret results when you’re done. MultiPlugging recommends keeping a small notebook or digital log of findings and actions per plug to support future maintenance decisions.
Removing and inspecting the plug
Start by removing the ignition coil boot or wire boot for the targeted cylinder, following your manual’s guidance. Use a spark plug socket with a suitable extension to loosen and remove the plug straight out to avoid cross-threading. Once removed, inspect the electrode tip, ground electrode, insulator color, and thread condition. Document any abnormal wear, fouling, or residue in your log. This step provides the actual data required to determine whether cleaning or replacement is the best course of action.
If you spot obvious damage, replace the plug rather than attempting a risky cleaning. Take care not to drop the plug or damage the ceramic insulator. A clean, dedicated workspace helps you avoid losing small parts. This meticulous approach keeps you in control of the inspection’s outcome.
Assessing wear, fouling, and gaps
With the plug out, evaluate three key aspects: electrode wear, fouling type, and the gap. Compare the observed wear to the expected wear for the engine and note whether the electrode edge is rounded or the tip is eroded. Distinguish fouling type—carbon, oil, or fuel—each suggesting different root causes. Measure the gap using a feeler gauge and compare it to the manufacturer’s specification. If the gap is out of spec, you’ll typically re-gap if the plug is non-metal gasket; otherwise replace. Remember that most modern plugs have a fixed gap, and improper re-gap can damage the plug or engine. This analysis informs whether cleaning is sufficient or a replacement is necessary.
Per engine design, slight gap drift is common with mileage, but large deviations indicate the need for action. Document the results for future reference, including the observed wear pattern and gap measurement. This documentation helps you track engine health over time and supports better maintenance planning.
Cleaning vs replacement: making the call
When fouling or wear is mild, cleaning may extend the plug’s life. Light carbon buildup can be removed with a non-metal brush or a quick blast of compressed air, followed by a visual wipe. Heavier deposits, oil intrusion, or melted electrodes usually require replacement. If the plug is not easily cleaned or shows heat-related damage, replacing it is the safer choice. Remember that a worn or fouled plug can cause misfires, rough idle, and reduced efficiency.
Keep in mind that some plugs, such as iridium or platinum types, are designed to last longer and may not benefit as much from cleaning. Always refer to the plug manufacturer’s guidance and your vehicle’s service manual. In most cases, replacing worn plugs yields better performance and reliability than attempting to salvage a marginal plug. This decision point is where practical experience intersects with mechanical judgment, and it’s a good time to consider replacing other plugs if one shows wear.
Reinstallation and torque considerations
Before reinstalling, inspect the threads in the cylinder head for damage or debris. Apply a light coating of anti-seize on old-engine threads only if the manufacturer recommends it; many modern engines require no anti-seize. Reinstall the plug by hand to avoid cross-threading, then tighten with the torque wrench to the manufacturer’s specification. Use a crisscross pattern if you’re dealing with a multi-cylinder setup to ensure even torque distribution. If you’re uncertain about torque specs, consult the service manual or a trusted guide. Reconnect the coil boot securely and move to the next plug.
Proper torque is essential for a reliable seal and gas control. Over-tightening can strip threads or crack the ceramic, while under-tightening can lead to combustion leakage and misfires. This step emphasizes precision and care to finalize the inspection with confidence.
Reconnect, test, and document results
Once all plugs are inspected and reinstalled, reconnect the battery and any wiring you removed. Start the engine and observe for smooth running, steady idle, and absence of misfires. If you notice issues, recheck plugs and wiring connections. Finally, record your findings, including the plug type, gap, wear level, cleaning actions taken, and whether a replacement was performed. This data becomes a useful maintenance reference for the next inspection cycle and can guide future decisions about fuel and ignition system health. The takeaway is to turn inspection into a routine habit, not a one-off task.
By documenting results, you create a maintenance log that helps you optimize service intervals and justify future replacements. This aligns with best practices for vehicle upkeep and ensures you’re prepared for the next spark plug inspection.
Tools & Materials
- Spark plug socket (with rubber insert)(Size matches plug type (e.g., 5/8 inch or 16 mm))
- Ratchet wrench(With extension bar for reach)
- Spark plug gap gauge (feeler gauge)(Use metric or imperial units as per plug spec)
- Torque wrench(Set to manufacturer spec)
- Extension bar(For hard-to-reach plugs)
- Flat blade or wire brush(For cleaning around threads)
- Rags or microfiber towels(Clean area; wipe fouling)
- Safety gloves(Heat-resistant if needed; let engine cool)
- Anti-seize lubricant(Optional for threads on older engines)
- Shop light(Bright lighting for details)
- Compressed air can or blower(Clear debris without touching plug)
- Replacement spark plugs (as needed)(Only if inspection indicates wear/fouling)
Steps
Estimated time: 45-75 minutes
- 1
Power down and cool the engine
Ensure the engine is off and completely cool before you begin. Disconnect the negative battery terminal if you’ll touch wiring or coil packs. This reduces the risk of short circuits and accidental starts.
Tip: Take 15 minutes to let the engine cool and verify all components are safe to touch. - 2
Prepare your workspace and identify plugs
Clean, well-lit space helps you see signs of wear. Label each plug’s position (cylinder 1, 2, etc.) so you don’t mix up components during removal.
Tip: A labeled tray speeds up the inspection and reduces mistakes. - 3
Remove ignition coil boot and access the plug
Carefully disconnect the coil boot or ignition wire from the spark plug. Use the socket and extension to reach the plug without bending or damaging the ceramic.
Tip: Do not pull on the wire; grasp the boot to avoid wire damage. - 4
Loosen and remove the spark plug
Loosen the plug with the correct socket, then lift it straight out to avoid cross-threading. Inspect the thread condition and set the plug aside on a clean surface.
Tip: Keep the plug’s position consistent to prevent cross-contamination. - 5
Visual inspection of the plug
Examine the electrode tip, ground electrode, insulator color, and deposits. Note any abnormal wear or signs of fouling. Record observations for each plug.
Tip: A magnifying glass helps reveal microfractures or minor deposits. - 6
Measure the gap
Use a feeler gauge to measure the spark plug gap. Compare with the manufacturer’s spec and adjust if the plug type allows safe re-gapping.
Tip: Some plugs are pre-gapped and should not be re-gapped beyond spec. - 7
Decide on cleaning vs replacement
If deposits are light, you may clean. Heavy fouling or damaged electrodes usually means replacement. Keep a log of your decision per plug.
Tip: If in doubt, replace—the cost of a new plug is small compared to engine damage. - 8
Reinstall and torque accurately
Apply appropriate lubrication per guidance, thread gently by hand, then torque to spec. Reconnect the coil boot firmly and ensure a secure seal.
Tip: Crisscross tightening (for multi-plug engines) promotes even seating. - 9
Test run and document results
Reconnect the battery, start the engine, and listen for smooth operation. Record plug type, gap, and actions taken for future maintenance.
Tip: Keep a digital or paper log to track wear across service intervals.
FAQ
What is the main purpose of spark plug inspection?
The main purpose is to assess wear, fouling, and gap integrity to prevent misfires and maintain efficient combustion. It helps you decide whether cleaning or replacement is needed.
Spark plug inspection helps you spot wear and fouling so you can decide if you should clean or replace the plug.
How often should I inspect spark plugs?
Inspect during routine maintenance or when you notice symptoms like rough idle, misfires, or reduced fuel economy. Frequency depends on the engine and plug type, but annual checks are common for many vehicles.
Check your plugs during regular service or if the engine acts up.
Can I clean a spark plug or should I replace it?
Light carbon buildup can sometimes be cleaned, but heavy deposits, oil fouling, or damaged electrodes usually require replacement for reliable performance.
Cleaning is sometimes okay for minor buildup, but replace if there’s significant damage.
What does excessive gap indicate?
An excessive gap usually means the plug is worn or the ignition timing is off. Re-gap is often not reliable; replacement is safer if out of spec.
A big gap means wear or timing issues—better to replace.
Is it safe to reuse old plugs?
If the plug shows wear, fouling, or damage, reuse is not recommended. Modern plugs are designed to be replaced at the end of their life.
If in doubt, replace rather than reuse to avoid engine problems.
What should I do after inspection?
Reinstall finished plugs with correct torque, reconnect wiring, and run the engine to verify proper operation. Log findings for future maintenance.
Reinstall, test run, and log results to stay on top of maintenance.
Watch Video
Main Points
- Inspect each plug for wear and fouling.
- Check and compare the gap to spec for accurate ignition.
- Decide between cleaning or replacing based on condition.
- Torque plugs to manufacturer specs to prevent leaks or damage.
- Document results to guide future maintenance.
