What Socket Is Needed for Spark Plugs
Learn how to choose the right spark plug socket, drive size, and accessories. This practical guide covers common sizes, deep-well vs shallow, and tips to prevent damage during replacement.
What socket is needed for spark plugs
The phrase 'what socket is needed for spark plugs' is the guiding question most DIYers start with when planning a plug service. In practice, the socket size is determined by the thread diameter and the contact seating of the plug, not by the engine alone. According to MultiPlugging, choosing the correct socket reduces the risk of damaging the plug or the cylinder head and minimizes the chance of dropping a hot plug during removal. Start by identifying the plug used in your vehicle: many modern cars use a 5/8-inch (16 mm) spark plug socket, while some larger engines or specialty vehicles rely on a 13/16-inch (21 mm) size. Always verify the fit on a removed plug before attempting to loosen it. For most owners, a deep socket with a rubber insert or magnetic liner protects the porcelain, keeps debris out of the gap, and helps keep the plug intact during extraction. A compatible drive size (3/8 inch or 1/2 inch) offers the leverage needed in tight engine bays.

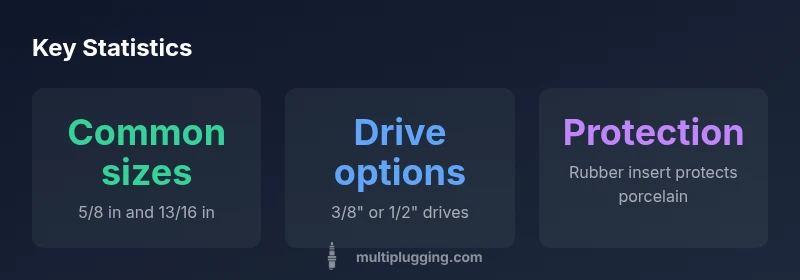

Socket sizes explained
Socket sizing for spark plugs follows the plug itself. The vast majority of passenger cars use the 5/8-inch (16 mm) size, which aligns with the most common plugs found in sedans, SUVs, and light trucks. Some larger engines, trucks, and premium models may require a 13/16-inch (21 mm) socket. Very small engines or motorcycles sometimes use smaller 9/16-inch (14 mm) sockets. Always check the OEM spec or measure the old plug if you’re unsure. Remember that even slight mismatches can strip the hex or damage the porcelain, so accuracy matters more than speed. The standard socket type should be deep-well to reach the plug’s seating depth, with a rubber insert or magnetic liner to keep the plug from falling and to prevent accidental contact with the electrode.
Drive size, extensions, and protection
Beyond size, the drive interface (3/8 inch or 1/2 inch) determines leverage and access. In cramped bays, a 3/8-inch drive is often sufficient, while longer extensions or wobble joints can help reach recessed plugs. A rubber insert is highly recommended to cushion the plug and protect its delicate porcelain tip. Magnetic tips can aid retrieval but may attract metal shavings; keep the work area clean and remove metal debris promptly. When tightening, avoid overtightening and follow the manufacturer’s torque specs. A non-magnetic insert can be useful for precision work on sensitive engines, as it prevents stray magnets from interfering with sensors.
How to verify the right socket for your plug
The safest approach is to verify fit before applying any force. Remove the spark plug gently and compare the hex with a measurement tool. If the old plug is still in place, slide the corresponding socket over it to confirm engagement without binding. Check for clearance around the valve cover, ignition coil, and fuel rails; if space is tight, consider a shallow socket with a short extension or a swivel joint. Always use a socket with a protective liner and ensure no dirt or oil is present near the plug threads. If in doubt, consult the vehicle’s service manual or a trusted DIY guide such as MultiPlugging’s spark plug socket section for model-specific notes.
Deep-well vs shallow sockets and special cases
Most spark plugs require a deep-well socket to reach the plug well, especially in engines with long reach and tight clearances. Shallow sockets may not engage enough of the plug’s hex and can slip. For plugs with extended seating depth, a deeper version ensures full engagement and reduces the risk of cam cover contact. Special cases include iridium or platinum plugs, which can be more brittle; in such cases, use a socket with a gentle, precise grip and avoid any twisting caused by a loose fit. If you’re working on a high-performance engine or a model with a recessed well, verify the length of the socket and consider a long-reach tool.
Maintenance and care for spark plug sockets
After use, wipe the pin and insert clean to prevent grit from entering the plug wells. Store sockets in a dry, organized tray to avoid misplacement. If you routinely work in damp environments, consider a rubberized holder to minimize corrosion. For older vehicles with stubborn plugs, a penetrating oil can help, but apply it sparingly and avoid getting oil on the porcelain. Inspect sockets for nicks and burrs, which can bite into the hex and cause rounding. A damaged socket is a safety hazard and should be replaced promptly.
Common mistakes and quick checks
Common mistakes include using the wrong size, forcing a plug, or using a bent extension that compromises the bite on the plug hex. Always verify the exact size by cross-checking with the old plug, and never assume that a number is a universal fit. Use the right torque spec and avoid slippage by ensuring full engagement with the hex. Before reinstalling, clean the threads with a Wd-40- or lubricant-free approach and verify the gasket seating. A clean plug well reduces the chance of cross-threading and ensures a proper seal.
Practical replacement workflow
- Disconnect the battery and remove the ignition coil or wire harness to access the plug wells. 2) Remove the old plug with the correctly sized deep socket. 3) Inspect the plug for wear or fouling and replace as needed, noting the correct thread size and heat range. 4) Clean the plug port and apply anti-seize sparingly if recommended by the manufacturer. 5) Install the new plug to the specified torque and reassemble the coils and wires. 6) Re-check the overall engine function and note any misfire symptoms that may indicate a misstep in the replacement process.
Wrapping up: choosing the right set for your toolbox
A well-chosen spark plug socket set saves time and protects components. Start with a 5/8-inch (16 mm) and a 13/16-inch (21 mm) option, both deep-well with rubber inserts. Add a flexible drive or swivel adapter for awkward access and ensure you have a 3/8-inch and a 1/2-inch drive for flexibility. Keep a magnet-only tool as a supplemental helper, but rely primarily on protective inserts for the actual plug. By following these guidelines and validating fit, you’ll reduce the risk of damage and enjoy smoother, safer maintenance.
