Spark Plug Socket and Ratchet: A DIY Guide
Learn how to choose and use a spark plug socket and ratchet for safe, effective spark plug replacement. Tips on tool selection, step-by-step removal and installation, safety, and maintenance to keep engines running smoothly.
Goal: learn how to choose the right spark plug socket and ratchet, prepare the workspace, remove old plugs, inspect and gap new plugs, apply anti-seize where recommended, torque to spec, and reinstall the ignition wires. This practical, step-by-step guide covers safety, tool selection, common mistakes, and maintenance tips to keep engines running smoothly.
Why the right tools matter for spark plug maintenance
Using a spark plug socket and ratchet correctly is the cornerstone of safe, efficient ignition maintenance. The right socket size, a deep or thin-wall design, and a snug ratchet reduce the risk of cross-threading, damaging ceramic insulators, or dropping a plug into a hard-to-reach recess. When you pair a high-quality socket with a comfortable ratchet, you gain predictable leverage and better access to tight engine bays. For DIY enthusiasts, this combination saves time and protects expensive engine components while delivering consistent torque control and clean thread engagement. As part of a broader maintenance plan, selecting compatible tools becomes a one-time investment that pays off with easier future service and fewer trips to the parts store.
Anatomy of a spark plug socket and ratchet
A spark plug socket is a specialized, usually deep-well or thin-wall tool designed to reach deep into the cylinder head and grip the ceramic portion of the spark plug. The ratchet provides controlled, repeatable motion, and often a quick-release button helps you switch sockets rapidly. Many setups include extensions and sometimes a universal joint for awkward orientations. A magnetized insert helps hold a plug in place while threading it into the cylinder head. Understanding these parts helps you choose the right combination for your vehicle and prevents accidental damage during removal or installation.
Drive sizes, socket depth, and reach: what to choose
Most passenger cars use a 3/8-inch drive as a versatile default, while some compact engines benefit from a 1/4-inch drive for tighter spaces. Deep-well sockets reach the bottom of the plug recess and prevent the socket from bottoming out on the ceramic portion. For engines with shallow or congested spark plug wells, a thin-wall socket reduces clearance loss and increases breathing room around threads. When space is extremely tight, an extension bar plus a swivel/ball joint can help you align the socket with the plug without bending wires or tools. Matching the tool’s length to the engine bay geometry minimizes the risk of slipping or rounding the plug.
Feature considerations: extensions, swivels, and magnets
Add extensions to increase reach, but avoid excessive length that causes flex and slip. A swivel joint allows off-angle access, which is common in transverse-engine layouts. A magnetized socket insert helps keep the plug on the tool during removal, but you should verify the magnet doesn’t interfere with the plug or stay in the recess after installation. For many DIYers, a lengthened, magnetic, deep-well socket paired with a mid-length ratchet offers the best balance of reach and control, especially in engines with crowded plug wells.
Safety and workspace preparation
Before starting, ensure the engine is cool and the vehicle is parked on a level surface. Disconnect the negative battery terminal to reduce the risk of short circuits while working near electrical components. Keep the workspace tidy and free of debris that could fall into the plug wells. Wear gloves to protect hands from sharp edges and hot components, and store small parts in labeled containers to prevent misplacement. Clear lighting and a GSM-safe environment help you see every thread and seat the plug correctly. A clean, organized setup minimizes mistakes and speeds up the process.

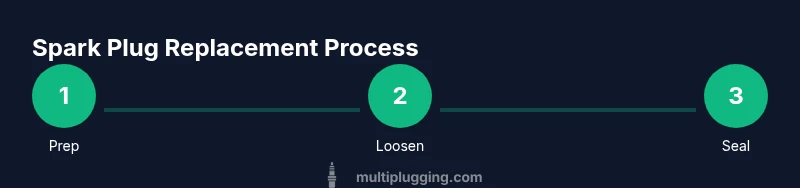

Step-by-step overview of the removal and installation process
This overview outlines the general flow of the task. Start by prepping safety measures, then remove the ignition coil boot or wire, select the correct spark plug socket, break the plug loose, unscrew it the rest of the way, inspect and gap the replacement plug, thread it carefully, and finally reattach the coil boot or wire. Always torque to the engine manufacturer’s specification and verify the wire seating after reassembly. This approach reduces cross-threading risk and maintains optimal engine performance.
Common mistakes and how to prevent them
Common errors include using the wrong socket size, letting debris enter the plug wells, over-tightening plugs, and failing to reconnect ignition components securely. To avoid these issues, double-check socket fitment before loosening plugs, wipe the well area clean, maintain steady torque with a torque wrench when possible, and verify that each boot is firmly seated after replacement. Taking a methodical approach reduces misfires and ensures reliable starting.
Maintenance, care, and tool longevity
After completing the job, clean and dry tools before storage. Wipe off any oil, grease, or residue from the spark plug boot area and wipe down the socket interior to prevent corrosion. Store tools in a dedicated case or tray, keeping sockets organized by size and drive. Periodically inspect extensions and swivels for play or wear and replace any components showing fatigue. Proper cleaning and organization extend tool life and keep your kit ready for the next maintenance task.
Real-world scenarios: tricky plugs and engine layouts
Some engines place plugs behind exhaust manifolds or under restrictive components, requiring careful planning and the right combination of extensions and swivels. In severe cases, you may need to temporarily remove nearby components for better access. The key is to move deliberately, keep track of the plug orientation, and avoid forcing tools into cramped spaces. With the right socket, ratchet, and patience, most plug replacements can be completed safely in a standard driveway setting.
Tools & Materials
- spark plug socket (deep-well or thin-wall, 3/8-inch drive)(Choose a magnetic, deep-well version to grip the plug body securely)
- ratchet (3/8-inch drive)(Comfort grip and smooth mechanism matter for precision)
- extension bar (3-6 inches)(Useful for reaching recessed plugs)
- universal joint / swivel(Helps in tight angles)
- torque wrench(Recommended for precise torque per vehicle specs)
- anti-seize lubricant (small amount)(Follow manufacturer guidance; some engines disallow it)
- spark plugs (new, correctly sized for engine)(Pre-gap if needed or verify gap on installation)
- gap tool / feeler gauge(Only if you need to pre-check pre-gap plugs)
- dielectric grease or boot lube(Lightly apply to the boot interior for ease of removal later)
- clean rag or shop towel(Wipe debris and residue from plug wells)
- penetrating oil (optional)(Use sparingly if a plug is stubborn)
Steps
Estimated time: 30-60 minutes
- 1
Prepare workspace and safety
Park on a level surface, engine cool. Disconnect the negative battery terminal and gather all tools. Clear the area of loose objects and ensure adequate lighting. This reduces the risk of shorts and dropped parts during the job.
Tip: Double-check the tool layout before starting to minimize interruptions. - 2
Locate plugs and select socket
Identify each spark plug and choose the correct deep-well or thin-wall spark plug socket for the job. Confirm the drive size (usually 3/8-inch) matches your ratchet to ensure a secure fit.
Tip: Test fit the socket on the first plug to ensure a clean grip without slippage. - 3
Loosen coil boots or wires
Carefully grasp the boot and twist gently to break the seal, then pull straight off the plug. Do this one plug at a time to avoid misplacement of wires in the harness.
Tip: Label or note each wire position if multiple plugs are involved. - 4
Clean around the plug wells
Wipe away dirt and oil from the well rims to prevent debris from falling into the cylinder. This keeps contaminants out of the combustion chamber during extraction.
Tip: A small air blast can help clear stubborn debris without touching the plug area. - 5
Loosen and remove the old plug
Attach the socket to the extension and ratchet, place it on the plug, and turn counterclockwise to break free. Once loose, remove by hand to avoid cross-threading the plug.
Tip: If the plug is difficult, stop and consider using penetrating oil and wait a few minutes. - 6
Inspect the old plug and gap (if reusing)
Check the old plug for wear, fouling, or damage. If reusing, verify the gap with a gap gauge; otherwise, install a new plug of the correct type.
Tip: Note any unusual wear patterns as clues for engine health. - 7
Prepare the new plug and thread it by hand
Carefully thread the new plug into the cylinder head by hand to start, avoiding cross-threading. Once finger-tight, switch to the ratchet for final seating with controlled torque.
Tip: Do not force the plug; continue by hand if resistance is felt. - 8
Torque to spec and reinstall boot
Using a torque wrench (or calibrated approach), tighten to the manufacturer’s specification. Reattach the boot or wire until a firm seat is felt, then give a gentle wiggle to verify seating.
Tip: Always torque to the manufacturer spec to prevent thread damage. - 9
Return to the next plug and repeat
Proceed to each plug in the same manner, keeping track of positions. After all plugs are installed, reconnect the battery and start the engine to verify operation.
Tip: Take a brief break between plugs to maintain focus and reduce mistakes.
FAQ
What is a spark plug socket and why do I need it?
A spark plug socket is a specialized deep-well tool designed to grip the ceramic portion of a spark plug without damaging it. Using it with a ratchet ensures a secure grip, proper torque, and minimal risk of dropping the plug into the well. It’s essential for safe removal and installation in most engines.
A spark plug socket is a deep-well tool that grips the plug’s ceramic part. Paired with a ratchet, it helps you remove and install plugs safely without dropping or cross-threading.
Can I use any socket with a ratchet for spark plugs?
You should use a spark plug socket that is specifically designed for plugs. Regular sockets may not reach deep enough or could crush the plug’s ceramic. A thin-wall or deep-well socket is usually the best choice, paired with the correct drive size.
Not all sockets fit spark plugs. Use a spark plug socket with the right depth and drive size for safe removal and installation.
How do I know the correct torque for plugs?
Check the vehicle’s service manual or a trusted repair guide for the exact torque specification. Use a torque wrench to apply the specified value, then recheck the boot seating after installation.
Look up the exact torque in the manual and use a torque wrench to reach it. Recheck that the boot is seated after installation.
Is anti-seize always required on spark plugs?
Anti-seize is recommended by some manufacturers but not all. Some modern engines specify anti-seize or torque changes with certain plug types. Always follow the vehicle’s service manual guidance.
Anti-seize isn’t universal; some engines require it, others don’t. Refer to the manual for your specific engine.
What should I do if a plug is stubborn or stuck?
Do not force the plug. Apply penetrating oil, let it sit, and use the proper socket with a breaker bar or longer extension for better leverage. If still stuck, pause and reassess to avoid damage.
Don’t force it. Use penetrating oil and the right tools, and take a pause if needed to avoid damage.
How can I prevent dirt from entering the engine while replacing plugs?
Clean the area around the plug wells before removing any components. Use a rag and a brief air blast if available to clear debris and prevent contaminants from falling into the cylinder.
Clean the plug wells before removal; wipe away debris and use air if available to keep the engine clean.
Should I replace all plugs at once or one by one?
If your engine is running roughly or you’re already disassembling parts nearby, replacing plugs one by one helps avoid misplacement and keeps the process manageable. For some vehicles with many plugs, completing all replacements in a single session can be efficient.
You can do them one by one to stay organized, or replace all in one session if you have the time and space.
Watch Video
Main Points
- Choose the right spark plug socket and ratchet for safe access.
- Follow proper safety and torque procedures to prevent damage.
- Inspect and gap new plugs as needed before installation.
- Keep your tool kit organized to speed future maintenance.
- Double-check boot seating after reinstalling plugs.
