Spark Plug Guide for Can-Am X3
Learn how to diagnose, replace, and optimize spark plugs on the Can-Am X3 with safe, step-by-step instructions. This guide covers plug types, gaps, torque guidance, and maintenance for off-road performance.
You will learn how to diagnose, remove, and replace spark plugs on a Can-Am X3, including checking gaps, choosing the right plugs, and safely testing the engine after replacement. This quick guide covers essential tools, torque considerations, and common mistakes to avoid for reliable off-road performance. It will also outline safety steps and a step-by-step workflow you can follow in your garage or trail side.
What is a spark plug and why it matters for the Can-Am X3
The spark plug is the small, heat-tolerant device that ignites the air-fuel mixture in the X3's engine. In a high-performance, off-road environment, plugs endure heat, vibration, and fuel contaminants. A fouled or worn plug can cause misfires, reduced power, and poor throttle response, especially under load. According to MultiPlugging, keeping plugs clean and correctly gapped is essential for reliability in rough terrain. The Can-Am X3 uses a four-stroke engine that relies on consistent spark to maintain peak torque and efficient combustion. Regular inspection helps you catch fouling, cracks, or carbon buildup before a failure occurs. In practice, you should inspect plugs as part of routine maintenance and before long trips, especially if you notice hesitation, misfire, or rough idle. For the spark plug can am x3, use the recommended heat range and gap from the service manual.
Spark plug types suitable for Can-Am X3
There are several common plug technologies used in modern off-road engines. Iridium plugs offer long life and stable firing under vibration; platinum plugs balance performance with cost; copper plugs deliver fast heat transfer but shorter life. For the Can-Am X3, choose a plug that matches your engine's heat range and performance needs, and follow the manufacturer guidance. If you’re upgrading for performance or running in extreme conditions, consider high-performance options, but ensure the plug's reach and thread length fit the cylinder head. Always install plugs with a clean boot and dry threads to avoid misfires caused by moisture or oil.
Signs it's time to replace your spark plugs
If you notice the engine running rough, missing at higher RPM, or hesitation when you accelerate, the plugs may be due for replacement. A drop in fuel efficiency, increased exhaust emissions, or a check engine light can also indicate fouling or wear. On Can-Am X3, misfires or rough idle during off-road crawling can be a symptom of worn electrodes or buildup. Inspect the plug electrodes and insulators; a white or blistered ceramic insulator, melted electrodes, or heavy carbon fouling are clear signs to replace.
How to choose the right plugs and gap for your X3
Choosing the right spark plug involves matching heat range, thread size, and seating type to your engine year and model. Consult the X3 owner's manual or a dealer for the exact recommended heat range. If you're upgrading for performance or running in extreme conditions, consider high-performance options, but ensure the plug's reach and thread length fit the cylinder head. After selecting the plug, measure and set the gap with a gap tool if the plug doesn't come pre-gapped. A correct gap ensures a reliable spark and predictable ignition timing.
Safety, maintenance schedule, and prep before replacement
Park the vehicle on a level, non-slip surface; allow the engine to cool; remove the battery ground to prevent short circuits. Gather your tools and spare plugs ahead of time. Keep a drain pan and rags for spills. Disconnect the ignition coil boot only when the engine is cool; tug straight to avoid damaging the connector. Prepare a clean workspace so you don't drop debris into the cylinder head.
What you need before you start (tools, parts, consumables)
Tools and materials: spark plug socket with rubber insert, ratchet and extensions, torque wrench (optional), gap tool, new spark plugs, dielectric grease, anti-seize compound (if recommended), gloves, rag, container for old plugs, spare boots. Keep spare plugs in a labeled bag and set up a small parts tray to avoid losing fasteners. A clean, organized workspace reduces the risk of cross-contamination and misplacements during reassembly.
Tools & Materials
- Spark plug socket with rubber insert(6-point design preferred, ensure fits your plug type)
- Ratchet, extensions, and adapters(Long enough to reach plug wells on Can-Am X3)
- Gap tool or feeler gauge(Check and adjust plug gap if needed)
- Replacement spark plugs for your engine(Choose the correct heat range and thread size per manual)
- Torque wrench (optional)(Use if you want to confirm proper seating without over-tightening)
- Dielectric grease(Coat inside the boot for a better seal)
- Anti-seize compound(Only apply if recommended by manual)
- Gloves, rags, and a drain pan(Keep the work area clean and avoid spills)

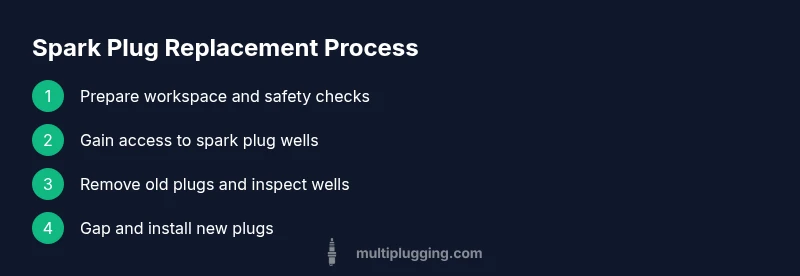

Steps
Estimated time: 45-60 minutes
- 1
Prepare your workspace
Park on a level surface and let the engine cool completely. Gather all tools and spare plugs so you won't need to leave the job mid-way. Clear away loose debris and position a drain pan under the plug wells to catch any spills.
Tip: Take a quick photo of the original plug orientation before removal for reference. - 2
Disconnect the battery and coil packs
Disconnect the negative battery terminal to prevent accidental sparks. Locate the ignition coil boots and disconnect them carefully to avoid damaging wires or connectors. Label coil positions if you have multiple cylinders.
Tip: Work slowly and keep track of coil positions to avoid mis-wiring on reassembly. - 3
Access the plugs
Remove any engine covers or shields that block plug wells. Some models require removing a coil pack to access the plug. Use a flashlight to inspect for oil leaks or corrosion around the wells.
Tip: Store fasteners in a labeled tray to prevent loss. - 4
Remove the ignition coil boot
Gently twist and pull the coil boot to expose the plug. Do not yank, which can damage wires. If the boot sticks, wiggle with steady pressure at the base.
Tip: A small magnet can help you hold the boot while you work. - 5
Loosen and remove the old plug
Fit the spark plug socket over the plug and turn counterclockwise to loosen. Lift carefully to avoid dropping debris into the well. If the plug is tight, use a small amount of penetrating oil and wait a moment.
Tip: Do not force a stubborn plug; cross-threading ruins threads. - 6
Check and set the gap on the new plug
Compare the new plug gap to the manual specification using a gap tool. If adjustment is needed, do it gently and verify both electrodes and insulator are clean before installation.
Tip: Handle the plug by the threads to avoid oil from your fingers altering the gap. - 7
Install the new spark plug
Thread the new plug by hand to avoid cross-threading. Once it seats, snug it with a wrench and then apply final torque if you have one. Avoid overtightening to prevent thread damage.
Tip: Use anti-seize only if the manual instructs; many plugs arrive properly treated. - 8
Reconnect coil boot and secure
Push the coil boot firmly onto the new plug until you feel or hear a click. Reconnect any harnesses to the coil and ensure solid seating. Inspect the boot for cracks or wear.
Tip: Check the boot seal; a damaged boot can cause misfires after installation. - 9
Reconnect battery and run a test
Reconnect the battery, start the engine, and verify a smooth idle. If you hear misfires, stop and re-check plug seating and gap. Take the X3 for a short test drive to confirm power delivery.
Tip: If you smell fuel or see fuel drips, re-check seals and connections before driving.
FAQ
Is it safe to replace spark plugs on a Can-Am X3 myself?
Yes, you can replace the spark plugs yourself with the right tools and safety precautions. Ensure the engine is cool, disconnect power, and follow the steps outlined here.
Yes, you can replace spark plugs yourself if you follow the safety steps and use the proper tools.
What spark plug type should I use for Can-Am X3?
Use the plug type recommended by your owner's manual or dealer, ensuring correct heat range and thread size for your model year.
Use the manufacturer recommended plug type from the manual.
How often should I replace spark plugs in a Can-Am X3?
Follow the maintenance schedule in your manual; intervals vary with usage, load, and environment.
Follow the manual's maintenance schedule; intervals vary by use.
What are common signs of fouled spark plugs?
Rough idle, misfires, hesitation, reduced power, or check engine light can indicate fouling or wear.
Watch for rough idle, misfires, and power loss.
Should I gap the replacement plugs before installation?
Yes, verify and adjust the gap to the manual spec; many plugs come pre-gapped but it’s worth checking.
Yes, always check the gap before installing.
Do I need anti-seize on spark plugs for the X3?
Only apply anti-seize if the manual instructs it; many OEM plugs have coatings that reduce the need.
Only use anti-seize if the manual tells you to.
Watch Video
Main Points
- Inspect plugs before long off-road trips.
- Use the correct heat range and gap for the Can-Am X3.
- Follow safe, step-by-step replacement to avoid damage.
- Verify boot seals and wiring after reassembly.
- Refer to manual and dealer guidance for exact specs.
