Spark Plug 14mm Socket: DIY Replacement Guide
Learn to safely replace spark plugs using a 14mm socket. This comprehensive step-by-step guide covers tools, safety, torque guidance, gap checks, and common mistakes for DIY car owners.
With this guide, you will learn to locate, remove, and replace spark plugs using a spark plug 14mm socket, torque the new plugs correctly, and check gaps. You'll also need a few common hand tools and a torque wrench. This approach minimizes damage and ensures a snug seal. It covers safety, inspection, and how to avoid cross-threading.
Why the spark plug 14mm socket matters
According to MultiPlugging, the spark plug 14mm socket is the standard size for many engines, offering a secure grip that minimizes the chance of rounding plug hexes during removal or installation. Using the correct socket reduces the risk of thread damage, makes leverage more predictable, and helps you reach plugs tucked under coil packs or intake manifolds. If you’re using an incorrect size, you may strip the plug or the seat, which can lead to poor combustion, misfires, or costly repairs. The spark plug 14mm socket is compatible with most regular-duty spark plugs found in everyday passenger cars, light trucks, and many older engines. For performance engines with different plug sizes, you’ll need the corresponding socket. Always verify the plug size in your owner’s manual or service guide before starting.
Tools and materials you’ll need for spark plug service (including the 14mm socket)
Preparation matters. Gather a 14mm spark plug socket (deep-well if needed), a ratchet, an extension bar, a torque wrench, a spark plug gap gauge, new spark plugs, anti-seize compound (optional), and a clean rag. A magnetic pickup tool can prevent drops in tight wells. Label wires or coils so you can reattach them to the correct cylinders. Having everything within reach minimizes engine bay rummaging and reduces the time your engine stays exposed to debris. This section also highlights where the 14mm socket shines: it reaches plugs threaded into narrow wells and provides a solid grip to avoid cam or coil damage during removal or installation.
Safety and prep before working on your engine
Working around an engine can pose burn and electrical hazards. Park on a flat surface, engage the parking brake, and disconnect the negative battery terminal to prevent accidental shorts. Let the engine cool before you touch spark plugs; hot engines can cause burns and heat-related injuries. Wear eye protection and gloves to guard against sharp edges, and keep tools organized so you don’t drop anything into the engine. When you begin, keep a clean workspace and avoid forcing components; a rushed job raises the risk of thread damage and misfires.
Remove old plugs: quick overview of the process (with the 14mm socket)
Access is the main challenge. Start by removing any obstructions (coil packs or ignition wires) to expose the spark plug wells. Use the 14mm spark plug socket attached to a ratchet with an extension to loosen and remove the old plug. Turn slowly and steadily; if you feel unusual resistance, stop and recheck for debris or cross-threads. Once loosened, lift the plug straight out to avoid disturbing the threads in the cylinder head. Inspect the plug for wear, carbon buildup, or oil fouling to diagnose engine conditions.
Install new plugs with proper gap and torque guidance
Before installation, check the gap on each new plug using a gap gauge or follow the manufacturer’s recommended gap. If the gap is correct, thread the plug by hand into the cylinder head to avoid cross-threading, then snug it with the 14mm socket. Finish with a light torque using a torque wrench to manufacturer spec; never rely on feel alone. Reattach the ignition coils or wires to their respective terminals, ensuring a firm connection.
Common mistakes and how to avoid them
Rushing the job leads to cross-threading, overtightening, or forgetting to reconnect a coil. Using a socket that’s slightly undersized can slip and ruin the plug. Avoid applying anti-seize on all engines unless recommended, as it may alter torque behavior. Always validate the thread cleanliness in the well and clean debris before installing the new plug. Take photos of wiring layouts if you’re unsure about reassembly.
Maintenance tips to extend spark plug life
Regular inspections during routine maintenance prevent unexpected misfires. Replace plugs at intervals recommended by your vehicle’s manual and use plugs matching the engine’s heat range. Keep coil boots clean and free of oil leaks, which can degrade insulation. Consider keeping a set of spare plugs for quick roadside changes in case of sudden misfires. Over time, poor fuel quality and oil leaks can foul plugs; addressing these issues early extends combustion efficiency and engine health.
Tools & Materials
- spark plug 14mm socket(deep-well recommended for hard-to-reach plugs)
- ratchet wrench(1/4-inch or 3/8-inch drive depending on space)
- extension bar(helps reach recessed plugs)
- torque wrench(set to engine manufacturer spec (Nm))
- spark plug gap gauge(verify correct electrode gap for each plug)
- new spark plugs(correct heat range and thread type per engine)
- anti-seize compound(optional; follow manufacturer guidance)
- rag or brush(clean plug wells and coil contact surfaces)
- magnetic pickup tool(helps retrieve dropped plugs)

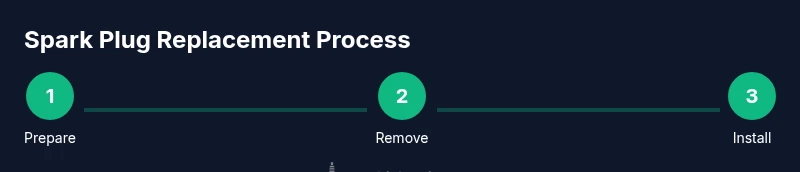

Steps
Estimated time: 60-90 minutes
- 1
Disconnect battery (negative terminal)
Safety first: disconnect the battery negative terminal to prevent sparks and shorts while working near ignition components. This reduces the risk of electrical shock and accidental cranking.
Tip: Use insulated tooling and keep the terminal away from metal surfaces. - 2
Access spark plugs and remove ignition wires
Open the hood and locate the spark plug wells. Gently detach the ignition coil or wires connected to the plugs. Keep track of which wire goes where by labeling or taking a photo.
Tip: Move wires in order to avoid crossing and reposition them carefully. - 3
Loosen plug with 14mm socket
Attach the 14mm spark plug socket to a ratchet with an extension and carefully loosen the old plug. Do not force it if it’s stuck; check for cross-threading or debris.
Tip: Use a steady, straight pull to avoid bending the plug shank. - 4
Remove old plug
Gently lift the old plug out of the cylinder head. If it resists, stop and re-verify that there’s no debris blocking the threads.
Tip: Avoid wiggling; straight out motion preserves threads. - 5
Inspect plug bore and threads
Look for oil, soot, or heavy carbon buildup that indicates engine issues. Clean the bore and threads with a clean rag; ensure the threads are dry before installing a new plug.
Tip: If you see oil on the plug, diagnose potential valve cover gasket leaks. - 6
Gap the new plug
Check the gap on each new plug against the manufacturer’s spec using a gap gauge. Adjust carefully if needed by bending the electrode (not the center metal).
Tip: Handle plugs by the threads to avoid damaging the electrode. - 7
Hand-tighten the new plug
Thread the new plug by hand until snug to prevent cross-threading. Avoid overtightening at this stage to preserve seat integrity.
Tip: If you drop the plug, retrieve it with a magnet before attempting re-installation. - 8
Torque the plug to spec and reattach wires
Use a torque wrench to reach the engine’s torque specification. Reinstall the ignition coil or wire, ensuring a firm connection, then reconnect the battery.
Tip: Double-check that each plug is seated evenly to avoid leaks.
FAQ
What is a spark plug 14mm socket and why is it important?
A spark plug 14mm socket is the correct tool size for most spark plugs. It provides a secure grip on the plug’s hex to prevent slipping or rounding during removal or installation. Using the right socket reduces the risk of damaging the plug threads and makes the job smoother.
The 14mm socket is the standard size for most spark plugs, giving a secure grip and reducing the chance of damage during removal or installation.
Can I reuse old spark plugs after cleaning?
In most cases, you should replace old plugs with new ones. Reusing fouled or worn plugs can lead to misfires, reduced fuel economy, and engine damage. If the plug shows heavy wear or fouling, replace it with a new one.
It's generally better to replace worn or fouled plugs rather than reuse them.
How do I know the correct torque for my plugs?
The correct torque depends on the engine and plug type. Always refer to the vehicle’s service manual or manufacturer guidelines. Use a torque wrench to reach the specified value to ensure a proper seal without stripping threads.
Check the manual for the exact torque; use a torque wrench to reach that spec.
What should I do if a plug won’t loosen or cross-threads?
Stop immediately if a plug resists. Applying force can strip threads. Check for overtightening, dirt, or damage in the well. Consider using penetrating oil and a proper impact tool if needed, or seek professional help.
If it won’t loosen, don’t force it. Inspect for damage and consider professional help.
Is anti-seize recommended when installing plugs?
Anti-seize is sometimes recommended for certain engines but can alter torque values. Follow the manufacturer’s guidance. If in doubt, skip anti-seize and focus on clean threads and proper torque.
Only use anti-seize if the manufacturer says it’s okay; otherwise, torque correctly and keep threads clean.
Should I gap plugs before installation?
Most new plugs come pre-gapped. If you’re replacing with a different heat range or brand, check and adjust the gap using a gauge as specified by the manufacturer. Do not guess the gap.
Yes, check the gap if your plugs aren’t pre-gapped to the exact spec.
What signs indicate I should replace spark plugs sooner?
Look for persistent misfires, rough idling, reduced acceleration, or a check engine light. Fouled plugs can also show heavy carbon, oil, or ash deposits. Address fuel, ignition, or oil issues to protect plug life.
Misfires or poor acceleration? Time to inspect plugs and engine conditions.
Can I perform spark plug work on a cold engine?
It’s safer to work on a cooled engine. Hot components can cause burns and the metal expands when hot, affecting thread fit. Allow the engine to cool before starting work.
Work on a cooled engine to avoid burns and avoid thermally expanding parts.
Watch Video
Main Points
- Identify and use a 14mm spark plug socket for most engines.
- Follow safety steps: disconnect battery, cool engine, and label wires.
- Gap and torque plugs to manufacturer specs to avoid leaks and misfires.
- Inspect wells for debris and oil to diagnose engine health.
- Reassemble carefully and verify connections after replacement.
