rdz4h Spark Plug Guide: Diagnostics to Replacement
Learn how to diagnose and replace the rdz4h spark plug with clear steps, essential tools, and safety tips for reliable engine performance in all conditions.
According to MultiPlugging, this guide will teach you how to diagnose and replace the rdz4h spark plug, using a safe, practical approach that applies to most gasoline engines. The process emphasizes correct tool choice, proper gap, correct torque, and how to avoid common mistakes. This quick answer sets expectations for safety, time, and results, and it points readers toward the detailed steps and checks that follow in the body.
What the rdz4h spark plug represents in automotive diagnostics
In this guide we treat the rdz4h spark plug as a practical, hypothetical model used to illustrate a clear maintenance workflow. The goal is not to identify a real-world part but to demonstrate a reliable method for diagnosing, replacing, and optimizing the ignition plug in common engines. By focusing on fundamentals—tool selection, clean threads, proper seating, and cautious handling—you can apply the same steps to any compatible plug. Throughout these sections, you’ll find concrete, action-oriented guidance that aligns with MultiPlugging’s emphasis on safe, repeatable DIY practice. Always cross-check specifications in your vehicle’s owner’s manual before purchasing or installing any plug.
Spark plug basics and performance implications
A spark plug is a small but critical engine component that delivers the electric arc necessary to ignite the air-fuel mixture inside each cylinder. The rdz4h spark plug, like other plugs, has a heat range, electrode gap, and protective ceramic insulator. Changes in electrode color, deposits, or gaps can signal running conditions that affect fuel efficiency, power, and emissions. When a plug is worn, misfires may occur, leading to rough idle, reduced throttle response, and higher engine temperatures. Understanding these basics helps you evaluate why maintenance matters: a clean, properly gapped plug contributes to smooth combustion and optimal ignition timing, which in turn supports longer engine life and better reliability.
Inspecting plug condition without disassembly
Visual cues can guide you even before removing a plug. Look for exterior oil leaks on the plug body, heavy carbon or ash deposits, or a cracked ceramic insulator. If the engine runs rough or exhibits misfires on a cylinder, that plug is a suspect. Use a basic spark plug tester only after removal to confirm electrical continuity. For the hypothetical rdz4h model, hallmark signs include worn electrode tips, excessive deposits, or a noticeable gap increase. Document these signs and compare them against your vehicle’s service manual to decide whether replacement is warranted.
Preparing for replacement: planning and safety
Before touching a spark plug, set up a clean, well-lit workspace with a cool engine and a stable surface. Gather tools and a replacement plug that matches thread size and heat range. Review your vehicle’s service manual for torque and seating guidance. Safety matters: disconnect the battery, wear eye protection, and avoid touching hot engine parts. A tidy workspace reduces the risk of dropped parts and debris entering the combustion chamber. With preparation complete, you’re ready to proceed to removal and replacement.
Removing the old plug: technique and safety tips
Loosen the boot or coil-on-plug connector carefully to avoid damaging the boot. Use the correct spark plug socket with a rubber insert and a short extension; avoid twisting that could cross-thread the plug. Turn counterclockwise with steady, straight force. If resistance is felt, stop and re-check for cross-threading or dirt. Ground yourself to prevent static discharge and keep the area clean. Once loose, lift the plug straight out to avoid damaging threads.
Installing the new plug: seating, gap, and torque
Inspect the new plug before installation for any shipping damage. If it arrives pre-gapped for your engine, you may skip gap adjustment; otherwise, measure and set the gap to the manufacturer’s specification. Start threading by hand to avoid cross-threading, then snug with a torque-limiting tool according to the vehicle’s spec. A light coat of dielectric grease on the boot underside can ease reassembly, but avoid getting grease on the electrode. Tighten in incremental turns and ensure the plug sits flush without bottoming out.
Gap setting, heat range, and securing the rdz4h plug
Electrode gap and heat range affect combustion quality and plug life. For the rdz4h plug, ensure you’re using the correct heat range and that the gap is within the recommended range for your engine. Re-check the ground electrode under good lighting after installation. If you accidentally over-tighten, re-check the seating depth and threads for damage. Use a torque wrench to confirm your final torque is within the specified range.
Post-install checks and initial startup
Reconnect the ignition coil or boot, reattach any wiring, and reconnect the battery. Start the engine and listen for any abnormal sounds or misfires. Check for rough idle or hesitation during acceleration. If the engine runs smoothly and there are no codes, proceed with a short test drive to verify reliability. After the run, recheck boot seating and clear any codes if necessary.
Common mistakes and maintenance routines
Avoid using excessive force when loosening or tightening plugs. Do not assume you know the gap without measuring. Maintain a regular inspection cadence to catch fouling or wear early. Keep a spare gasket set for your most common vehicles. Finally, log maintenance in your service journal to track plug life and plan future replacements.
Tools & Materials
- Spark plug socket with rubber insert(Size matches plug hex; 3/8 in drive typically works)
- Ratchet wrench with a short extension(Access tight spaces without over-torquing)
- Torque wrench(Use to OEM spec; avoid over-tightening)
- Gap gauge / feeler gauge(Check and adjust electrode gap if needed)
- Anti-seize compound(Only if OEM guidance permits)
- Dielectric grease(Eases boot seating; avoid on electrode)
- Thread cleaner/brush(Use if threads show debris)
- Replacement rdz4h spark plug(New plug matching thread size and heat range)
- Safety gear (gloves, eye protection)(Protect hands and eyes; engines stay dirty)
- Gloves and clean rag(Keep hands clean; wipe threads)

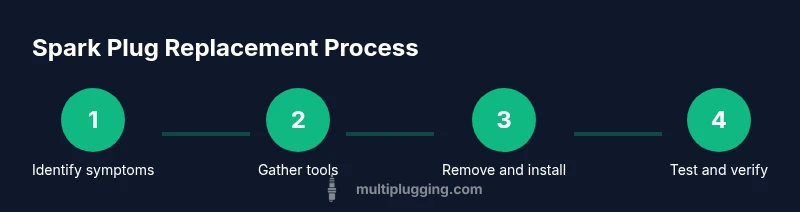

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and safety checks
Cool the engine completely, set up lighting, and clear a clean surface. Gather your replacement plug and required tools. Review the vehicle manual for specific torque guidance and safety notes before touching hot components.
Tip: Always disconnect the battery and wear eye protection before starting. - 2
Disconnect ignition components and access plug
Carefully detach the ignition coil or spark plug boot to expose the plug. Inspect the boot for cracks or wear before proceeding. Maintain a clean area to prevent debris from entering the cylinder.
Tip: Label connectors if you’re working on a multi-cylinder engine to avoid miswiring. - 3
Remove the old plug with the correct socket
Attach the rubber-insert socket to the extension and ratchet. Loosen the plug with a steady, straight motion, avoiding side pressure. Lift the plug straight up once it’s free to prevent thread damage.
Tip: If it resists, stop and re-check alignment to prevent cross-threading. - 4
Inspect threads and gap on the new plug
Check the new plug for any shipping damage. If it’s pre-gapped for your engine, you may skip gap adjustment; otherwise, set the gap using the gauge to the manufacturer’s spec. Clean the thread area on the cylinder head to ensure proper seating.
Tip: Avoid placing dirt into the threads; a quick blast of compressed air helps. - 5
Install new plug and torque to spec
Thread the plug by hand, then tighten with a torque wrench to the specified value. Avoid over-tightening, which can strip threads. If using dielectric grease on the boot, apply sparingly and keep it off the electrode.
Tip: Go in incremental turns and re-check the feel of the seat. - 6
Reconnect components and test engine
Reattach the ignition boot, reconfirm all connections, and reconnect the battery. Start the engine and listen for steady operation without misfires. If codes appear, re-check boot seating and the plug gap.
Tip: Run a short drive to confirm reliability before resuming normal use.
FAQ
What is the rdz4h spark plug?
The rdz4h spark plug is treated here as a fictional model used for instructional purposes. It helps demonstrate a repeatable process for diagnosing, replacing, and tuning spark plugs without tying to a specific real-world part.
The rdz4h plug is a fictional example used for teaching, not a real product.
Should I replace all plugs at once?
If several plugs are wearing similarly, replacing them as a set can prevent misfires and uneven performance. Otherwise, replace the one that shows wear or signs of fouling and monitor others.
If multiple plugs show wear, replace them together; otherwise, address the worst ones first.
How can I tell if a misfire is caused by a plug?
Symptoms include rough idle, misfire codes, and a visibly worn or fouled plug during inspection. If in doubt, perform a plug-by-plug diagnostic test.
Rough idle and a misfire code often point to a plug issue; inspect and test to confirm.
What torque setting should I use for the replacement?
Follow your vehicle’s OEM specifications for torque and seating. Numbers vary by model, so consult the service manual rather than relying on a generic value.
Use the torque specified by your vehicle’s manual.
Can I reuse old spark plugs?
Generally not recommended. Used plugs may have degraded performance or damage worn threads. Replace with a new one when in doubt.
Usually better to replace with a new plug rather than reuse the old one.
Is anti-seize always recommended?
Anti-seize should be used only if specified by the vehicle manufacturer. Misapplying it can affect torque readings and lead to over-tightening.
Only use anti-seize if the manual says so, otherwise skip it.
Watch Video
Main Points
- Plan and prep with the right tools before starting.
- Use correct gap and torque to avoid damage and ensure performance.
- Verify engine startup and ride quality after replacement.
- Document maintenance for future reference.
